Dometic DMC4101 Product # 936100409 Parts Diagram · Cabinet Exterior

Refrigerator · 5 assemblies · 5 diagram sheets · 1 part · by Andrew Strick, mobile RV technician

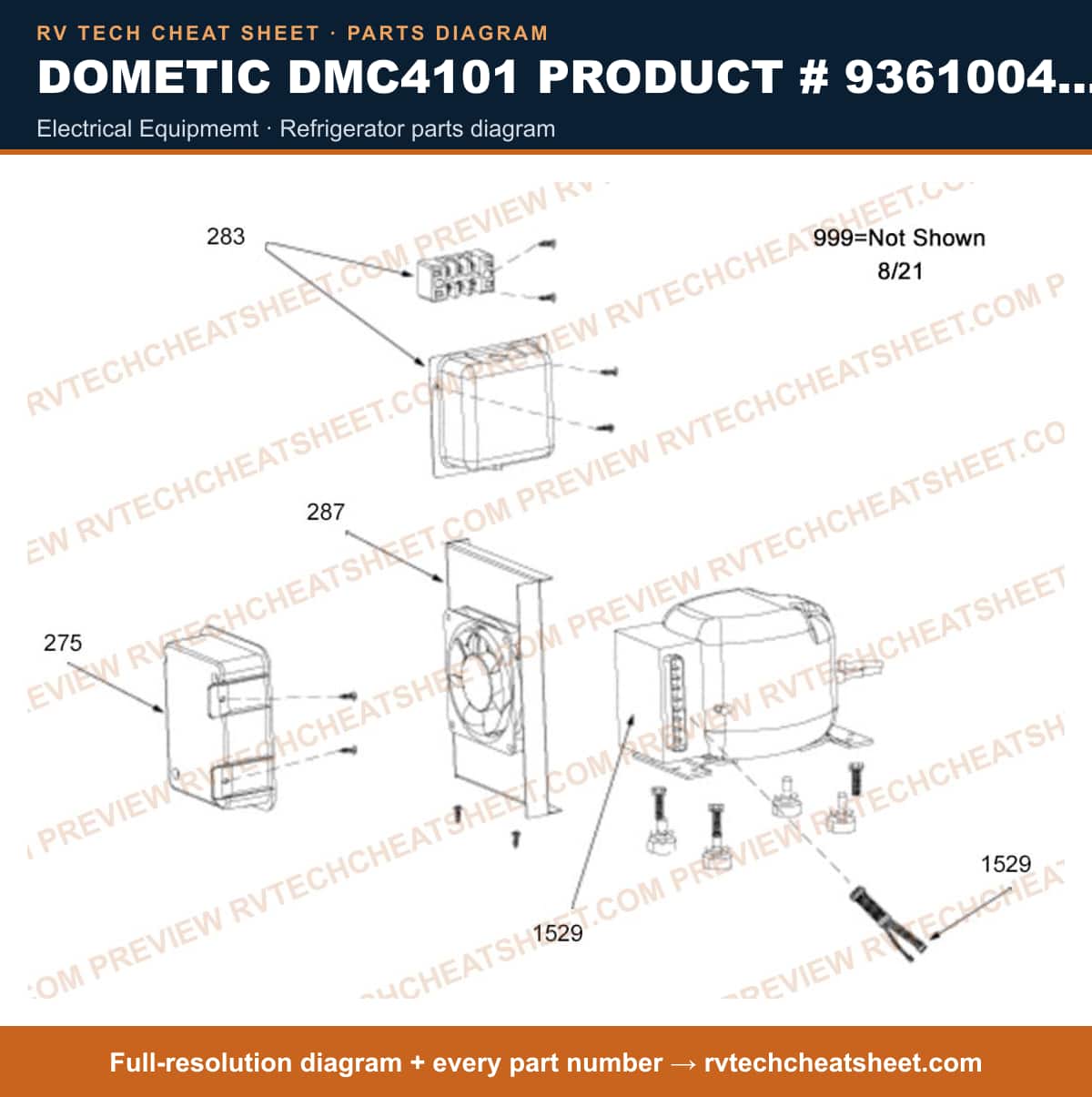

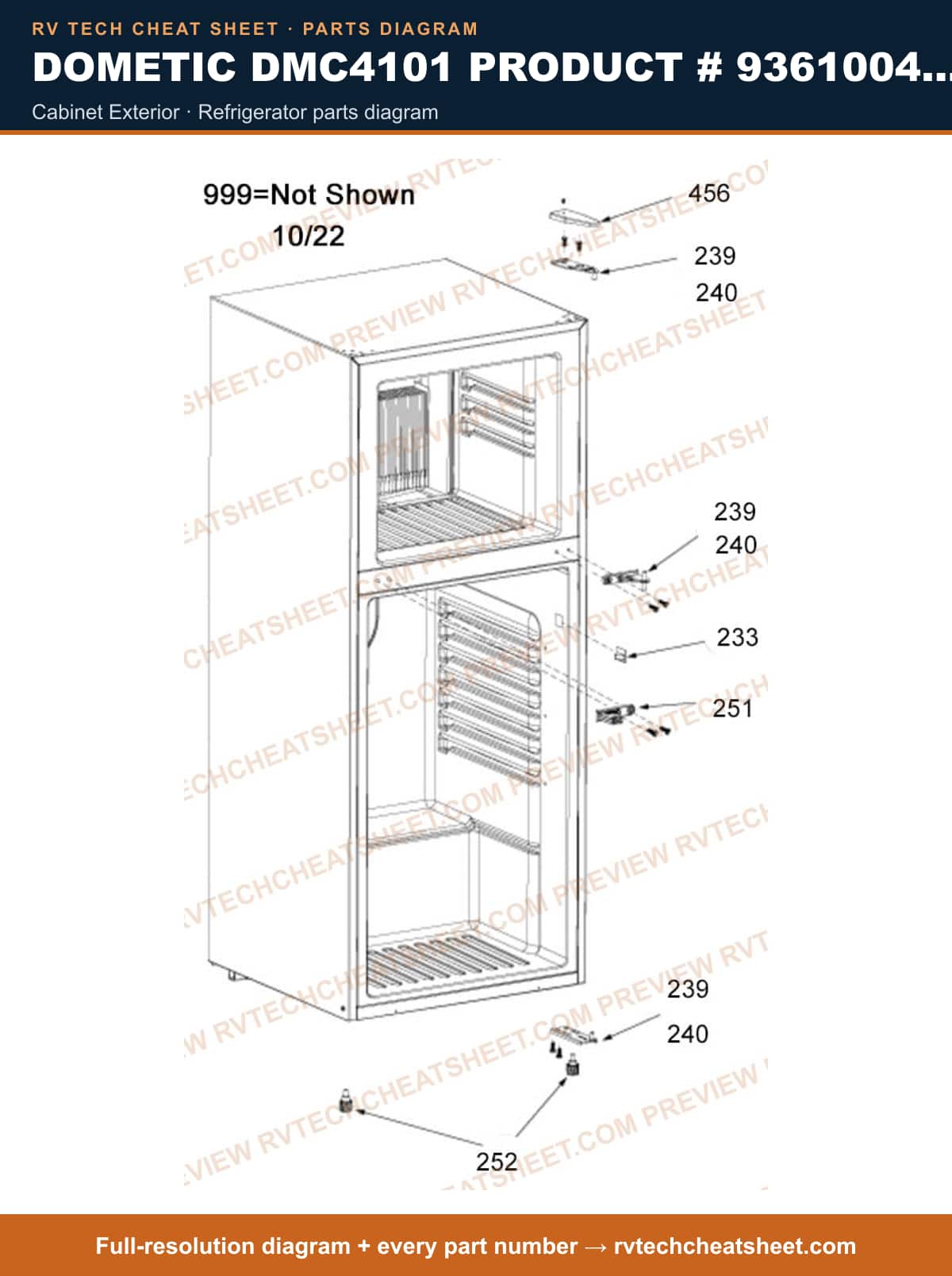

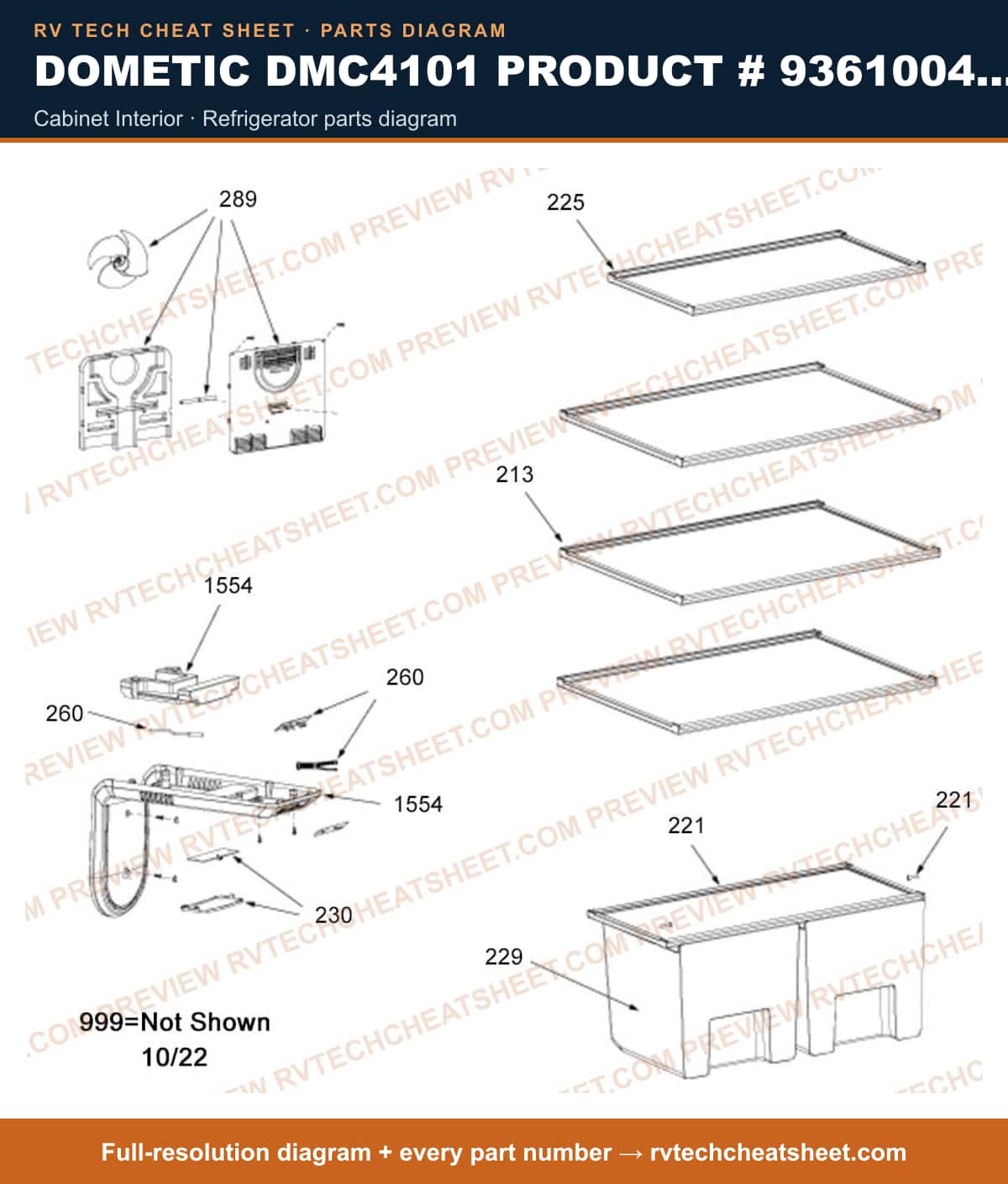

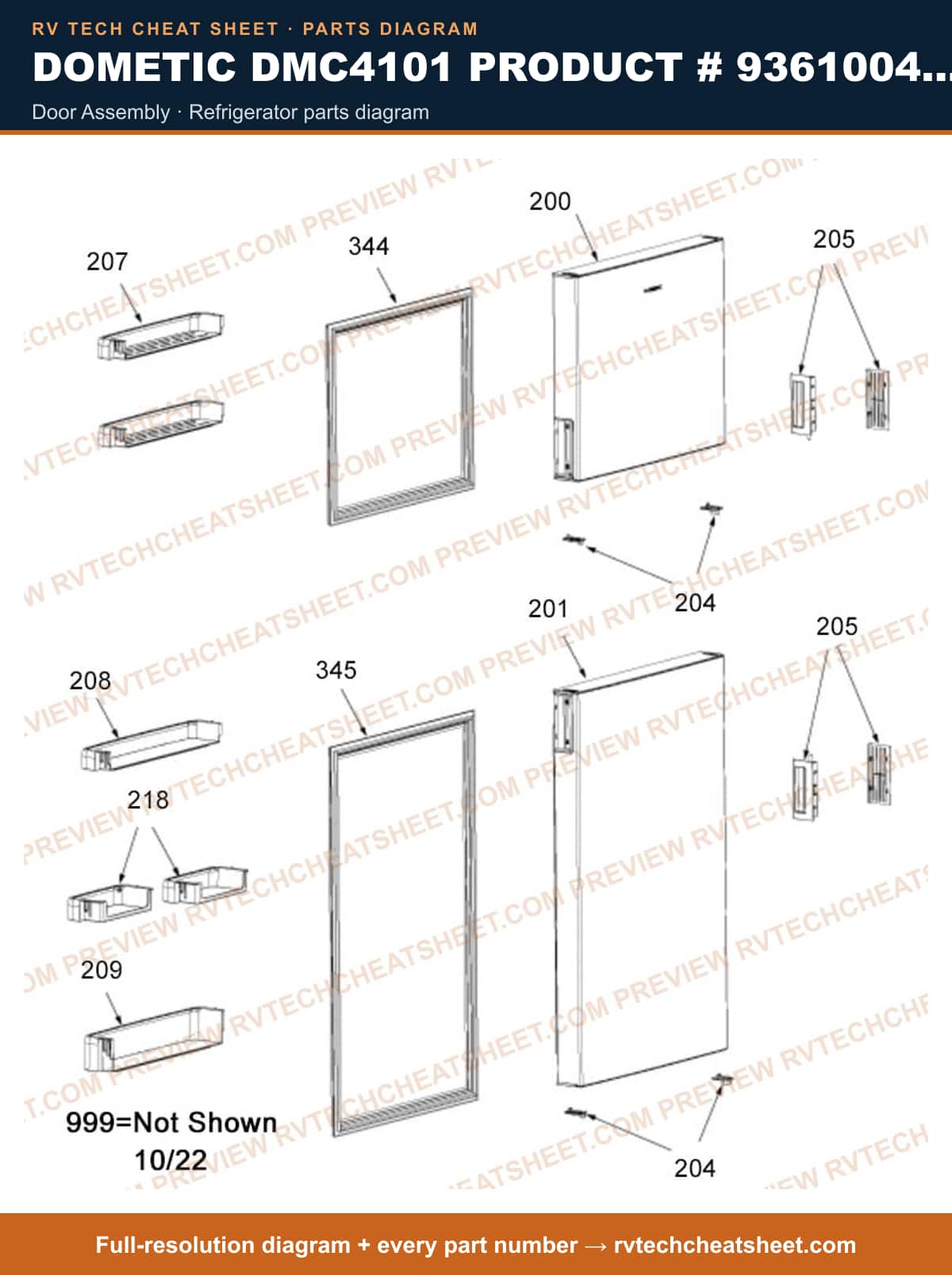

OEM exploded parts diagrams for the Dometic DMC4101 Product # 936100409 RV refrigerator: 5 assemblies (Cabinet Exterior, Door Assembly, Replacement, Cabinet Interior, Electrical Equipmemt) and 1 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
