Dometic DMH1072 Product # 958638246 Parts Diagram · Drawer Assembly

Refrigerator · 7 assemblies · 7 diagram sheets · 134 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DMH1072 Product # 958638246 RV refrigerator: 7 assemblies (Drawer Assembly, Cabinet Exterior, Door Assembly, Replacement Refrigerator, Burner & Controls and more) and 134 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Drawer Assembly

Components

19 items

1. #DRAWER HANDLE ASSEMBLY SVC KIT MFR # 3313470151
2. #WIRE BASKET SVC KIT, FREEZER DRAWER MFR # 3313470153
3. #FREEZER DRAWER ASM SVC KIT MFR # 3313470220
4. #TRIM KIT, DOOR/DRAWER TOP/BOTTOM, BLACK MFR # 3313470222
5. #DRAWER DECORATION STRIP SVC KIT MFR # 3313470225
6. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
7. #RACK & PINION GEAR SVC KIT MFR # 3313470242
8. #SLIDE BRKT SVC KIT, GAVL STL/PC MFR # 3313470238
9. #BASKET SLIDE/SIDE MOUNT KIT MFR # 3313470239
10. #BASKET SLIDE/DRAWER SIDE MOUNT KIT MFR # 3313470240
11. #DRAWER SLIDE COVER SVC KIT MFR # 3313470244
12. #AXLE-RACK/PINION BRACKET SVC KIT MFR # 3313470243
13. #DRAWER SLIDE MOUNTING RAIL SVC KIT MFR # 3313470231
14. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DMH1072/ NDA1402/ NEA1402/ RM1350/ RM3762/ RM3962 Model Refrigerator; Black MFR # 3858071024
15. #HANDLE SPRING SVC KIT, DRAWER MFR # 3313470250
16. #FREEZER DRAWER PANEL ASM KIT MFR # 3313470079
17. #DOOR PANEL, FLAT, BLACK FOR SUPER HYBRID MFR # 3106863214C
18. #DOOR PANEL, FLAT, WOODGRAIN FOR SUPER HYBRID MFR # 3106863214B
19. #DOORS RV; K,DOOR,PANEL,SS,DMH1072 MFR # 3313470164

Cabinet Exterior

Components

21 items

1. #DRAIN PAN SVC KIT, SNAP IN MFR # 3313470212
2. #FIN PACK SVC KIT, L SIDE-LACQ MFR # 3313470201
3. #FIN PACK SVC KIT, R SIDE-LACQ MFR # 3313470202
4. #SPACER SVC KIT, NYLON 3/16 MFR # 3313470241
5. #DRAWER LOCK SVC KIT, HYB MFR # 3313470154
6. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
7. #HINGE SVC KIT, TOP, LH, PNTD MFR # 3313470205
8. #HINGE SVC KIT, TOP, RH, PNTD MFR # 3313470206
9. #FIN PACK COVER SVC KIT, EXTRUS MFR # 3313470230
10. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
11. #SHIM SVC KIT, 3MM, SS MFR # 3313470251
12. #PLUG SVC KIT, BLACK FOR 5MM HOLE MFR # 2931284034
13. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
15. #DRAIN PIPE MFR # 3851041016
16. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
17. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
18. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
19. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
20. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
21. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

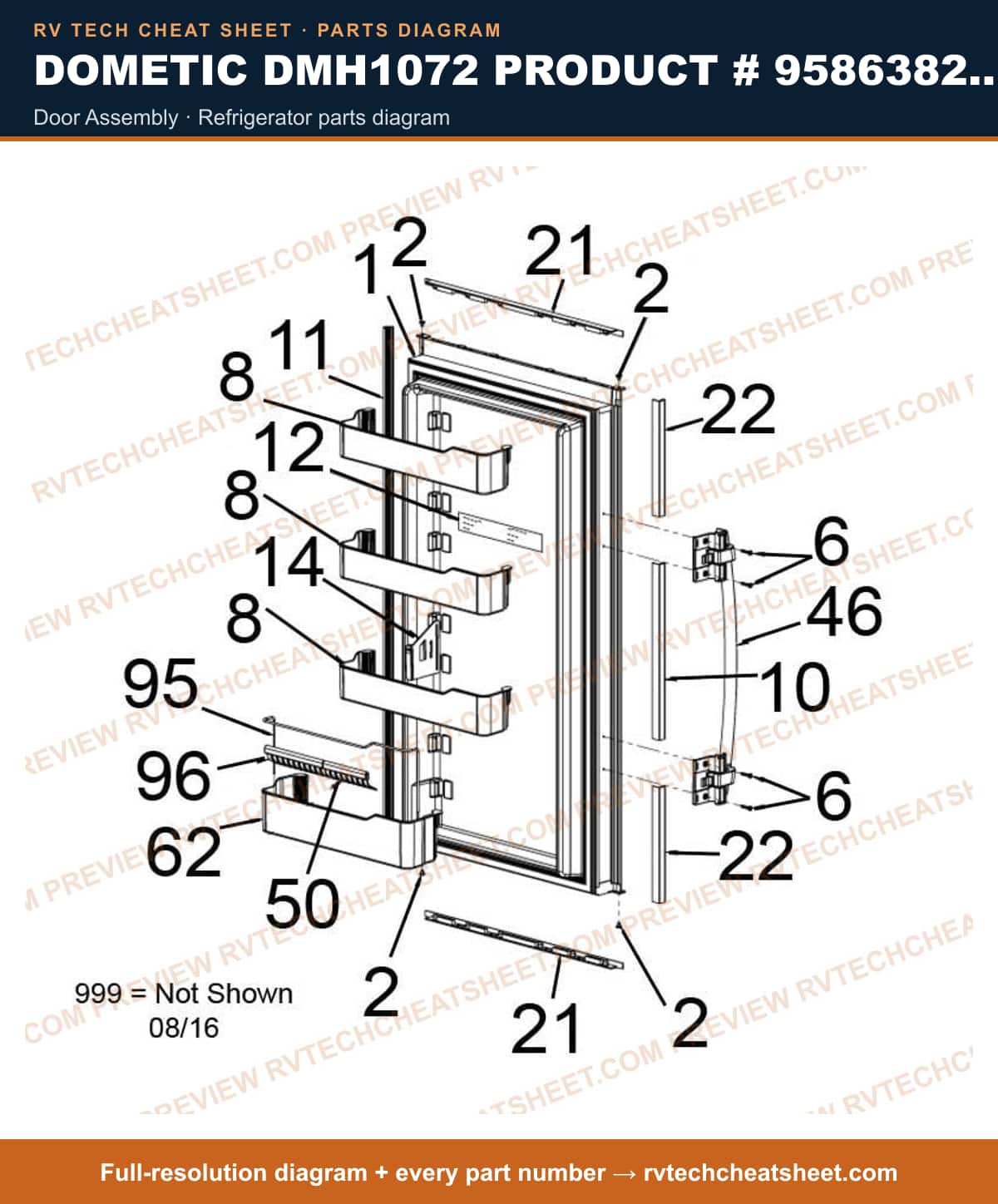

Door Assembly

Components

17 items

1. #DOOR ASSEMBLY SVC KIT, FF, 10CF-HYB MFR # 3313470078
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #S,SCREW,PT,5.26MM,BLK-6/8/10CF MFR # 3858000049
4. #Refrigerator Shelf; Replacement For Dometic DMH1072/ RM3762/ RM3962 Model Refrigerator; Door Shelf; Transparent MFR # 3850974019
5. #DECORATION STRIP KIT, FF DR, TOP/BTM MFR # 3313470224
6. #DECORATION STRIP KIT, FF DOOR MFR # 3313470226
7. #LABEL MFR # 3851235014
8. #Refrigerator Door Chain; Replacement For Dometic RM3962/ RM3762 Model Refrigerators MFR # 3851206015
9. #TRIM KIT, DOOR/DRAWER TOP/BOTTOM, BLACK MFR # 3313470222
10. #DECORATION STRIP KIT, FF, DR, MIDDLE MFR # 3313470223
11. #DOOR HANDLE SVC KIT, FF MFR # 3313470152
12. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
13. #RACK MFR # 3850976014
14. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
15. #DOOR PANEL, FLAT, BLACK FOR SUPER HYBRID MFR # 3106863214C
16. #DOORS RV; K,DOOR,PANEL,SS,DMH1072 MFR # 3313470164
17. #DOOR PANEL, FLAT, WOODGRAIN FOR SUPER HYBRID MFR # 3106863214B

Replacement Refrigerator

Components

5 items

1. #APPLIANCE COMPONENTS RV; REFR,9CF,R,HYBRID,2-WAY,PNL MFR # DMH1072RB
2. #DOOR PANEL, FLAT, BLACK FOR SUPER HYBRID MFR # 3106863214C
3. #DOORS RV; K,DOOR,PANEL,SS,DMH1072 MFR # 3313470164
4. #APPLIANCE COMPONENTS RV; REFR,9CF,L,HYBRID,2-WAY,PNL MFR # DMH1072LB
5. #DOOR PANEL, FLAT, WOODGRAIN FOR SUPER HYBRID MFR # 3106863214B

Burner & Controls

Components

34 items

1. #RUBBER TRIM SVC KIT, 85MM MFR # 3313470246
2. #RUBBER TRIM SVC KIT, 125MM MFR # 3313470247
3. #FUSE BRACKET SVC KIT, AC MFR # 3313470237
4. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
5. #AC POWER CORD SVC KIT MFR # 2002699235
6. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
7. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
8. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
9. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
10. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
11. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
12. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
13. #NO GENERIC NAME;;REFRIGERATOR - BURNER TUBE ONLY - D MFR # 2007484047
14. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
15. #ELECTRODE MFR # 2932781012
16. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
17. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
18. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
20. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
21. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
22. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
23. #2954542094 MFR # 2954542094
24. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
25. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
26. #3858022019 MFR # 3858022019
27. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
28. #ABSORP FAN WIRE ASM SVC KIT MFR # 3313470228
29. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
30. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM3762 MFR # 3851474019 Superseded: see description
31. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
32. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
33. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
34. #POWER MODULE WIRE ASM KIT, FUSED 15A MFR # 2954553042

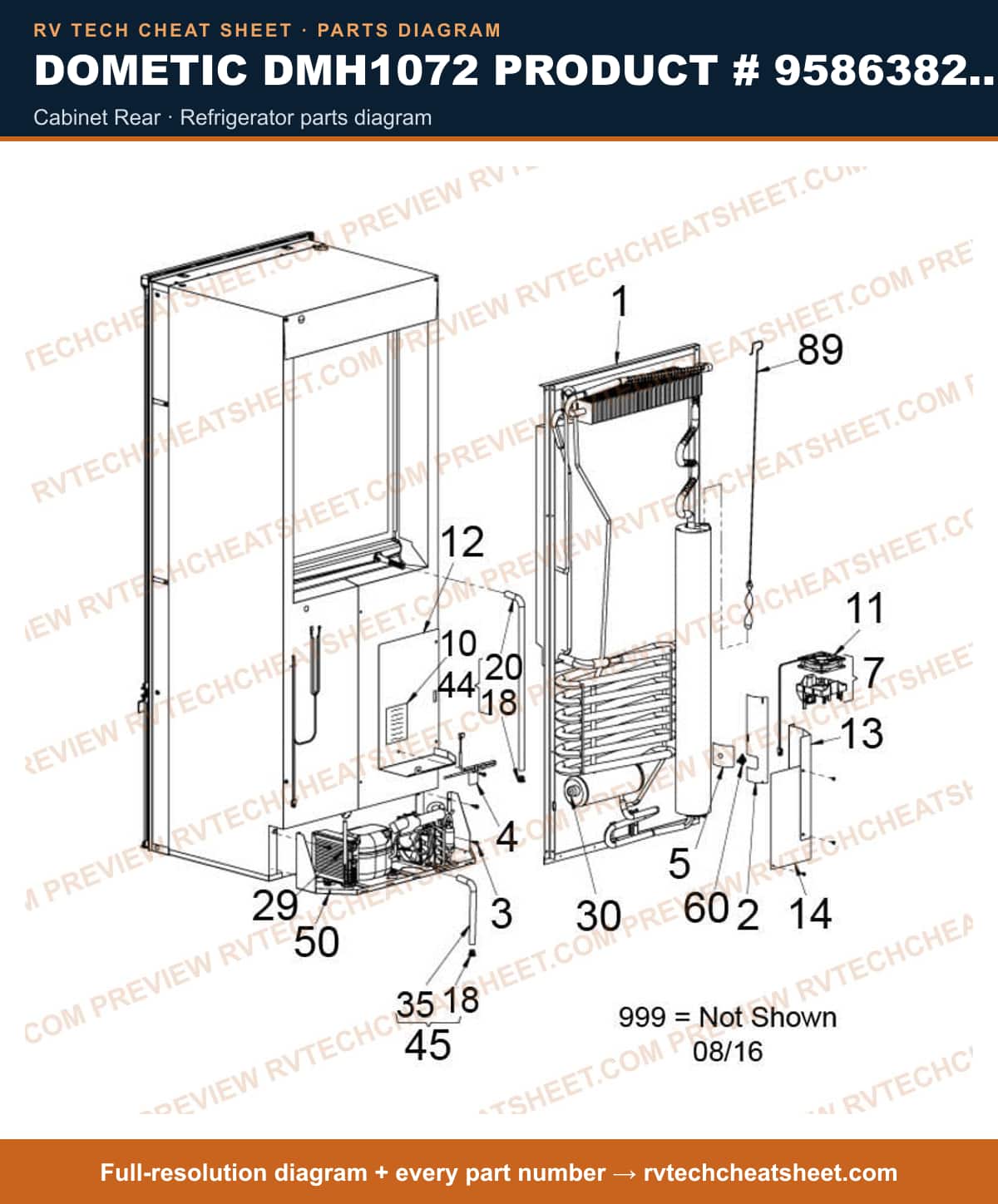

Cabinet Rear

Components

20 items

1. #COOLING UNIT SVC KIT, 626 HYB MFR # 3313470199
2. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
3. #SCREW 4.8 X 16 MFR # 3858068012
4. #COVER, HEATER MFR # 3851397012
5. #ABSORBER FAN ASM SVC KIT MFR # 3313470204
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #Refrigerator Cooling Fan Assembly; Replacement For Dometic DMH1072 Series Refrigerators; Square; 120 Volt AC MFR # 3311360000
8. #COVER PLATE MFR # 3851300016
9. #COVER PLATE,SIDE MFR # 3851301014
10. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012
11. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
12. #Refrigerator Drain Tube; Fits All Dometic RV Refrigerates; 54 Inch Length; Also Use New Number 3316102.9019 MFR # 2932749159 Superseded: see description
13. #COMPRESSOR CONTROL WIRE ASM KIT MFR # 3313470233
14. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
15. #S,DRAIN HOSE,580MM,BLK MFR # 2932749167
16. #DRAIN HOSE ASM SVC KIT, LONG MFR # 3313470203
17. #DRAIN HOSE SVC KIT, SHORT MFR # 3313470219
18. #COMP/EVAP ASM SVC KIT MFR # 3313470155
19. #Refrigerator Power Cord Fuse; Use With Dometic DM2652/ RM1350/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ RM3762/ RM3962 Refrigerators MFR # 3313711000 Superseded: see description
20. #2932667039 MFR # 2932667039

Cabinet Interior

Components

28 items

1. #CRISPER, CLEAR SMALL MFR # 3850992011
2. #Refrigerator Door Bin; Replacement For Dometic RM3962/ RM3762 Model Refrigerator; Lower Door; Clear MFR # 3850975016
3. #DRAWER SLIDE SVC KIT MFR # 3313470209
4. #COMPRESSOR CONTROL BOARD SVC KIT MFR # 3313470215
5. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
6. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
7. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
8. #RACK SVC KIT, R&P GEAR LEFT MFR # 3313470216
9. #RACK SVC KIT, R&P GEAR-RIGHT MFR # 3313470217
10. #BUMPER SVC KIT, BASKET STOP MFR # 3313470218
11. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
12. #MILK SHELF SVC KIT, WIRE MFR # 3313470211
13. #LIGHT COVER SVC KIT, CLEAR MFR # 3313470227
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #S,BIN,CRISPER,LG,CLR-7/9CF MFR # 3850993019
17. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
18. #ABSORP CONTROL BOARD SVC KIT MFR # 3313470213
19. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
20. #LIGHT ASM SVC KIT, LED MFR # 3313470150
21. #DRAWER THERMISTOR WIRE ASM KIT MFR # 3313470232
22. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
23. #EYEBROW/CONTROL BOARD SVC KIT MFR # 3313470214
24. #COMP/EVAP ASM SVC KIT MFR # 3313470155
25. #CABLE CLAMP KIT, .19 DIA, BLACK MFR # 3313470252
26. #THERMISTOR HOLDER SVC KIT MFR # 3313470210
27. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
28. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
