Dometic DMH1072 Product # 958638247 Parts Diagram · Cabinet Interior

Refrigerator · 5 assemblies · 5 diagram sheets · 22 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DMH1072 Product # 958638247 RV refrigerator: 5 assemblies (Cabinet Interior, Cabinet Exterior, Replacement, Electrical Equipmemt, Door Assembly) and 22 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

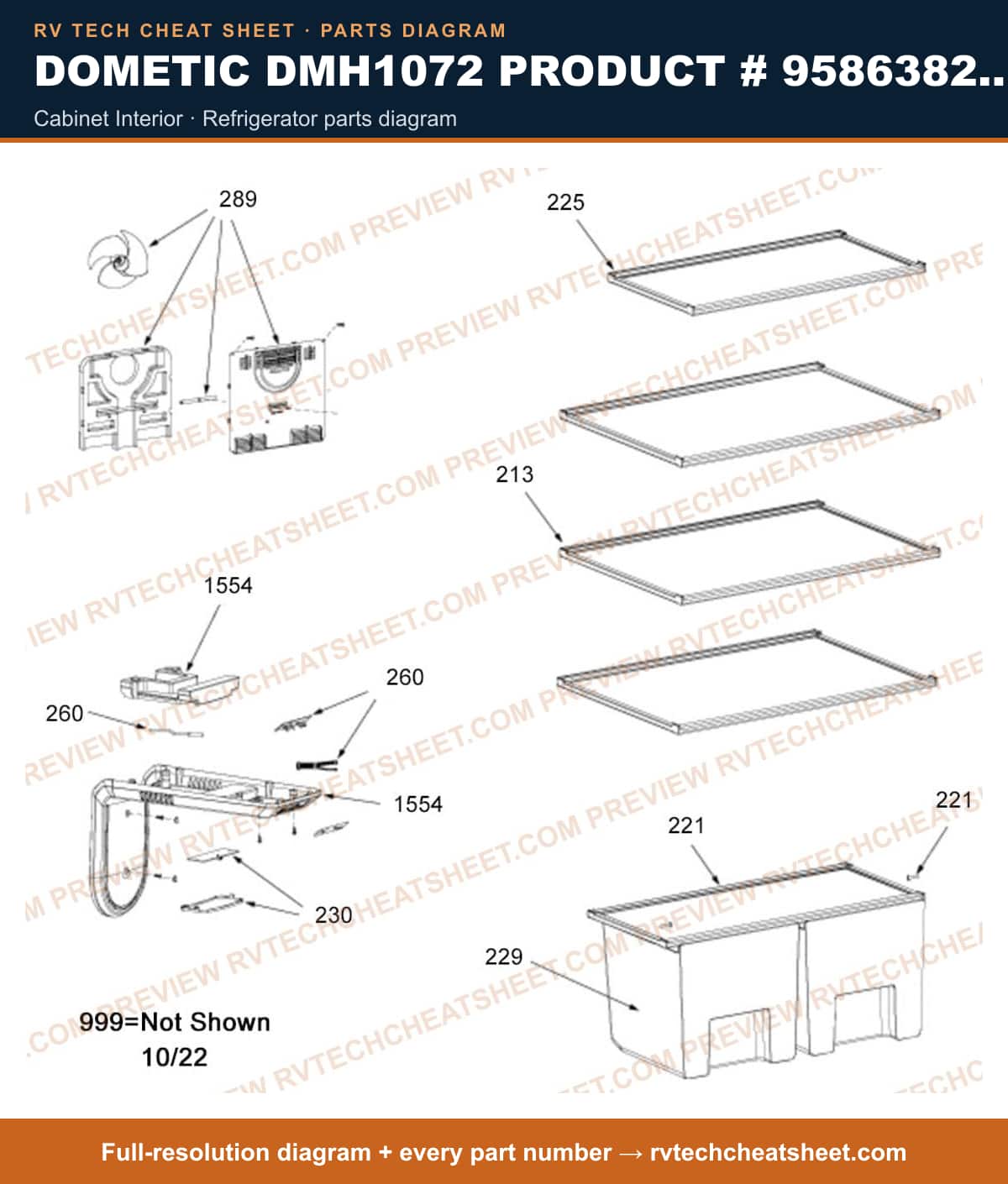

Cabinet Interior

Components

8 items

1. #APPLIANCE COMPONENTS RV; FRESH FOOD SHELF MFR # 4453000645
2. #Crisper Cover and Rivet MFR # 4453000646
3. #FRESH FOOD MIDDLE SHELF MFR # 4453000644
4. #CRISPERT BINS MFR # 4453000647
5. #LED,LED Lens and Door Switch MFR # 4453000638
6. #Temp. Control Board with Wire Assembly MFR # 4453000636
7. #Dometic RM2193 RM2652 Refrigerator Thermistor Temperature Sensor MFR # 4453000635
8. #Fresh Food Compartment Housing MFR # 4453000637

Cabinet Exterior

Components

2 items

1. #LED,LED Lens and Door Switch MFR # 4453000638
2. #Hinges,Bushings,Airing Lock,Door Stop ,Feet MFR # 4453000642

Replacement

Components

1 item

1. #DMC4101,10CF,RH,SS,12V,COMP,1PK MFR # 9600026948

Electrical Equipmemt

Components

4 items

1. #AIR CONDITIONERS RV; POWER MODULE MFR # 4453000653
2. #Terminal Block with Cover MFR # 4453000652
3. #COMPRESSOR FAN MFR # 4453000654
4. #Compressor Controller with Wire Assembly MFR # 4453000655

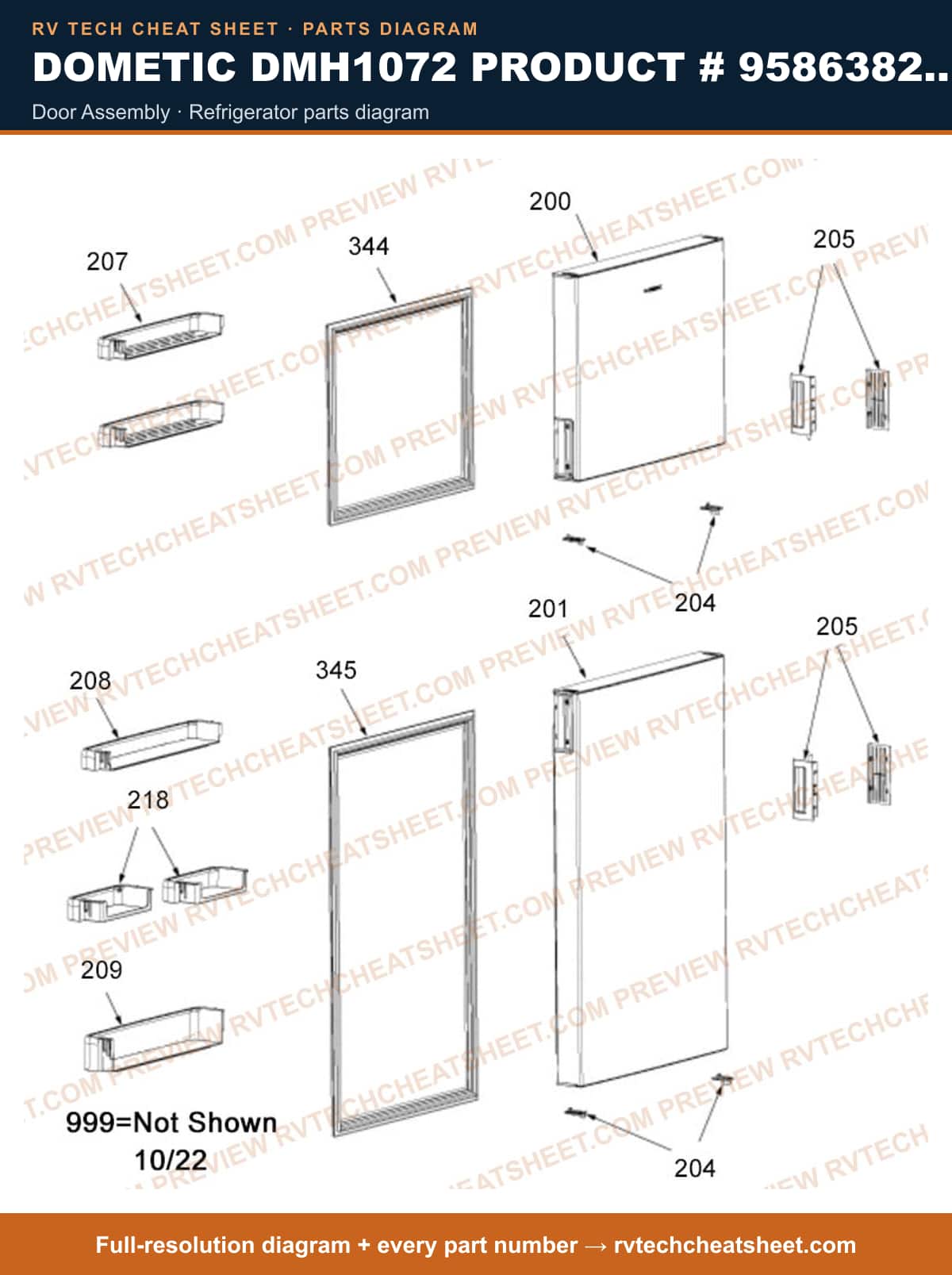

Door Assembly

Components

9 items

1. #Door Assembly,Freezer with Bushing MFR # 4453000075
2. #Door Assembly,Fresh Food with Bushing MFR # 4453000076
3. #Hinges,Bushings,Airing Lock,Door Stop ,Feet MFR # 4453000642
4. #Door Handles MFR # 4453000641
5. #Freezer Door Bin MFR # 4453000631
6. #F.F. door bin I MFR # 4453000628
7. #F.F. door bin ? MFR # 4453000626
8. #F.F. door bin ? MFR # 4453000627
9. #Fresh Food Door Gasket and Freezer Door Gasket MFR # 4453000643
