Dometic DMR702 Product # 936000768 Parts Diagram · Replacement

Refrigerator · 2 assemblies · 2 diagram sheets · 84 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DMR702 Product # 936000768 RV refrigerator: 2 assemblies (Replacement, Exploded View) and 84 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement

Components

1 item

1. #Refrigerator; Renaissance II; Dual Compartment Refrigerator With Freezer; Permanent Bolt-In; Left Hand Hinge; 7 Cubic Foot; 53.74 Inch Height x 23.70 Inch Width x 24.25 Inch Depth Recess Dimension; 54-3/4 Inch Height x 25-1/16 Inch Width x 26-5/16 Inch Depth Overall Dimension; 2.7 Amp/ 120 Volt AC Or 12 Volt DC; 2-Way Alternating Current; Without Ice Maker; LCD Panel Control; With LED Cabinet Light; Stainless Steel Door With Black Trim; With Bottle Holder/ Shelf Rail MFR # DMR702LB

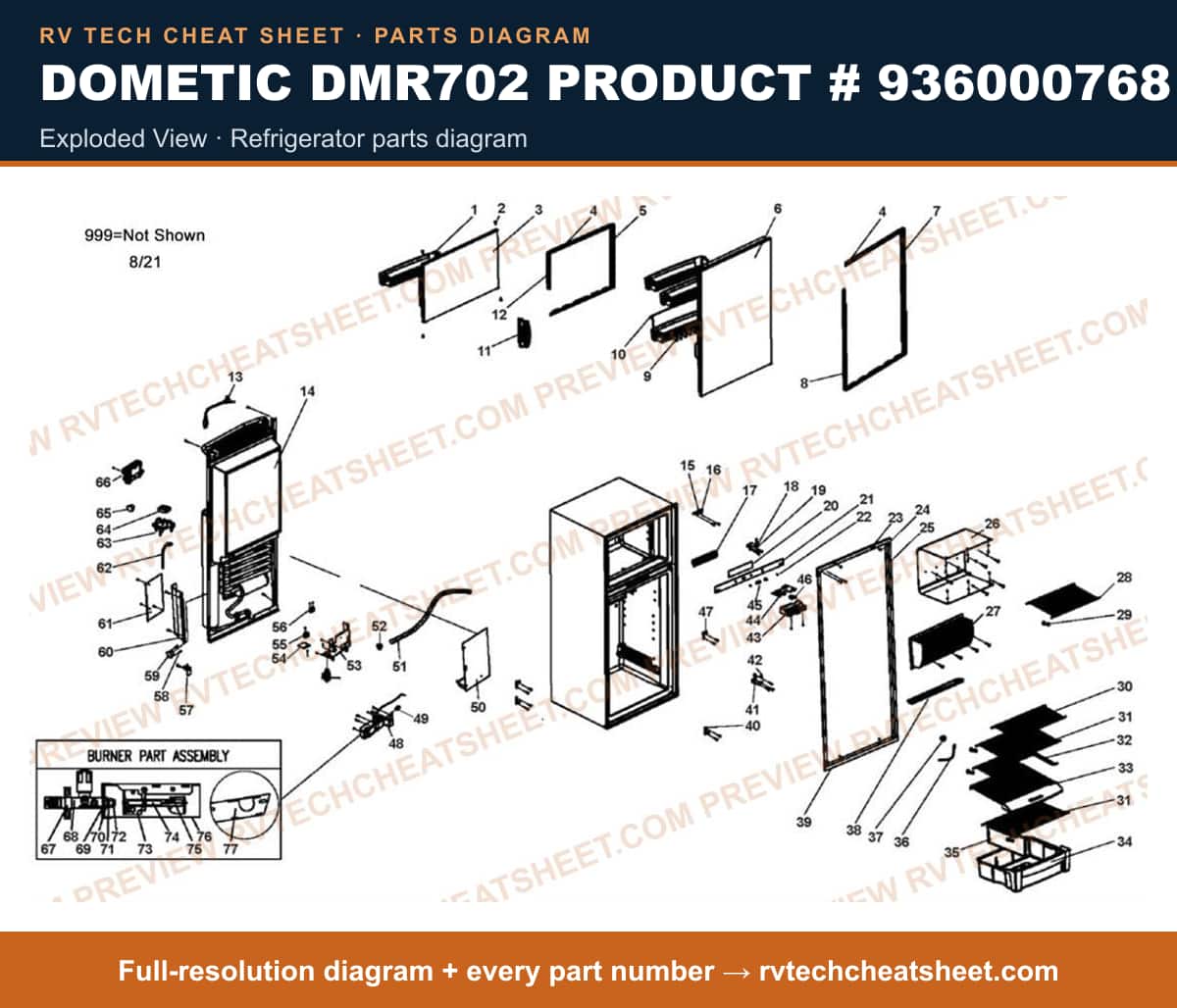

Exploded View

Components

83 items

1. #Refrigerator Door Bin; Replacement For Dometic DMR702 Series; Upper Door; 18-3/8 Inch Length x 2-3/4 Inch Depth x 3-7/8 Inch Height; Clear; Plastic MFR # 385151001
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #door freezer compartment MFR # 4450008362
4. #Refrigerator Trim; Replacement For Dometic DMR702 Series Refrigerator; Bottom Of Freezer Section MFR # 4450007732
5. #APPLIANCE COMPONENTS RV; REFRIGERATOR - TRIM - HANDLE SIDE T MFR # 3851509012
6. #retainer bottles MFR # 385158501
7. #fixing clamp bottles MFR # 385151801
8. #Dometic 8-Series Refrigerator Main Control Board MFR # 4450018323
9. #S,CORD,AC POWER,1000MM,7,9,13, MFR # 2002699219
10. #cooling unit complete MFR # 4450008360
11. #APPLIANCE COMPONENTS RV; HINGE UPPER MFR # 3851563019
12. #hinge pin upper MFR # 293241501
13. #cabinet electronic MFR # 385152203
14. #APPLIANCE COMPONENTS RV; HINGE MIDDLE MFR # 3851564017
15. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
16. #PCB-A DISPLAY MFR # 4450009109
17. #Refrigerator Power Supply Circuit Board; Replacement For Dometic DMR702 Series Refrigerator MFR # 4450010940
18. #Refrigerator Optical Control Board Housing; Replacement For Dometic DMR702 Series Refrigerator MFR # 4450007762
19. #DISPLAY - RV; S, CVR, DISPLAY PCB, NEW LOGO MFR # 4450014859
20. #BOLT D=4.0X11MM MFR # 4450005802
21. #bar upper MFR # 385152001
22. #cover cap plastic MFR # 4450007759
23. #SIDE LIST MFR # 385151601
24. #FREEZER COMPARTMENT MFR # 3851576011
25. #rear-evaporator MFR # 4450003411
26. #GRATING FREEZER COMPARTMENT MFR # 385156901
27. #retainer compartment MFR # 4450007748
28. #grating fridge MFR # 385156902
29. #NO GENERIC NAME; WIRE SHELF MFR # 385156903
30. #compartment dairy MFR # 385155501
31. #COMPARTMENT VEGETABLES MFR # 385155401
32. #APPLIANCE COMPONENTS RV; REFRIGERATOR - CRISPER DRAWER - FOR MFR # 3851511018
33. #APPLIANCE COMPONENTS RV; DIVIDER MFR # 3851552012
34. #NTC MFR # 385105903
35. #THERMISTOR HOLDER MFR # 4450007751
36. #PLUG MFR # 200230100
37. #DRIP PROTECTION MFR # 3851553010
38. #APPLIANCE COMPONENTS RV; REFRIGERATOR - BOTTOM DOOR TRIM/DEC MFR # 3851519011
39. #APPLIANCE COMPONENTS RV; TWIST PROTECTION MFR # 4450007753
40. #APPLIANCE COMPONENTS RV; HINGE LOWER MFR # 3851564025
41. #APPLIANCE COMPONENTS RV; PIN LOWER MFR # 3850269014
42. #APPLIANCE COMPONENTS RV; REFRIGERATOR - LIGHT HOUSING - 3851 MFR # 3851574016
43. #Refrigerator Light Bulb; Replacement For Dometic DMR702 Series Refrigerator MFR # 4450010552
44. #push button MFR # 4450007763
45. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
46. #protection MFR # 4450007755
47. #RETAINER SOLENOID VALVE MFR # 385037701
48. #PROTECTIVE PLATE MFR # 293112601
49. #COVER PLATE MFR # 3851300016
50. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
51. #DRAIN HOSE MFR # 4450017567
52. #DISCHARGE PIPE PLUG MFR # 293211501
53. #CAP, DRAIN HOSE MFR # 4450017252
54. #RETAINER ELECTRIC MFR # 385147401
55. #INLET PLATE MFR # 4450005050
56. #3858022019 MFR # 3858022019
57. #APPLIANCE COMPONENTS RV; S, TERMINAL BLOCK/WIRE PROT, VL3 MFR # 3858022027
58. #ANTI-STRAIN CLIP MFR # 293234201
59. #RETAINER THERMAL CUT-OUT MFR # 385139601
60. #RIVET MFR # 3858001070
61. #safety thermal switch MFR # 4450001841
62. #COVER PLATE,SIDE MFR # 3851301014
63. #COVER PLATE BACK MFR # 385130201
64. #S,HEATER,120V,325W-7/9CF MFR # 3850644612
65. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
66. #RETAINER VENTILATOR MFR # 385157301
67. #RETAINER, VENTILATOR MFR # 4450011509
68. #ventilator MFR # 4450009628
69. #APPLIANCE COMPONENTS RV; FAN MFR # 4450001818
70. #Dometic RM2652 Refrigerator Cooling Unit Assembly MFR # 4450001848
71. #Dometic Series 8 Refrigerator Door Bin White MFR # 3851331011
72. #SOLENOID VALVE MFR # 293261501
73. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
74. #nut copper MFR # 4450003722
75. #WASHER MFR # 200745700
76. #JET COMPLETE MFR # 200741921
77. #RUBY JET MFR # 4450001960
78. #RETAINER TUBE MFR # 293065204
79. #electrode MFR # 4450010945
80. #ELECTRODE MFR # 2932781012
81. #NO GENERIC NAME;;REFRIGERATOR - BURNER TUBE ONLY - D MFR # 2007484047
82. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
83. #COVER GAS BURNER MFR # 293266101
