Dometic DMR702 Product # 936000769 Parts Diagram · Replacement

Refrigerator · 5 assemblies · 5 diagram sheets · 92 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DMR702 Product # 936000769 RV refrigerator: 5 assemblies (Replacement, Burner Asm, Door Assembly, Cabinet Interior, Cooling Unit & Controls) and 92 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement

Components

4 items

1. #Refrigerator; Renaissance II; Dual Compartment Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 7 Cubic Foot; 53.74 Inch Height x 23.70 Inch Width x 24.25 Inch Depth Recess Dimension; 54-3/4 Inch Height x 25-1/16 Inch Width x 26-5/16 Inch Depth Overall Dimension; 2.7 Amp/ 120 Volt AC Or 12 Volt DC; 2-Way Alternating Current; Without Ice Maker; LCD Panel Control; With LED Cabinet Light; Stainless Steel Door With Black Trim; With Bottle Holder/ Shelf Rail; Also Use New Number DMR702RB-D MFR # DMR702RBC Superseded: see description
2. #Refrigerator; Renaissance II; Dual Compartment Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 7 Cubic Foot; 53.74 Inch Height x 23.70 Inch Width x 24.25 Inch Depth Recess Dimension; 54-3/4 Inch Height x 25-1/16 Inch Width x 26-5/16 Inch Depth Overall Dimension; 2.7 Amp/ 120 Volt AC Or 12 Volt DC; 2-Way Alternating Current; Without Ice Maker; LCD Panel Control; With LED Cabinet Light; Stainless Steel Door With Black Trim; With Bottle Holder/ Shelf Rail; Also Use New Number DMR702RB-E MFR # DMR702RBD Superseded: see description
3. #Refrigerator; Renaissance II; Dual Compartment Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 7 Cubic Foot; 53.74 Inch Height x 23.70 Inch Width x 24.25 Inch Depth Recess Dimension; 54-3/4 Inch Height x 25-1/16 Inch Width x 26-5/16 Inch Depth Overall Dimension; 2.7 Amp/ 120 Volt AC Or 12 Volt DC; 2-Way Alternating Current; Without Ice Maker; LCD Panel Control; With LED Cabinet Light; Stainless Steel Door With Black Trim; With Bottle Holder/ Shelf Rail; Also Use New Number DMR702RB-C MFR # DMR702RB Superseded: see description
4. #REFRIGERATOR, 7CF, 2-WAY MFR # DMR702

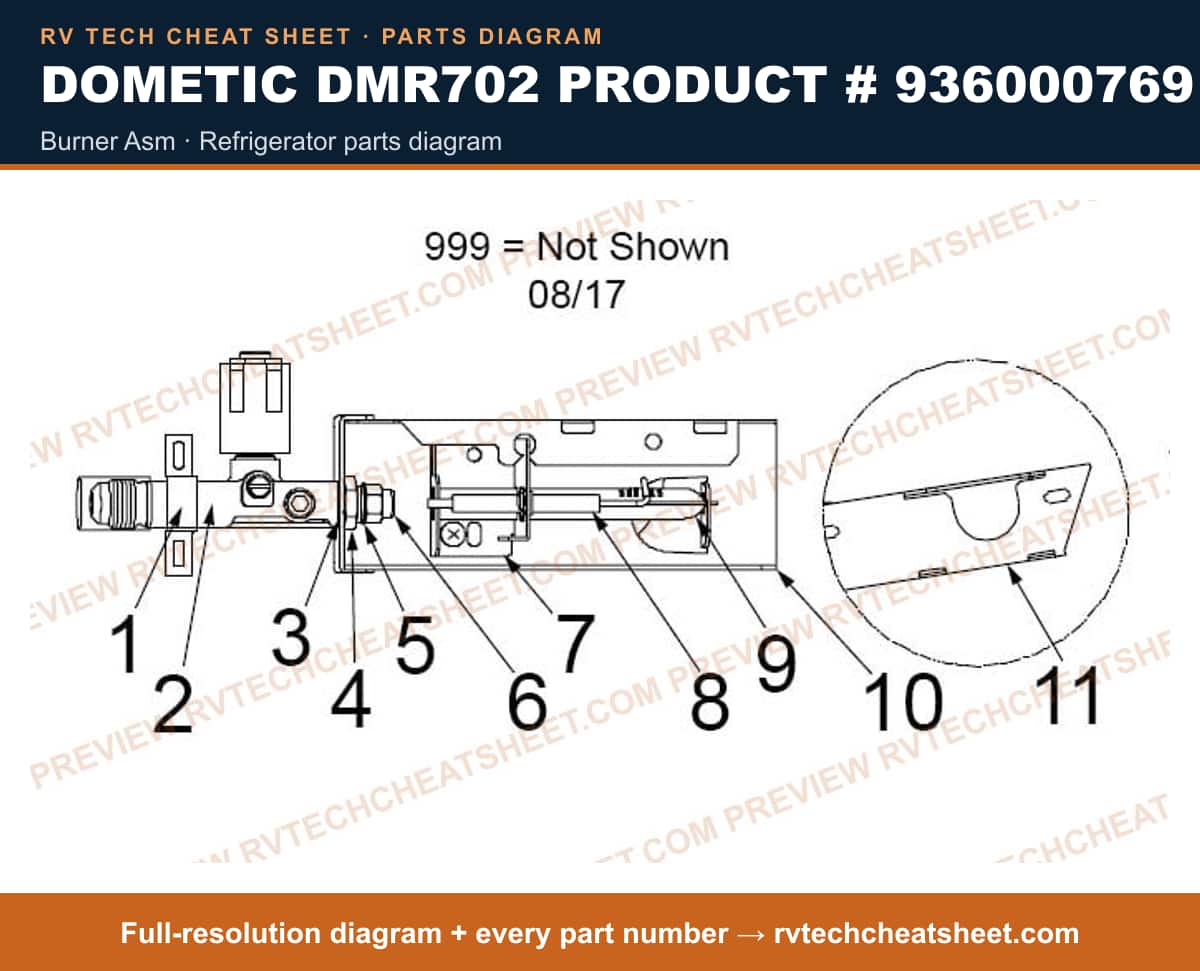

Burner Asm

Components

11 items

1. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
2. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
3. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
4. #nut copper MFR # 4450003722
5. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
6. #RUBY JET MFR # 4450001960
7. #BURNER TUBE BRACKET KIT MFR # 2930652041
8. #ELECTRODE MFR # 2932781012
9. #S,BURNER TUBE ASM,NDR1492 MFR # 0955001672
10. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
11. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016

Door Assembly

Components

18 items

1. #Refrigerator Door Bin; Replacement For Dometic DMR702 Series; Upper Door; 18-3/8 Inch Length x 2-3/4 Inch Depth x 3-7/8 Inch Height; Clear; Plastic MFR # 385151001
2. #Refrigerator Door Bin; Replacement For Dometic DMR702 Series; Upper Door; 18-3/8 Inch Length x 2-3/4 Inch Depth x 3-7/8 Inch Height; Clear; Plastic; Also Use New Number 385151001 MFR # 3851510010 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
4. #door freezer compartment MFR # 4450008362
5. #Refrigerator Trim; Replacement For Dometic DMR702 Series Refrigerator; Bottom Of Freezer Section MFR # 4450007732
6. #side list door freezer compartment MFR # 4450002432
7. #SPACER MFR # 4450002690
8. #insulation freezer compartment MFR # 4450002620
9. #APPLIANCE COMPONENTS RV; S,DR PNL,FRZ,BLK,DMR702 MFR # 4450003422
10. #Refrigerator Door; Replacement For Dometic DMR702 Series Refrigerator; Lower; Right Hand; Black MFR # 4450008363
11. #HANDLE ASM, RIGHT HAND REFRIG / LEFT HAND FREEZER MFR # 4450007883
12. #APPLIANCE COMPONENTS RV; SIDE PROFILE OUTER MFR # 3851509046
13. #DOOR PANEL MFR # 4450003423
14. #APPLIANCE COMPONENTS RV; REFRIGERATOR - TRIM - SIDE PROFILE MFR # 3851509020
15. #BOTTLE HOLDER MFR # 3851585013
16. #S, RAIL, DOOR FF, DMR702 MFR # 3851518013
17. #HANDLE ASM, RIGHT HAND FREEZER / LEFT HAND REFRIG MFR # 4450007884
18. #APPLIANCE COMPONENTS RV; REFRIGERATOR - TRIM - HANDLE SIDE T MFR # 3851509012

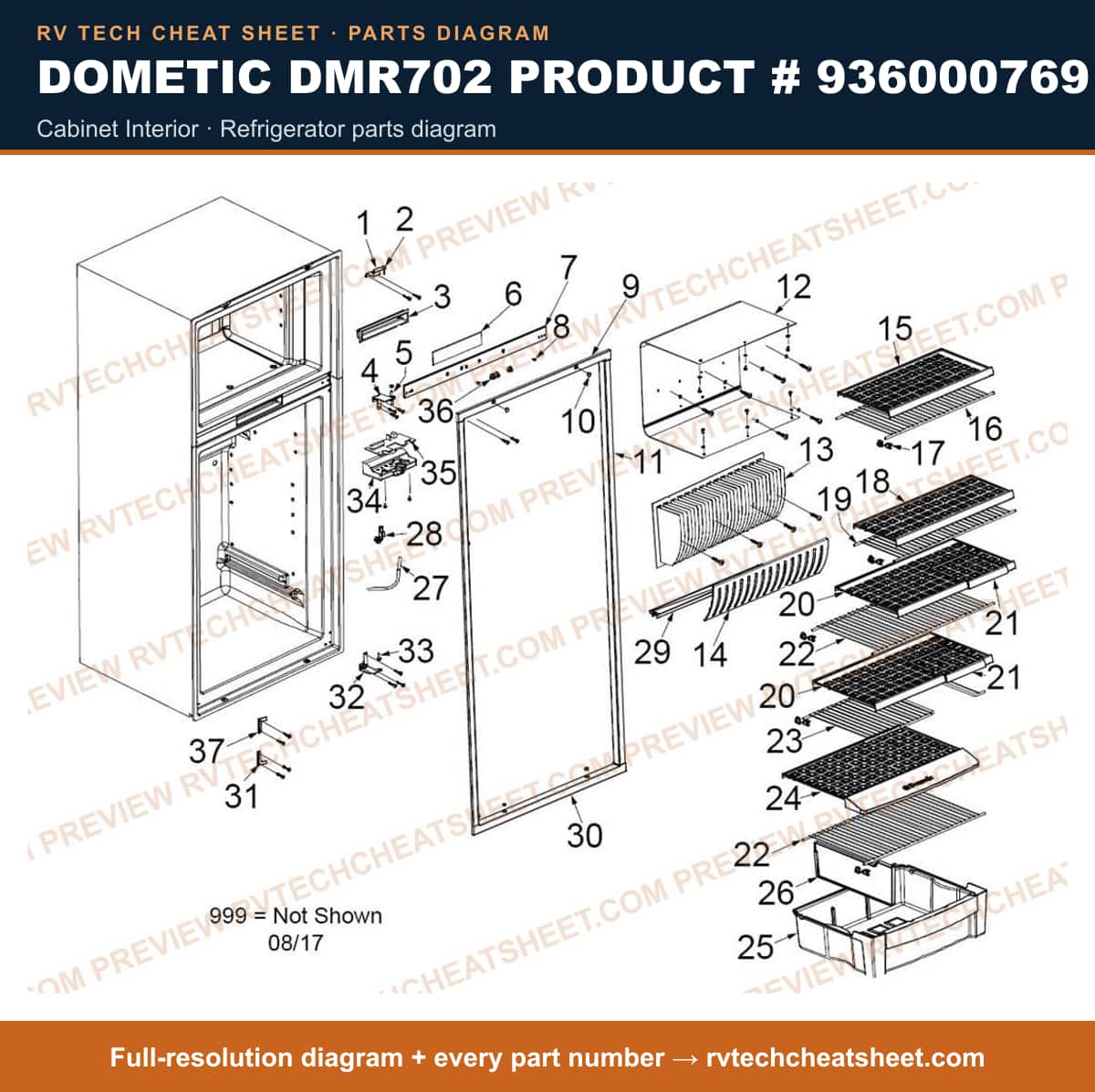

Cabinet Interior

Components

38 items

1. #APPLIANCE COMPONENTS RV; HINGE UPPER MFR # 3851563019
2. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2354/ RM2353 Refrigerator; Fits Top Hinge MFR # 2932415017
3. #CIRCUIT BOARDS & TESTERS RV; PCB HOUSING MFR # 3851522031
4. #APPLIANCE COMPONENTS RV; HINGE MIDDLE MFR # 3851564017
5. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
6. #PCB-A DISPLAY MFR # 4450009109
7. #Refrigerator Optical Control Board Housing; Replacement For Dometic DMR702 Series Refrigerator MFR # 4450007762
8. #BOLT D=4.0X11MM MFR # 4450005802
9. #APPLIANCE COMPONENTS RV; TOP DECORATION MFR # 3851520019
10. #cover cap plastic MFR # 4450007759
11. #FRONT FRAME PROFILE MFR # 3851516017
12. #FREEZER COMPARTMENT MFR # 3851576011
13. #rear-evaporator MFR # 4450003411
14. #APPLIANCE COMPONENTS RV; PROTECTION OF FINNED PLATE MFR # 3851575013
15. #APPLIANCE COMPONENTS RV; REFRIGERATOR - FREEZER SHELF - PLAS MFR # 3851559017
16. #WIRING & SERVICE ACCESSORYS RV; WIRE SHELF MFR # 3851569016
17. #retainer compartment MFR # 4450007748
18. #APPLIANCE COMPONENTS RV; PLASTIC SHELF OF FRIDGE MFR # 3851558019
19. #WIRE SHELF MFR # 3851569024
20. #APPLIANCE COMPONENTS RV; PLASTIC MILKSHELF MFR # 3851556013
21. #APPLIANCE COMPONENTS RV; LID OF MILKSHELF MFR # 3851557011
22. #WIRING & SERVICE ACCESSORYS RV; WIRE SHELF MFR # 3851569032
23. #APPLIANCE COMPONENTS RV; MILKSHELF MFR # 3851555015
24. #CRISPER SHELF MFR # 3851554018
25. #APPLIANCE COMPONENTS RV; REFRIGERATOR - CRISPER DRAWER - FOR MFR # 3851511018
26. #APPLIANCE COMPONENTS RV; DIVIDER MFR # 3851552012
27. #S THERMSTOR COMBO MFR # 3851059422
28. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
29. #THERMISTOR HOLDER MFR # 4450007751
30. #DRIP PROTECTION MFR # 3851553010
31. #APPLIANCE COMPONENTS RV; REFRIGERATOR - BOTTOM DOOR TRIM/DEC MFR # 3851519011
32. #APPLIANCE COMPONENTS RV; TWIST PROTECTION MFR # 4450007753
33. #APPLIANCE COMPONENTS RV; HINGE LOWER MFR # 3851564025
34. #APPLIANCE COMPONENTS RV; PIN LOWER MFR # 3850269014
35. #APPLIANCE COMPONENTS RV; REFRIGERATOR - LIGHT HOUSING - 3851 MFR # 3851574016
36. #LAMP PCB MFR # 4450006252
37. #push button MFR # 4450007763
38. #protection MFR # 4450007755

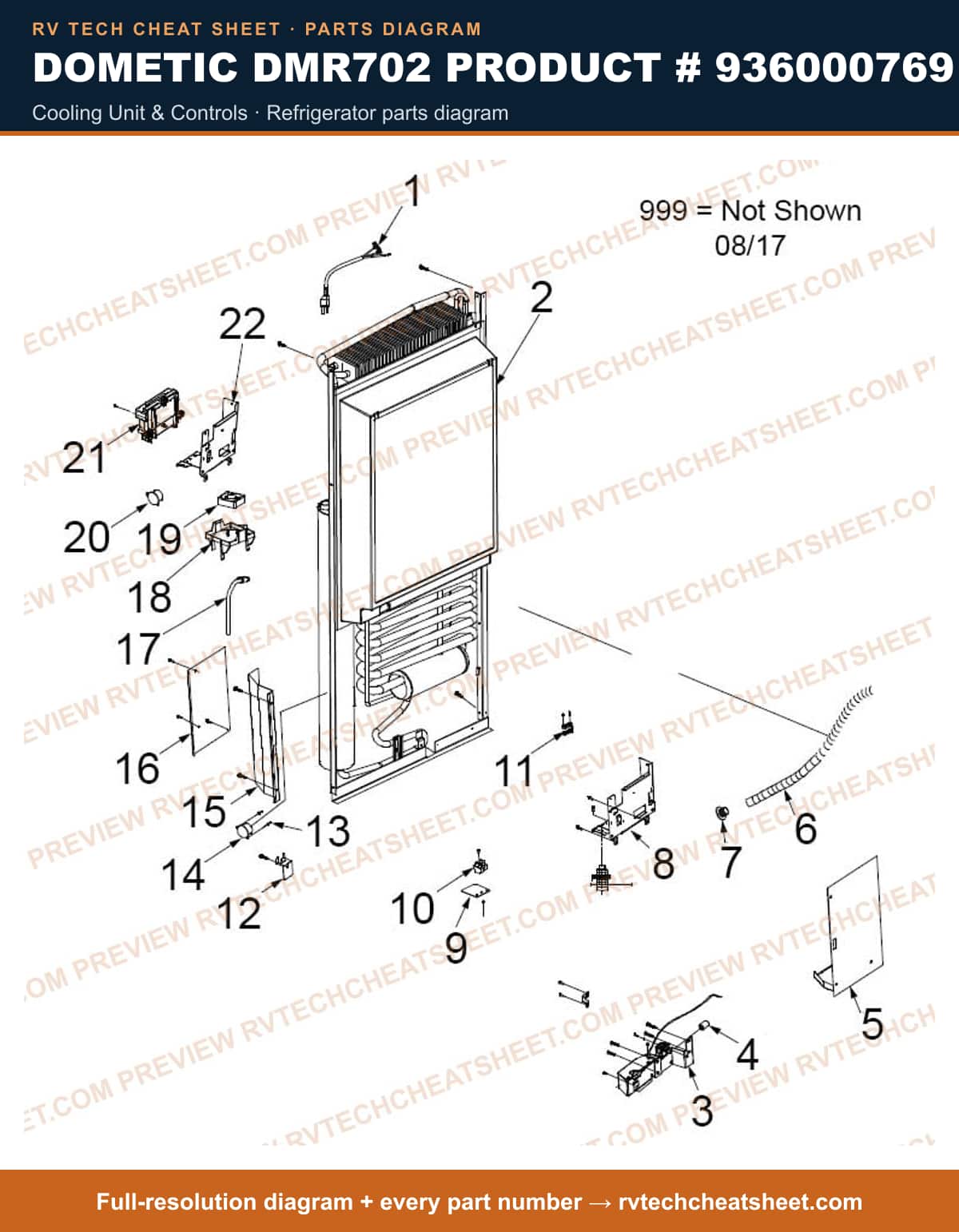

Cooling Unit & Controls

Components

21 items

1. #S,CORD,AC POWER,1000MM,7,9,13, MFR # 2002699219
2. #cooling unit complete MFR # 4450008360
3. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
4. #PROTECTIVE COLLAR SVC KIT MFR # 2931126011
5. #COVER PLATE MFR # 3851300016
6. #Refrigerator Drain Tube; Fits All Dometic RV Refrigerates; 54 Inch Length; Also Use New Number 3316102.9019 MFR # 2932749159 Superseded: see description
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM3762 MFR # 3851474019 Superseded: see description
9. #INLET PLATE MFR # 4450005050
10. #APPLIANCE COMPONENTS RV; S, TERMINAL BLOCK/WIRE PROT, VL3 MFR # 3858022027
11. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
12. #S,BRKT,THERMAL FUSE,6-10CF MFR # 3851396014
13. #RIVET MFR # 3858001070
14. #safety thermal switch MFR # 4450001841
15. #COVER PLATE,SIDE MFR # 3851301014
16. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012
17. #S,HEATER,120V,325W-7/9CF MFR # 3850644612
18. #HOLD FOR FAN MFR # 3851573018
19. #APPLIANCE COMPONENTS RV; FAN MFR # 4450001818
20. #Dometic RM2652 Refrigerator Cooling Unit Assembly MFR # 4450001848
21. #Dometic Series 8 Refrigerator Door Bin White MFR # 3851331011
