Dometic General Technical Information Parts Diagram · Americana & Freedom Series

Refrigerator · 7 assemblies · 7 diagram sheets · 31 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic General Technical Information RV refrigerator: 7 assemblies (Americana & Freedom Series, 2-WAY Universal Kit, Pal Tester Part Numbers, Single Door Vent Breakdown, 3-WAY Universal Kit and more) and 31 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Americana & Freedom Series

Components

1 item

1. #Refrigerator Vent; Use With Dometic RM2612/ RM2652/ RM2812/ RM2852 Refrigerators; With Power On/Off Switch MFR # 3108709119 Superseded: see description

2-WAY Universal Kit

Components

7 items

1. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
2. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
3. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
4. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
5. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
6. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
7. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description

Pal Tester Part Numbers

Components

3 items

1. #PAL BASE UNIT MFR # PAL2001
2. #PAL CCC MODULE MFR # PAL2001003
3. #PAL DATA CAPTURE MODULE MFR # PAL2001001

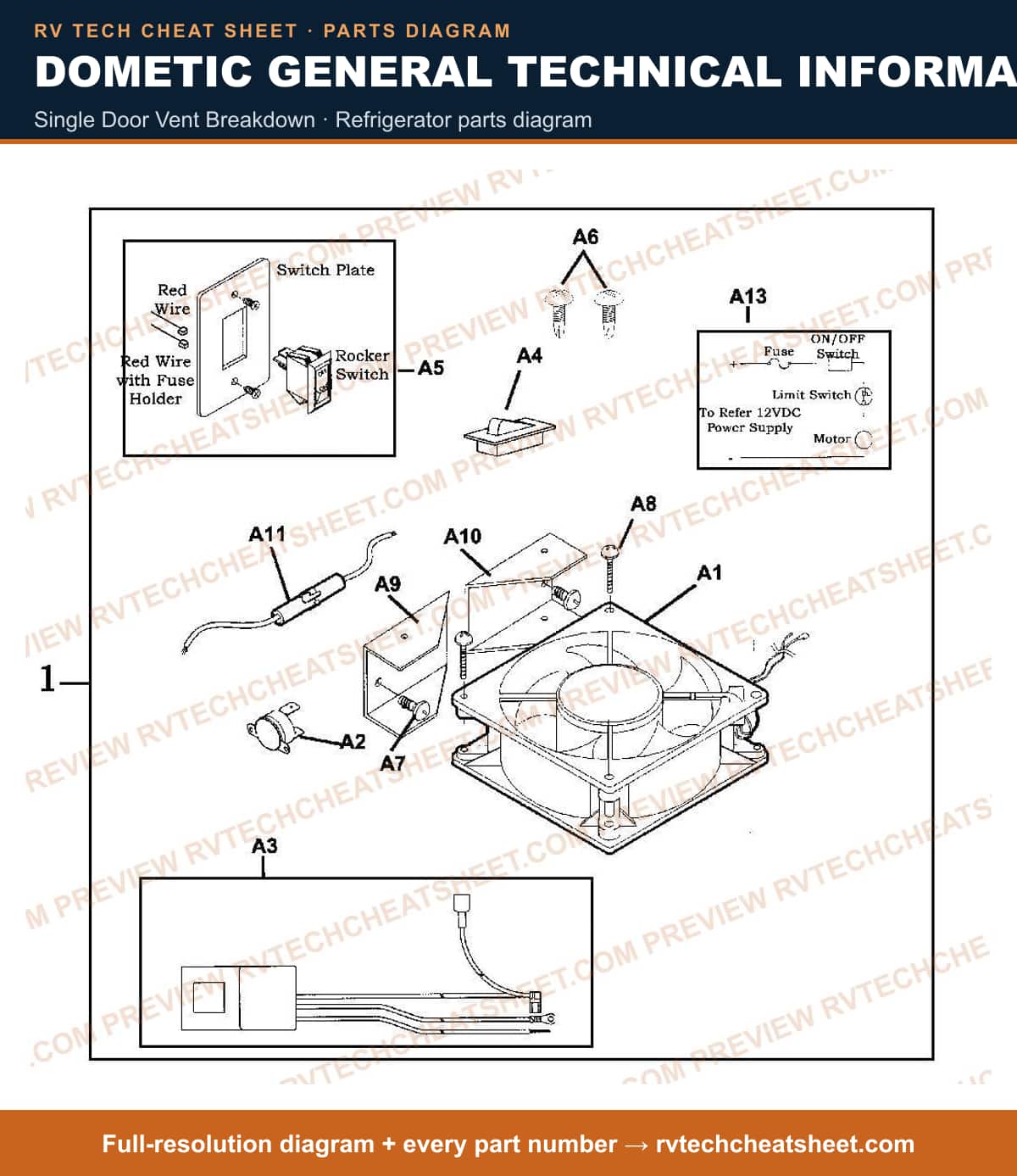

Single Door Vent Breakdown

Components

13 items

1. #APPLIANCE COMPONENTS RV; VENTILATOR KIT, SINGLE DO MFR # 3108705751
2. #APPLIANCE COMPONENTS RV; Fan MFR # 3107930004
3. #APPLIANCE COMPONENTS RV; Switch T-Stat MFR # 3104723006
4. #APPLIANCE COMPONENTS RV; Switch Rocker On/Off MFR # 3107315008
5. #WIRE, ASSEMBLY, RED MFR # 303937856
6. #PANEL SWITCH MFR # 3107898003
7. #SCREW #8-18 X 3/8 SELF DRILLING MFR # 3108706858
8. #SCREWS,# 10 X 3/8 MFR # 312096001
9. #SCREW #6-20 X 2.0 MFR # 312096034
10. #MOUNTING BRACKET, RH MFR # 3105432003
11. #MOUNTING BRACKET, LH MFR # 3105432011
12. #APPLIANCE COMPONENTS RV; Fuse Holder And Fuse (1Am MFR # 315503005
13. #DECAL, WIRING DIAGRAM MFR # 3105433019

3-WAY Universal Kit

Components

1 item

1. #Refrigerator Control Board Kit; Replacement For Dometic RM3663/ RM3807/ RM3607/ RM2807/ RM2611/ RM2811/ RM3863/ RM2663 Series Refrigerators; 3-Way; Universal MFR # 3308742000

Double Door Vent Breakdown

Components

13 items

1. #VENTILATOR USE 3108705744 F/FRIDGE MFR # 3104131002 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Fan MFR # 3107930004
3. #Refrigerator Vent Fan; For Use With Dometic RM1272/ RM1282 Double Door Refrigerators MFR # 3108705744 Superseded: see description
4. #SWITCH FAN ONLY MFR # 3104133016
5. #SWITCH,LIMIT USE 3104133016 MFR # 3104133008 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Switch Relay MFR # 3107236006
7. #SCREW #8-18 X 3/8 SELF DRILLING MFR # 3108706858
8. #SCREWS,# 10 X 3/8 MFR # 312096001
9. #SCREW #6-20 X 2.0 MFR # 312096034
10. #MOUNTING BRACKET, RH MFR # 3105432003
11. #MOUNTING BRACKET, LH MFR # 3105432011
12. #APPLIANCE COMPONENTS RV; Fuse Holder And Fuse (1Am MFR # 315503005
13. #DECAL, WIRING DIAGRAM MFR # 3105433019

Innovator Ventilator System

Components

1 item

1. #APPLIANCE COMPONENTS RV; Ventilator Kit MFR # 3108709944
