Dometic HE-0801 Parts Diagram · Upper Door

Refrigerator · 6 assemblies · 12 diagram sheets · 40 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic HE-0801 RV refrigerator: 6 assemblies (Upper Door, Burner Asm, Lower Door, Replacement, Cooling Unit and more) and 40 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

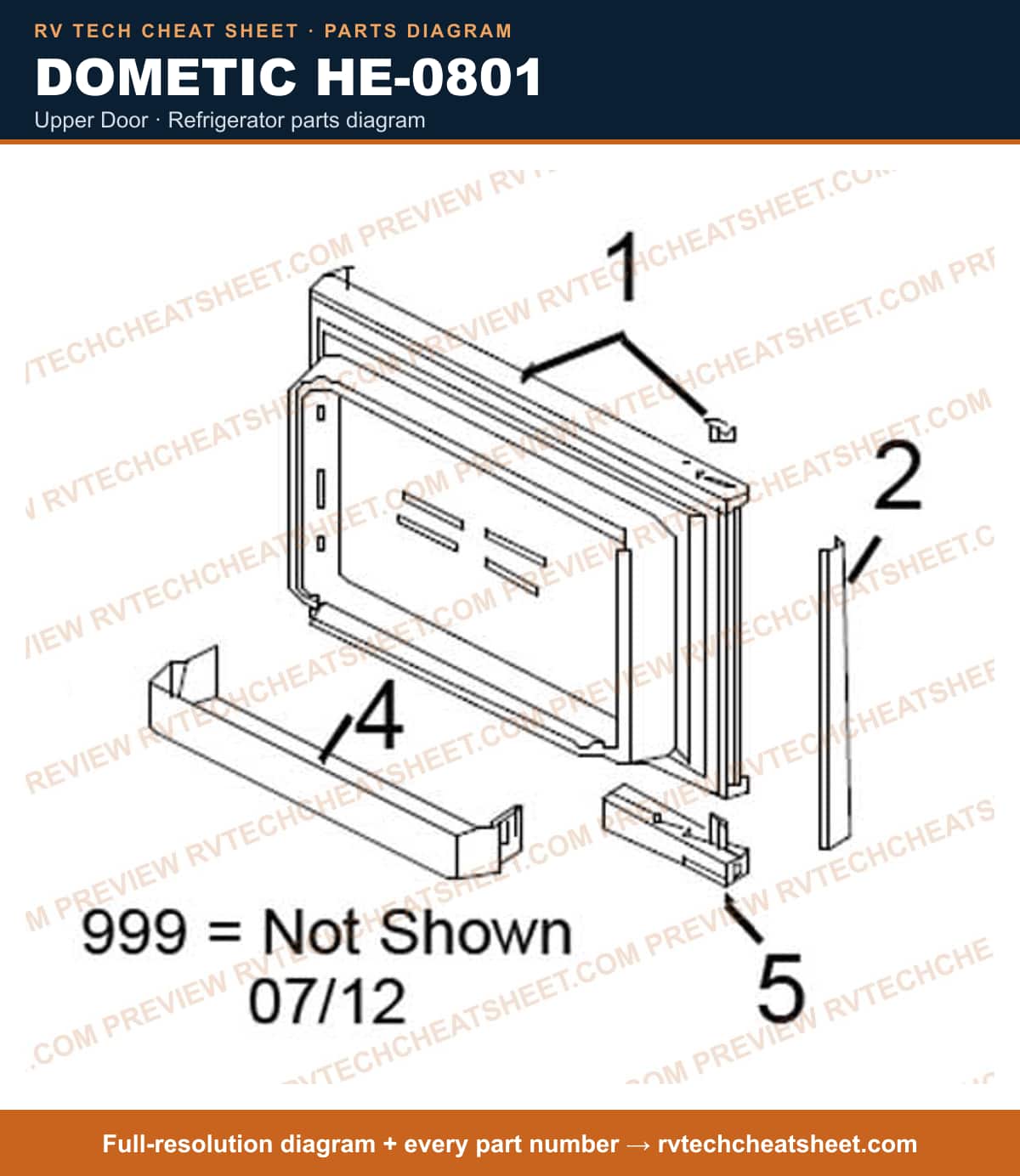

Upper Door

Components

3 items

1. #FREEZER DOOR FOAMED ASM MFR # 14007
2. #TRAILER HITCH MFR # 14010
3. #CLASS 4 TRAILER HITCH 2' SELECT S MFR # 14019

Burner Asm

Components

7 items

1. #POWERBOARD BOX MFR # 14034
2. #TRAILER HITCH MFR # 14002
3. #GAS VALVE ASM MFR # 14035A
4. #ORIFICE ADAPTER ASM (JET) MFR # 14016A
5. #BURNER BRACKET ASM; THE BRACKET WOULD NOT INCLUDE THE ELECTRODE. IF SERIAL # IS BEFORE 11001 121001 0000, THEN USE 14068. IF SERIAL # IS AFTER 11001 121201 0000, THEN USE 14069. MFR # 14039A Superseded: see description
6. #Refrigerator Terminal Block; For Atwood HE-0601/ HE-0801 Series Refrigerators; 12 Volt DC MFR # 14054
7. #ELECTRODE - SEE NOTES FOR USE #S; IF SERIAL # IS BEFORE 11001 121001 0000, THEN USE 14068. IF SERIAL # IS AFTER 11001 121201 0000, THEN USE 14069. MFR # 14036A Superseded: see description

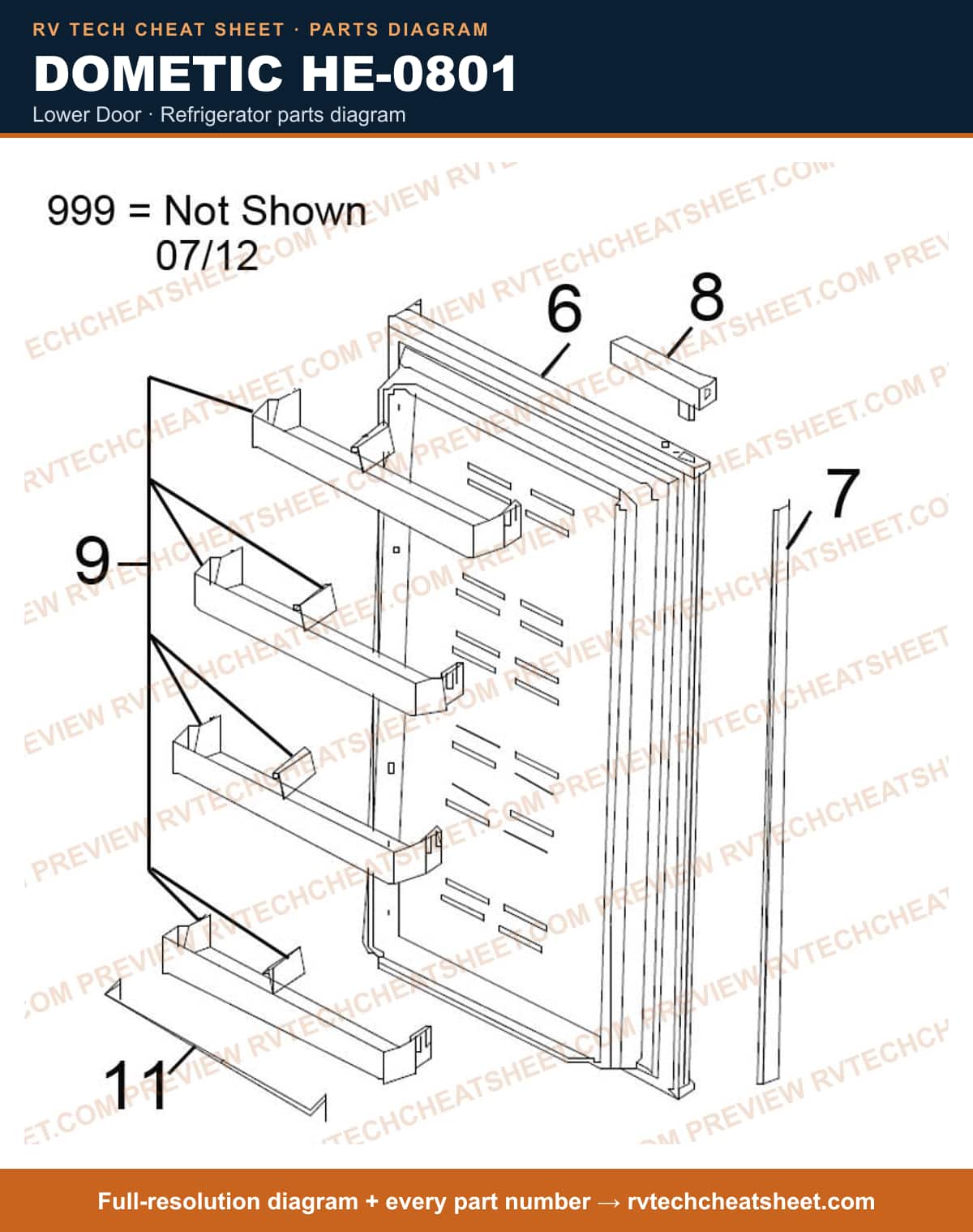

Lower Door

Components

6 items

1. #PANEL RETAINER, CABINET DOOR MFR # 14011A
2. #TRAILER HITCH MFR # 14006
3. #CLASS 4 TRAILER HITCH 2' RECEIVER MFR # 14018
4. #BOTTLE HOLDER (BOTTOM DOOR BIN) MFR # 14060
5. #S,DR ASM,CABINET FOAMED- MFR # 14009
6. #PANEL RETAINER, CABINET DOOR MFR # 14012A

Replacement

Components

4 items

1. #THE PRO RACK LEG & CROSSBAR KIT MFR # 12003
2. #REFER, 7.6CF, 2-WAY, RH, FAN MFR # DMT12007
3. #REFER, 7.6CF, 2-WAY, LH, FAN MFR # DMT12008
4. #THE PRO RACK LEG & CROSSBAR KIT MFR # 12007

Cooling Unit

Components

5 items

1. #ELEMENT REFRIGERATOR HEATING MFR # 14044MC
2. #ELECTRODE - SEE NOTES FOR USE #S; IF SERIAL # IS BEFORE 11001 121001 0000, THEN USE 14068. IF SERIAL # IS AFTER 11001 121201 0000, THEN USE 14069. MFR # 14036A Superseded: see description
3. #WINDSHIELD BURNER BOX MFR # 14040A
4. #FAN MFR # 14046
5. #TOW-BAR TO MOTOR HOME RECEIVER LOCKING PIN MFR # 14047

Cabinet Interior

Components

16 items

1. #CHIP PAINT BRUSH (WHITE BRISTLE) MFR # 14052
2. #SHELF, FREEZER MFR # 14025
3. #SHELF, TOP CABINET NARROW MFR # 14021A
4. #CLASS 4 TRAILER HITCH 2' RECEIVER MFR # 14022
5. #SHELF, BOTTOM CABINET DEEP MFR # 14023
6. #Refrigerator Shelf; Replacement For Atwood HE-0801/ HE-0601 Series Refrigerator; Fresh Food Compartment; Plastic MFR # 14024
7. #CRISPER BIN MFR # 14031A
8. #ICE CUBE TRAY MFR # 14033A
9. #ON/OFF SWITCH MFR # 14015
10. #Refrigerator Optical Control Board; For Use With Atwood Refrigerators; Black MFR # 14004 Superseded: see description
11. #SWITCH PLATE MFR # 14045
12. #LAMP ASM KIT MFR # 14028A
13. #THERMISTER KIT MFR # 14029A
14. #Refrigerator Shelf Support; Replacement For Atwood HE-0601/ HE-0801 Model Refrigerator MFR # 14026
15. #SIDE TRIM PROTECTORS (2) MFR # 14059
16. #TOP/BOTTOM TRIP CAP KIT MFR # 14032A
