Dometic M Series M28A Parts Diagram

Refrigerator · 1 diagram sheet · 103 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic M Series M28A RV refrigerator: 103 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

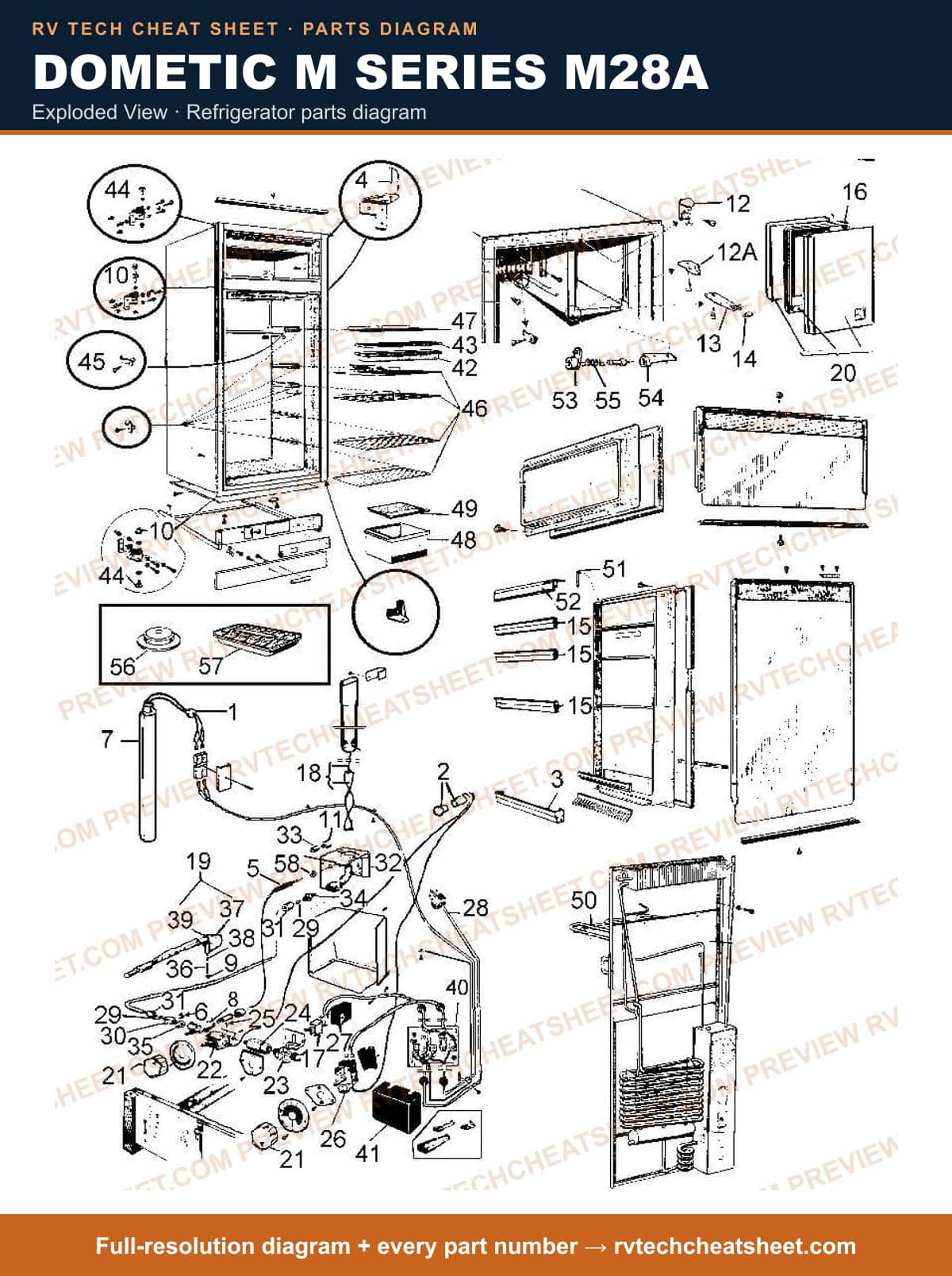

Exploded View

Components

103 items

1. #BUSHING MFR # 149585010
2. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
3. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
4. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
5. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
6. #LOWER DOOR SHELF M-40 AND M-52 MFR # 165807009
7. #APPLIANCE COMPONENTS RV; Pin Lock With Chain MFR # 168117018
8. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
9. #QUICK CHECK MFR # 423
10. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
11. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
12. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
13. #THERMOCOUPLE MFR # 169372000MC
14. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
15. #THERMOCOUPLE, 18" MFR # 169372002MC
16. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
17. #ELEMENT, HEATING (25) 135W/110V 2WIRE 5/8 X 6 3/8 MFR # 173121013
18. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
19. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
20. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
21. #VALVE, SAFETY MFR # 293165
22. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
23. #HOLDER, SPRING MFR # 170781009
24. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
25. #SPACER NUT MFR # 170827000
26. #APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009
27. #APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002
28. #BRACKET, ROLLER MFR # 171885007
29. #ROLLER MFR # 171886005
30. #SHELF MFR # 171888001
31. #GASKET, FREEZER SHUTTER MFR # 171893001
32. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
33. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
34. #BAFFLE, FLUE MFR # 172174013
35. #APPLIANCE COMPONENTS RV; Flint Lighter MFR # 2890017003
36. #LIGHTER, SPARK MFR # 172177008
37. #SHUTTER USE 172319097 MFR # 172319071 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097
39. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 172691008
40. #KNOB, T-STAT ELECTRIC CLASSIC SR & ALL A/C MFR # 230292I
41. #T-STAT, GAS (200) ALSO NEED 230292I KNOB MFR # V35P1341
42. #T-STAT, GAS USE V35P1341 & 230292I MFR # 172792012 Superseded: see description
43. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
44. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
46. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
47. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
48. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
49. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
50. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
51. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
52. #T-STAT, ELEC. USE K50P1291 MFR # 172821027 Superseded: see description
53. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
54. #COVER MFR # 173101007
55. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
56. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
57. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
58. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
60. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
61. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
62. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
63. #NUT, UNION FEMALE MFR # 2902553003
64. #BURNER MB52 MFR # 173221003
65. #SPACER SLEEVE MFR # 173344011
66. #ORIFICE, #52 MFR # 2002660187
67. #ORIFICE, #53 MFR # 2002660195
68. #APPLIANCE COMPONENTS RV; Orifice #38 MFR # 2002660146
69. #ORIFICE, JET #29 MFR # 2890039106
70. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
71. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
72. #SPRING MFR # 2890018001
73. #APPLIANCE COMPONENTS RV; Striker Support MFR # 270517006
74. #FLINT MFR # 270127004
75. #Wheel Stud; Knurled MFR # 270130008
76. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
77. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
78. #DRIP TRAY MFR # 2000542007
79. #COVER, DRIP TRAY MFR # 2000543005
80. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
81. #SNAP SPRING MFR # 2000547006
82. #SHELF MFR # 2002651111
83. #SHELF, UPPER MFR # 2002652036
84. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
85. #CRISPER USE 2000578043 MFR # 2000578019 Superseded: see description
86. #LID, CRISPER M70 RM7 MFR # 2000579009
87. #FIXING PLATE M-70 MFR # 2000587002
88. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
89. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
90. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
91. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
92. #CASING F/SPRING MFR # 2002806004
93. #CASING MFR # 2002806012
94. #FLANGE F/HINGE LH MFR # 2002807002
95. #FLANGE F/HINGE RH MFR # 2002807010
96. #SPRING LH MFR # 2002809008
97. #SPRING, RH MFR # 2002809016
98. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
99. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
100. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
101. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
102. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
103. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
