Dometic M Series M70 Parts Diagram · Exploded View

Refrigerator · 2 assemblies · 2 diagram sheets · 110 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic M Series M70 RV refrigerator: 2 assemblies (Exploded View, Replacement Refrigerator) and 110 manufacturer part numbers. 34 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

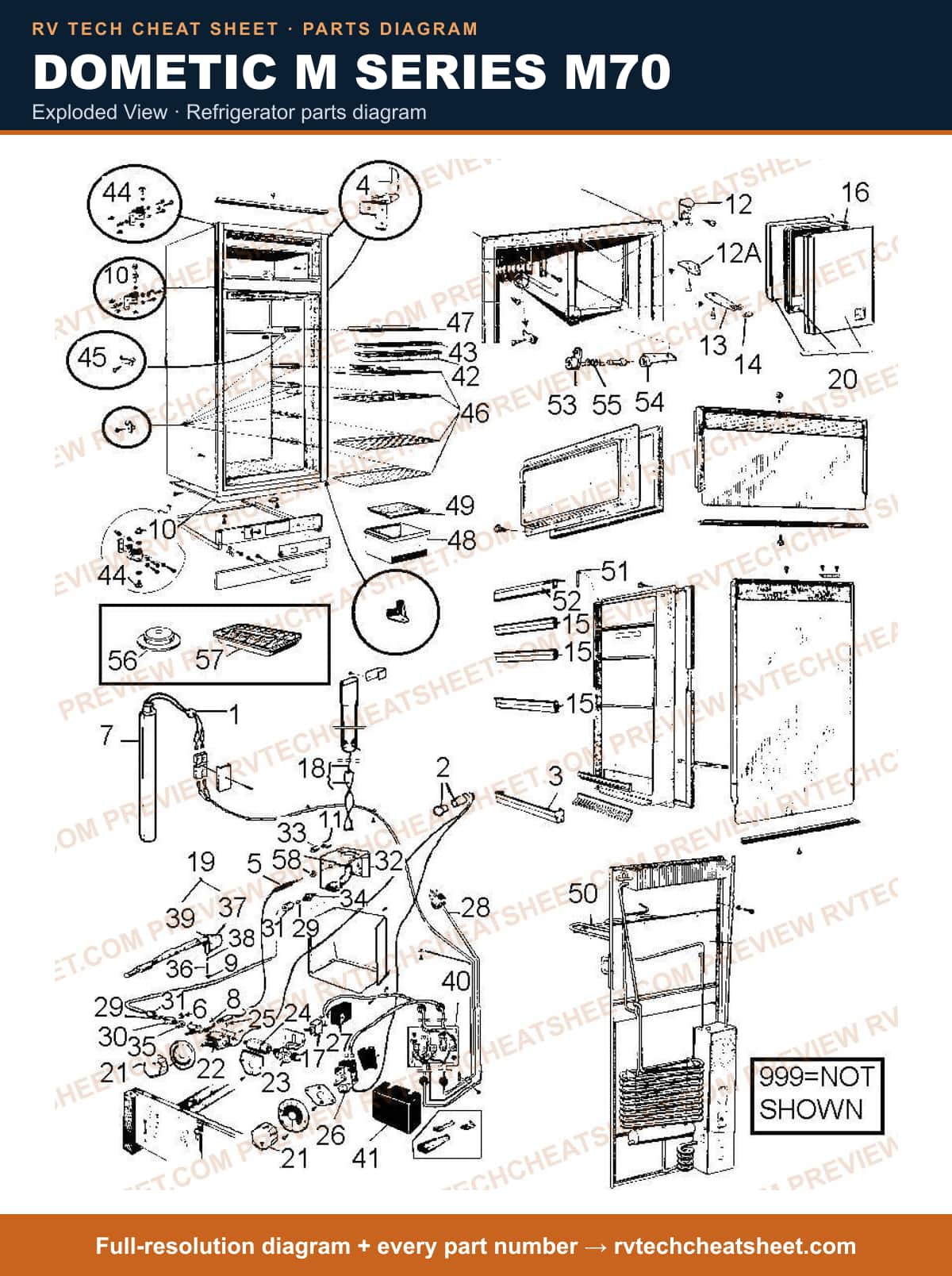

Exploded View

Components

98 items

1. #BUSHING MFR # 149585010
2. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
3. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
4. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
5. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
6. #LOWER DOOR SHELF M-40 AND M-52 MFR # 165807009
7. #APPLIANCE COMPONENTS RV; Pin Lock With Chain MFR # 168117018
8. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
9. #THERMOCOUPLE MFR # 169372000MC
10. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
11. #THERMOCOUPLE, 18" MFR # 169372002MC
12. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
13. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
14. #QUICK CHECK MFR # 423
15. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
16. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
17. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
18. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
19. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
20. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
21. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
22. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
23. #VALVE, SAFETY MFR # 293165
24. #HOLDER, SPRING MFR # 170781009
25. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
26. #SPACER NUT MFR # 170827000
27. #APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002
28. #APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009
29. #BRACKET, ROLLER MFR # 171885007
30. #ROLLER MFR # 171886005
31. #SHELF MFR # 171888001
32. #GASKET, FREEZER M70 10-5/8 X 22-1/2 MFR # RM70TG
33. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
34. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
35. #BAFFLE, FLUE MFR # 172174013
36. #LIGHTER, SPARK MFR # 172177008
37. #SHUTTER USE 172319097 MFR # 172319071 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097
39. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 172691008
40. #T-STAT, GAS (200) ALSO NEED 230292I KNOB MFR # V35P1341
41. #T-STAT, GAS USE V35P1341 & 230292I MFR # 172792012 Superseded: see description
42. #KNOB, T-STAT ELECTRIC CLASSIC SR & ALL A/C MFR # 230292I
43. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
44. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
45. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
47. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
48. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
49. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
50. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
51. #T-STAT, ELEC. USE K50P1291 MFR # 172821027 Superseded: see description
52. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
53. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
54. #COVER MFR # 173101007
55. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
56. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
57. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
58. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
59. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
60. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
61. #NUT, UNION FEMALE MFR # 2902553003
62. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
63. #BURNER MB52 MFR # 173221003
64. #SPACER SLEEVE MFR # 173344011
65. #ORIFICE, #53 MFR # 2002660195
66. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
67. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
68. #SPRING MFR # 2890018001
69. #CAP,GASKET USE 2901851001 MFR # 2901871001 Superseded: see description
70. #CAP, GASKET MFR # 2901851001
71. #CAP COVER USE 2901853001 MFR # 2901873001 Superseded: see description
72. #CAP COVER MFR # 2901853001
73. #BRACKET SUPPORT MFR # 2901861001
74. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
75. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
76. #DRIP TRAY MFR # 2000542007
77. #COVER, DRIP TRAY MFR # 2000543005
78. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
79. #SNAP SPRING MFR # 2000547006
80. #SHELF MFR # 2002651111
81. #SHELF, UPPER MFR # 2002652036
82. #CRISPER USE 2000578043 MFR # 2000578019 Superseded: see description
83. #LID, CRISPER M70 RM7 MFR # 2000579009
84. #FIXING PLATE M-70 MFR # 2000587002
85. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
86. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
87. #CASING F/SPRING MFR # 2002806004
88. #CASING MFR # 2002806012
89. #FLANGE F/HINGE RH MFR # 2002807010
90. #FLANGE F/HINGE LH MFR # 2002807002
91. #SPRING LH MFR # 2002809008
92. #SPRING, RH MFR # 2002809016
93. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
94. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
95. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
96. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
97. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
98. #GASKET, MAIN M70 22-1/2 X 40 MFR # RM70BG

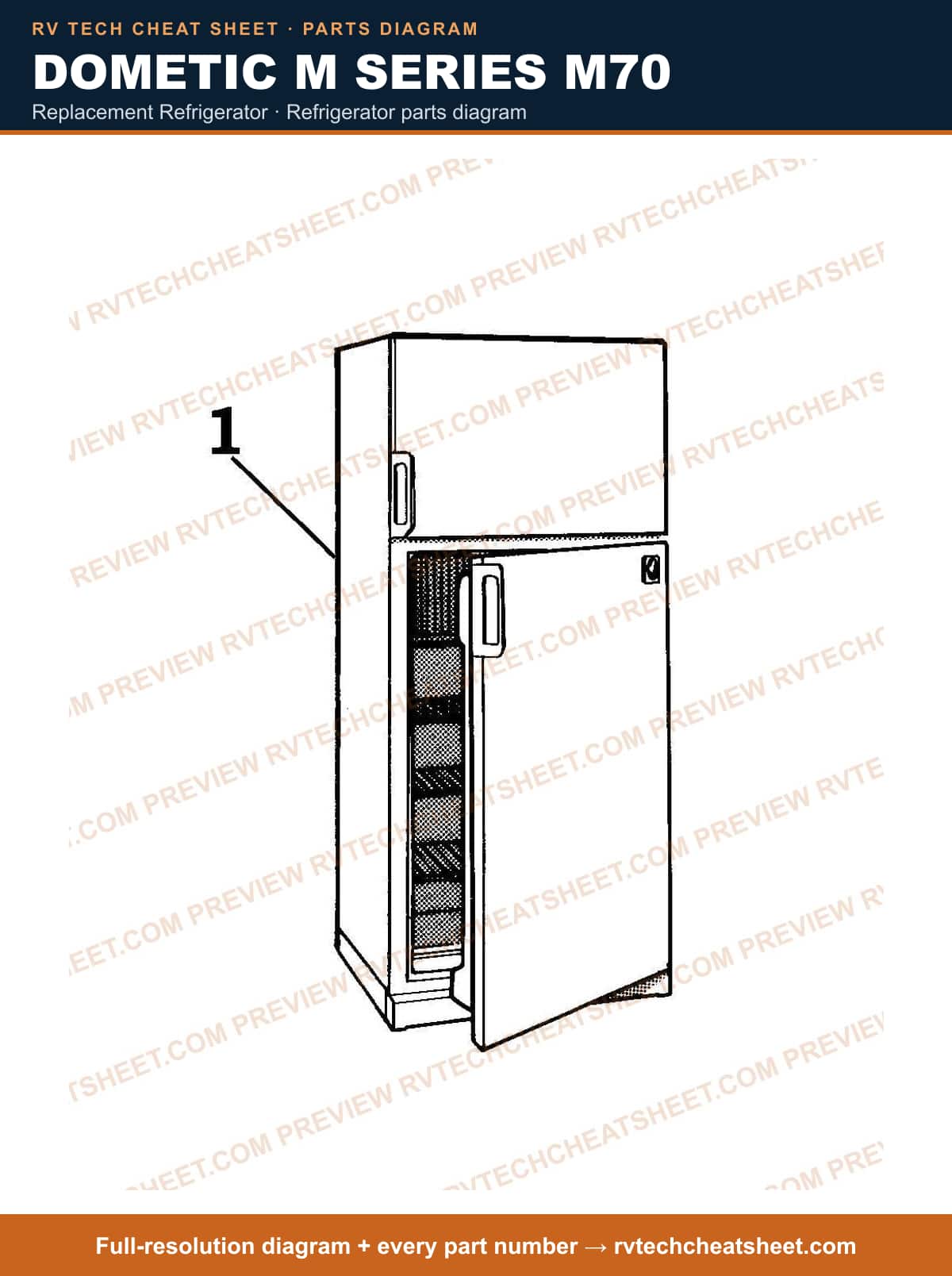

Replacement Refrigerator

Components

12 items

1. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 24"D MFR # N6413WH
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
3. #REFER,6 CU FT 2 WAY 49 1/2"H X 21 3/4" W X 24" MFR # RM2620N
4. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH
5. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
6. #Refrigerator; Americana; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 6 Cubic Foot; 54-9/16 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control/ Automatic Temperature Control; Black Frame; With Locking Door Handles/ 2 Crispers/ 3 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2652RB
7. #REFER,6 CU FT 2 WAY 49 1/2 X 21 3/4 X 24 MFR # RM2620R
8. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
9. #REFER,6 CU FT 2 WAY SILVER 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652S
10. #REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B
11. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ LP Gas/ Direct Current; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Door; With Crispers/ Shelving And Door Bins Cold Weather Kit Beginning October 1, 2012,.. MFR # N6413SS
12. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
