Dometic M Series MA40C Parts Diagram

Refrigerator · 1 diagram sheet · 108 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic M Series MA40C RV refrigerator: 108 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

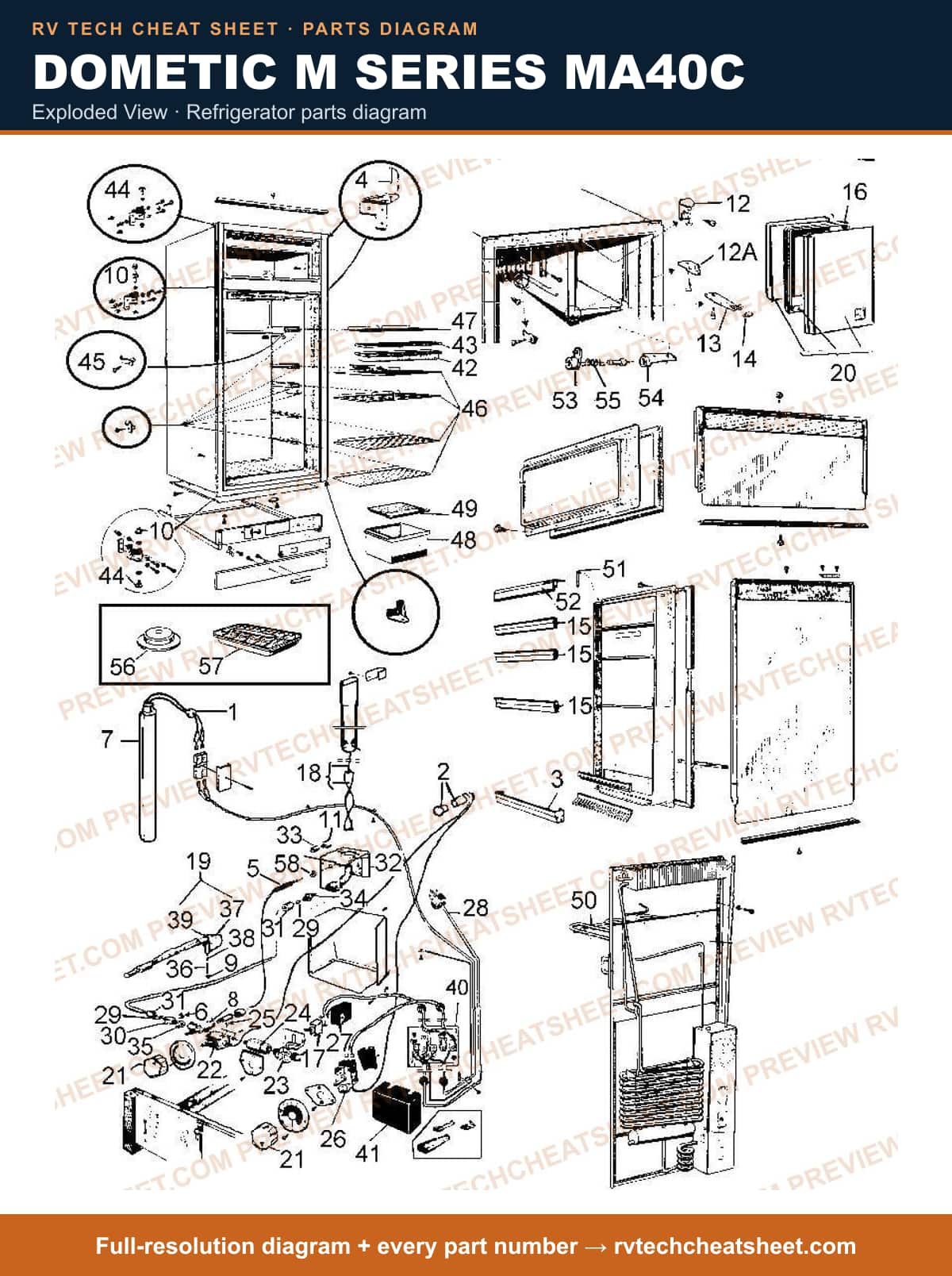

Exploded View

Components

108 items

1. #BUSHING MFR # 149585010
2. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
3. #LOWER DOOR SHELF M-40 AND M-52 MFR # 165807009
4. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
5. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
6. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
7. #APPLIANCE COMPONENTS RV; Pin Lock With Chain MFR # 168117018
8. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
9. #QUICK CHECK MFR # 423
10. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
11. #THERMOCOUPLE, 18" MFR # 169372002MC
12. #THERMOCOUPLE MFR # 169372000MC
13. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
14. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
15. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
16. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
17. #ELEMENT, HEATING (25) 135W/110V 2WIRE 11/16 X 4 3/4; SUGGESTED ALTERNATE FOR DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#173712019. MFR # CS000029
18. #ELEMENT, HEATING, USE CS000016 225W/110V 2WIRE 5/8 X 7 1/4 MFR # 170679013 Superseded: see description
19. #ELEMENT, HEATING (25) 135W/110V 2WIRE 5/8 X 6 3/8 MFR # 173121013
20. #APPLIANCE COMPONENTS RV; Element Heating *Alt 48-9; WHEN INVENTORY IS DEPLETED ON THIS ITEM, PLEASE ORDER SUGGESTED ALTERNATE P# CS000029. 11/16 D X 4 3/4 L~ IS A USE # FOR 170677017, 173712019 MFR # 173712019 Superseded: see description
21. #ELEMENT, HEATING 225W/110V 2WIRE 11/16 X 6 1/2 MFR # CH000008
22. #ELEMENT, HEATING USE 173712019 MFR # 170677017 Superseded: see description
23. #ELEMENT, HEATING 225W/110V 2WIRE 5/8 X 7 1/4 MFR # CS000016
24. #APPLIANCE COMPONENTS RV; Element Heating 225W/110V MFR # 173074014
25. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
26. #VALVE, SAFETY MFR # 293165
27. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
28. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
29. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
30. #HOLDER, SPRING MFR # 170781009
31. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
32. #SPACER NUT MFR # 170827000
33. #APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002
34. #APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009
35. #BRACKET, ROLLER MFR # 171885007
36. #ROLLER MFR # 171886005
37. #SHELF MFR # 171888001
38. #GASKET, FREEZER SHUTTER MFR # 171893001
39. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
40. #LIGHTER, SPARK MFR # 172177008
41. #SHUTTER USE 172319097 MFR # 172319071 Superseded: see description
42. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 172691008
43. #KNOB, T-STAT ELECTRIC CLASSIC SR & ALL A/C MFR # 230292I
44. #T-STAT, GAS (200) ALSO NEED 230292I KNOB MFR # V35P1341
45. #T-STAT,ELEC. USE 49-1291 MFR # 172821019 Superseded: see description
46. #T-STAT, GAS USE V35P1341 & 230292I MFR # 172792012 Superseded: see description
47. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
48. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
49. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
50. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
52. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
53. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
54. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
55. #T-STAT, ELEC. USE K50P1291 MFR # 172821027 Superseded: see description
56. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
57. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
58. #COVER MFR # 173101007
59. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
60. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
61. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
62. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
63. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
64. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
65. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
66. #NUT, UNION FEMALE MFR # 2902553003
67. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
68. #BURNER MB52 MFR # 173221003
69. #SPACER SLEEVE MFR # 173344011
70. #APPLIANCE COMPONENTS RV; Orifice #38 MFR # 2002660146
71. #ORIFICE, #52 MFR # 2002660187
72. #ORIFICE, #53 MFR # 2002660195
73. #ORIFICE, JET #29 MFR # 2890039106
74. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
75. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
76. #SPRING MFR # 2890018001
77. #APPLIANCE COMPONENTS RV; Striker Support MFR # 270517006
78. #FLINT MFR # 270127004
79. #Wheel Stud; Knurled MFR # 270130008
80. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
81. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
82. #DRIP TRAY MFR # 2000542007
83. #COVER, DRIP TRAY MFR # 2000543005
84. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
85. #SNAP SPRING MFR # 2000547006
86. #SHELF MFR # 2002651111
87. #SHELF, UPPER MFR # 2002652036
88. #APPLIANCE COMPONENTS RV; Crisper RM76 - 77'S 7-3/4 MFR # 2000578043
89. #CRISPER USE 2000578043 MFR # 2000578019 Superseded: see description
90. #LID, CRISPER M70 RM7 MFR # 2000579009
91. #FIXING PLATE M-70 MFR # 2000587002
92. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
93. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
94. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
95. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
96. #CASING MFR # 2002806012
97. #CASING F/SPRING MFR # 2002806004
98. #FLANGE F/HINGE LH MFR # 2002807002
99. #FLANGE F/HINGE RH MFR # 2002807010
100. #SPRING, RH MFR # 2002809016
101. #SPRING LH MFR # 2002809008
102. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
103. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
104. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
105. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
106. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
107. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
108. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
