Dometic M Series MB52C Parts Diagram

Refrigerator · 1 diagram sheet · 102 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic M Series MB52C RV refrigerator: 102 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

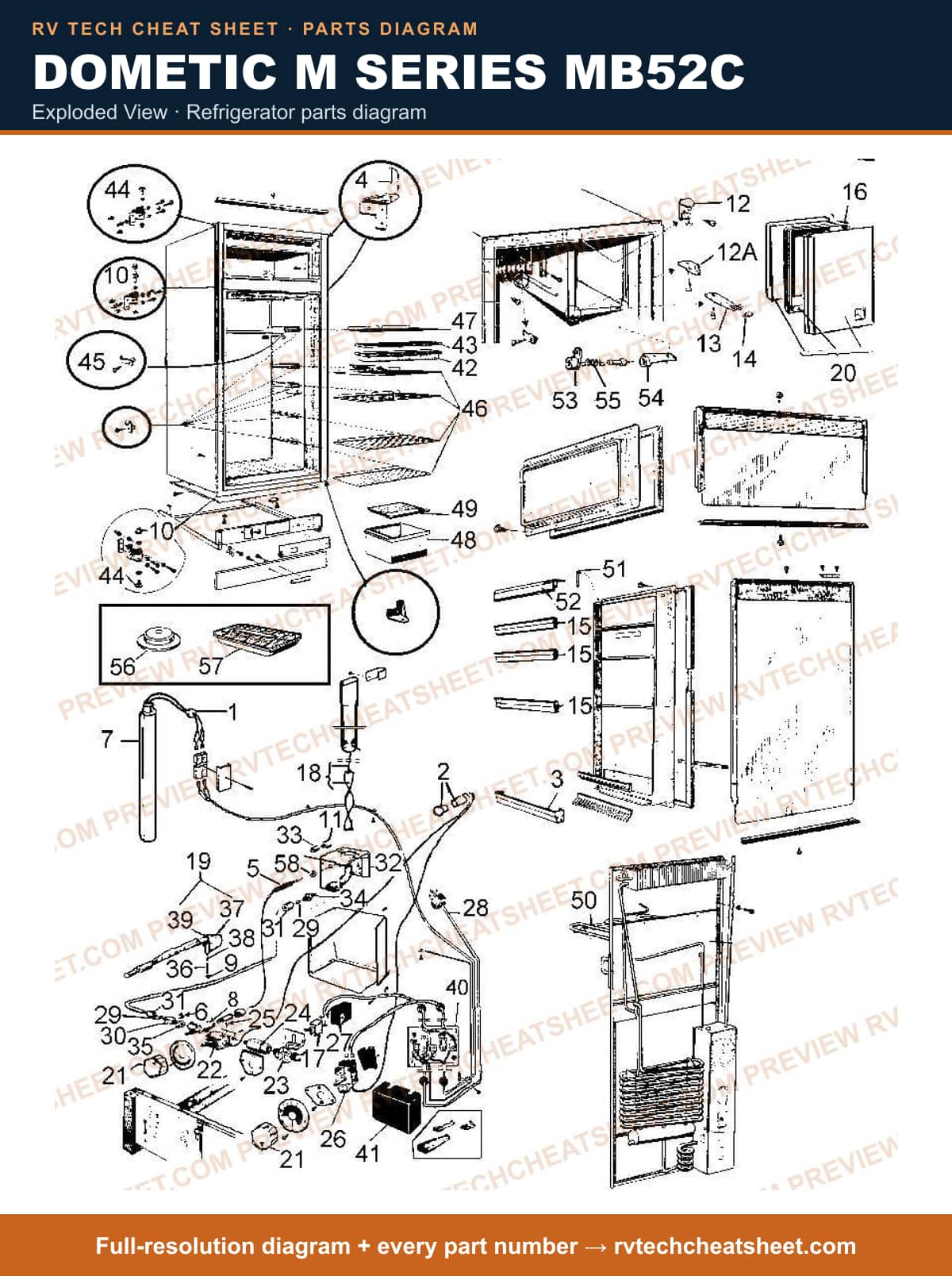

Exploded View

Components

102 items

1. #BUSHING MFR # 149585010
2. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
3. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
4. #SHELF USE 2000571220 MFR # 2000571105 Superseded: see description
5. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
6. #LOWER DOOR SHELF M-40 AND M-52 MFR # 165807009
7. #APPLIANCE COMPONENTS RV; Pin Lock With Chain MFR # 168117018
8. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
9. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
10. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
11. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
12. #THERMOCOUPLE MFR # 169372000MC
13. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
14. #THERMOCOUPLE, 18" MFR # 169372002MC
15. #QUICK CHECK MFR # 423
16. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
17. #ELEMENT, HEATING 225W/110V 2WIRE 5/8 X 7 1/4 MFR # CS000016
18. #ELEMENT, HEATING, USE CS000016 225W/110V 2WIRE 5/8 X 7 1/4 MFR # 170679013 Superseded: see description
19. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
20. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
21. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
22. #VALVE, SAFETY MFR # 293165
23. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
24. #HOLDER, SPRING MFR # 170781009
25. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
26. #SPACER NUT MFR # 170827000
27. #APPLIANCE COMPONENTS RV; Hinge Upper For Shutter MFR # 171883002
28. #APPLIANCE COMPONENTS RV; Hinge Lower MFR # 2002286009
29. #BRACKET, ROLLER MFR # 171885007
30. #ROLLER MFR # 171886005
31. #SHELF MFR # 171888001
32. #GASKET, FREEZER SHUTTER MFR # 171893001
33. #APPLIANCE COMPONENTS RV; Switch 110V MFR # 172168007
34. #BAFFLE W/WIRE USE 172174013 MFR # 172174005 Superseded: see description
35. #BAFFLE, FLUE MFR # 172174013
36. #LIGHTER, SPARK MFR # 172177008
37. #SHUTTER USE 172319097 MFR # 172319071 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Door Freezer Cmplt MFR # 172319097
39. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 172691008
40. #T-STAT, GAS USE V35P1341 & 230292I MFR # 172792012 Superseded: see description
41. #T-STAT, GAS (200) ALSO NEED 230292I KNOB MFR # V35P1341
42. #KNOB, T-STAT ELECTRIC CLASSIC SR & ALL A/C MFR # 230292I
43. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
44. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
45. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
46. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
47. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
48. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
49. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
50. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
51. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
52. #T-STAT, ELEC. USE K50P1291 MFR # 172821027 Superseded: see description
53. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
54. #COVER MFR # 173101007
55. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
56. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
57. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
58. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
59. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
60. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
61. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
62. #NUT, UNION FEMALE MFR # 2902553003
63. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
64. #BURNER MB52 MFR # 173221003
65. #SPACER SLEEVE MFR # 173344011
66. #ORIFICE, JET #29 MFR # 2890039106
67. #APPLIANCE COMPONENTS RV; Orifice #38 MFR # 2002660146
68. #ORIFICE #52 MFR # 173345110
69. #ORIFICE, #53 MFR # 2002660195
70. #ORIFICE, #52 MFR # 2002660187
71. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
72. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
73. #SPRING MFR # 2890018001
74. #APPLIANCE COMPONENTS RV; Striker Support MFR # 270517006
75. #FLINT MFR # 270127004
76. #Wheel Stud; Knurled MFR # 270130008
77. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
78. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
79. #DRIP TRAY MFR # 2000542007
80. #COVER, DRIP TRAY MFR # 2000543005
81. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
82. #SNAP SPRING MFR # 2000547006
83. #SHELF MFR # 2002651111
84. #SHELF, UPPER MFR # 2002652036
85. #FIXING PLATE M-70 MFR # 2000587002
86. #Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014
87. #SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description
88. #DOOR, DAIRY USE 2002258149 MFR # 2002258073 Superseded: see description
89. #APPLIANCE COMPONENTS RV; Door Dairy Brown MFR # 2002258149
90. #CASING MFR # 2002806012
91. #CASING F/SPRING MFR # 2002806004
92. #FLANGE F/HINGE LH MFR # 2002807002
93. #FLANGE F/HINGE RH MFR # 2002807010
94. #SPRING LH MFR # 2002809008
95. #SPRING, RH MFR # 2002809016
96. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
97. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
98. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
99. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
100. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
101. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
102. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
