Dometic MF-6W Wine Cellar Product # 936025069 Parts Diagram · Exploded View

Refrigerator · 2 assemblies · 4 diagram sheets · 28 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic MF-6W Wine Cellar Product # 936025069 RV refrigerator: 2 assemblies (Exploded View, Replacement) and 28 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

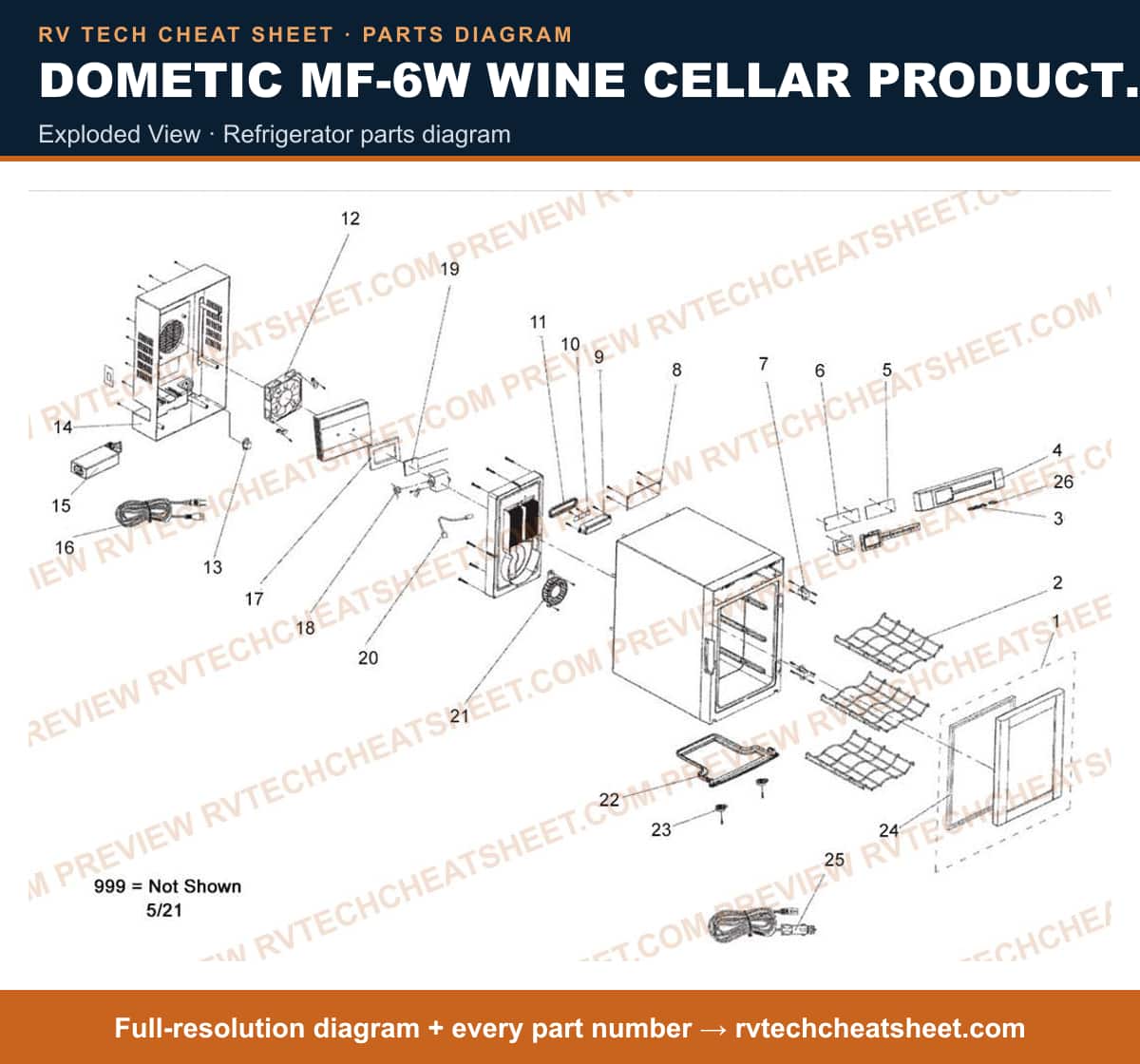

Exploded View

Components

26 items

1. #DOOR COMPLETE MFR # 4451061457
2. #GRATING MFR # 4451023074
3. #PUSH BUTTON SMALL MFR # 4451011933
4. #CONTROL PANEL MFR # 4451059770
5. #ELECTRONIC KEY MFR # 4451046095
6. #ELECTRONIC CONTROL MFR # 4451046085
7. #HINGE MFR # 4450003516
8. #ELECTRONIC MFR # 4451046005
9. #CABINET LIGHTING MFR # 4451010792
10. #LED MFR # 4451046096
11. #COVER CABINET LIGHTING MFR # 4451010795
12. #VENTILATOR MFR # 4451002451
13. #SOCKET CONNECTION WIRING MFR # 4450002001
14. #BACK PANEL CABINET MFR # 4551059767
15. #CONVERTER MFR # 4451058350
16. #connection wiring MFR # 4451006870
17. #SEALANT 100(L)X87(W)X5(H)MM MFR # 4450002672
18. #S,T-STAT,VD-14 & VD-15BAV, 6A MFR # 4451002756
19. #MODULE 3A, PELTIER MFR # 4451000970
20. #TEMPERATURE PROBE NTC MFR # 4451004269
21. #VENTILATOR MFR # 4451002531
22. #WATER TANK MFR # 4451059764
23. #FOOT MFR # 4451059765
24. #SEALANT MFR # 4451021485
25. #DC power cord MFR # 4451037619
26. #PUSH BUTTON LARGE MFR # 4451011937

Replacement

Components

2 items

1. #WINE CHILLER, 6 BOTTLE, AC/DC POWER MFR # MF6W
2. #Refrigerator; Single Compartment Wine Chiller; Portable; 20 Liter Or 6 Bottles Up To 12.6 Inch Length Storage Volume; 10-3/16 Inch Width x 18-1/2 Inch Depth x 16-5/16 Inch Height; 120 Volt AC And 12/24 Volt DC; 2 Way AC/ DC; Without Ice Maker; Single Zone; Electronic Thermostat With Digital Display; With Interior LED LIght; With Power Cable/ 12 Volt DC Cable/ 120 Volt AC Cable MFR # MF6WDC
