Dometic NDA1402 New Dimensions Product # 921148271 Stainless Parts Diagram · Cabinet Interior

Refrigerator · 9 assemblies · 9 diagram sheets · 201 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDA1402 New Dimensions Product # 921148271 Stainless RV refrigerator: 9 assemblies (Cabinet Interior, Freezer Door, Cabinet Exterior, Cabinet Freezer Parts, Icemaker Parts and more) and 201 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

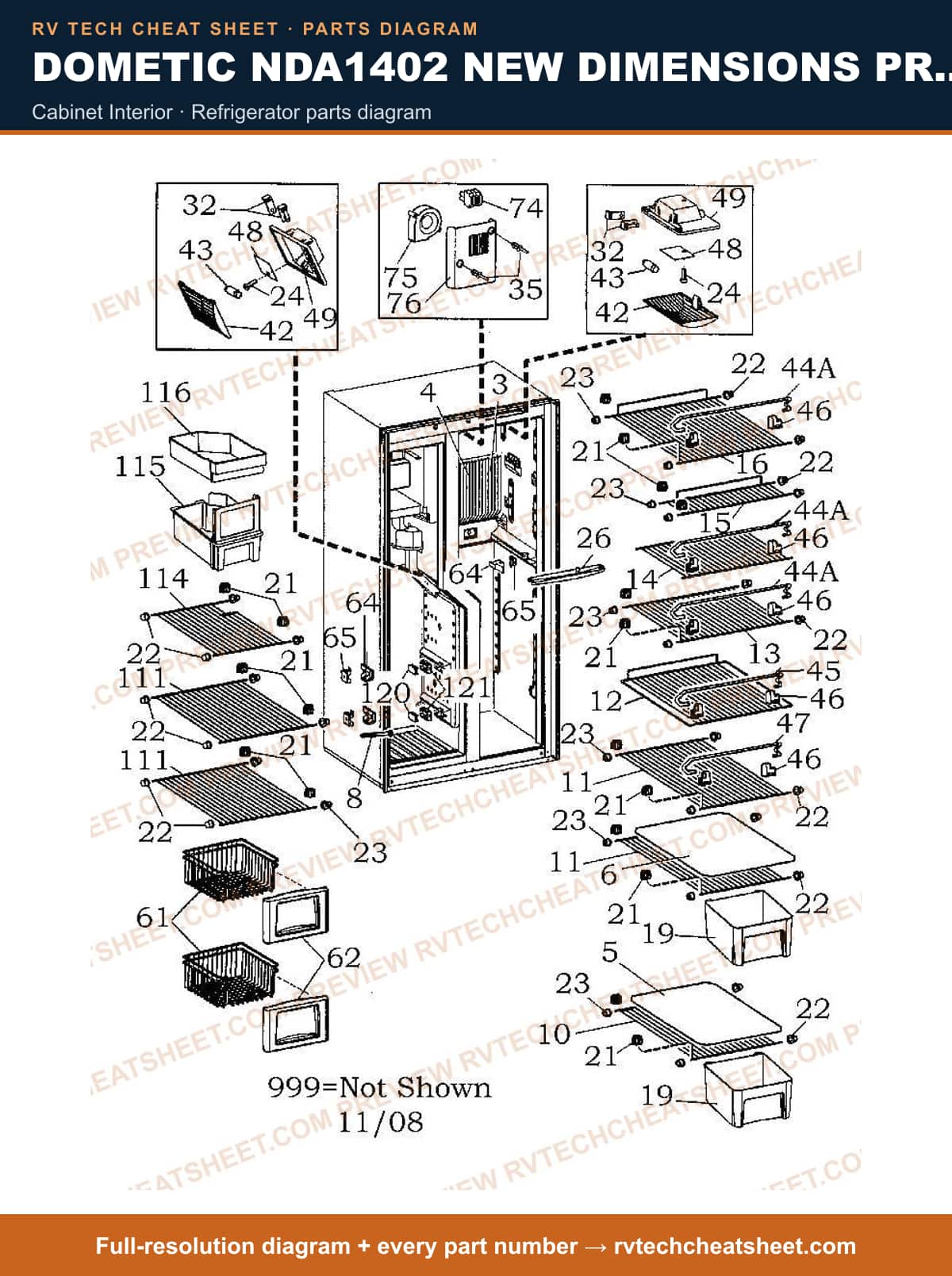

Cabinet Interior

Components

43 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #FINS,COOLING LH MFR # 3850473038
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #Refrigerator Shelf; For Use With Dometic NEA1402/ NDA1402ID Model Refrigerators; Wire MFR # 3850437017 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
10. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
11. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
12. #S,SHELF,WIRE FF,1402 MFR # 3850441019
13. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #SCREW,PT PH 4 X 10 MFR # 3858006012
18. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #SCREW MFR # 3858039013
21. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
22. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
23. #BULB 2/PK MFR # 2007290006
24. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
25. #RACK MFR # 2007337237
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
28. #RACK MFR # 2007337245
29. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
30. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016
31. #BASKET,WIRE MFR # 3850430012
32. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
33. #HOLDER,OUTER MFR # 3850484019
34. #HOLDER,INNER MFR # 3850485016
35. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
36. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
37. #COVER,FAN MFR # 3850448014
38. #SHELF MFR # 3850433016
39. #S,SHELF,WIRE,NOTCHED,NEA1402 MFR # 3850726013
40. #BIN, ICE MFR # 3850752019
41. #SHELF MFR # 3850655014
42. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
43. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026

Freezer Door

Components

18 items

1. #APPLIANCE COMPONENTS RV; Door Freezer Ss MFR # 3850427083
2. #DOOR, FREEZER USE 3850427083 OR 49-8810 STAINLESS MFR # 3850427034 Superseded: see description
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #S,HANDLE,BLK,NDR1402 MFR # 3850492012
5. #Refrigerator Control Knob; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850499017 Superseded: see description
6. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
7. #SHELF,DOOR FREEZER MFR # 2932722005
8. #SHELF,DOOR WIRE MFR # 3850431010
9. #APPLIANCE COMPONENTS RV; S,HOLDER,DR ASM,L,NDA/NEA1402 MFR # 3850447016
10. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
11. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
12. #SPRING MFR # 3850497011
13. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
14. #SCREW,BLACK MFX X M4 X 12 MFR # 3858056041
15. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
16. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048
17. #Door Stop; Mounts To Door MFR # 3850775010
18. #PANELS, DOOR BLK NDA1402 W/ ICEMAKER MFR # NDA1402IML

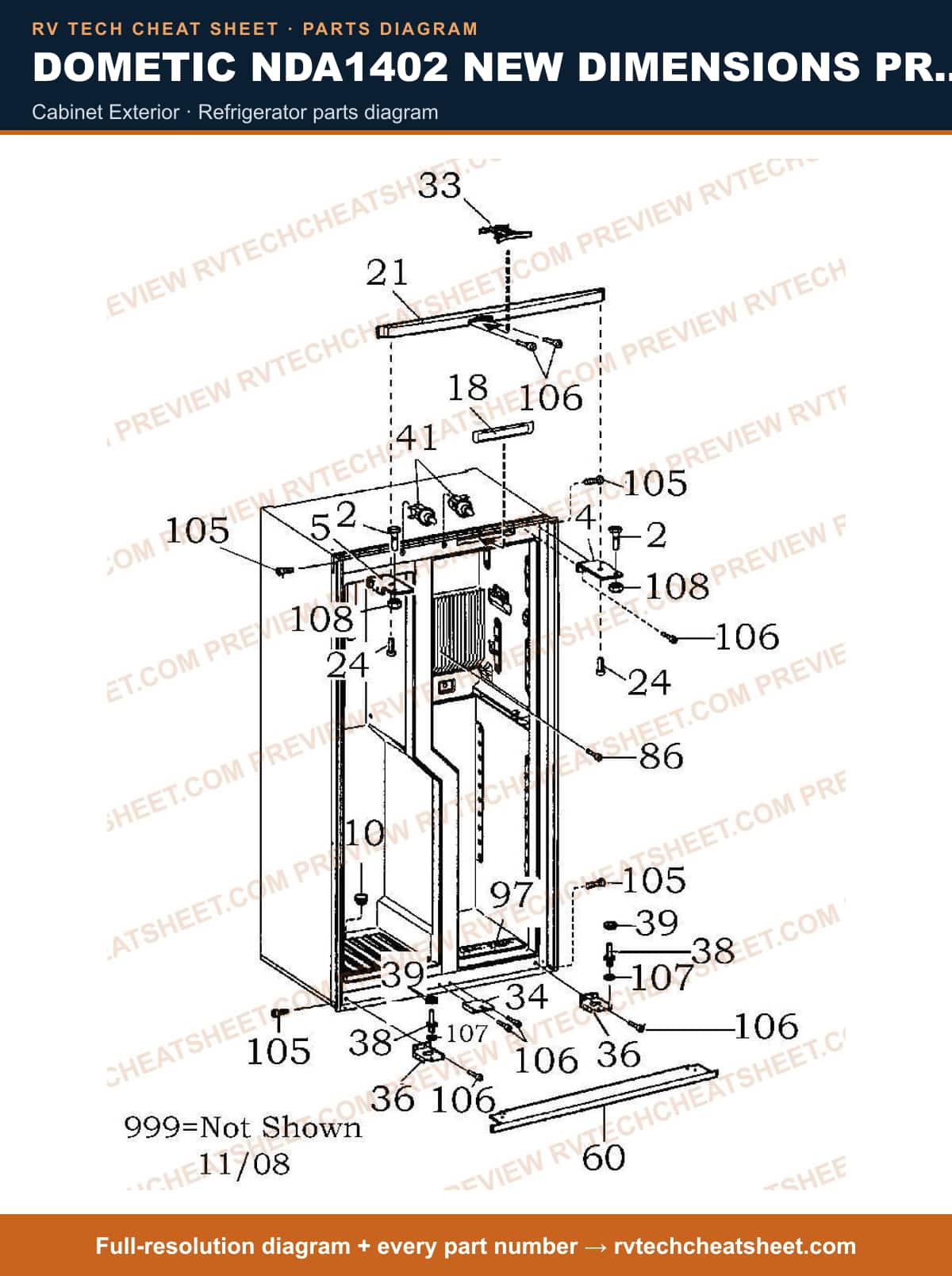

Cabinet Exterior

Components

20 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #Refrigerator Door Hinge; Replacement For Dometic NDR1292/ NDA1402/ NDR1292/ NDR1492/ NEA1402 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand; Black MFR # 3850398011
3. #HINGE, UPPER, BLACK MFR # 3850398026
4. #S,COVER,NEA1402 MFR # 2931715011
5. #Refrigerator Optical Control Board; Use With Dometic Refrigerator Model NDA1402; Panel Display Board; Black MFR # 3850682018 Superseded: see description
6. #Refrigerator Trim; Replacement For Dometic NDA1042/ NDE1402/ NDR1402 Model Refrigerator; Decoration Trim; Black MFR # 3850460019
7. #SCREW,PT PH 4 X 10 MFR # 3858006012
8. #S,BRKT,LID,UPR,NDR1402 MFR # 3850461017
9. #APPLIANCE COMPONENTS RV; Bracket Lock Lower MFR # 3850462015
10. #S,HINGE,LWR,L,BLK MFR # 3850397013
11. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
12. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
13. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
14. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
15. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
16. #PLATE,INSTRUCTION MFR # 3850693007
17. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
18. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
19. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
20. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

Cabinet Freezer Parts

Components

39 items

1. #SCREW M6S A2-80 5X25 MFR # 3858041027
2. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
3. #WASHER,STAINLESS MFR # 3858010121
4. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3850674015
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402/ NDA1402ID Model Refrigerator MFR # 3850675012
6. #ELEMENT USE 3851411011 OR 49-8513 MFR # 3850676010 Superseded: see description
7. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models NDA1402/ NDA1402ID/ NEA1402 MFR # 3851411011 Superseded: see description
8. #FLANGE,COOLING FREEZER MFR # 3850629019
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
10. #APPLIANCE COMPONENTS RV; Fan Svc Kit MFR # 3850486030
11. #FAN,FREEZER USE 3850486030 FOR SERIAL # BEFORE 7020000 MFR # 3850486022 Superseded: see description
12. #165521030 MFR # 165521030
13. #BOTTOM,TERMINAL BOX MFR # 3850677018
14. #COVER,TERMINAL BOX MFR # 3850678016
15. #CHANNEL,SUCTION MFR # 3850648019
16. #BRACKET,MOTOR MFR # 3850649017
17. #AIR DISTRIBUTOR MFR # 3850650015
18. #COVER,W/DRIP PAN MFR # 3850651013
19. #INSULATION MFR # 3850652011
20. #STRIP,SUPPORT MFR # 3850656012
21. #HOSE,DRAINAGE MFR # 3850658018
22. #Refrigerator Door; Replacement For Dometic Refrigerator Door Liner MFR # 3850659016
23. #STRIP,SEALING COOLING FLANGE MFR # 3850660014
24. #PIN,LOCKING MFR # 3850661012
25. #BRACKET,THERMISTER MFR # 3850679014
26. #SCREW EML 5 X 12 STAINLESS MFR # 3858040037
27. #SCREW RXS B8X19 MFR # 3858002268
28. #SCREW MRX M4X40 STAINLESS MFR # 3858004165
29. #NUT,LOCK M4 STAINLESS MFR # 3858028032
30. #SCREW,MRTX M4X10 STAINLESS MFR # 3858004173
31. #SUPPORT MFR # 3850657010
32. #SCREW RXS B6 X 9.5 MFR # 3858002235
33. #INSULATION MFR # 3850896014
34. #SHELF,ICEMAKER MFR # 3850666011
35. #PLATE MFR # 3850667019
36. #STRIP,SEALING (AFTER S/N 70700003) MFR # 3850734025
37. #STRIP,SEALING (BEFORE S/N 70700002) MFR # 3850734017
38. #COVER,OUTER INSTALLATION MFR # 3850668017
39. #PLATE,INSULATING MFR # 3850669015

Icemaker Parts

Components

12 items

1. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
3. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
4. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
5. #APPLIANCE COMPONENTS RV; Insert Water Inlet Valve MFR # 3850220017
6. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
7. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
8. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
9. #ICEMAKER ASM USE 3108703517 MFR # 2932147016 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
11. #Ice Maker Heater; For Dometic Refrigerators MFR # 3850688015
12. #HARNESS,AFTER SN 509XXXX MFR # 2954559023

Cooling Unit

Components

14 items

1. #COOLING UNIT W/THERMAL FUSE MFR # 2934948106
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #COVER,HEATER MFR # 2933557023
4. #LABEL MFR # 3850600010
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
7. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
8. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
9. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
10. #HOSE, DRAIN MFR # 2932749100
11. #SET,CORD USE 2002699110 MFR # 2002699177 Superseded: see description
12. #S,PROTECTION PLATE,REAR MFR # 2932155019
13. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
14. #LABEL MFR # 3850583000

Replacement Refrigerator

Components

7 items

1. #REFER,14 CU FT. W/WATER & ICE SILVER STAINLESS MFR # NDA1402WIDSSF
2. #REFER,14 CU FT 2-WAY BLK/STNLS AUTO DEF ICEMKR MFR # NDA1402BSIMF
3. #REFER,14 CU FT. W/WATER & ICE BLACK STAINLESS MFR # NDA1402WIDBSF
4. #REFER,14 CU FT. W/WATER & ICE MFR # NDA1402WIDF
5. #REFER,14CU FT AUTO/DEF BLACK W/ICEMAKER SIDEWISE MFR # NDA1402BIMF
6. #REFER,14 CU FT W/ICE DISP.BLK AUTO DEFROST MFR # NDA1402IDBSF
7. #REFER,14CUFT. STAINLESS AUTO/DEF W/ICEMAKER & FAN MFR # NDA1402SSIMF

Refrigerator Door

Components

19 items

1. #APPLIANCE COMPONENTS RV; Door Refer Stainless MFR # 3850426036
2. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
3. #S,HANDLE,BLK,NDR1402 MFR # 3850492012
4. #Refrigerator Control Knob; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850499017 Superseded: see description
5. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
6. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
7. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
8. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
9. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
10. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
11. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
12. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
13. #BAR,LOCK MFR # 3850495015
14. #SPRING MFR # 3850497011
15. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
16. #SCREW,BLACK MFX X M4 X 12 MFR # 3858056041
17. #Door Stop; Mounts To Door MFR # 3850775010
18. #NAMEPLATE MFR # 3850385026
19. #PANELS, DOOR BLK NDA1402 W/ ICEMAKER MFR # NDA1402IML

Burner & Control

Components

39 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
5. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
6. #SCREW,RXS B6X13 ZINC MFR # 3858002151
7. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
8. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
9. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
10. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
11. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
12. #BRACKET MFR # 2932061020
13. #PLATE,MOUNTING MFR # 2932032010
14. #BRACKET MFR # 3850710017
15. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board; 120 Volts AC/ 12 Volt DC; 8 Amps MFR # 3850681010
16. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
17. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
18. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
19. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
20. #SUPPORT PLATE MFR # 2932043017
21. #APPLIANCE COMPONENTS RV; Element 120V 210 Watt MFR # 3850644539
22. #S,HEATER,(2X) 60V,210W,RM1350 MFR # 3850644620
23. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
24. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Burner Control Board MFR # 3850708011
25. #3858022019 MFR # 3858022019
26. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
27. #BRACKET,WATER VALVE MFR # 3850777016
28. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
29. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
30. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
31. #CONDUCTOR,BURNER CONTROL MFR # 2954547028
32. #CONDUCTOR,GAS SOLENOID MFR # 2954557019
33. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 99 Inch Length MFR # 3850680012
34. #APPLIANCE COMPONENTS RV; Conductor Thermistor Free MFR # 3850680020
35. #HARNESS (BEFORE S/N 7020000) MFR # 2954555013
36. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
37. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
38. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
39. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
