Dometic NDA1402 New Dimensions Product # 921148284 Black Parts Diagram · Cabinet Ice Maker Components

Refrigerator · 10 assemblies · 10 diagram sheets · 236 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDA1402 New Dimensions Product # 921148284 Black RV refrigerator: 10 assemblies (Cabinet Ice Maker Components, Door Dispencer Components, Control & Burner, Cabinet Exterior, Ice Maker Parts and more) and 236 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Ice Maker Components

Components

17 items

1. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
2. #S,HOSE,CLR-TO WATER VALVE MFR # 3851127013
3. #SLEEVE, PROTECTION MFR # 3851186019
4. #NUT, 1/2" MFR # 3851117014
5. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
6. #NUT, WATER VALVE MFR # 3108706288
7. #CONNECTION 90 DEGREE MFR # 3851081020
8. #CLIPS MFR # 3858080017
9. #Refrigerator Water Dispenser Valve; Replacement For Dometic Refrigerator Water Dispenser Valve MFR # 3851116016
10. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
11. #APPLIANCE COMPONENTS RV; Insert Water Inlet Valve MFR # 3850220017
12. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
13. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Icemaker Complete MFR # 3108705553
15. #APPLIANCE COMPONENTS RV; ICEMAKER REPL SERVICE KIT MFR # 3313470085
16. #APPLIANCE COMPONENTS RV; Heater Kit Water Valve MFR # 3850688023
17. #HARNESS, WIRE MFR # 2954549032

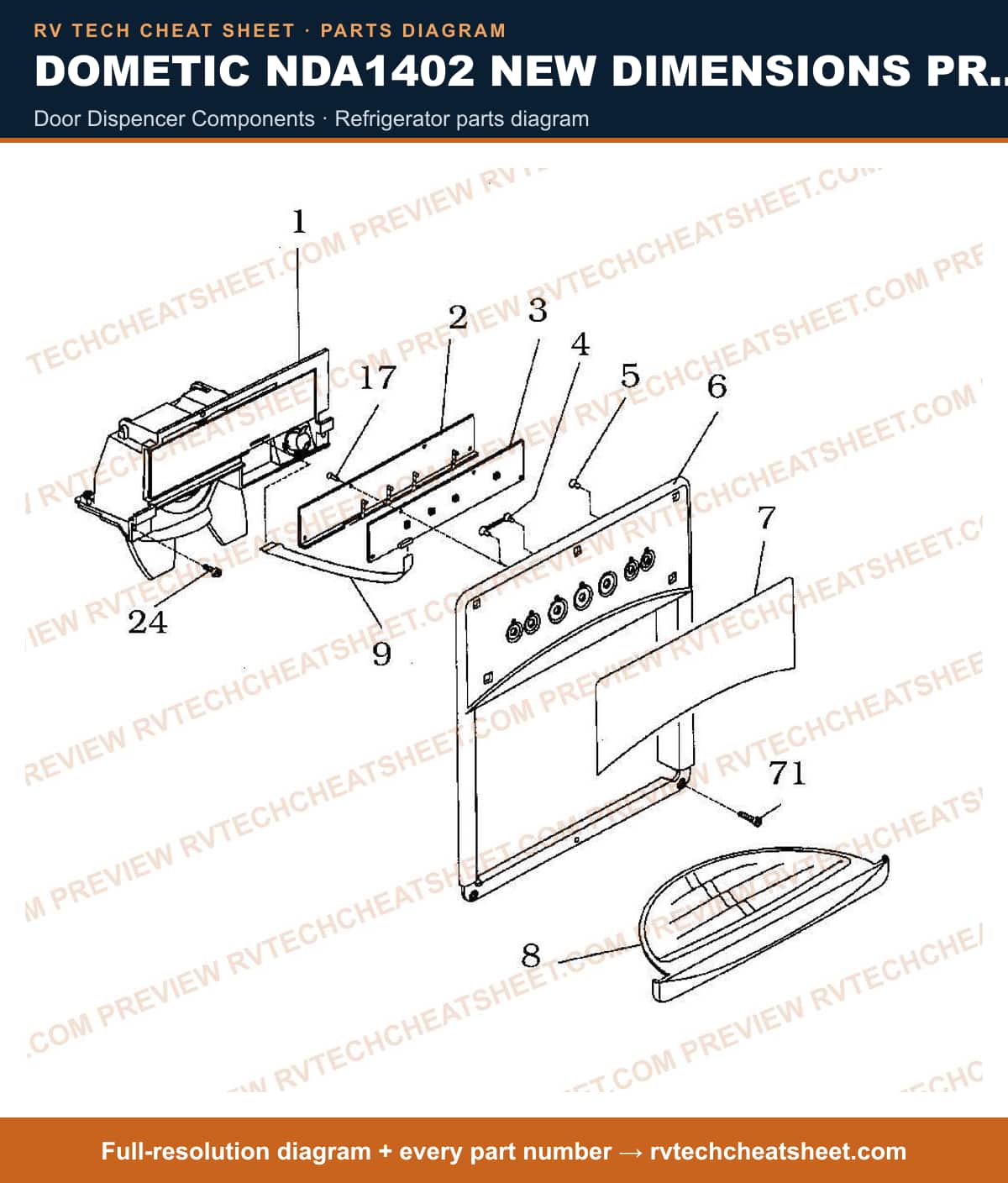

Door Dispencer Components

Components

12 items

1. #APPLIANCE COMPONENTS RV; Module Dispencer Black MFR # 3850811021
2. #CARRIER MFR # 3850862016
3. #APPLIANCE COMPONENTS RV; Board Pc MFR # 3850861018
4. #CONDUCTOR, LIGHT LONG MFR # 3850864012
5. #CONDUCTOR, LIGHT SHORT MFR # 3850865019
6. #FRONT MFR # 3850892013
7. #LABEL MFR # 3850807029
8. #S,DRIP TRAY,BLK MFR # 3850796016
9. #HARNESS, RIBBON CABLE MFR # 3850863014
10. #SCREW MFR # 3858006087
11. #SCREW,PT PH 4 X 10 MFR # 3858006012
12. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3858006103

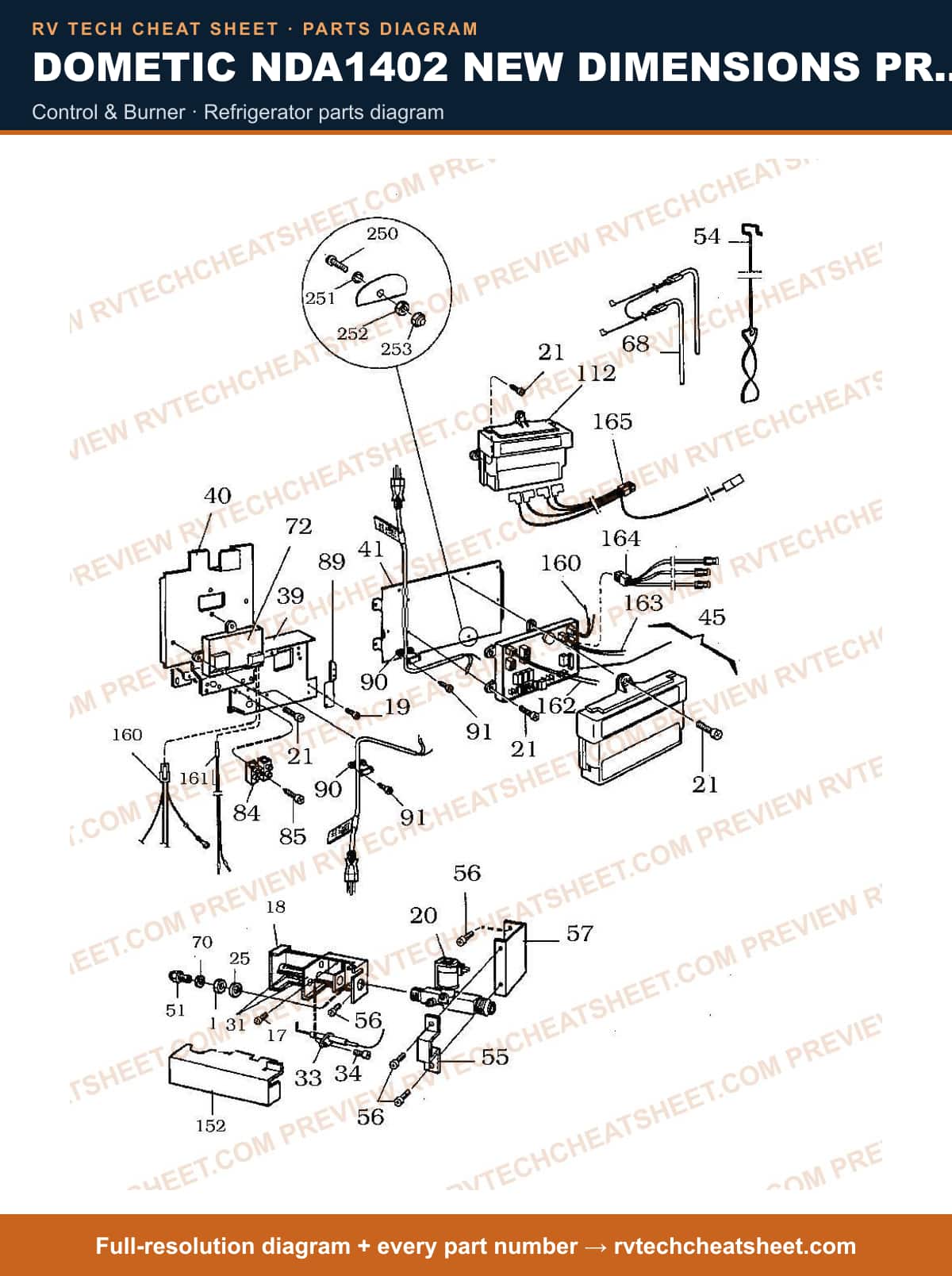

Control & Burner

Components

42 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
5. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
6. #SCREW,RXS B6X13 ZINC MFR # 3858002151
7. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
8. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
9. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
10. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
11. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
12. #BRACKET MFR # 2932061020
13. #PLATE,MOUNTING MFR # 2932032010
14. #BRACKET MFR # 3850710017
15. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board; 120 Volts AC/ 12 Volt DC; 8 Amps MFR # 3850681010
16. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
17. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
18. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
19. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
20. #SUPPORT PLATE MFR # 2932043017
21. #S,HEATER,(2X) 60V,210W,RM1350 MFR # 3850644620
22. #APPLIANCE COMPONENTS RV; Element 120V 210 Watt MFR # 3850644539
23. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
24. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Burner Control Board MFR # 3850708011
25. #3858022019 MFR # 3858022019
26. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
27. #BRACKET,WATER VALVE MFR # 3851106017
28. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
29. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
30. #S,CONTROL,ICE DISPENSER MFR # 3850879010
31. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
32. #CONDUCTOR,BURNER CONTROL MFR # 2954547028
33. #CONDUCTOR,GAS SOLENOID MFR # 2954557019
34. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 99 Inch Length MFR # 3850680012
35. #APPLIANCE COMPONENTS RV; Conductor Thermistor Free MFR # 3850680020
36. #HARNESS (AFTER S/N 7030000) MFR # 2954555021
37. #HARNESS (BEFORE S/N 7020000) MFR # 2954555013
38. #HARNESS MFR # 2954573016
39. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
40. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
41. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
42. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

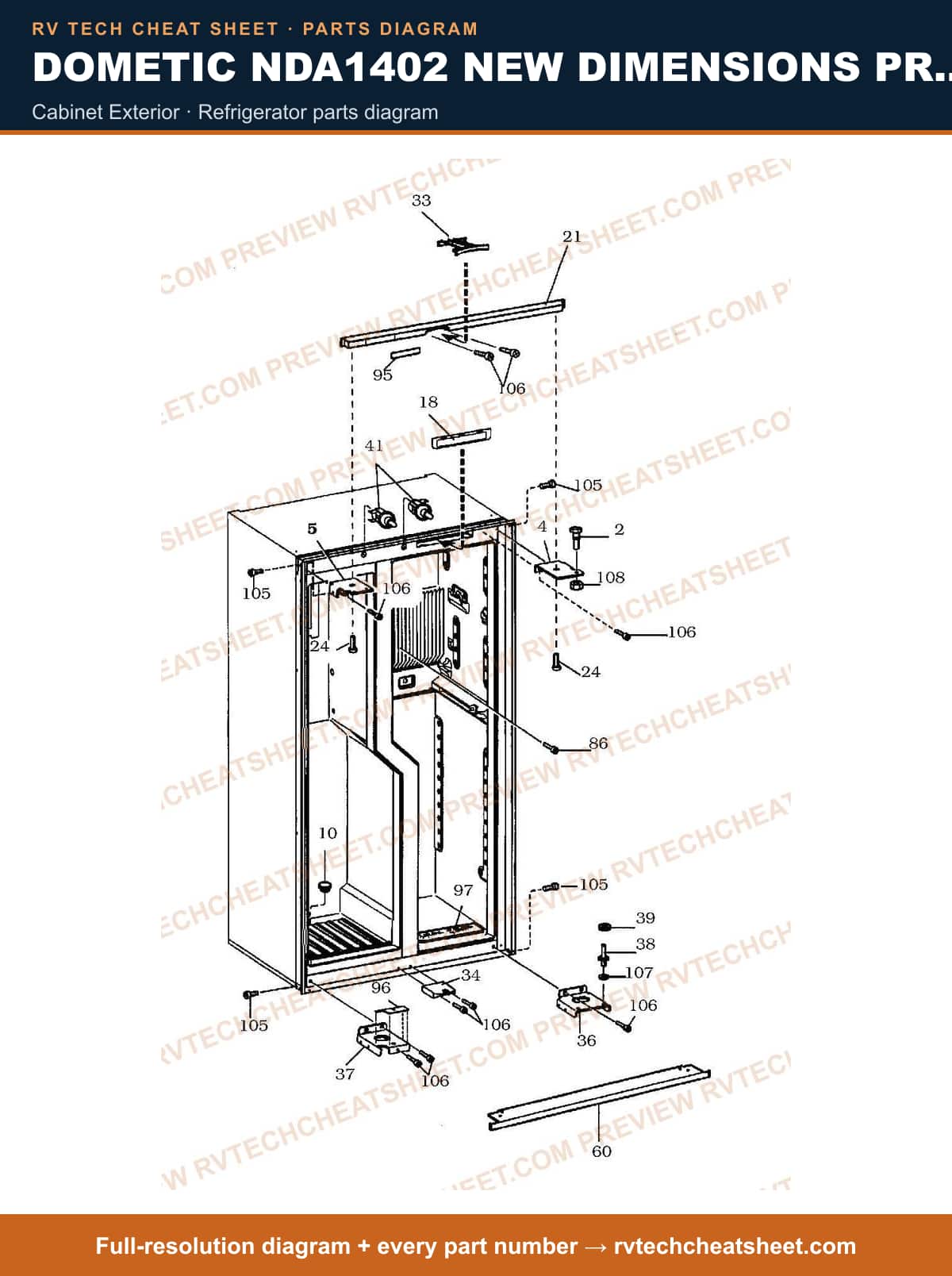

Cabinet Exterior

Components

23 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #HINGE, UPPER BLACK MFR # 3850889019
3. #HINGE, UPPER BLACK MFR # 3850890017
4. #S,COVER,NEA1402 MFR # 2931715011
5. #Refrigerator Optical Control Board; Use With Dometic Refrigerator Model NDA1402; Panel Display Board; Black MFR # 3850682018 Superseded: see description
6. #FRONT, BLACK MFR # 3850823018
7. #SCREW,PT PH 4 X 10 MFR # 3858006012
8. #HOLDER LOCK, UPPER MFR # 3850824016
9. #Refrigerator Door Panel Holder; Use With Dometic Refrigerator Model NDA1402/ NEA1402; For Lower Door MFR # 3850825013 Superseded: see description
10. #HINGE, LOWER BLACK MFR # 3850888011
11. #HINGE, LOWER BLACK MFR # 3851079016
12. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
13. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
14. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
15. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
16. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
17. #SIGN PLATE MFR # 3850932025
18. #SPACER, PLASTIC BLACK MFR # 3851130017
19. #PLATE,INSTRUCTION MFR # 3850693007
20. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
21. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
23. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

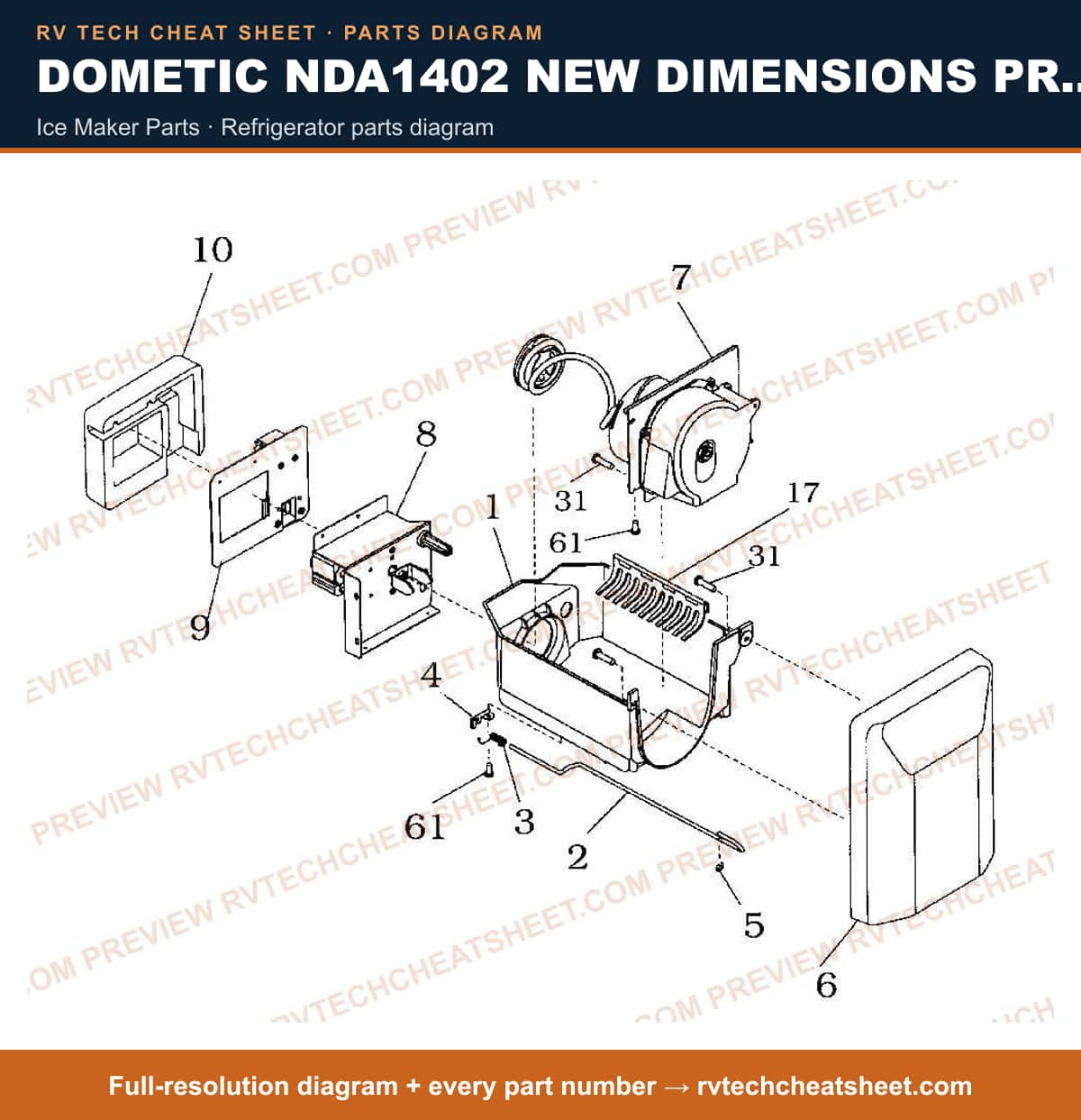

Ice Maker Parts

Components

14 items

1. #CONTAINER, ICE MFR # 3850789011
2. #ARM, OPERATING MFR # 3850790019
3. #S,SPRING,CNTRL ROD,NDA/NEA1402 MFR # 3850814017
4. #BRACKET, OPERATING ARM MFR # 3850815014
5. #RING, RETAINING MFR # 3858034014
6. #FRONT, ICE DISPENSER MFR # 3850792015
7. #Screw; Use With Dometic Refrigerator Model NDA1402ID/ NEA1402 MFR # 3850816012 Superseded: see description
8. #MOTOR, 120VAC MFR # 3850830013
9. #S,SOLENOID ASM MFR # 3850857016
10. #INSULATION, SOLENOID MFR # 3850791017
11. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
12. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
13. #SCREW MFR # 3858006095
14. #SCREW MRXS B8X9.5 MFR # 3858002243

Replacement Refrigerator

Components

7 items

1. #REFER,14 CU FT. W/WATER & ICE BLACK STAINLESS MFR # NDA1402WIDBSF
2. #REFER,14 CU FT. W/WATER & ICE MFR # NDA1402WIDF
3. #REFER,14 CU FT 2-WAY BLK/STNLS AUTO DEF ICEMKR MFR # NDA1402BSIMF
4. #REFER,14 CU FT. W/WATER & ICE SILVER STAINLESS MFR # NDA1402WIDSSF
5. #REFER,14CU FT AUTO/DEF BLACK W/ICEMAKER SIDEWISE MFR # NDA1402BIMF
6. #REFER,14 CU FT W/ICE DISP.BLK AUTO DEFROST MFR # NDA1402IDBSF
7. #REFER,14CUFT. STAINLESS AUTO/DEF W/ICEMAKER & FAN MFR # NDA1402SSIMF

Door Assembly

Components

33 items

1. #DOOR, REFRIGERATOR BLACK MFR # 3850881024
2. #DOOR,FREEZER MFR # 3851125025
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #HINGE,BUSHING BLACK MFR # 3850800016
5. #HANDLE, DOOR BLACK THIS HANDLE IS USED ON NDA 1402 PR# 921148284 SERIAL #S BEFORE 70700002 FOR SERIAL#S AFTER 70700003 USE 3850821020 MFR # 3850821012 Superseded: see description
6. #HANDLE,DOOR BLACK (AFTER S/N 70700003) MFR # 3850821020
7. #KNOB, CONTROL BLACK MFR # 3850822010
8. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
9. #PIN,HINGE MFR # 3850801014
10. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
11. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
12. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
13. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
14. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
15. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
16. #LABEL MFR # 3851235006
17. #SHELF,DOOR WIRE MFR # 3850431010
18. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
19. #PIN,HINGE FREEZER LOWER MFR # 3851080014
20. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model RM1402/ RM1402ID; 1/4 Inch x 7 Foot; 1/4 Inch Inlet Connection; 7 Foot Length MFR # 3851108013 Superseded: see description
21. #BAR,LOCK MFR # 3850495015
22. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
23. #SPRING MFR # 3850497011
24. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
25. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
26. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048
27. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DMH1072/ NDA1402/ NEA1402/ RM1350/ RM3762/ RM3962 Model Refrigerator; Black MFR # 3858071024
28. #CONNECTOR MFR # 3858073020
29. #HARNESS MFR # 2954560021
30. #TRIM, DOOR FREEZER UPPER MFR # 3850827019
31. #TRIM,DOOR FREEZER MIDDLE MFR # 3850891015
32. #TRIM, REFRIGERATOR DOOR MFR # 3850828017
33. #PANELS, DOOR BLK NDA1402 W/ ICEMAKER MFR # NDA1402IML

Cabinet Freezer Componets

Components

39 items

1. #SCREW M6S A2-80 5X25 MFR # 3858041027
2. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
3. #WASHER,STAINLESS MFR # 3858010121
4. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3850674015
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402/ NDA1402ID Model Refrigerator MFR # 3850675012
6. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models NDA1402/ NDA1402ID/ NEA1402 MFR # 3851411011 Superseded: see description
7. #ELEMENT USE 3851411011 OR 49-8513 MFR # 3850676010 Superseded: see description
8. #FLANGE,COOLING FREEZER MFR # 3850629019
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
10. #FAN,FREEZER USE 3850486030 FOR SERIAL # BEFORE 7020000 MFR # 3850486022 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Fan Svc Kit MFR # 3850486030
12. #165521030 MFR # 165521030
13. #BOTTOM,TERMINAL BOX MFR # 3850677018
14. #COVER,TERMINAL BOX MFR # 3850678016
15. #CHANNEL,SUCTION MFR # 3850648019
16. #AIR DISTRIBUTOR MFR # 3850650015
17. #COVER,W/DRIP PAN MFR # 3850651013
18. #INSULATION MFR # 3850652011
19. #STRIP,SUPPORT MFR # 3850656012
20. #HOSE,DRAINAGE MFR # 3850658018
21. #Refrigerator Door; Replacement For Dometic Refrigerator Door Liner MFR # 3850659016
22. #STRIP,SEALING COOLING FLANGE MFR # 3850660014
23. #PIN,LOCKING MFR # 3850661012
24. #BRACKET,THERMISTER MFR # 3850679014
25. #SCREW EML 5 X 12 STAINLESS MFR # 3858040037
26. #SCREW RXS B8X19 MFR # 3858002268
27. #SCREW MRX M4X40 STAINLESS MFR # 3858004165
28. #NUT,LOCK M4 STAINLESS MFR # 3858028032
29. #SCREW,MRTX M4X10 STAINLESS MFR # 3858004173
30. #SUPPORT MFR # 3850657010
31. #SCREW RXS B6 X 9.5 MFR # 3858002235
32. #INSULATION MFR # 3850896014
33. #SHELF,ICE MAKER MFR # 3850785019
34. #PLATE MFR # 3850667019
35. #STRIP,SEALING (BEFORE S/N 70700002) MFR # 3850734017
36. #STRIP,SEALING (AFTER S/N 70700003) MFR # 3850734025
37. #COVER,OUTER INSTALLATION MFR # 3850668017
38. #PLATE,INSULATING MFR # 3850669015
39. #BRACKET,MOTOR MFR # 3850649017

Cabinet Interior

Components

40 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #FINS,COOLING LH MFR # 3850473038
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
10. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
11. #S,SHELF,WIRE FF,1402 MFR # 3850441019
12. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #SCREW,PT PH 4 X 10 MFR # 3858006012
17. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
18. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
19. #165521030 MFR # 165521030
20. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
21. #BULB 2/PK MFR # 2007290006
22. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
23. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
24. #RACK MFR # 2007337237
25. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
26. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
27. #RACK MFR # 2007337245
28. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
29. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016
30. #BASKET,WIRE MFR # 3850430012
31. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
32. #HOLDER,OUTER MFR # 3850484019
33. #HOLDER,INNER MFR # 3850485016
34. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
35. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
36. #COVER,FAN MFR # 3850448014
37. #SHELF MFR # 3850433016
38. #S,SHELF,WIRE,NOTCHED,NEA1402 MFR # 3850726013
39. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
40. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026

Cooling Unit

Components

14 items

1. #COOLING UNIT W/THERMAL FUSE TYPE 948 MFR # 2934948114
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #COVER,HEATER MFR # 2933557023
4. #LABEL MFR # 3850600010
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
7. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
8. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
9. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
10. #HOSE, DRAIN MFR # 2932749100
11. #CORD SET MFR # 2002699169
12. #S,PROTECTION PLATE,REAR MFR # 2932155019
13. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
14. #LABEL MFR # 3850583000
