Dometic NDA1402 New Dimensions Product # 921148409 Black Parts Diagram · Door Assembly

Refrigerator · 10 assemblies · 10 diagram sheets · 245 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDA1402 New Dimensions Product # 921148409 Black RV refrigerator: 10 assemblies (Door Assembly, Cabinet Exterior, Cabinet Freezer, Ice Dispenser-freezer Parts, Cabinet Interior and more) and 245 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

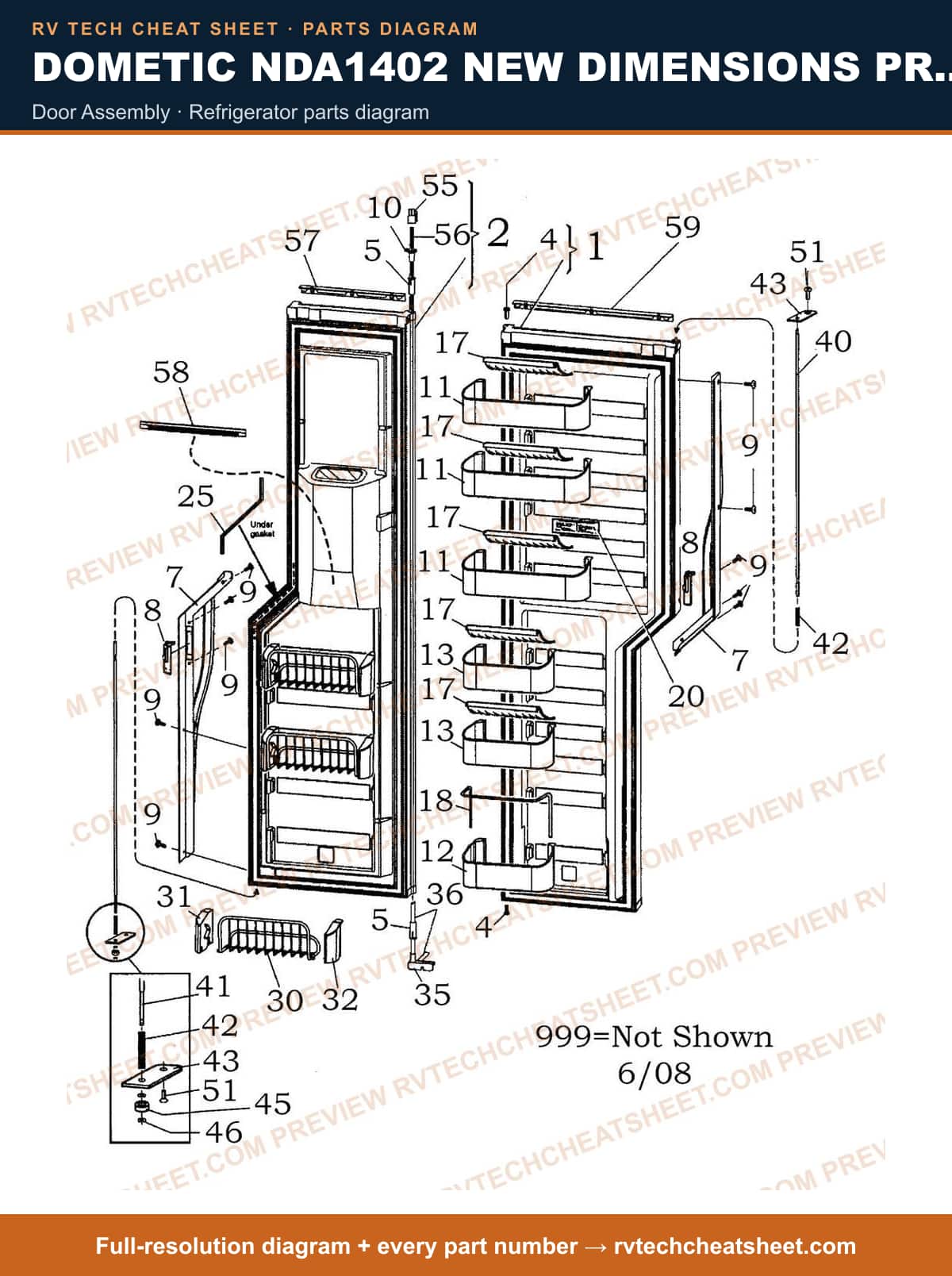

Door Assembly

Components

34 items

1. #DOOR, REFRIGERATOR BLACK MFR # 3850881024
2. #DOOR,FREEZER MFR # 3851125025
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #HINGE,BUSHING BLACK MFR # 3850800016
5. #HANDLE,DOOR BLACK (AFTER S/N 70700003) MFR # 3850821020
6. #KNOB, CONTROL BLACK MFR # 3850822010
7. #S,SCREW,EML,5*10,ZP,BLK-6-10/ MFR # 3858089018
8. #PIN,HINGE MFR # 3850801014
9. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
10. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
11. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
12. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
13. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
14. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
15. #LABEL MFR # 3851235006
16. #SEALING STRIP MFR # 3851335012
17. #SHELF,DOOR WIRE MFR # 3850431010
18. #APPLIANCE COMPONENTS RV; S,HOLDER,DR ASM,L,NDA/NEA1402 MFR # 3850447016
19. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
20. #PIN,HINGE FREEZER LOWER MFR # 3851080014
21. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model RM1402/ RM1402ID; 1/4 Inch x 7 Foot; 1/4 Inch Inlet Connection; 7 Foot Length MFR # 3851108013 Superseded: see description
22. #BAR,LOCK MFR # 3850495015
23. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
24. #SPRING MFR # 3850497011
25. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
26. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
27. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048
28. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DMH1072/ NDA1402/ NEA1402/ RM1350/ RM3762/ RM3962 Model Refrigerator; Black MFR # 3858071024
29. #CONNECTOR MFR # 3858073020
30. #HARNESS MFR # 2954560021
31. #TRIM, DOOR FREEZER UPPER MFR # 3850827019
32. #TRIM,DOOR FREEZER MIDDLE MFR # 3850891015
33. #TRIM, REFRIGERATOR DOOR MFR # 3850828017
34. #PANELS, DOOR BLK NDA1402 W/ ICEMAKER MFR # NDA1402IML

Cabinet Exterior

Components

23 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #HINGE, UPPER BLACK MFR # 3850889019
3. #HINGE, UPPER BLACK MFR # 3850890017
4. #S,COVER,NEA1402 MFR # 2931715011
5. #Refrigerator Optical Control Board; Use With Dometic Refrigerator Model NDA1402; Panel Display Board; Black MFR # 3850682018 Superseded: see description
6. #FRONT, BLACK MFR # 3850823018
7. #SCREW,PT PH 4 X 10 MFR # 3858006012
8. #HOLDER LOCK, UPPER MFR # 3850824016
9. #Refrigerator Door Panel Holder; Use With Dometic Refrigerator Model NDA1402/ NEA1402; For Lower Door MFR # 3850825013 Superseded: see description
10. #HINGE, LOWER BLACK MFR # 3850888011
11. #HINGE, LOWER BLACK MFR # 3851079016
12. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
13. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
14. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
15. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
16. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
17. #SIGN PLATE MFR # 3850932025
18. #SPACER, PLASTIC BLACK MFR # 3851130017
19. #PLATE,INSTRUCTION MFR # 3850693007
20. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
21. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
23. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

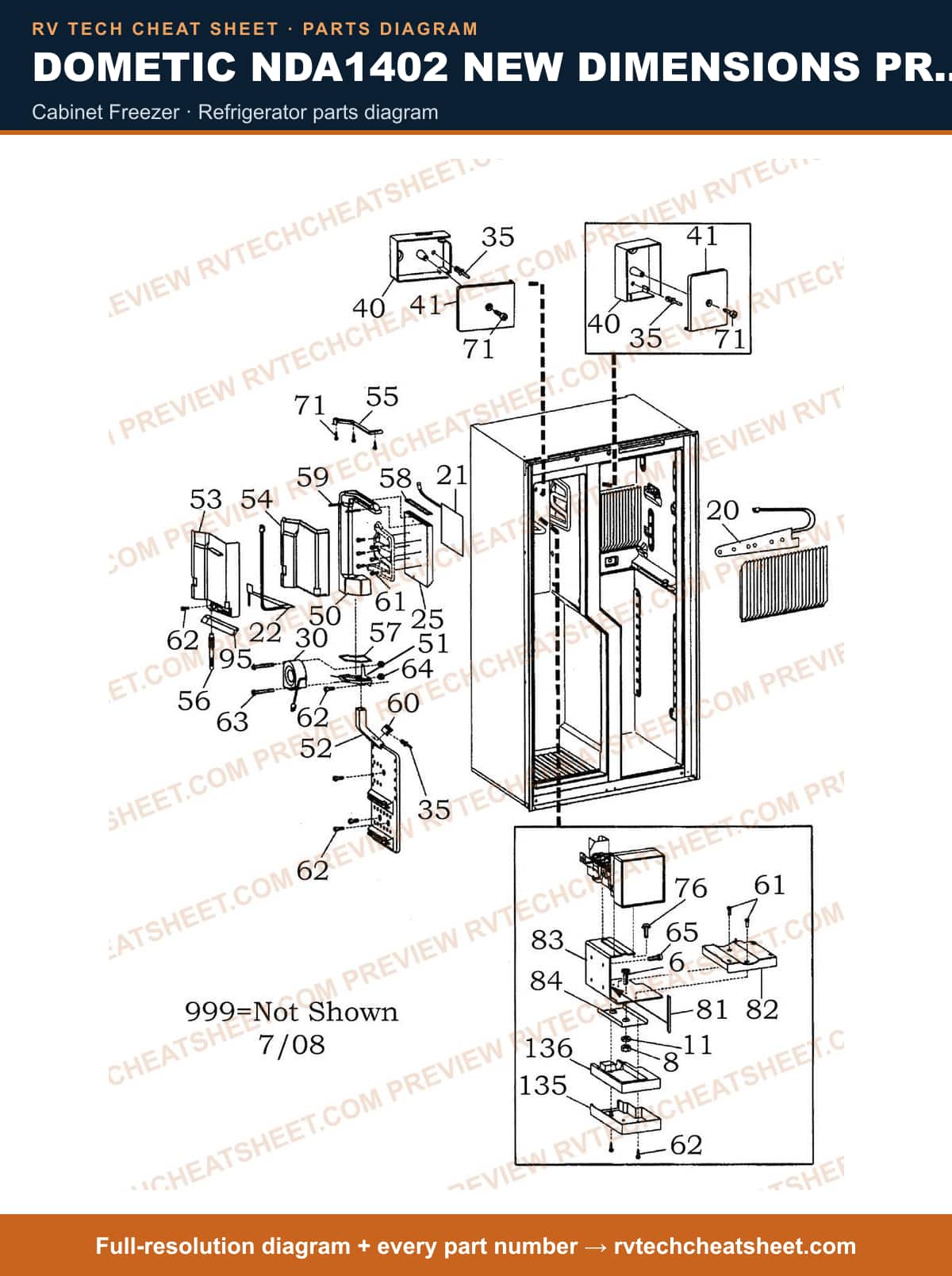

Cabinet Freezer

Components

37 items

1. #SCREW M6S A2-80 5X25 MFR # 3858041027
2. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
3. #WASHER,STAINLESS MFR # 3858010121
4. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3850674015
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402/ NDA1402ID Model Refrigerator MFR # 3850675012
6. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models NDA1402/ NDA1402ID/ NEA1402 MFR # 3851411011 Superseded: see description
7. #FLANGE,COOLING FREEZER MFR # 3850629019
8. #APPLIANCE COMPONENTS RV; Fan Svc Kit MFR # 3850486030
9. #165521030 MFR # 165521030
10. #BOTTOM,TERMINAL BOX MFR # 3850677018
11. #COVER,TERMINAL BOX MFR # 3850678016
12. #CHANNEL,SUCTION MFR # 3850648019
13. #BRACKET,MOTOR MFR # 3850649017
14. #AIR DISTRIBUTOR MFR # 3850650015
15. #COVER,W/DRIP PAN MFR # 3850651013
16. #INSULATION MFR # 3850652011
17. #STRIP,SUPPORT MFR # 3850656012
18. #HOSE,DRAINAGE MFR # 3850658018
19. #Refrigerator Door; Replacement For Dometic Refrigerator Door Liner MFR # 3850659016
20. #STRIP,SEALING COOLING FLANGE MFR # 3850660014
21. #PIN,LOCKING MFR # 3850661012
22. #BRACKET,THERMISTER MFR # 3850679014
23. #SCREW EML 5 X 12 STAINLESS MFR # 3858040037
24. #SCREW RXS B8X19 MFR # 3858002268
25. #SCREW MRX M4X40 STAINLESS MFR # 3858004165
26. #NUT,LOCK M4 STAINLESS MFR # 3858028032
27. #SCREW,MRTX M4X10 STAINLESS MFR # 3858004173
28. #SCREW RXS B6 X 9.5 MFR # 3858002235
29. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
30. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
31. #EDGE PROTECTION MFR # 3850895016
32. #BASE,ICE CONTAINER MFR # 3850786017
33. #SHELF,ICE MAKER MFR # 3850785019
34. #PLATE MFR # 3850667019
35. #STRIP,SEALING (AFTER S/N 70700003) MFR # 3850734025
36. #COVER,OUTER INSTALLATION MFR # 3850668017
37. #PLATE,INSULATING MFR # 3850669015

Ice Dispenser-freezer Parts

Components

15 items

1. #CONTAINER, ICE MFR # 3850789011
2. #ARM, OPERATING MFR # 3850790019
3. #S,SPRING,CNTRL ROD,NDA/NEA1402 MFR # 3850814017
4. #BRACKET, OPERATING ARM MFR # 3850815014
5. #RING, RETAINING MFR # 3858034014
6. #FRONT, ICE DISPENSER MFR # 3850792015
7. #Screw; Use With Dometic Refrigerator Model NDA1402ID/ NEA1402 MFR # 3850816012 Superseded: see description
8. #MOTOR, 120VAC MFR # 3850830013
9. #S,SOLENOID ASM MFR # 3850857016
10. #INSULATION, SOLENOID MFR # 3850791017
11. #CONNECTOR FORK SVC KIT MFR # 3851319016
12. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
13. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
14. #SCREW MFR # 3858006095
15. #SCREW MRXS B8X9.5 MFR # 3858002243

Cabinet Interior

Components

41 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #FINS,COOLING LH MFR # 3850473038
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #Refrigerator Shelf; For Use With Dometic NEA1402/ NDA1402ID Model Refrigerators; Wire MFR # 3850437017 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
10. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
11. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
12. #S,SHELF,WIRE FF,1402 MFR # 3850441019
13. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #SCREW,PT PH 4 X 10 MFR # 3858006012
18. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #165521030 MFR # 165521030
21. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
22. #BULB 2/PK MFR # 2007290006
23. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
24. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
25. #RACK MFR # 2007337237
26. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
27. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
28. #RACK MFR # 2007337245
29. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
30. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016
31. #BASKET,WIRE MFR # 3850430012
32. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
33. #HOLDER,OUTER MFR # 3850484019
34. #HOLDER,INNER MFR # 3850485016
35. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
36. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
37. #COVER,FAN MFR # 3850448014
38. #SHELF MFR # 3850433016
39. #S,SHELF,WIRE,NOTCHED,NEA1402 MFR # 3850726013
40. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
41. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026

Cooling Unit

Components

22 items

1. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
3. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
4. #COOLING UNIT W/THERMAL FUSE TYPE 948 MFR # 2934948114
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #S,WIRE ASM,FUSED 3A,FAN MFR # 3850085022
8. #LABEL MFR # 3850600010
9. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
10. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
11. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
12. #S,FAN,92MM,T=25MM MFR # 3851183016
13. #BRACKET, FAN MFR # 3851184014
14. #HOSE, DRAIN MFR # 2932749100
15. #CORD SET MFR # 2002699169
16. #THERMO FUSE USE 3850306063 MFR # 3850306055 Superseded: see description
17. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
18. #SCREW MFR # 3858002318
19. #Base Plate, Rear MFR # 3851204010
20. #S,PROTECTION PLATE,REAR MFR # 2932155019
21. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
22. #LABEL MFR # 3850583000

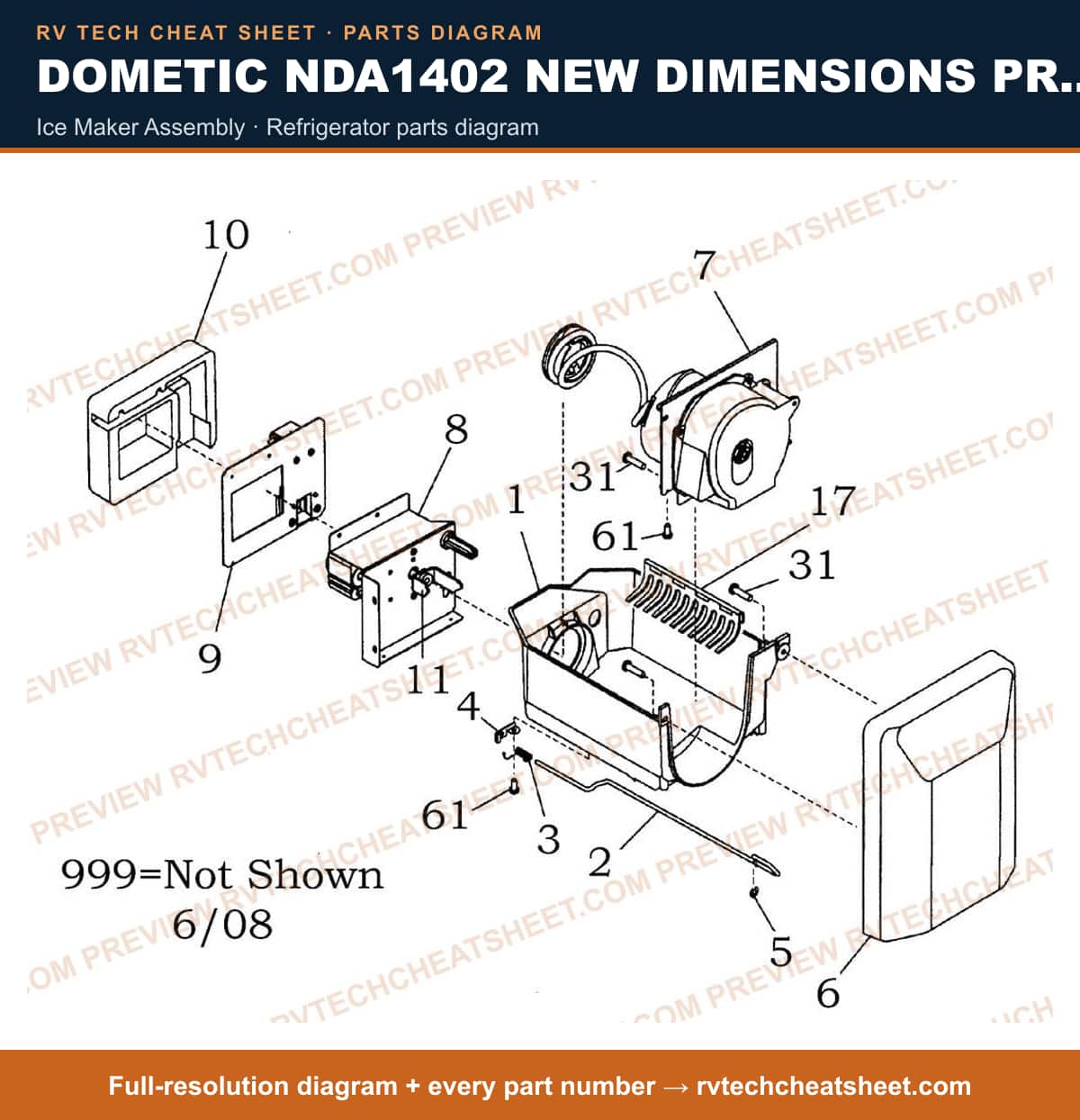

Ice Maker Assembly

Components

18 items

1. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
2. #S,HOSE,CLR-TO WATER VALVE MFR # 3851127013
3. #SLEEVE, PROTECTION MFR # 3851186019
4. #NUT, 1/2" MFR # 3851117014
5. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
6. #NUT, WATER VALVE MFR # 3108706288
7. #CLIPS MFR # 3858080017
8. #Refrigerator Water Dispenser Valve; Replacement For Dometic Refrigerator Water Dispenser Valve MFR # 3851116016
9. #TUBE, INLET MFR # 3851417018
10. #CONNECTION 90 DEG MFR # 3851410013
11. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
12. #APPLIANCE COMPONENTS RV; Insert Water Inlet Valve MFR # 3850220017
13. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
14. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Icemaker Complete MFR # 3108705553
16. #APPLIANCE COMPONENTS RV; ICEMAKER REPL SERVICE KIT MFR # 3313470085
17. #APPLIANCE COMPONENTS RV; Heater Kit Water Valve MFR # 3850688023
18. #HARNESS, WIRE MFR # 2954549032

Burner & Control

Components

41 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
5. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
6. #SCREW,RXS B6X13 ZINC MFR # 3858002151
7. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
8. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
9. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
10. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
11. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
12. #HOLDER MFR # 2932031020
13. #PLATE,MOUNTING MFR # 2932032010
14. #BRACKET MFR # 3850710017
15. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board; 120 Volts AC/ 12 Volt DC; 8 Amps MFR # 3850681010
16. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
17. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
18. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
19. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
20. #SUPPORT PLATE MFR # 2932043017
21. #APPLIANCE COMPONENTS RV; Element 120V 210 Watt MFR # 3850644539
22. #S,HEATER,(2X) 60V,210W,RM1350 MFR # 3850644620
23. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
24. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Burner Control Board MFR # 3850708011
25. #3858022019 MFR # 3858022019
26. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
27. #BRACKET,WATER VALVE MFR # 3851106017
28. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
29. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
30. #S,CONTROL,ICE DISPENSER MFR # 3850879010
31. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
32. #CONDUCTOR,BURNER CONTROL MFR # 2954547028
33. #CONDUCTOR,GAS SOLENOID MFR # 2954557019
34. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 99 Inch Length MFR # 3850680012
35. #APPLIANCE COMPONENTS RV; Conductor Thermistor Free MFR # 3850680020
36. #HARNESS (AFTER S/N 7030000) MFR # 2954555021
37. #HARNESS MFR # 2954573016
38. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
39. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
40. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
41. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Ice Dispenser-door Parts

Components

12 items

1. #APPLIANCE COMPONENTS RV; Module Dispencer Black MFR # 3850811021
2. #CARRIER MFR # 3850862016
3. #APPLIANCE COMPONENTS RV; Board Pc MFR # 3850861018
4. #CONDUCTOR, LIGHT LONG MFR # 3850864012
5. #CONDUCTOR, LIGHT SHORT MFR # 3850865019
6. #FRONT MFR # 3850892013
7. #LABEL MFR # 3850807029
8. #TRAY, DRIP BLACK MFR # 3850894019
9. #HARNESS, RIBBON CABLE MFR # 3850863014
10. #SCREW MFR # 3858006087
11. #SCREW,PT PH 4 X 10 MFR # 3858006012
12. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3858006103

Replacement Refrigerator

Components

7 items

1. #REFER,14CU FT AUTO/DEF BLACK W/ICEMAKER SIDEWISE MFR # NDA1402BIMF
2. #REFER,14 CU FT. W/WATER & ICE SILVER STAINLESS MFR # NDA1402WIDSSF
3. #REFER,14 CU FT 2-WAY BLK/STNLS AUTO DEF ICEMKR MFR # NDA1402BSIMF
4. #REFER,14CUFT. STAINLESS AUTO/DEF W/ICEMAKER & FAN MFR # NDA1402SSIMF
5. #REFER,14 CU FT. W/WATER & ICE BLACK STAINLESS MFR # NDA1402WIDBSF
6. #REFER,14 CU FT. W/WATER & ICE MFR # NDA1402WIDF
7. #REFER,14 CU FT W/ICE DISP.BLK AUTO DEFROST MFR # NDA1402IDBSF
