Dometic NDE1292 New Dimensions Product # 921148104 Black Parts Diagram · Cabinet Interior

Refrigerator · 5 assemblies · 5 diagram sheets · 117 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDE1292 New Dimensions Product # 921148104 Black RV refrigerator: 5 assemblies (Cabinet Interior, Door Assembly, Controls, Cabinet Exterior, Cabinet Rear View) and 117 manufacturer part numbers. 20 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Interior

Components

31 items

1. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
2. #COOLING FLANGE, LEFT MFR # 2932761030
3. #APPLIANCE COMPONENTS RV; Shelf Plastic MFR # 2931117135
4. #SHELF, WIRE MFR # 2932022029
5. #S,SHELF,WIRE,FRZ-WHT,NDR1292 MFR # 2932022011
6. #APPLIANCE COMPONENTS RV; Shelf MFR # 2932022037
7. #COVER, CRISPER 9 1/2" X 12" MFR # 2002727077
8. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
9. #Refrigerator Crisper Bin; Replacement For Dometic NDR1292/ NDR1492 Series Refrigerators MFR # 2002726145
10. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
11. #CRISPER MFR # 2002726137
12. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
13. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2932769017
16. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
17. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
18. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
19. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
22. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
23. #BULB 2/PK MFR # 2007290006
24. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
25. #S,RAIL,SHELF,164MM MFR # 2007337161
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
28. #Refrigerator Shelf; Replacement For Dometic NDR1292/ NDE1292/ NDR1492 Series Refrigerators; Wire MFR # 2007337195
29. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
30. #SHELF, MILK MFR # 293204901
31. #SHELF,FREEZER MFR # 2932079011

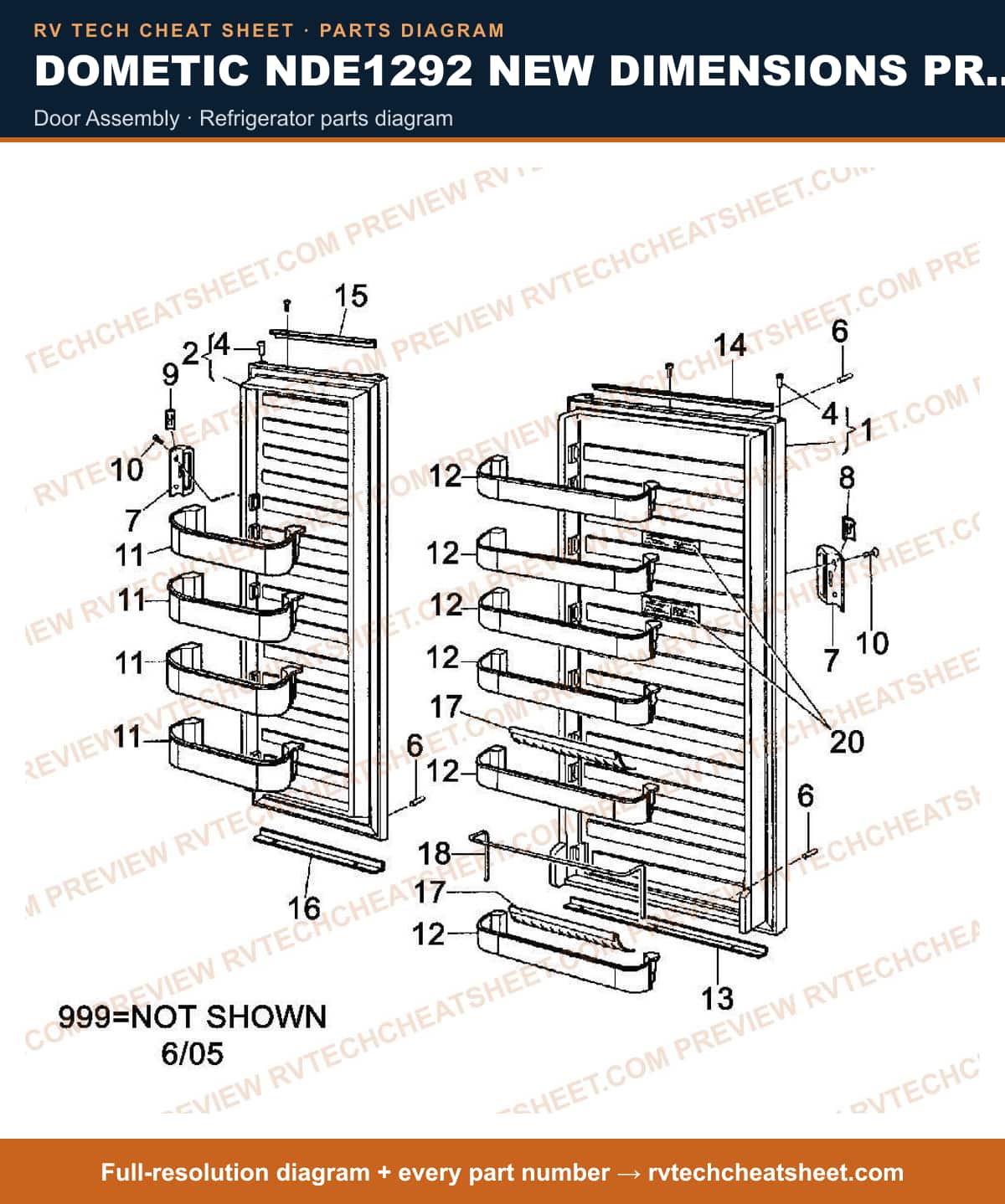

Door Assembly

Components

19 items

1. #PANELS,DOOR BRUSHED ALUMINUM SEE NOTES SPECS: THESE BRUSHED ALUMINUM DROP-IN DOOR PANELS CAN ONLY BE INSTALLED ON NDR1292 REFRIGERATOR DOORS THAT ARE NOT THE WRAP STYLE DOORS. MFR # NDR1292BA
2. #APPLIANCE COMPONENTS RV; Door Refer Black MFR # 2932026046
3. #DOOR, REFER BLACK MFR # 2932026020
4. #DOOR, FREEZER BLACK USE46-0535 MFR # 2932027028
5. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S,HANDLE,BLK-1282,92, MFR # 3850227020
8. #LATCH,CONTROL RH BLACK MFR # 2932407030
9. #LATCH, CONTROL LH BLACK MFR # 2932407048
10. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
11. #SHELF,DOOR MFR # 2932577022
12. #SHELF,DOOR IS A USE # F/2932583020 MFR # 2932583038 Superseded: see description
13. #TRIM,DOOR BLACK IS A USE # FOR 2932642263 MFR # 3850381181 Superseded: see description
14. #Refrigerator Trim; Replacement For Dometic NDR1292 Model Refrigerator; Door Top Trim; Black IS A REPLACEMENT # FOR 2932642321 MFR # 3850381249
15. #Refrigerator Trim; Replacement For Dometic NDE 1292/ NDR 1292 Model Refrigerator; Top; Black IS A USE # FOR 2932642305 MFR # 3850381223 Superseded: see description
16. #APPLIANCE COMPONENTS RV; TRIM,DOOR FREEZER BLACK IS A USE # FOR 2932642255 MFR # 3850381173 Superseded: see description
17. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
18. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
19. #RACK MFR # 2932585041

Controls

Components

17 items

1. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
2. #SCREW,RXS B6X13 ZINC MFR # 3858002151
3. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
4. #PLATE,MOUNTING MFR # 2932032010
5. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
7. #LEAD,PC BOARD MFR # 2931862029
8. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
9. #COVER,BOARD MFR # 3850429014
10. #RELAY MFR # 3850622014
11. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
12. #ELEMENT,HEATING USE 3850644471 PKG OF2 120VAC 210W MFR # 173772013 Superseded: see description
13. #TERMINAL BLOCK,Y MFR # 2931963017
14. #3858022019 MFR # 3858022019
15. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
16. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
17. #SCREW RXS B6 X 19 ZINC MFR # 3858002177

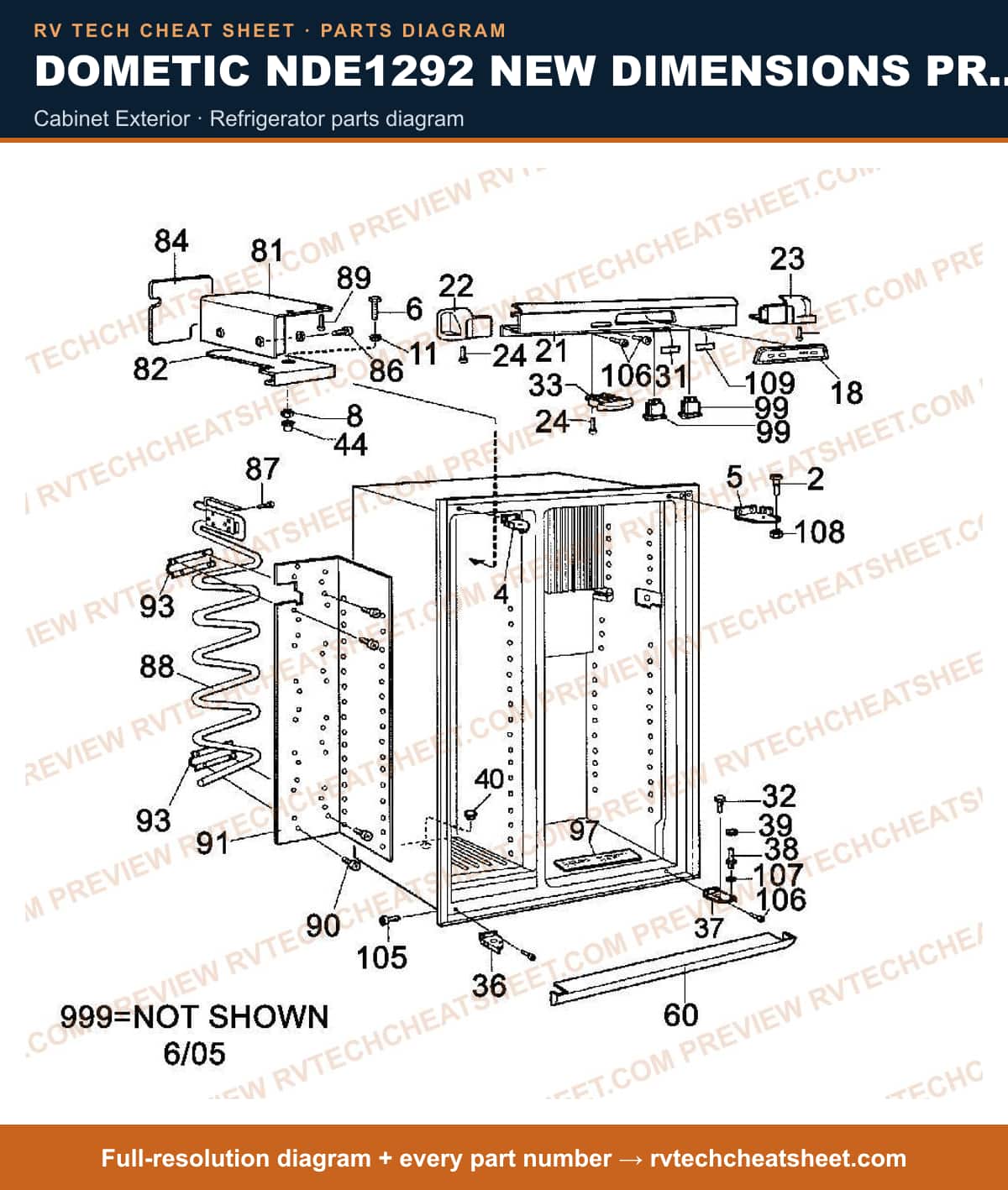

Cabinet Exterior

Components

38 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model NDR1292; Upper Left Hand; Black MFR # 2932646033 Superseded: see description
3. #HINGE, UPPER RH BLACK MFR # 2932646041
4. #SCREW, M6S SX 30 A2-80 MFR # 3858041035
5. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
6. #WASHER,STAINLESS MFR # 3858010121
7. #BOARD, DISPLAY BLACK MFR # 2932884089
8. #APPLIANCE COMPONENTS RV; Strip Decoration MFR # 2932047034
9. #Refrigerator Door Cap; Replacement For Dometic NDR1292/ RM1272 Model Refrigerator; Fits Upper Left Side Decorative Strip; Black MFR # 2932040039
10. #Refrigerator Door Cap; Replacement For Dometic NDR1292/ RM1272 Model Refrigerator; Fits Upper Right Side Decorative Strip; Black MFR # 2932040047
11. #SCREW,PT PH 4 X 10 MFR # 3858006012
12. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
13. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
14. #APPLIANCE COMPONENTS RV; LATCH, TRAVEL BLACK MFR # 2932048024
15. #Refrigerator Door Hinge; Replacement For Dometic NDR1492/ NDE1292/ NDR1292 Model Refrigerator; Lower Left Hand Side; Black MFR # 2932846039
16. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
17. #S,HINGE PIN,LWR MFR # 2932649029
18. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
19. #S,COVER,NEA1402 MFR # 2931715011
20. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
21. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
22. #PLATE, FREEZER MFR # 2932078021
23. #APPLIANCE COMPONENTS RV; Shelf Freezer White MFR # 2932077023
24. #COVERPLATE, PLASTIC MFR # 2932853027
25. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
26. #SCREW, STAINLESS MRX M 5 X 12 MFR # 3858004090
27. #APPLIANCE COMPONENTS RV; Freezer Unit MFR # 2932074012
28. #SCREW, KFXS B8X13 SFA MFR # 3858036035
29. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDE1292/ NDE1402/ NDR1292/ NDR1402 Model Refrigerator; 5 x 12 MFR # 3858037025
30. #APPLIANCE COMPONENTS RV; Plate Mounting MFR # 2932075019
31. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
32. #DECAL MFR # 2932438001
33. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
34. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
35. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
36. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
37. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
38. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008

Cabinet Rear View

Components

13 items

1. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #COVER,HEATER MFR # 2933557023
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
6. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
7. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
8. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
10. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
11. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749076
12. #S,PROTECTION PLATE,REAR MFR # 2932155019
13. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
