Dometic NDE1402 Sidewise Electric Product # 921148205 Stainless Parts Diagram · Cabinet Exterior

Refrigerator · 5 assemblies · 5 diagram sheets · 137 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDE1402 Sidewise Electric Product # 921148205 Stainless RV refrigerator: 5 assemblies (Cabinet Exterior, Doors, Cabinet Interior, Cabinet Rear View, Controls) and 137 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Exterior

Components

33 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #Refrigerator Door Hinge; Replacement For Dometic NDR1292/ NDA1402/ NDR1292/ NDR1492/ NEA1402 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand; Black MFR # 3850398011
3. #HINGE,UPPER RH BLACK MFR # 3850398029
4. #SCREW, M6S SX 30 A2-80 MFR # 3858041035
5. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
6. #S,COVER,NEA1402 MFR # 2931715011
7. #WASHER,STAINLESS MFR # 3858010121
8. #PANEL, DISPLAY BOARD BLACK MFR # 3850464029
9. #Refrigerator Trim; Replacement For Dometic NDA1042/ NDE1402/ NDR1402 Model Refrigerator; Decoration Trim; Black MFR # 3850460019
10. #SCREW,PT PH 4 X 10 MFR # 3858006012
11. #S,BRKT,LID,UPR,NDR1402 MFR # 3850461017
12. #APPLIANCE COMPONENTS RV; Bracket Lock Lower MFR # 3850462015
13. #S,HINGE,LWR,L,BLK MFR # 3850397013
14. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
15. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
16. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
17. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
18. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
19. #Screw, Stainless MRX 5x16 MFR # 3858004157
20. #Plate, Freezer MFR # 3850480017
21. #Shelf MFR # 3850481015
22. #Shelf, Icemaker MFR # 3850482013
23. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
24. #SCREW, STAINLESS MRX M 5 X 12 MFR # 3858004090
25. #Appliance Components RV; Freezer Unit MFR # 3850476015
26. #SCREW, KFXS B8X13 SFA MFR # 3858036035
27. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDE1292/ NDE1402/ NDR1292/ NDR1402 Model Refrigerator; 5 x 12 MFR # 3858037025
28. #Bracket MFR # 2931484022
29. #PLATE, INSTRUCTION MFR # 3850626007
30. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
31. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
32. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
33. #SCREW MFR # 3858039013

Doors

Components

27 items

1. #APPLIANCE COMPONENTS RV; Door Refer Stainless MFR # 3850426036
2. #DOOR, FREEZER USE 3850427083 OR 49-8810 STAINLESS MFR # 3850427034 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Door Freezer Ss MFR # 3850427083
4. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
5. #S,HANDLE,BLK,NDR1402 MFR # 3850492012
6. #Refrigerator Control Knob; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850499017 Superseded: see description
7. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
8. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
9. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
10. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
11. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
12. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
13. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
14. #Refrigerator Shelf; Replacement For Dometic NDA1402/ NDE1402/ NDR1402/ NEA1402 Model Refrigerator; Freezer Compartment; Door Shelf MFR # 3850446018
15. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
16. #SHELF,DOOR WIRE MFR # 3850431010
17. #APPLIANCE COMPONENTS RV; S,HOLDER,DR ASM,L,NDA/NEA1402 MFR # 3850447016
18. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
19. #BAR,LOCK MFR # 3850495015
20. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
21. #SPRING MFR # 3850497011
22. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
23. #SCREW,BLACK MFX X M4 X 12 MFR # 3858056041
24. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
25. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048
26. #Door Stop; Mounts To Door MFR # 3850775010
27. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018

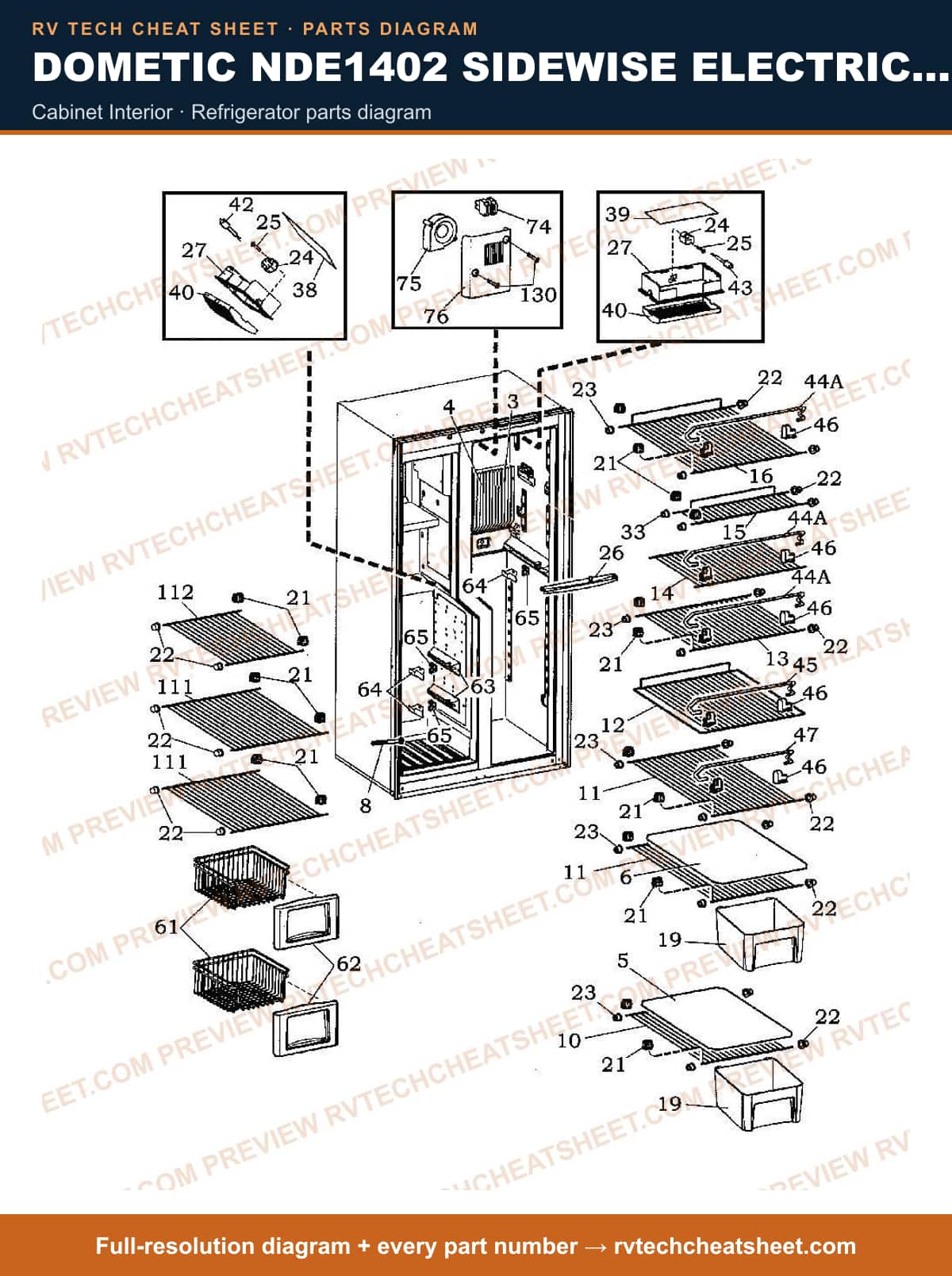

Cabinet Interior

Components

46 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #Flange, Cooling Left MFR # 3850473012
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #Refrigerator Shelf; For Use With Dometic NEA1402/ NDA1402ID Model Refrigerators; Wire MFR # 3850437017 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
10. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
11. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
12. #S,SHELF,WIRE FF,1402 MFR # 3850441019
13. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
18. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
19. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
20. #Refrigerator Flame Indicator; Housing Lamp MFR # 3850451018
21. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
22. #REFLECTOR,LAMP 5 WATT MFR # 3850453022
23. #Refrigerator Flame Indicator; Lamp Reflector; 10 Watts MFR # 3850453014
24. #APPLIANCE COMPONENTS RV; Cover Lamp MFR # 3850452016
25. #APPLIANCE COMPONENTS RV; BULB, HALOGEN FREEZER G4 MFR # 3850455027
26. #Multi Purpose Light Bulb; Halogen Bulb; 10 Watts; Box Of 10 MFR # JC10W
27. #BULB,HALOGEN 12V 10W MFR # 3850455019
28. #BULB, HALOGEN, USE JC10W OR STAG# 55-8170 12V 10W MFR # JC10 Superseded: see description
29. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
30. #RACK MFR # 2007337237
31. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
32. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
33. #RACK MFR # 2007337245
34. #BASKET,WIRE MFR # 3850430012
35. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
36. #Support, Basket Wire MFR # 3850483011
37. #HOLDER,OUTER MFR # 3850484019
38. #HOLDER,INNER MFR # 3850485016
39. #Refrigerator Shelf; Replacement For Dometic Refrigerator Shelf; Ice Bucket; Clear MFR # 3850443015
40. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
41. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
42. #COVER,FAN MFR # 3850448014
43. #SHELF MFR # 3850433016
44. #Appliance Components RV; Shelf Wire NDR1402 MFR # 3850432018
45. #Shelf MFR # 3850434014
46. #SCREW MFR # 3858039013

Cabinet Rear View

Components

15 items

1. #COOLING UNIT W/THERMAL FUSE MFR # 2934947108
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #COVER,HEATER MFR # 2933557023
4. #LABEL MFR # 3850600010
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
7. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
8. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
9. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
11. #HOSE,DRAIN MFR # 2932749084
12. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749076
13. #S,PROTECTION PLATE,REAR MFR # 2932155019
14. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
15. #LABEL MFR # 3850583000

Controls

Components

17 items

1. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
2. #SCREW,RXS B6X13 ZINC MFR # 3858002151
3. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
4. #PLATE,MOUNTING MFR # 2932032010
5. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
7. #Conductor, Electronic MFR # 2954547010
8. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
9. #Board, PC MFR # 3850428016
10. #COVER,BOARD MFR # 3850429014
11. #RELAY MFR # 3850622014
12. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
13. #TERMINAL BLOCK,Y MFR # 2931963017
14. #3858022019 MFR # 3858022019
15. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
16. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
17. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
