Dometic NDM1062 Product # 921146318 Black Parts Diagram · Cabinet Interior

Refrigerator · 5 assemblies · 5 diagram sheets · 139 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDM1062 Product # 921146318 Black RV refrigerator: 5 assemblies (Cabinet Interior, Cabinet Exterior, Door Assembly, Cabinet Rear View, Burner & Control) and 139 manufacturer part numbers. 26 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

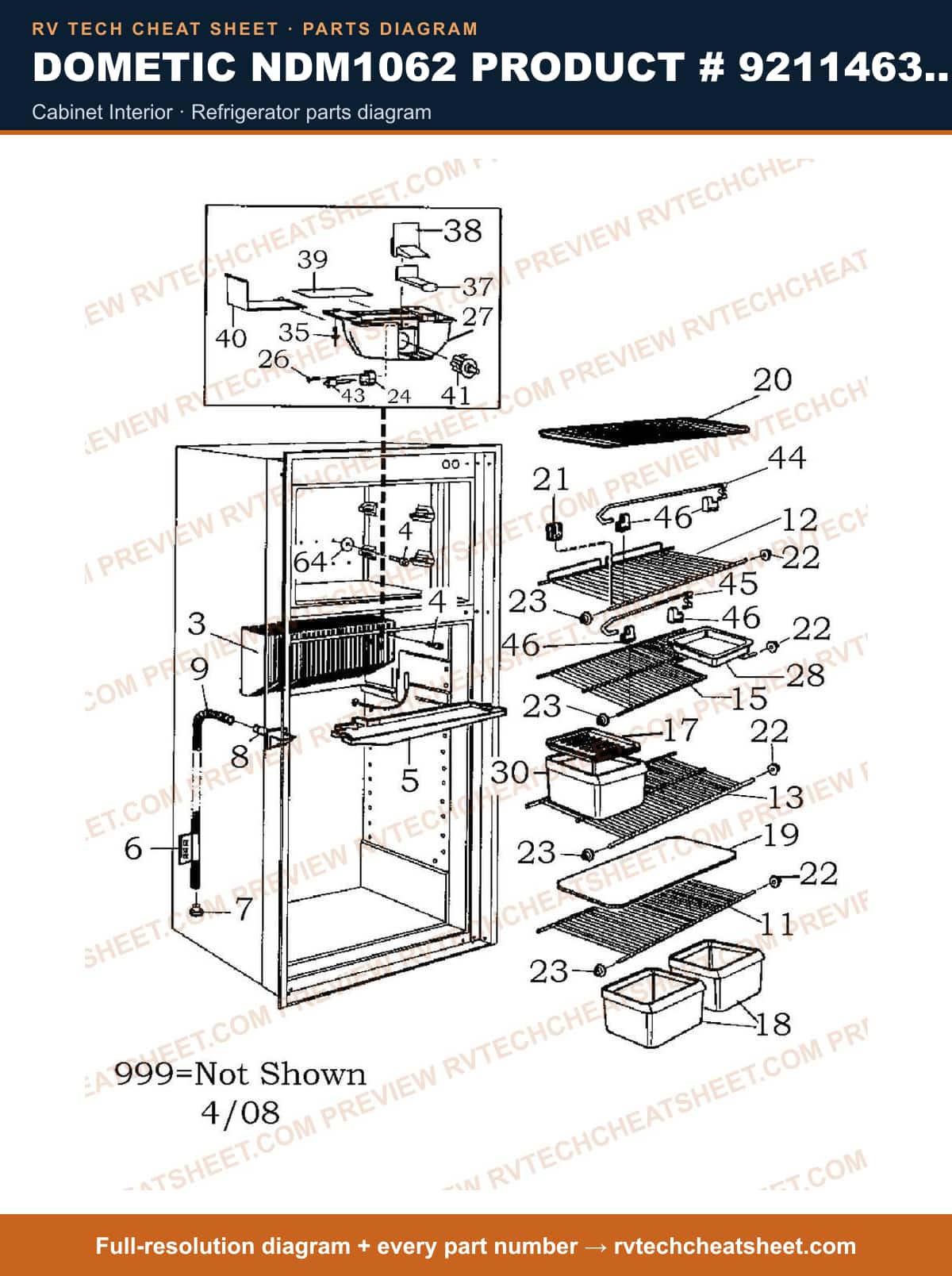

Cabinet Interior

Components

35 items

1. #COOLING FINS MFR # 3851121016
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
4. #LABEL MFR # 2932732007
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
9. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Wire MFR # 2933197010
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
12. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDM106 Refrigerator; Clear MFR # 2932622026
13. #Refrigerator Crisper Bin; Replacement For Dometic NDR106 Series Refrigerators; Clear MFR # 2002726178
14. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
15. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
16. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
17. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
18. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
19. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
20. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
21. #APPLIANCE COMPONENTS RV; Housing Lamp MFR # 3850531017
22. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
23. #Refrigerator Crisper Bin; Replacement For Dometic NDM1062 Refrigerator; Clear MFR # 2932621085
24. #165521030 MFR # 165521030
25. #S,PUSH ROD MFR # 3850534029
26. #S,HOLDER,PUCH ROD,NDM1062 MFR # 3850535018
27. #Reflector; Replacement For Dometic Refrigerator Bulb Reflector MFR # 3850533013
28. #Refrigerator Flame Indicator; Lamp Cover MFR # 3850532015
29. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
30. #BULB,HALOGEN 12V 10W MFR # 3850455019
31. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
32. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
33. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
34. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
35. #WASHER MFR # 3858010147

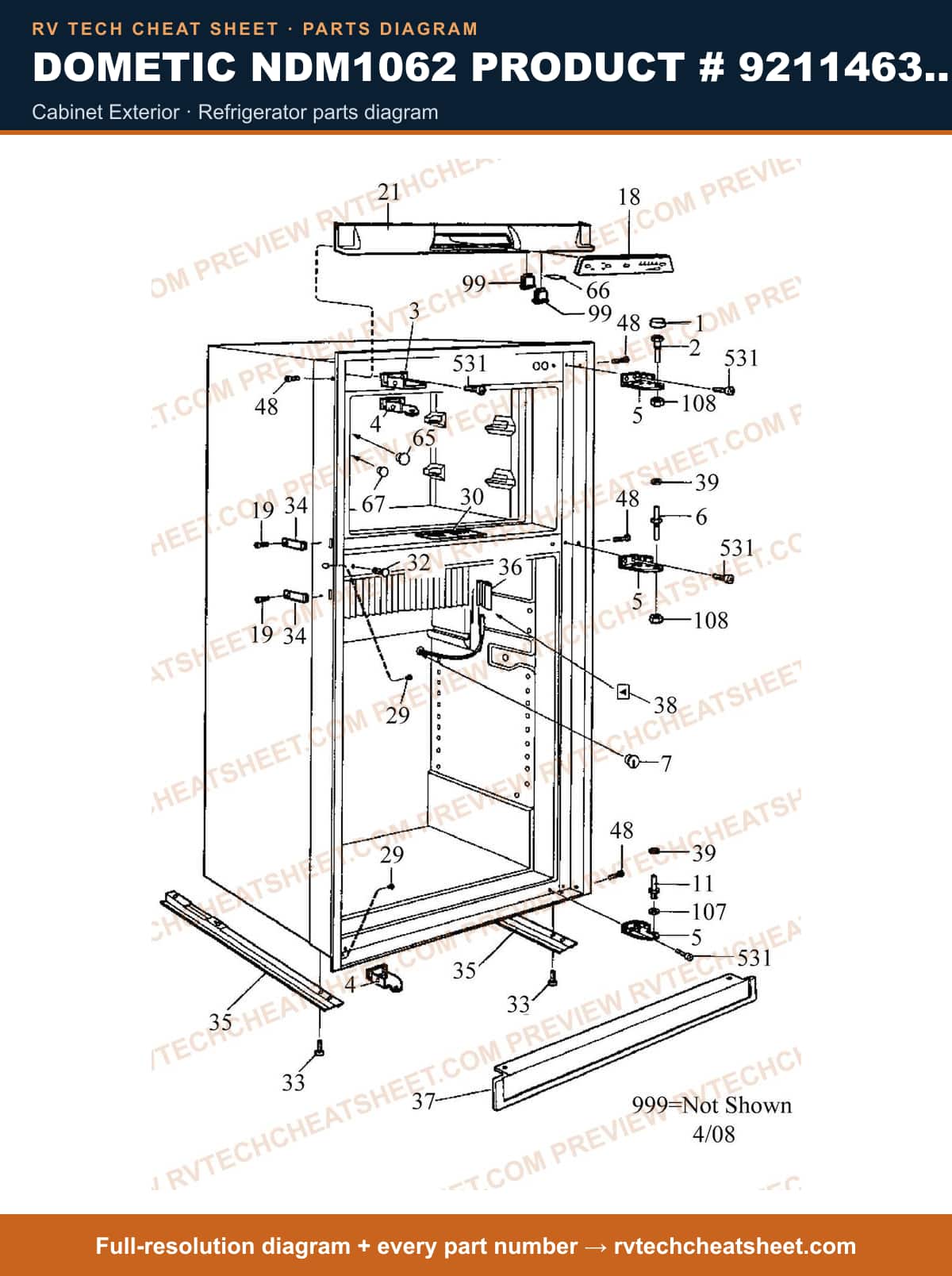

Cabinet Exterior

Components

35 items

1. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 2932750116
2. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
3. #APPLIANCE COMPONENTS RV; REVERSING KIT,DOOR LH-RH MFR # 2932750124
4. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
5. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
6. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
7. #S,BRACKET,LH,BLK MFR # 2932644038
8. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
9. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
10. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
11. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
12. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic Refrigerator Models DM2662/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2662/ RM2862/ RM3662/ RM3862; 2 Way Alternating Current/ LP Gas; Black;Also Use New Number 2932884097 MFR # 2932884055 Superseded: see description
13. #Dometic Refrigerator Replacement Eyebrow Circuit Board Control Panel MFR # 2932884097
14. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
15. #S,DECOR PLATE,NDR1062 MFR # 2932966027
16. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
17. #LABEL MFR # 2932435007
18. #PLUG,BLACK MFR # 3850585039
19. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
20. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
21. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
22. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
23. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
24. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
25. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
26. #LABEL MFR # 2933180016
27. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
28. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
29. #CAP, WHITE MFR # 2932400027
30. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
31. #CAP, WHITE MFR # 2932400019
32. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
33. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
34. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
35. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Door Assembly

Components

21 items

1. #Refrigerator Door; Replacement For Dometic NDM1062/ NDR1062 Model Refrigerator; Right Hand Side; Upper; Black MFR # 2932962059
2. #Refrigerator Door; Replacement For Dometic NDM1062/ NDR1062 Model Refrigerator; Black MFR # 2932961077
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
8. #S,DOOR HANDLE,BLK,NDM1062 MFR # 2932094044
9. #S,SCREW,PT,5.26MM,BLK-6/8/10CF MFR # 3858000049
10. #S,SHELF,FRZ DR,CLR,HALF MFR # 2932577048
11. #Refrigerator Door Bin; Replacement For Dometic NDM1062 Refrigerator; Clear MFR # 2932576081
12. #Refrigerator Door Bin; Replacement For Dometic NDR1062 Refrigerator; Clear MFR # 2932575075
13. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
14. #Refrigerator Trim; Replacement For Dometic RM2662/ RM2852/ RM2652/ NDM1062 Model Refrigerators; Black; With Logo MFR # 3850381322
15. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
16. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
17. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
18. #Ice Bin; Use With Dometic DM2663/ RM3862/ NDM1062 Refrigerators; Clear MFR # 2932579028 Superseded: see description
19. #DOOR PANEL SET, RAISED, BLACK F/DM2852/2862; USE 3311889.030C MFR # 3311889030C Superseded: see description
20. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889030A
21. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889030D

Cabinet Rear View

Components

9 items

1. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000
7. #COVER PLATE MFR # 3851300016
8. #COVER PLATE,SIDE MFR # 3851301014
9. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012

Burner & Control

Components

40 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #ELECTRODE MFR # 2932781012
12. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
13. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
14. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
15. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
16. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
17. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
18. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
19. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
20. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
21. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
22. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
23. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
24. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
25. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
26. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
27. #3858022019 MFR # 3858022019
28. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
29. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
30. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
31. #2932667047 MFR # 2932667047
32. #2002699094 MFR # 2002699094
33. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
34. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
35. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
36. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
37. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
38. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
39. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
40. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
