Dometic NDR1062 New Dimensions Parts Diagram · Cabinet Exterior

Refrigerator · 9 assemblies · 9 diagram sheets · 190 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1062 New Dimensions RV refrigerator: 9 assemblies (Cabinet Exterior, Burner & Controls, Door Asm, Front View, Cabinet Rear View and more) and 190 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Exterior

Components

23 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
3. #S,BRACKET,LH,BLK MFR # 2932644038
4. #Appliance Components RV; Hinge Black MFR # 3850528021
5. #PIN,HINGE MIDDLE BLACK MFR # 3850529011
6. #PIN,HINGE LOWER MFR # 3850399027
7. #Refrigerator Control Board Kit; Replacement For RV Refrigerator; Black MFR # 3850408018
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #Refrigerator Trim; Use With Dometic Refrigerator Model NDM1062/ RM3862; Top; Black MFR # 3850520010 Superseded: see description
10. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
11. #PLUG,BLACK MFR # 3850585039
12. #CATCH,TRAVEL MFR # 3850527015
13. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
14. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
15. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
16. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
17. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
18. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
19. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018
20. #DECAL MFR # 3850411004
21. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
22. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
23. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Burner & Controls

Components

48 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #ELECTRODE MFR # 2932781012
12. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
13. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
14. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
17. #Nut, T-Couple MFR # 2801043015
18. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
19. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
20. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
21. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
22. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
23. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
24. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
25. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
26. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
27. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
28. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
29. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Conductor Solenoid Valve MFR # 2954539017
31. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
32. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
33. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
34. #ELEMENT, HEATING 120VAC 325W MFR # CH000360
35. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
36. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
37. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
38. #3858022019 MFR # 3858022019
39. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
40. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
41. #Reigniter - NLA MFR # 2931132027
42. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
43. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
44. #2932667047 MFR # 2932667047
45. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
46. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
47. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
48. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017

Door Asm

Components

17 items

1. #APPLIANCE COMPONENTS RV; Door Freezer LH Stainless MFR # 3850537030
2. #DOOR, REFER LH STAINLESS MFR # 3850536032
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
5. #RACK,JUICE WHITE MFR # 2932578020
6. #S,DOOR HANDLE,BLK,NDR1062 MFR # 3850558010
7. #Refrigerator Door Handle; Replacement For Dometic DM3862/ NDM1062/ NDR1062/ RM3862 Model Refrigerator; Fits Lower Door; Black MFR # 3850558028
8. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
9. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
10. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
11. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
12. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
13. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
14. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
15. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
16. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
17. #GASKET KIT, DOOR NDR1062 MFR # 3108708441

Front View

Components

14 items

1. #APPLIANCE COMPONENTS RV; Shelf Icemaker MFR # 3108706148
2. #SCREW, #10 X 2" MFR # 3106586005
3. #SHELF, ICE BUCKET USE 49-8972 MFR # 3107664009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Kit Ice Bucket/Shelf 10 C MFR # 3312986049
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
9. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
13. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
14. #DECORATION, DOOR MFR # 3108705314

Cabinet Rear View

Components

9 items

1. #COOLING UNIT USE 2934806106 MFR # 2934806098N Superseded: see description
2. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
7. #LABEL MFR # 3850583000
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #SCREW DK4 X 16 PM MFR # 3858020013

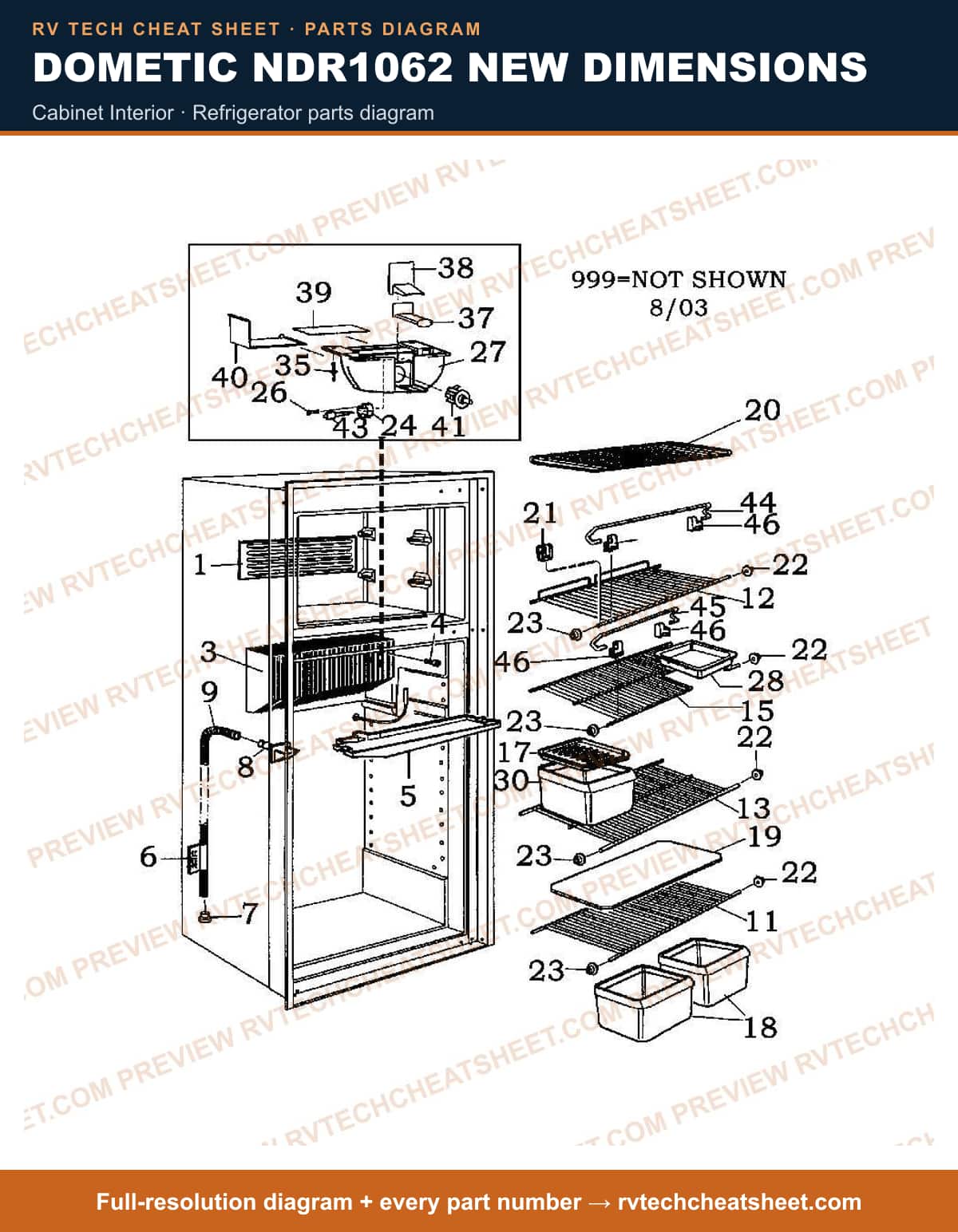

Cabinet Interior

Components

38 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #APPLIANCE COMPONENTS RV; Flange Cooling MFR # 2932864016
3. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
4. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
5. #LABEL MFR # 2932732007
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
9. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Wire MFR # 2933197010
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
12. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
13. #APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018
14. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
15. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
16. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
17. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
18. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
19. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
20. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
21. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
22. #APPLIANCE COMPONENTS RV; Housing Lamp MFR # 3850531017
23. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
24. #CRISPER USE 2932621051 MFR # 2932621069 Superseded: see description
25. #CRISPER, VEGETABLE NDR1272, NDR1282 MFR # 2932621051
26. #165521030 MFR # 165521030
27. #S,PUSH ROD MFR # 3850534029
28. #S,HOLDER,PUCH ROD,NDM1062 MFR # 3850535018
29. #Reflector; Replacement For Dometic Refrigerator Bulb Reflector MFR # 3850533013
30. #Refrigerator Flame Indicator; Lamp Cover MFR # 3850532015
31. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
32. #Multi Purpose Light Bulb; Halogen Bulb; 10 Watts; Box Of 10 MFR # JC10W
33. #BULB,HALOGEN 12V 10W MFR # 3850455019
34. #BULB, HALOGEN, USE JC10W OR STAG# 55-8170 12V 10W MFR # JC10 Superseded: see description
35. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
36. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
37. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
38. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

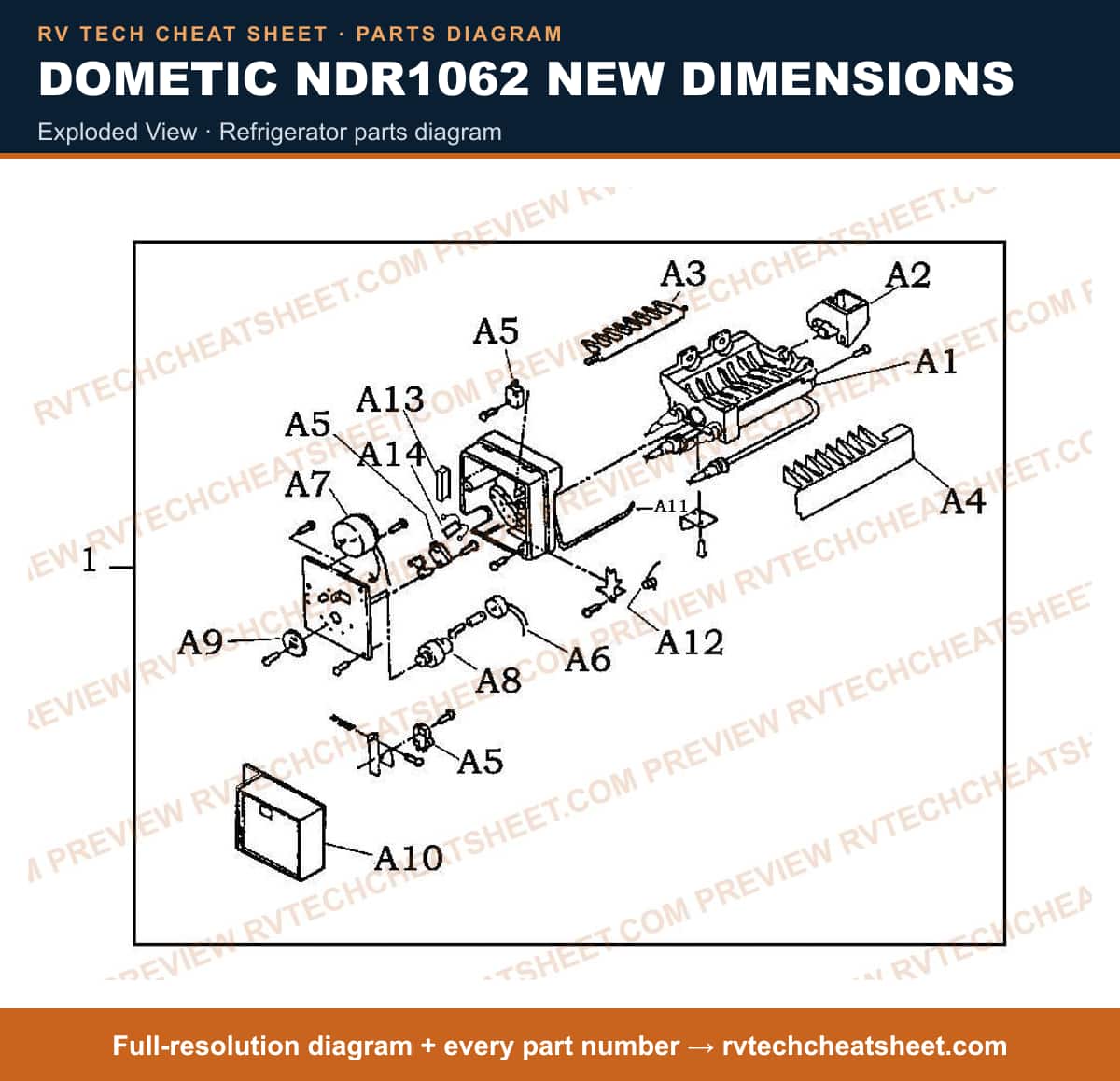

Exploded View

Components

15 items

1. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
2. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
3. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
4. #EJECTOR MFR # 3108703434
5. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
6. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
7. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
8. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
9. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
10. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
11. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
12. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
13. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
14. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
15. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445

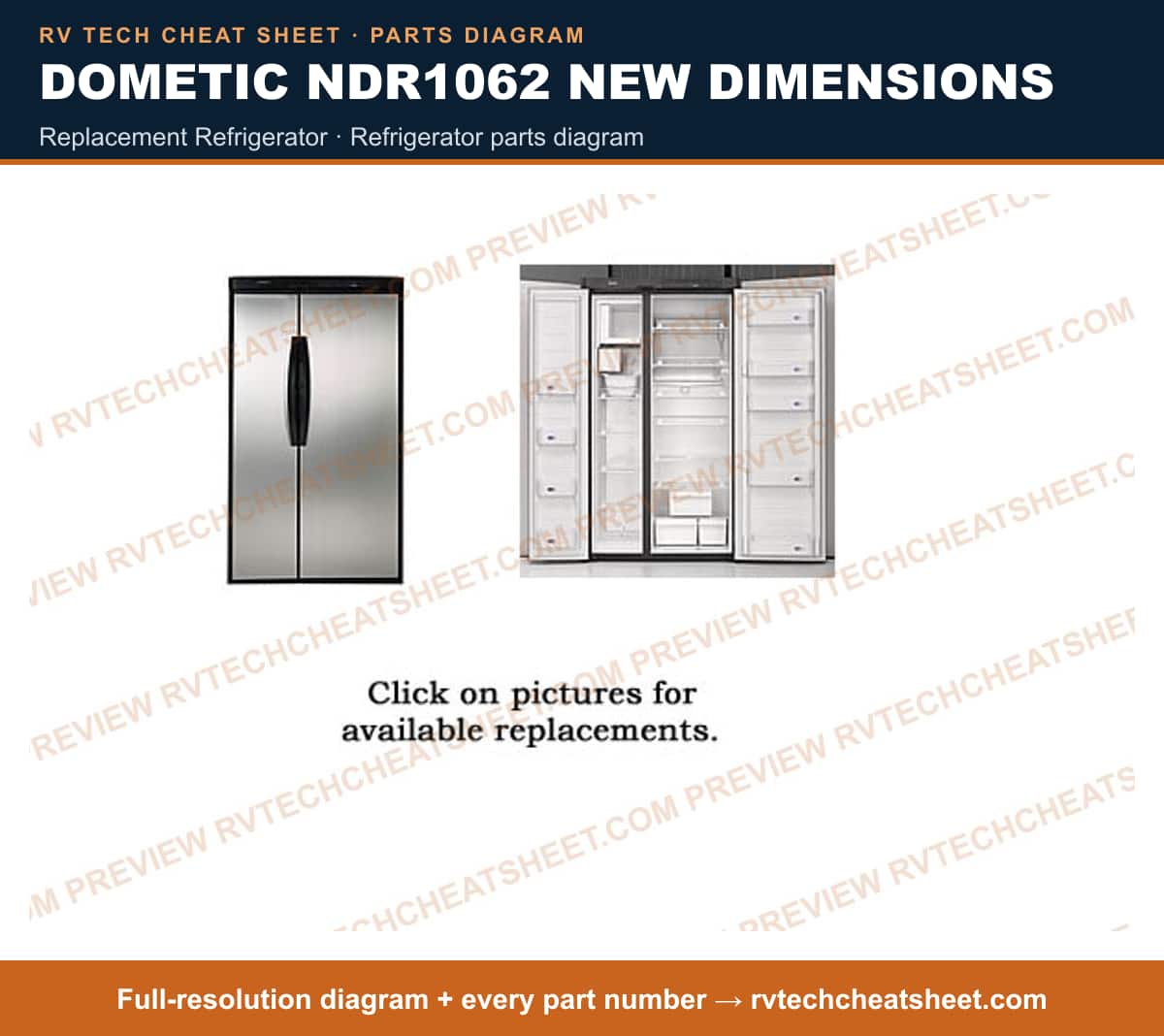

Replacement Refrigerator

Components

5 items

1. #REFER, 10 CU FT STAINLESS 2WAY 59 15/16"H X 23 11/16"W X 24"D MFR # NDR1062SS
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
3. #REFER, 10 CU FT STNLS W/ICEMAKR 59 15/16"H X 23 11/16"W X 24"D MFR # NDR1062SSIMH
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
5. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095

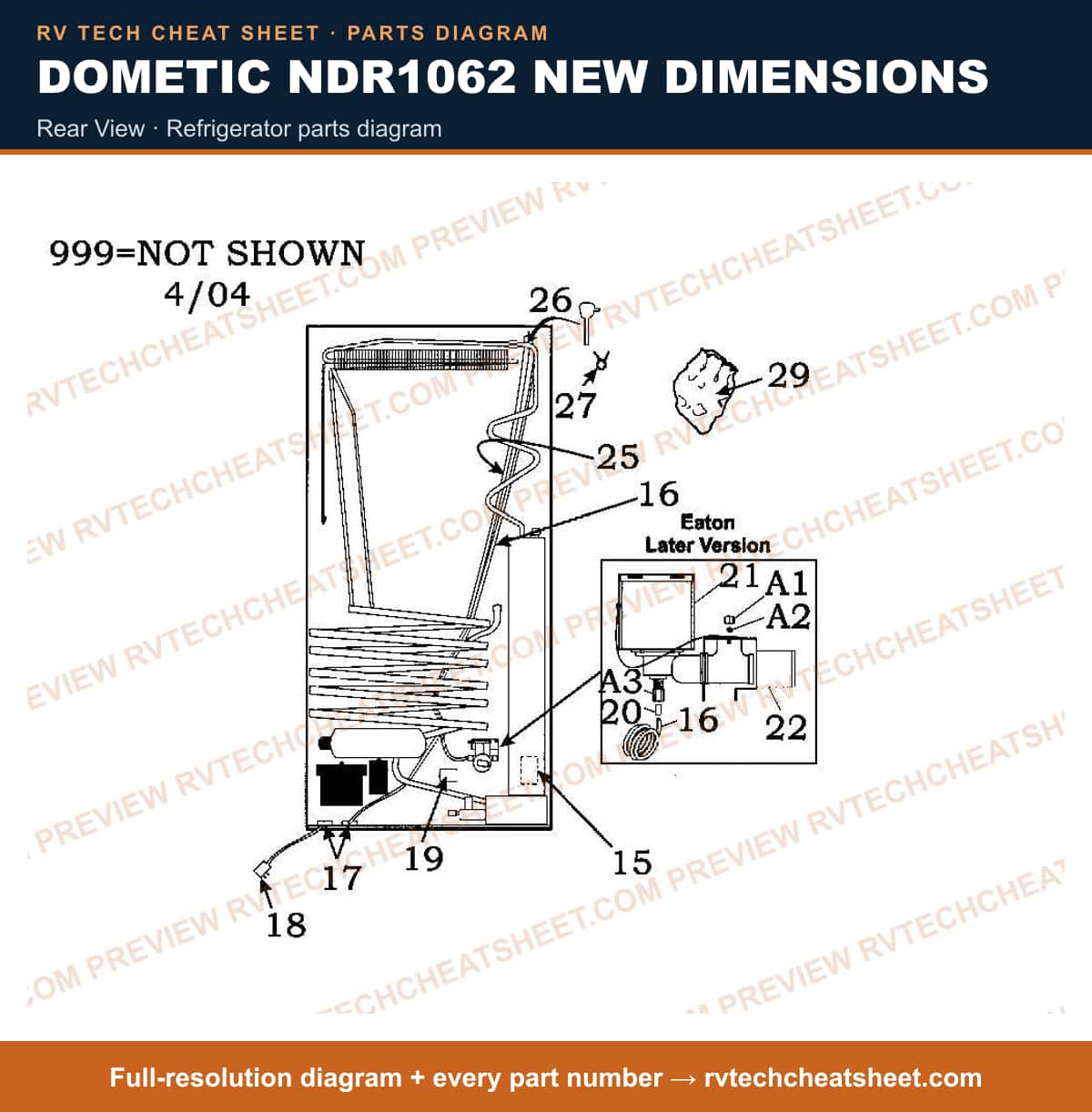

Rear View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #TERMINAL BLOCK,Y MFR # 2931963017
8. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
9. #WARNING LABEL MFR # 2931975003
10. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
11. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
12. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
13. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
15. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
16. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
17. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
18. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
19. #RING, HOG MFR # 3107614012
20. #VALVE KIT WATER MFR # 3108706114
21. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
22. #HEATER KIT ICEMAKER MFR # 3106868015
23. #SCREW #8-18 X 3/8 SELF DRILLING MFR # 3108706858
