Dometic NDR1062 New Dimensions Product # 921146082 (beige) Parts Diagram · Rear View

Refrigerator · 9 assemblies · 9 diagram sheets · 205 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1062 New Dimensions Product # 921146082 (beige) RV refrigerator: 9 assemblies (Rear View, Replacement Refrigerator, Cabinet Interior, Icemaker Expoded Assembly, Door Assembly and more) and 205 manufacturer part numbers. 45 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Rear View

Components

22 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #TERMINAL BLOCK,Y MFR # 2931963017
8. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
9. #WARNING LABEL MFR # 2931975003
10. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
11. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
12. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
14. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
15. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
16. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
17. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
18. #RING, HOG MFR # 3107614012
19. #VALVE KIT WATER MFR # 3108706114
20. #HEATER KIT ICEMAKER MFR # 3106868015
21. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
22. #SCREW #8-18 X 3/8 SELF DRILLING MFR # 3108706858

Replacement Refrigerator

Components

9 items

1. #REFER, 10 CU FT STNLS W/ICEMAKR 59 15/16"H X 23 11/16"W X 24"D MFR # NDR1062SSIMH
2. #REFER, 10 CU FT 2 WAY BLACK 59 15/16" X 23 11/16" X 24" MFR # NDR1062BN
3. #REFER, 10 CU FT STAINLESS 2WAY 59 15/16"H X 23 11/16"W X 24"D MFR # NDR1062SS
4. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
6. #REFER, 10 CU FT 2 W W/ICMKR 59 15/16 X 23 11/16 X 24 MFR # NDR1062IMHN
7. #REFER, 10 CU FT USE NDR1062BN 59 15/16" X 23 11/16" X 24" SHIPPING WT 180LBS. 2 WAY EXTRA LARGE DOUBLE DOOR WITH TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1062BN MFR # NDR1062N Superseded: see description
8. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
9. #REFER, 10 CU FT 2 W W/ICMKR 59 15/16 X 23 11/16 X 24 MUST GO TRUCK 2 WAY EXTRA LARGE DOUBLE DOOR WITH ICE MAKER & HEAT TAPE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1062IMHN MFR # NDR1062BIMHN Superseded: see description

Cabinet Interior

Components

29 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #APPLIANCE COMPONENTS RV; Flange Cooling MFR # 2932864016
3. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
4. #LABEL MFR # 2932732007
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #SHELF, CABINET MFR # 2932977016
9. #APPLIANCE COMPONENTS RV; Shelf Lower MFR # 2932979020
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ RM1282/ NDR1272/ NDR1282/ NDR1062/ RM1272 Model Refrigerator; Freezer Compartment; Wire; Without Cutout MFR # 2932979012
11. #SHELF, CABINET USE 2932977016 MFR # 2932978014 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Crisper Vegetable MFR # 2002726152
13. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
14. #APPLIANCE COMPONENTS RV; Shelf Plastic MFR # 2931117119
15. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
16. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
17. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
18. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
19. #APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018
20. #CRISPER USE 2932621051 MFR # 2932621069 Superseded: see description
21. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
22. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
23. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
24. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
25. #BULB 2/PK MFR # 2007290006
26. #Refrigerator Shelf; Replacement For Dometic RM1350/ RG1350/ NDR1062 Series Refrigerators; Wire MFR # 2007337179
27. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
28. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
29. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111

Icemaker Expoded Assembly

Components

14 items

1. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
2. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
3. #EJECTOR MFR # 3108703434
4. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
5. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
6. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
7. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
8. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
9. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
10. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
11. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
12. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
13. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
14. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445

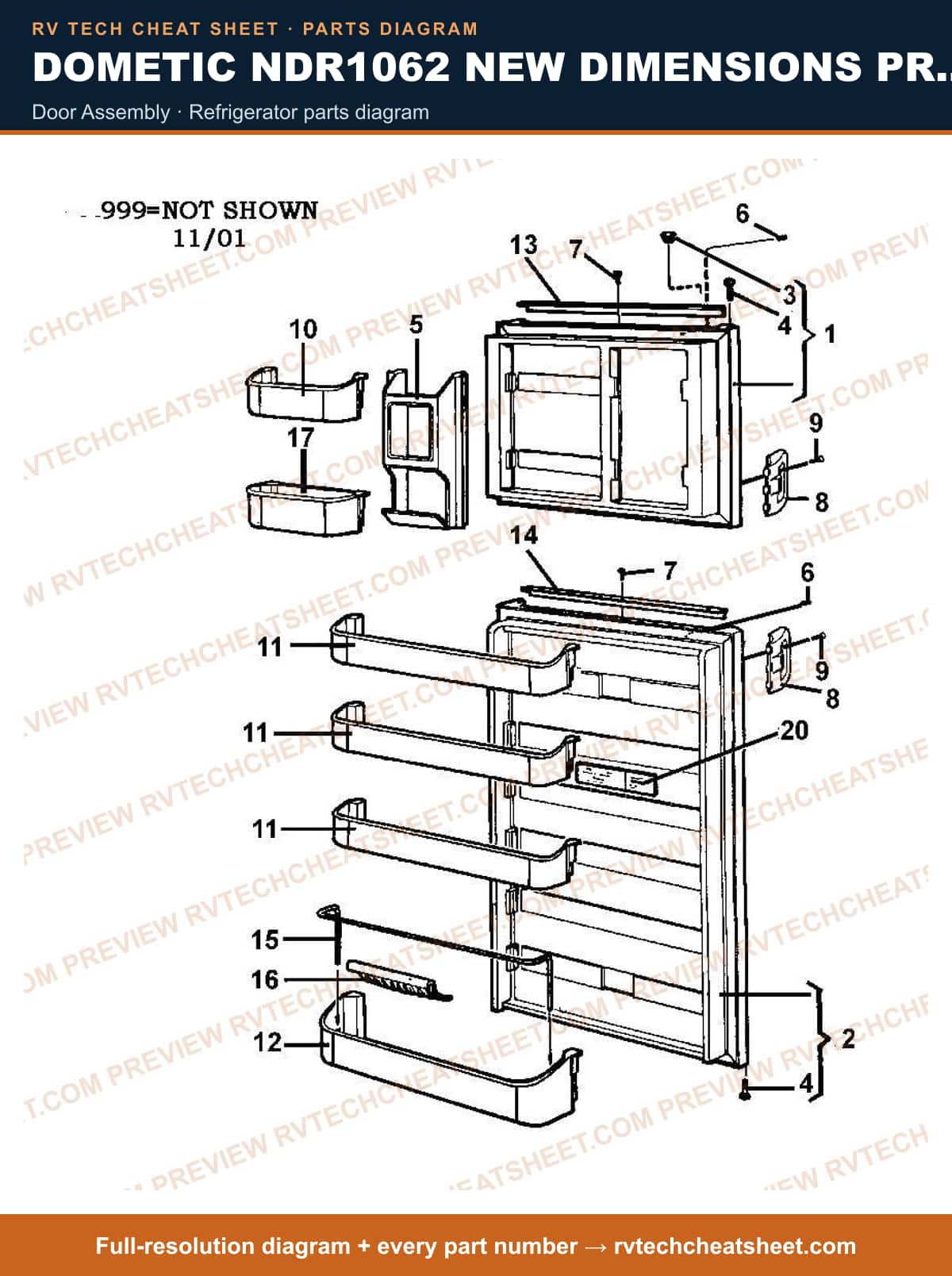

Door Assembly

Components

35 items

1. #Refrigerator Door; Use With Dometic Refrigerator Models NDR1062; Right Hand Side MFR # 2932962018 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Door Lower Rh MFR # 2932961010
3. #GASKET KIT, DOOR NDR1062 MFR # 3108708441
4. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
5. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
6. #RACK, JUICE MFR # 2932578012
7. #RACK,JUICE WHITE MFR # 2932578020
8. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
9. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
10. #HANDLE, DOOR MFR # 2932094010
11. #HANDLE, DOOR MFR # 2932964014
12. #Refrigerator Door Handle; Replacement For Dometic NDR1062 Refrigerator; Beige MFR # 2932094036
13. #SCREW MFR # 2801048014
14. #S,SCREW,PT,50*26 MFR # 3858000031
15. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
16. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
17. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
18. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
19. #Appliance Components RV; Strip, Decoration MFR # 3850919014
20. #S,DR DECOR,FRZ,BRN MFR # 3850381017
21. #DECORATION MFR # 2932642164
22. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
23. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
24. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
25. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
26. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
27. #Bearing Race; 25520; 3.265 Inch Outer Diameter; Set Of 2; Use With 25580 Bearing; Clamshell Package MFR # 293275004 Superseded: see description
28. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
29. #Bearing Race; L-68111; 2.362 Inch Outer Diameter; Set Of 2; Clamshell Pack; Folding Carton Package MFR # 293275005
30. #PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B
31. #Refrigerator Door Sag Repair Kit; Replacement For Dometic RM3862/ RM3863/ RM2652/ DM2652 Model Refrigerator MFR # 293275008
32. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G
33. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005
34. #DOOR PANEL - OAK PANEL AL MFR # RM3862G
35. #PANELS, MAIN & FREEZER BRUSHED CHROME MFR # NDR1062BA

Cabinet Exterior

Components

30 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; BRACKET, RH MFR # 2932644020
4. #Refrigerator Door Hinge; Replacement For Dometic RM4872/ RM2652/ RM2852 Refrigerators; Left Hand Side MFR # 2932643022
5. #APPLIANCE COMPONENTS RV; Hinge RH MFR # 2932643014
6. #APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013
7. #SCREW M4 X 10 S MFR # 7241289615
8. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
9. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
10. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
11. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
12. #DECAL, UPPER CABINET MFR # D7E0955024484
13. #BUTTON, PUSHBUTTON ON/OFF BEIGE MFR # D7E0955024138
14. #APPLIANCE COMPONENTS RV; Cover Front Beige MFR # 2932966019
15. #Refrigerator Support Rail Screw; Replacement For Dometic DM2652/ NDR1062/ RM2451/ RM2454/ RM2551/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872 Model Refrigerator MFR # 2930740044
16. #DECAL, 2-WAY MFR # 2932684000
17. #PLUG MFR # 2932742014
18. #SCREW RXS B6X5 MFR # 7295275015
19. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
20. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
21. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
22. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
23. #Refrigerator Trim; Replacement For Dometic RM4873/ RM2652/ RM4872 Refrigerators; Front Lower; Beige MFR # 2932690023
24. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
25. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
26. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
27. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
28. #Refrigerator Door Sag Repair Kit; Replacement For Dometic RM3862/ RM3863/ RM2652/ DM2652 Model Refrigerator MFR # 293275008
29. #Bearing Race; 25520; 3.265 Inch Outer Diameter; Set Of 2; Use With 25580 Bearing; Clamshell Package MFR # 293275004 Superseded: see description
30. #Bearing Race; L-68111; 2.362 Inch Outer Diameter; Set Of 2; Clamshell Pack; Folding Carton Package MFR # 293275005

Burner & Controls

Components

51 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #SCREW M4 X 10 S MFR # 7241289615
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
8. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
9. #ELECTRODE MFR # 2932781012
10. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
11. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
12. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
13. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
14. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
15. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
16. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
17. #Nut, T-Couple MFR # 2801043015
18. #DOM REPLACEMENT BRD MFR # MICROP711
19. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
20. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
21. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
22. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
23. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
24. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
25. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
26. #S,COVER,LESS DECALS MFR # 2931858019
27. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
28. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
29. #S,WIRE,THERMISTOR,NDR1062 MFR # 2931863076
30. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
31. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
32. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
33. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
34. #ELEMENT, HEATING 120VAC 325W MFR # CH000360
35. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
36. #ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289
37. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
38. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
39. #3858022019 MFR # 3858022019
40. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
41. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
42. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
43. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
44. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
45. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
46. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
47. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
48. #2932667047 MFR # 2932667047
49. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
50. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
51. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description

Cabinet Rear View

Components

9 items

1. #REMAN C/U USE 5582 RM2852,3852-3 MFR # 2934805090R Superseded: see description
2. #REBUILT DOMETIC COOLING U MFR # 5582806A
3. #REBUILT DOMETIC COOLING U MFR # 5582805A
4. #APPLIANCE COMPONENTS RV; Cooling Unit 805 (Ups) MFR # 2934805090N
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
8. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
9. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description

Front View

Components

13 items

1. #APPLIANCE COMPONENTS RV; Shelf Icemaker MFR # 3108706148
2. #SCREW, #10 X 2" MFR # 3106586005
3. #SHELF, ICE BUCKET USE 49-8972 MFR # 3107664009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Kit Ice Bucket/Shelf 10 C MFR # 3312986049
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
9. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
13. #DECORATION, DOOR MFR # 3108705314
