Dometic NDR1062 New Dimensions Product # 921146086 (black) Parts Diagram · Burner & Controls

Refrigerator · 10 assemblies · 10 diagram sheets · 203 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1062 New Dimensions Product # 921146086 (black) RV refrigerator: 10 assemblies (Burner & Controls, Replacement Refrigerator, Cabinet Exterior, Front View, Rear View and more) and 203 manufacturer part numbers. 52 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

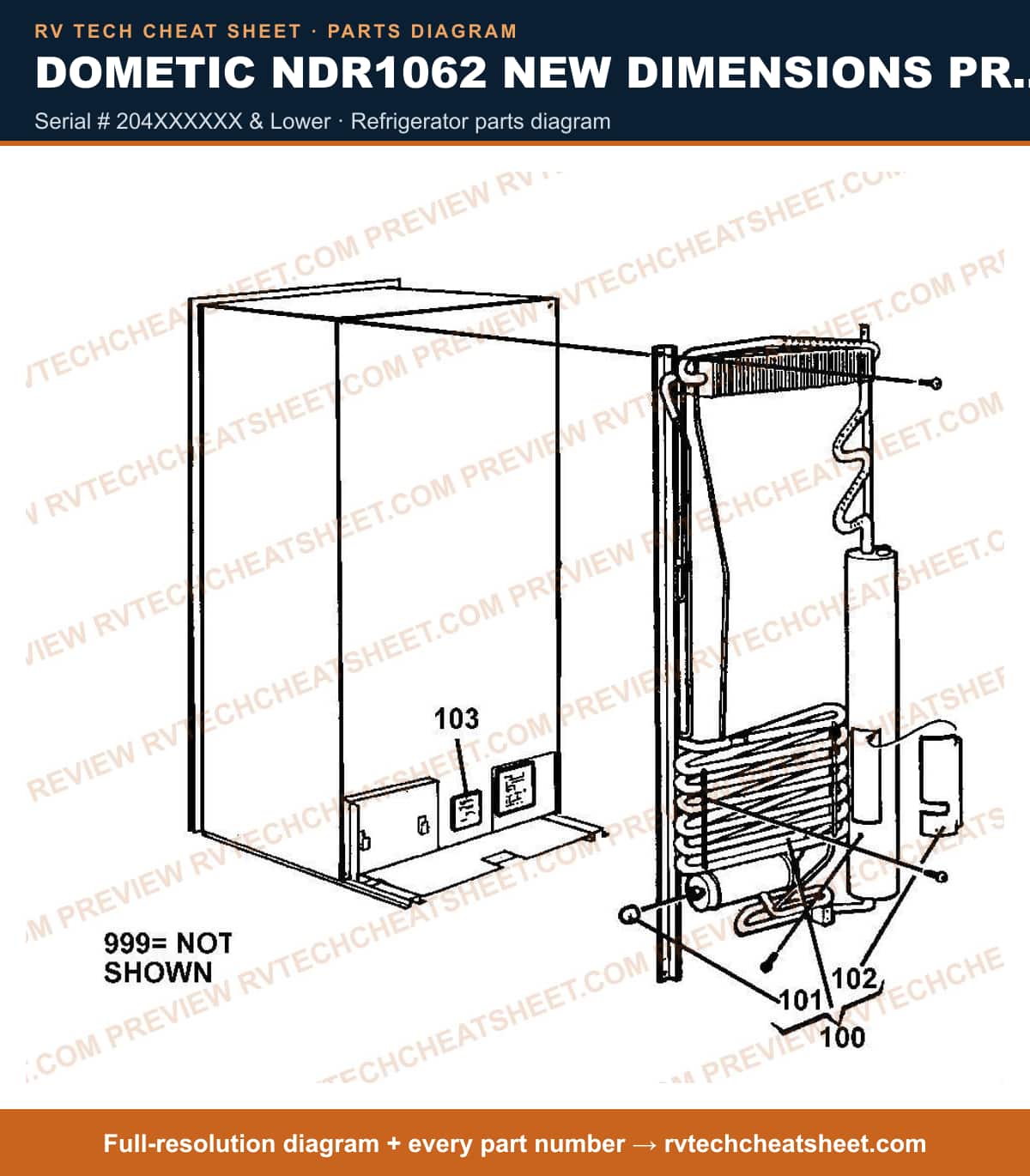

Burner & Controls

Components

51 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
4. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
5. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
6. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
7. #ELECTRODE MFR # 2932781012
8. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
11. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
12. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
13. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
14. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
15. #Nut, T-Couple MFR # 2801043015
16. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
17. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
18. #DOM REPLACEMENT BRD MFR # MICROP711
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
20. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
21. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
22. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
23. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
24. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
25. #S,COVER,LESS DECALS MFR # 2931858019
26. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
27. #LEAD, 5 WIRE USE 2954542037. MFR # 2931862037 Superseded: see description
28. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
29. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
30. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
31. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
32. #Gas Valve Solenoid; Fits Dometic Refrigerators Models RM3663 Royale/ RM2862 Americana Plus/ RM3863 Royale MFR # 2954437030
33. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
34. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
35. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
36. #ELEMENT, HEATING 120VAC 325W MFR # CH000360
37. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
38. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
39. #ELEMENT, HEATING 325W/115V 2WIRE 3/8 X 7 MFR # 173742289
40. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
41. #3858022019 MFR # 3858022019
42. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
43. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
44. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
45. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
46. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
47. #2932667047 MFR # 2932667047
48. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
49. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
50. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
51. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

Replacement Refrigerator

Components

8 items

1. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095
2. #REFER, 10 CU FT 2 WAY BLACK 59 15/16" X 23 11/16" X 24" MFR # NDR1062BN
3. #REFER, 10 CU FT 2 W W/ICMKR 59 15/16 X 23 11/16 X 24 MUST GO TRUCK 2 WAY EXTRA LARGE DOUBLE DOOR WITH ICE MAKER & HEAT TAPE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1062IMHN MFR # NDR1062BIMHN Superseded: see description
4. #REFER, 10 CU FT USE NDR1062BN 59 15/16" X 23 11/16" X 24" SHIPPING WT 180LBS. 2 WAY EXTRA LARGE DOUBLE DOOR WITH TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1062BN MFR # NDR1062N Superseded: see description
5. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
7. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
8. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G

Cabinet Exterior

Components

28 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,RH,BLK MFR # 2932644046
4. #Refrigerator Door Hinge; Replacement For Dometic DM2652/ RM2852 Refrigerators; Left Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643048 Superseded: see description
5. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Pin Middle Hinge MFR # 2932648013
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic Refrigerator Models DM2662/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2662/ RM2862/ RM3662/ RM3862; 2 Way Alternating Current/ LP Gas; Black;Also Use New Number 2932884097 MFR # 2932884055 Superseded: see description
9. #Dometic Refrigerator Replacement Eyebrow Circuit Board Control Panel MFR # 2932884097
10. #SCREW RXS B6X5 MFR # 7295275015
11. #S,DECOR PLATE,NDR1062 MFR # 2932966027
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #Refrigerator Door Cap; Use With Dometic Royale/ Americana/ Americana Plus Refrigerators; Black MFR # 2932742048 Superseded: see description
14. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
15. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
16. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
17. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
18. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
19. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
20. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
21. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
22. #SCREW MFR # 7241283014
23. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
24. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
25. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
26. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
27. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
28. #SCREW M4 X 10 S MFR # 7241289615

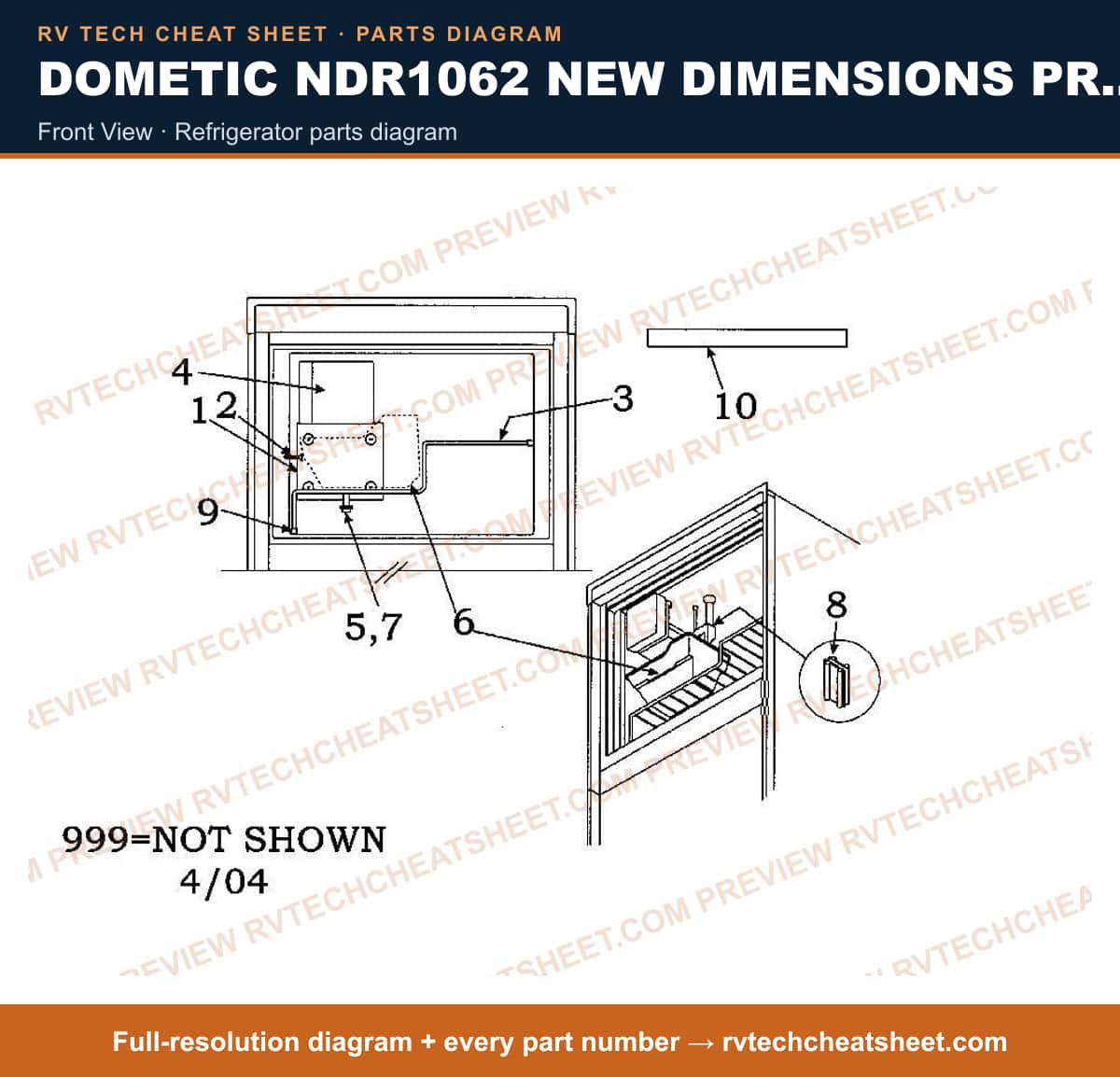

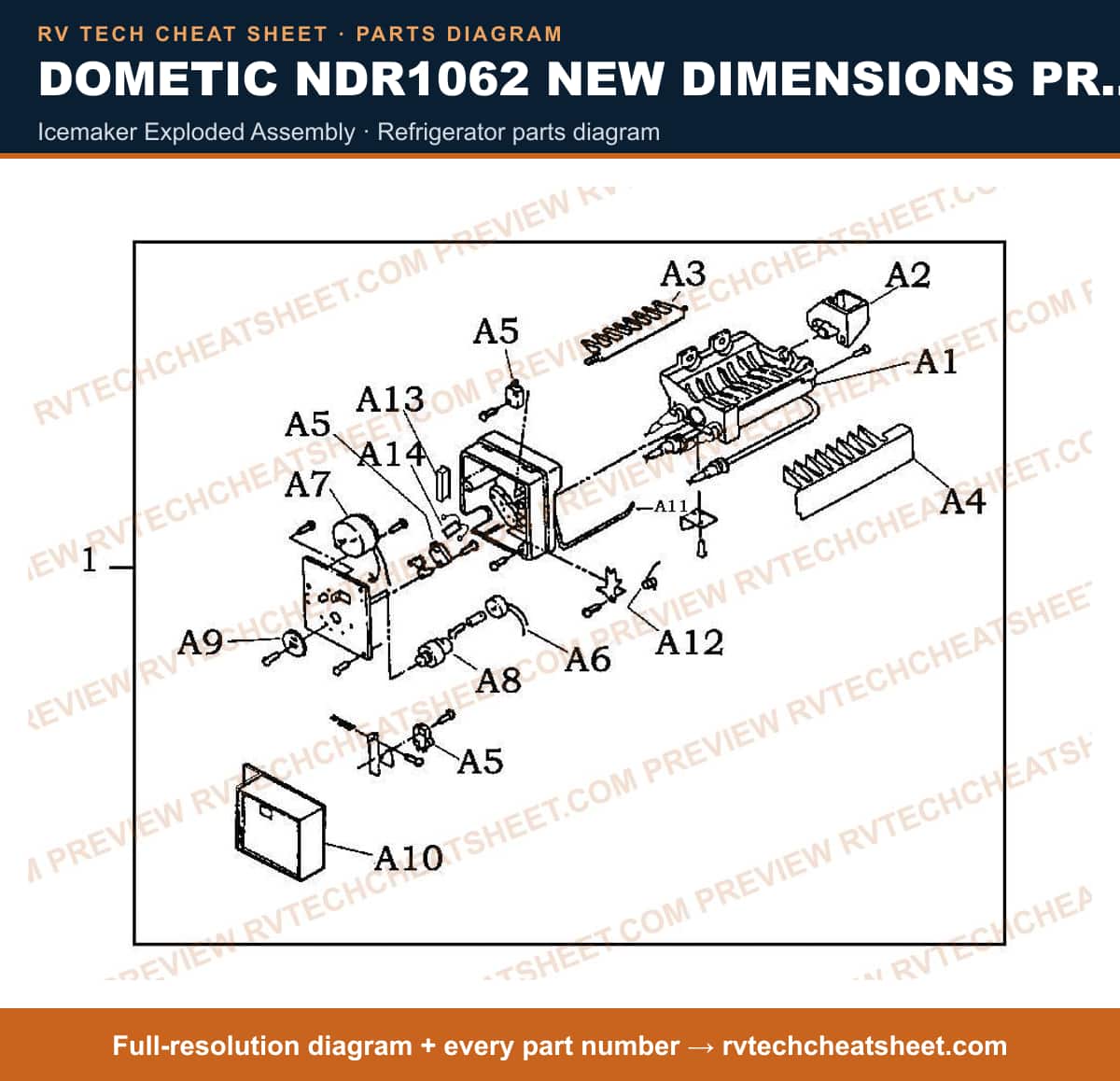

Front View

Components

14 items

1. #APPLIANCE COMPONENTS RV; Shelf Icemaker MFR # 3108706148
2. #SCREW, #10 X 2" MFR # 3106586005
3. #SHELF, ICE BUCKET USE 49-8972 MFR # 3107664009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Kit Ice Bucket/Shelf 10 C MFR # 3312986049
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
9. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
13. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
14. #DECORATION, DOOR MFR # 3108705314

Rear View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #TERMINAL BLOCK,Y MFR # 2931963017
8. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
9. #WARNING LABEL MFR # 2931975003
10. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
12. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
13. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
15. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
16. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
17. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
18. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
19. #RING, HOG MFR # 3107614012
20. #VALVE KIT WATER MFR # 3108706114
21. #SCREW #8-18 X 3/8 SELF DRILLING MFR # 3108706858
22. #HEATER KIT ICEMAKER MFR # 3106868015
23. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007

Cabinet Interior

Components

27 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #APPLIANCE COMPONENTS RV; Flange Cooling MFR # 2932864016
3. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
4. #LABEL MFR # 2932732007
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
8. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
9. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Wire MFR # 2933197010
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
12. #APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018
13. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
14. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
15. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
16. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
17. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
18. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
19. #CRISPER USE 2932621051 MFR # 2932621069 Superseded: see description
20. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
21. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
22. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
23. #BULB 2/PK MFR # 2007290006
24. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
25. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
26. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
27. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111

Door Assembly

Components

31 items

1. #PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B
2. #APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C
3. #DOOR PANEL - OAK PANEL AL MFR # RM3862G
4. #Appliance Components RV; Door Freezer Lh Black MFR # 2932962042
5. #DOOR PANELS, BLK ACRYLIC RM3862/3 MFR # RM3862L
6. #GASKET KIT, DOOR NDR1062 MFR # 3108708441
7. #Appliance Components RV; Door Refer Lh Black MFR # 2932961069
8. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
9. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
10. #RACK,JUICE WHITE MFR # 2932578020
11. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
12. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
13. #S,DOOR HANDLE,BLK,NDM1062 MFR # 2932094044
14. #Refrigerator Door Handle Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272 Model Refrigerator; Black MFR # 2801049038
15. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
16. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
17. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
18. #Trim, Deco Use 3850381165 Black MFR # 2932642248 Superseded: see description
19. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
20. #TRIM, BLACK USE 3850381215 W/ LOGO MFR # 2932642297 Superseded: see description
21. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
22. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
23. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
24. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
25. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
26. #PANELS, MAIN & FREEZER BRUSHED CHROME MFR # NDR1062BA
27. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G
28. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
29. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
30. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
31. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012

Icemaker Exploded Assembly

Components

15 items

1. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
2. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
3. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
4. #EJECTOR MFR # 3108703434
5. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
6. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
7. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
8. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
9. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
10. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
11. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
12. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
13. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
14. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
15. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445

Serial # 204XXXXXX & Lower

Components

6 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit 805 (Ups) MFR # 2934805090N
2. #REBUILT DOMETIC COOLING U MFR # 5582806A
3. #REBUILT DOMETIC COOLING U MFR # 5582805A
4. #SCREW DK4.8X16P MFR # 2801085016
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

Serial # 204XXXXXX & Higher

Components

5 items

1. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
2. #COOLING UNIT USE 2934806106 MFR # 2934806098N Superseded: see description
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
