Dometic NDR1062 New Dimensions Product # 921146121 (black) Parts Diagram · Front View

Refrigerator · 8 assemblies · 9 diagram sheets · 194 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1062 New Dimensions Product # 921146121 (black) RV refrigerator: 8 assemblies (Front View, Door Asm, Burner & Controls, Cabinet Exterior, Rear View and more) and 194 manufacturer part numbers. 45 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

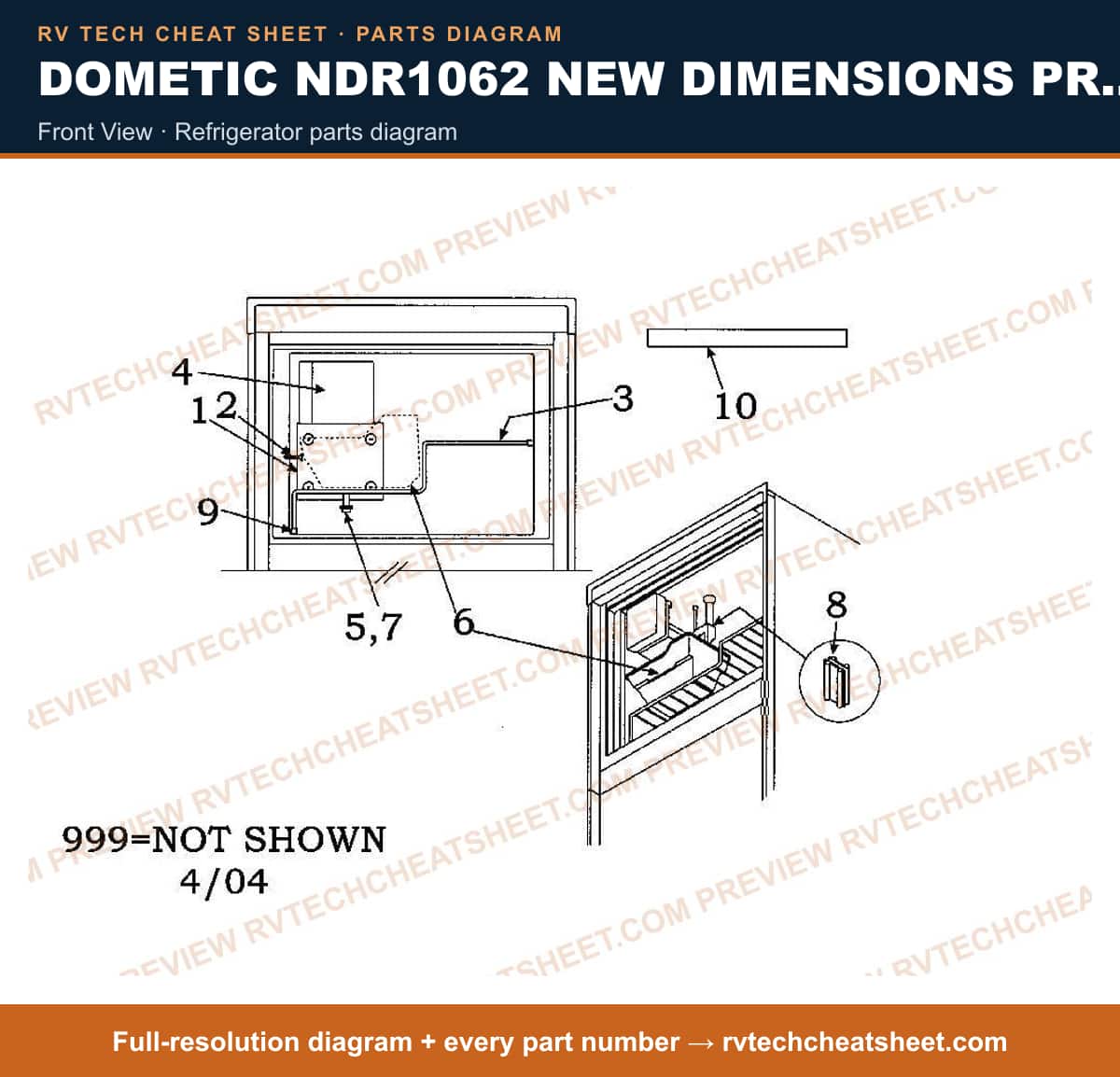

Front View

Components

14 items

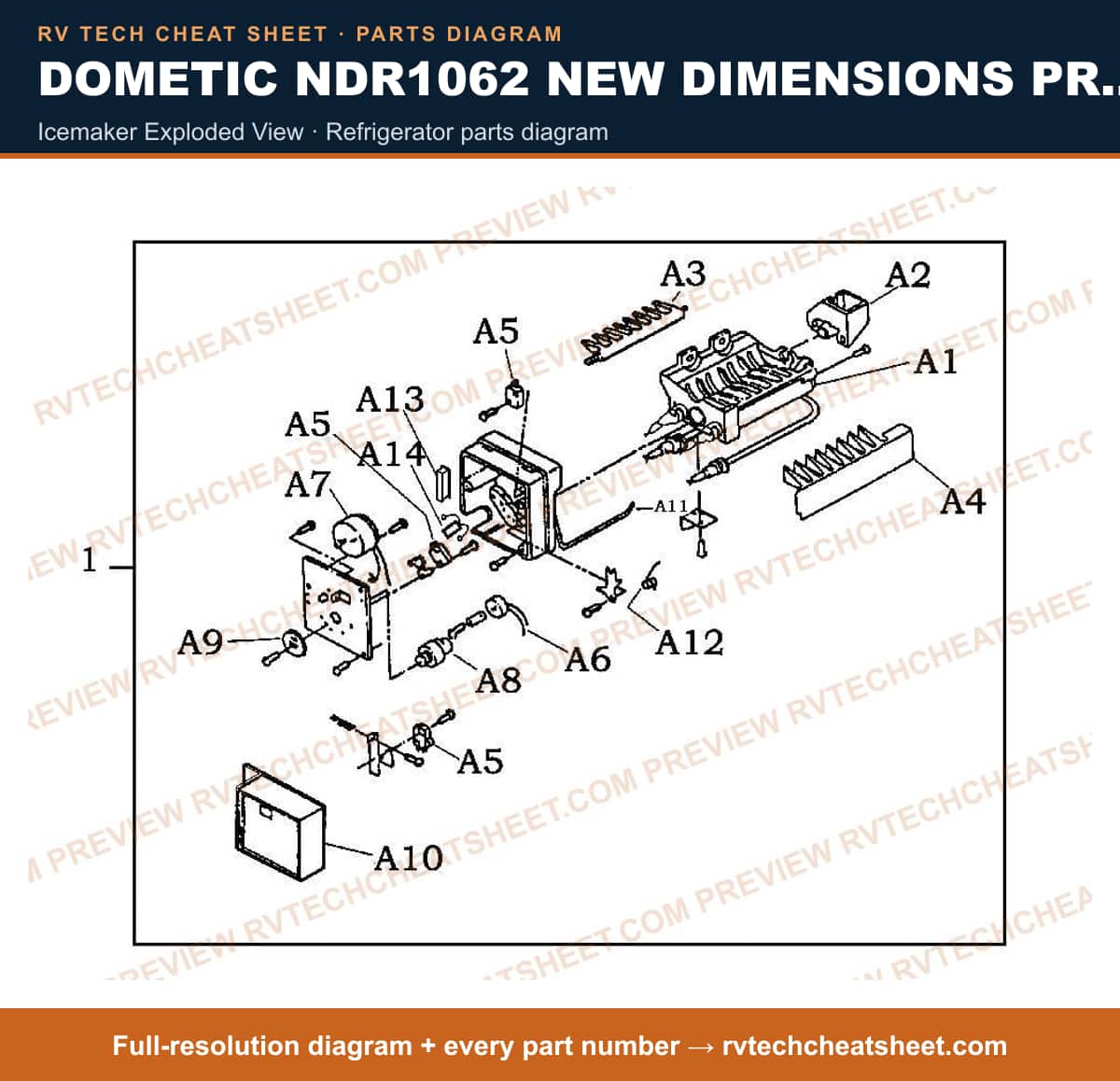

1. #APPLIANCE COMPONENTS RV; Shelf Icemaker MFR # 3108706148
2. #SCREW, #10 X 2" MFR # 3106586005
3. #SHELF, ICE BUCKET USE 49-8972 MFR # 3107664009 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Kit Ice Bucket/Shelf 10 C MFR # 3312986049
5. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
6. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
7. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
8. #APPLIANCE COMPONENTS RV; S, BUCKET, ICE-6,7,8,9CF MFR # 3312986015
9. #BUCKET, ICE USE 3312986015 OR 49-9027 MFR # 3106582004 Superseded: see description
10. #WASHER MFR # 3108706007
11. #FILL PIECE, WATER TUBE MFR # 3106324001
12. #CAP, SMALL USE 3312986007 F/FREEZER RACK MFR # 2943241014 Superseded: see description
13. #Refrigerator Shelf Support; For Use With Dometic Refrigerators MFR # 3312986007 Superseded: see description
14. #DECORATION, DOOR MFR # 3108705314

Door Asm

Components

25 items

1. #APPLIANCE COMPONENTS RV; Door Freezer LH Black MFR # 2932962067
2. #APPLIANCE COMPONENTS RV; Door Lower LH Black MFR # 2932961085
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
5. #RACK,JUICE WHITE MFR # 2932578020
6. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
7. #S,SCREW,RXS,2.9*9.5,ZPBC-1350 MFR # 3858002102
8. #S,DOOR HANDLE,BLK,NDM1062 MFR # 2932094044
9. #S,SCREW,PT,5.26MM,BLK-6/8/10CF MFR # 3858000049
10. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
11. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
12. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
13. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
14. #Refrigerator Trim; Replacement For Dometic RM2662/ RM2852/ RM2652/ NDM1062 Model Refrigerators; Black; With Logo MFR # 3850381322
15. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
16. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
17. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
18. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
19. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
20. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
21. #GASKET KIT, DOOR NDR1062 MFR # 3108708441
22. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G
23. #PANELS, MAIN & FREEZER BRUSHED CHROME MFR # NDR1062BA
24. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
25. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012

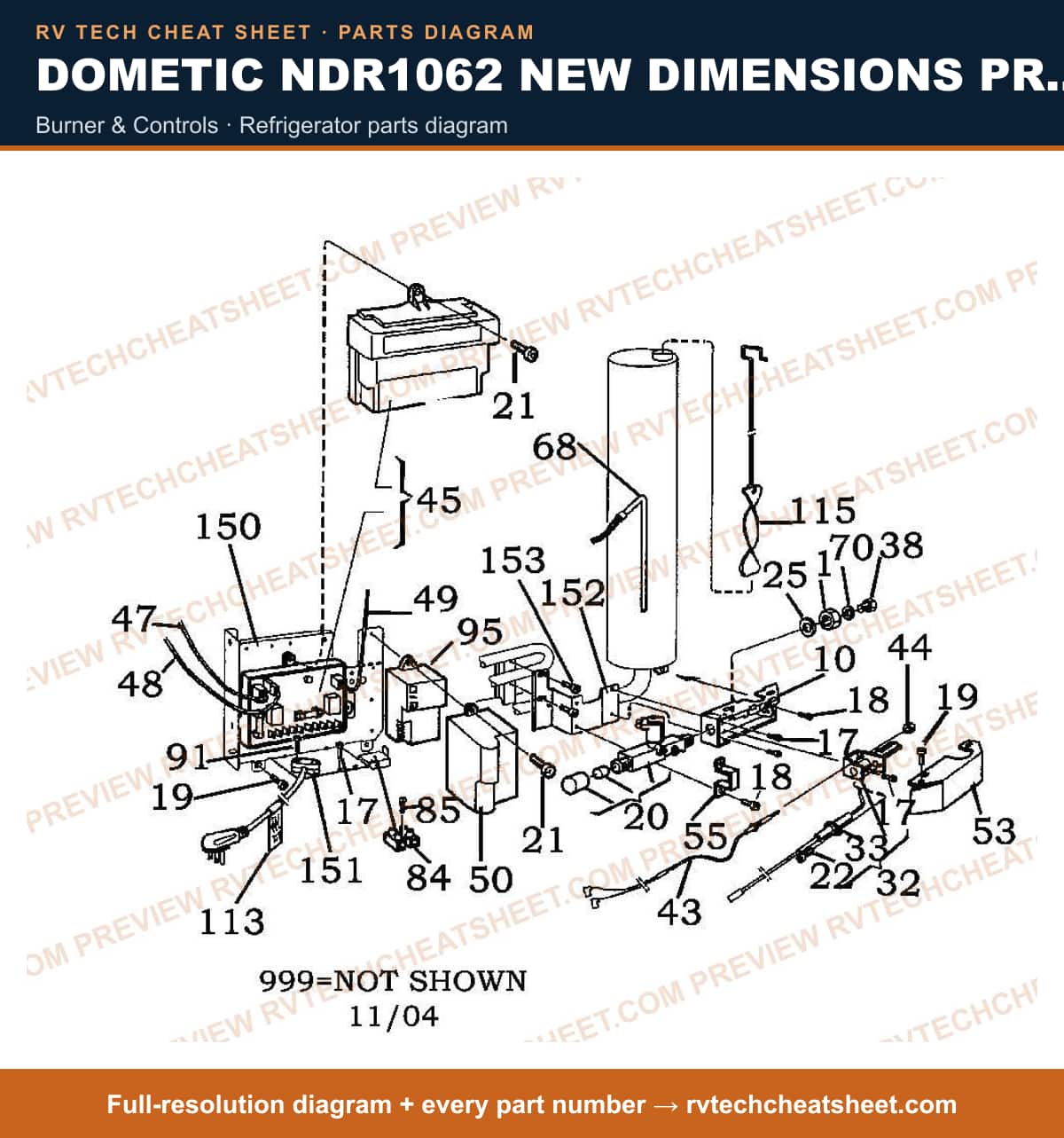

Burner & Controls

Components

47 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #ELECTRODE MFR # 2932781012
13. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
14. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
15. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
16. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
17. #Nut, T-Couple MFR # 2801043015
18. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
19. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
20. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
21. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
22. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
23. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
24. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
25. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
26. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
27. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
28. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
29. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
30. #APPLIANCE COMPONENTS RV; Conductor Solenoid Valve MFR # 2954539017
31. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
32. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
33. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
34. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
35. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
36. #ELEMENT, HEATING 120VAC 325W MFR # CH000360
37. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
38. #3858022019 MFR # 3858022019
39. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
40. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
41. #Reigniter - NLA MFR # 2931132027
42. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
43. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
44. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
45. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
46. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
47. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017

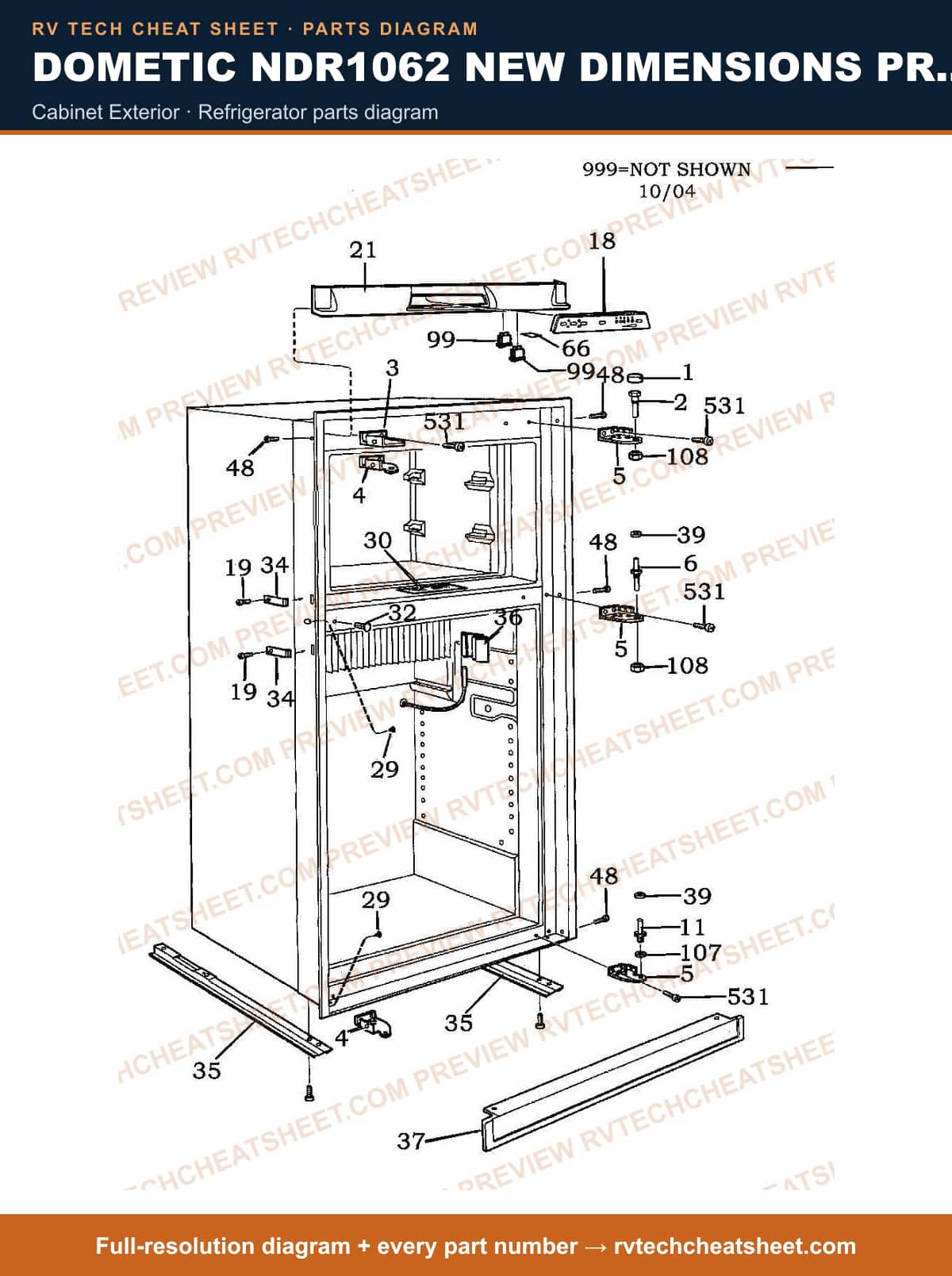

Cabinet Exterior

Components

29 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,RH,BLK MFR # 2932644046
4. #Refrigerator Door Hinge; Replacement For Dometic DM2652/ RM2852 Refrigerators; Left Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643048 Superseded: see description
5. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
6. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic Refrigerator Models DM2662/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2662/ RM2862/ RM3662/ RM3862; 2 Way Alternating Current/ LP Gas; Black;Also Use New Number 2932884097 MFR # 2932884055 Superseded: see description
9. #Dometic Refrigerator Replacement Eyebrow Circuit Board Control Panel MFR # 2932884097
10. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
11. #S,DECOR PLATE,NDR1062 MFR # 2932966027
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #LABEL MFR # 2932435007
14. #PLUG,BLACK MFR # 3850585039
15. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
17. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
20. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
21. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
22. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
23. #APPLIANCE COMPONENTS RV; Label Cover MFR # 2933090009
24. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
25. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
26. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
27. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
28. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
29. #APPLIANCE COMPONENTS RV; REVERSING KIT,DOOR LH-RH MFR # 2932750124

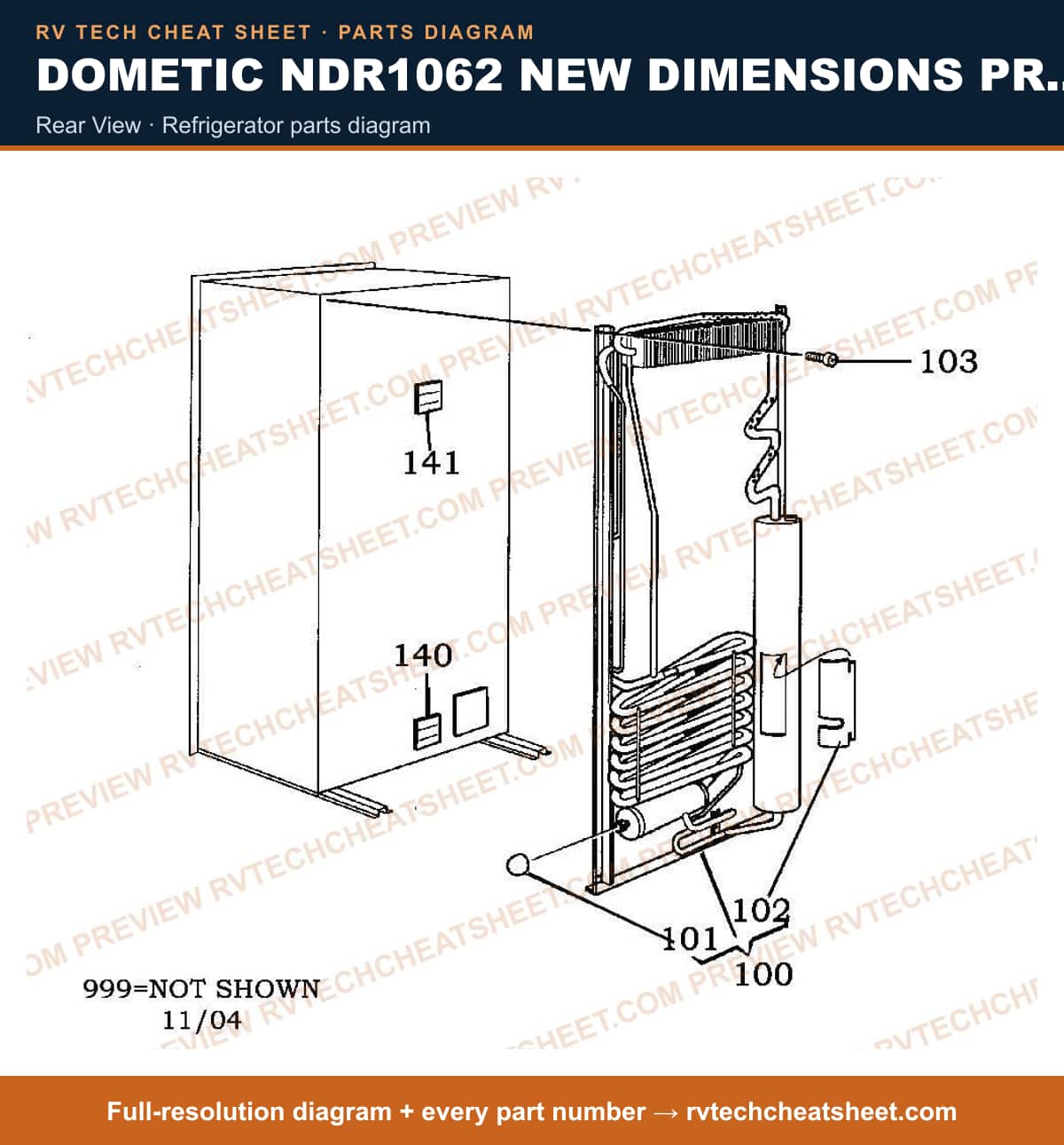

Rear View

Components

24 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #NUT, WATER VALVE MFR # 3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #WIRING DIAGRAM MFR # 2931966002
5. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
6. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
7. #TERMINAL BLOCK,Y MFR # 2931963017
8. #APPLIANCE COMPONENTS RV; Cord Set 90 Degree MFR # 2002699078
9. #WARNING LABEL MFR # 2931975003
10. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
11. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
12. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
13. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
14. #HARNESS, WIRE USE 3312986080 N F/6, 8, & 10 FT REFERS MFR # 3108710256 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Wire Harness Kit MFR # 3312986080
16. #HARNESS,WIRE USE 3108710256 MFR # 3105585016 Superseded: see description
17. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
18. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
19. #RING, HOG MFR # 3107614012
20. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
21. #VALVE KIT WATER MFR # 3108706114
22. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM4873/ RM3663 / RM2862 Refrigerators MFR # 3106868007
23. #SCREW #8-18 X 3/8 SELF DRILLING MFR # 3108706858
24. #HEATER KIT ICEMAKER MFR # 3106868015

Cabinet Interior

Components

37 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #APPLIANCE COMPONENTS RV; Flange Cooling MFR # 2932864016
3. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
4. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
5. #LABEL MFR # 2932732007
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
9. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Wire MFR # 2933197010
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
12. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
13. #APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018
14. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
15. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
16. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
17. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
18. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
19. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
20. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
21. #APPLIANCE COMPONENTS RV; Housing Lamp MFR # 3850531017
22. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
23. #CRISPER, VEGETABLE NDR1272, NDR1282 MFR # 2932621051
24. #CRISPER USE 2932621051 MFR # 2932621069 Superseded: see description
25. #165521030 MFR # 165521030
26. #S,PUSH ROD MFR # 3850534029
27. #S,HOLDER,PUCH ROD,NDM1062 MFR # 3850535018
28. #Reflector; Replacement For Dometic Refrigerator Bulb Reflector MFR # 3850533013
29. #Refrigerator Flame Indicator; Lamp Cover MFR # 3850532015
30. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
31. #BULB, HALOGEN, USE JC10W OR STAG# 55-8170 12V 10W MFR # JC10 Superseded: see description
32. #BULB,HALOGEN 12V 10W MFR # 3850455019
33. #Multi Purpose Light Bulb; Halogen Bulb; 10 Watts; Box Of 10 MFR # JC10W
34. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
35. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
36. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
37. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111

Replacement Refrigerator

Components

8 items

1. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095
2. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G
3. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
5. #REFER, 10 CU FT 2 WAY BLACK 59 15/16" X 23 11/16" X 24" MFR # NDR1062BN
6. #REFER, 10 CU FT 2 W W/ICMKR 59 15/16 X 23 11/16 X 24 MUST GO TRUCK 2 WAY EXTRA LARGE DOUBLE DOOR WITH ICE MAKER & HEAT TAPE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1062IMHN MFR # NDR1062BIMHN Superseded: see description
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
8. #REFER, 10 CU FT USE NDR1062BN 59 15/16" X 23 11/16" X 24" SHIPPING WT 180LBS. 2 WAY EXTRA LARGE DOUBLE DOOR WITH TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1062BN MFR # NDR1062N Superseded: see description

Icemaker Exploded View

Components

15 items

1. #Ice Maker Assembly; For Dometic Refrigerators; Hard Tray; Winged MFR # 3313470082
2. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
3. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
4. #EJECTOR MFR # 3108703434
5. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
6. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
7. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
8. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
9. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
10. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
11. #APPLIANCE COMPONENTS RV; Cover Cycle Front MFR # 3108702873
12. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
13. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
14. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
15. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445
