Dometic NDR1062 New Dimensions Product # 921146161 Black Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 135 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1062 New Dimensions Product # 921146161 Black RV refrigerator: 5 assemblies (Door Assembly, Cabinet Exterior, Cabinet Rear View, Burner & Control, Cabinet Interior) and 135 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

22 items

1. #Door, Freezer LH Black MFR # 3850537014
2. #Refrigerator Door; Use with Dometic Refrigerator Model NDM1062; Left Hand Side; Black MFR # 3850536016 Superseded: see description
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
6. #Refrigerator Door Handle; Replacement For Dometic DM3862/ NDM1062/ NDR1062/ RM3862 Model Refrigerator; Fits Lower Door; Black MFR # 3850558028
7. #S,DOOR HANDLE,BLK,NDR1062 MFR # 3850558010
8. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
9. #S,SHELF,FRZ DR,CLR,HALF MFR # 2932577048
10. #Refrigerator Door Bin; Replacement For Dometic NDM1062 Refrigerator; Clear MFR # 2932576081
11. #Refrigerator Door Bin; Replacement For Dometic NDR1062 Refrigerator; Clear MFR # 2932575075
12. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
13. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
14. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
15. #Ice Bin; Replacement For Dometic RM3862/ RM4872/ M4873 Refrigerators MFR # 2932579010
16. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
17. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
18. #GASKET KIT, DOOR NDR1062 MFR # 3108708441
19. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
20. #PANELS, MAIN & FREEZER BRUSHED CHROME MFR # NDR1062BA
21. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
22. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G

Cabinet Exterior

Components

26 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
3. #S,BRACKET,RH,BLK MFR # 2932644046
4. #HINGE,BLACK MFR # 3850528039
5. #HINGE,BLACK MFR # 3850528047
6. #PIN,HINGE MIDDLE BLACK MFR # 3850529011
7. #PIN,HINGE LOWER MFR # 3850399027
8. #Refrigerator Control Board Kit; Replacement For RV Refrigerator; Black MFR # 3850408018
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Refrigerator Trim; Use With Dometic Refrigerator Model NDM1062/ RM3862; Top; Black MFR # 3850520010 Superseded: see description
11. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
12. #PLUG,BLACK MFR # 3850585039
13. #CATCH,TRAVEL MFR # 3850527015
14. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
15. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
16. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
17. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
18. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
19. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
20. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
21. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
22. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018
23. #DECAL MFR # 3850411004
24. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
25. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
26. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Cabinet Rear View

Components

7 items

1. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
2. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #SCREW 4.8 X 16 MFR # 3858068012
6. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
7. #LABEL MFR # 3850583000

Burner & Control

Components

46 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #ELECTRODE MFR # 2932781012
13. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
14. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
15. #THERMOCOUPLE FOR DOMETIC REFRIGERATORS MFR # 2932052018MC
16. #THERMOCOUPLE FOR DOMETIC MFR # 2932052018
17. #Nut, T-Couple MFR # 2801043015
18. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
19. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
20. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
21. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
22. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
23. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Conductor Solenoid Valve MFR # 2954539017
25. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
26. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
27. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
28. #ELEMENT, HEATING USE 3850644422 115V 325W MFR # 173768037 Superseded: see description
29. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
30. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
31. #3858022019 MFR # 3858022019
32. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
33. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
34. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
35. #Reigniter - NLA MFR # 2931132027
36. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
37. #2932667047 MFR # 2932667047
38. #2002699094 MFR # 2002699094
39. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
40. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
41. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
42. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
43. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
44. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
45. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
46. #SCREW,RXS B6X13 MFR # D7E3858005014

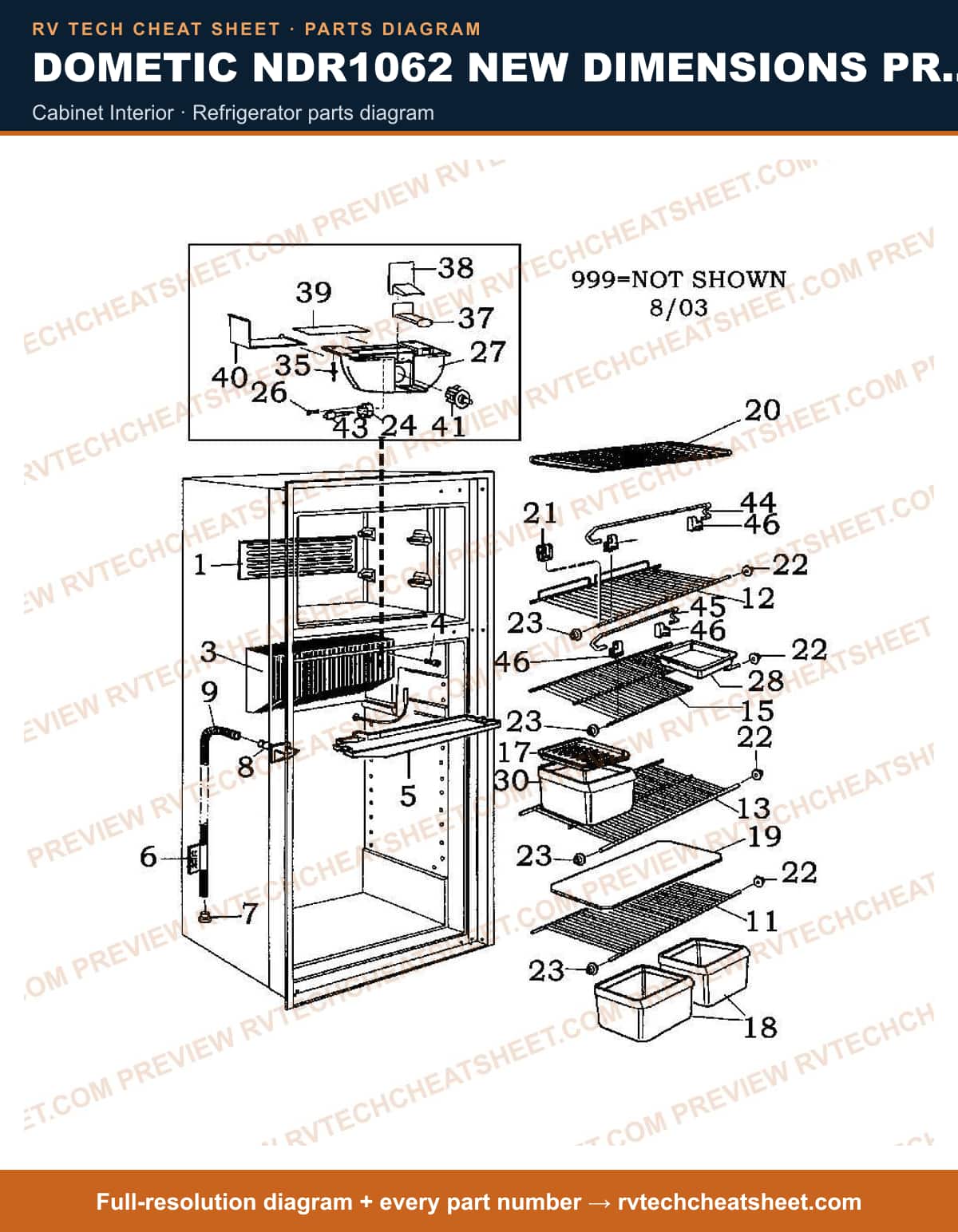

Cabinet Interior

Components

35 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #APPLIANCE COMPONENTS RV; Flange Cooling MFR # 2932864016
3. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
4. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
5. #LABEL MFR # 2932732007
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
9. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Wire MFR # 2933197010
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
12. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
13. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDM106 Refrigerator; Clear MFR # 2932622026
14. #Refrigerator Crisper Bin; Replacement For Dometic NDR106 Series Refrigerators; Clear MFR # 2002726178
15. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
16. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
17. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
18. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
19. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
20. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
21. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
22. #APPLIANCE COMPONENTS RV; Housing Lamp MFR # 3850531017
23. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
24. #Refrigerator Crisper Bin; Replacement For Dometic NDM1062 Refrigerator; Clear MFR # 2932621085
25. #165521030 MFR # 165521030
26. #S,PUSH ROD MFR # 3850534029
27. #S,HOLDER,PUCH ROD,NDM1062 MFR # 3850535018
28. #Reflector; Replacement For Dometic Refrigerator Bulb Reflector MFR # 3850533013
29. #Refrigerator Flame Indicator; Lamp Cover MFR # 3850532015
30. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
31. #BULB,HALOGEN 12V 10W MFR # 3850455019
32. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
33. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
34. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
35. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
