Dometic NDR1062 New Dimensions Product # 921146180 (stnls) Parts Diagram · Replacement Refrigerator

Refrigerator · 6 assemblies · 6 diagram sheets · 134 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1062 New Dimensions Product # 921146180 (stnls) RV refrigerator: 6 assemblies (Replacement Refrigerator, Cabinet Rear View, Cabinet Interior, Cabinet Exterior, Burner & Control and more) and 134 manufacturer part numbers. 25 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

7 items

1. #REFER, 10 CU FT 2 W W/ICMKR 59 15/16 X 23 11/16 X 24 MUST GO TRUCK 2 WAY EXTRA LARGE DOUBLE DOOR WITH ICE MAKER & HEAT TAPE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1062IMHN MFR # NDR1062BIMHN Superseded: see description
2. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G
3. #REFER, 10 CU FT STAINLESS 2WAY 59 15/16"H X 23 11/16"W X 24"D MFR # NDR1062SS
4. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
5. #REFRIGERATORS & ICE MAKERS RV; NORCOLD 2-WAY REFRIGERATOR MFR # N1095
6. #REFER, 10 CU FT 2 WAY BLACK 59 15/16" X 23 11/16" X 24" MFR # NDR1062BN
7. #REFER, 10 CU FT USE NDR1062BN 59 15/16" X 23 11/16" X 24" SHIPPING WT 180LBS. 2 WAY EXTRA LARGE DOUBLE DOOR WITH TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1062BN MFR # NDR1062N Superseded: see description

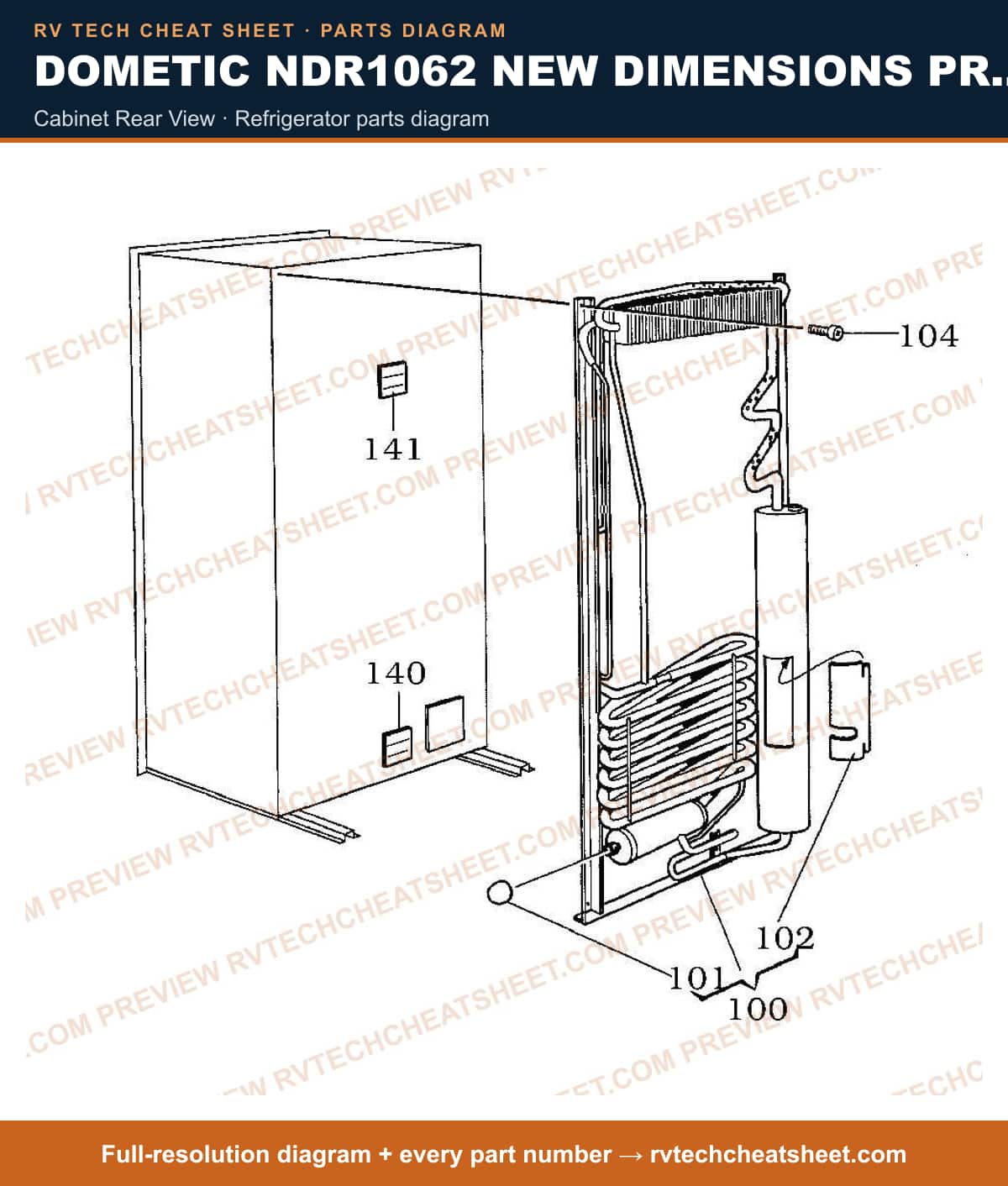

Cabinet Rear View

Components

6 items

1. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000

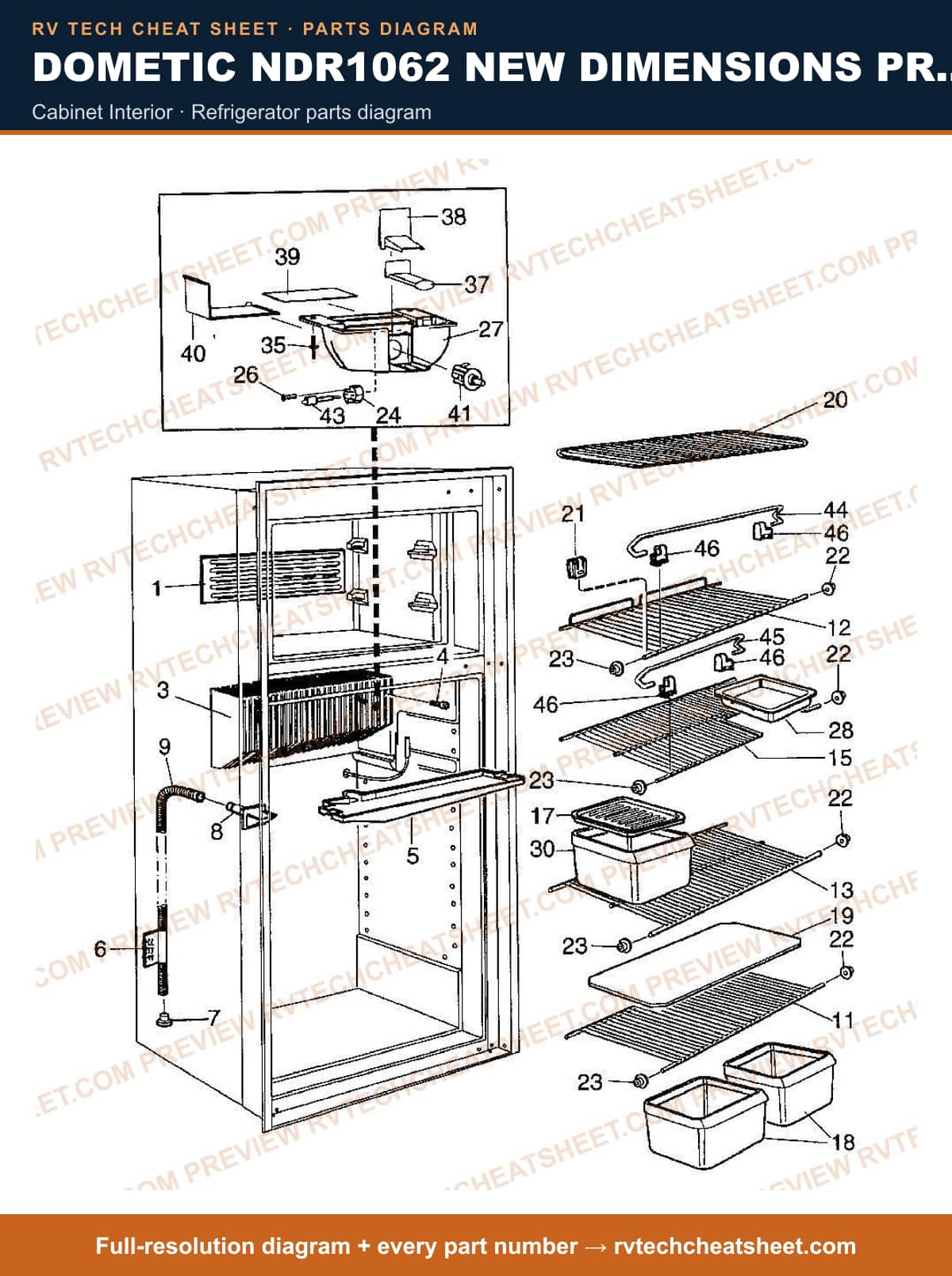

Cabinet Interior

Components

35 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #APPLIANCE COMPONENTS RV; Flange Cooling MFR # 2932864016
3. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
4. #Refrigerator Drip Tray; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator MFR # 2933132017
5. #LABEL MFR # 2932732007
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
9. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
10. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Wire MFR # 2933197010
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
12. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
13. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDM106 Refrigerator; Clear MFR # 2932622026
14. #Refrigerator Crisper Bin; Replacement For Dometic NDR106 Series Refrigerators; Clear MFR # 2002726178
15. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
16. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 2932980010
17. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
18. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
19. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
20. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
21. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
22. #APPLIANCE COMPONENTS RV; Housing Lamp MFR # 3850531017
23. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
24. #Refrigerator Crisper Bin; Replacement For Dometic NDM1062 Refrigerator; Clear MFR # 2932621085
25. #165521030 MFR # 165521030
26. #S,PUSH ROD MFR # 3850534029
27. #S,HOLDER,PUCH ROD,NDM1062 MFR # 3850535018
28. #Reflector; Replacement For Dometic Refrigerator Bulb Reflector MFR # 3850533013
29. #Refrigerator Flame Indicator; Lamp Cover MFR # 3850532015
30. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
31. #BULB,HALOGEN 12V 10W MFR # 3850455019
32. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
33. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
34. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
35. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045

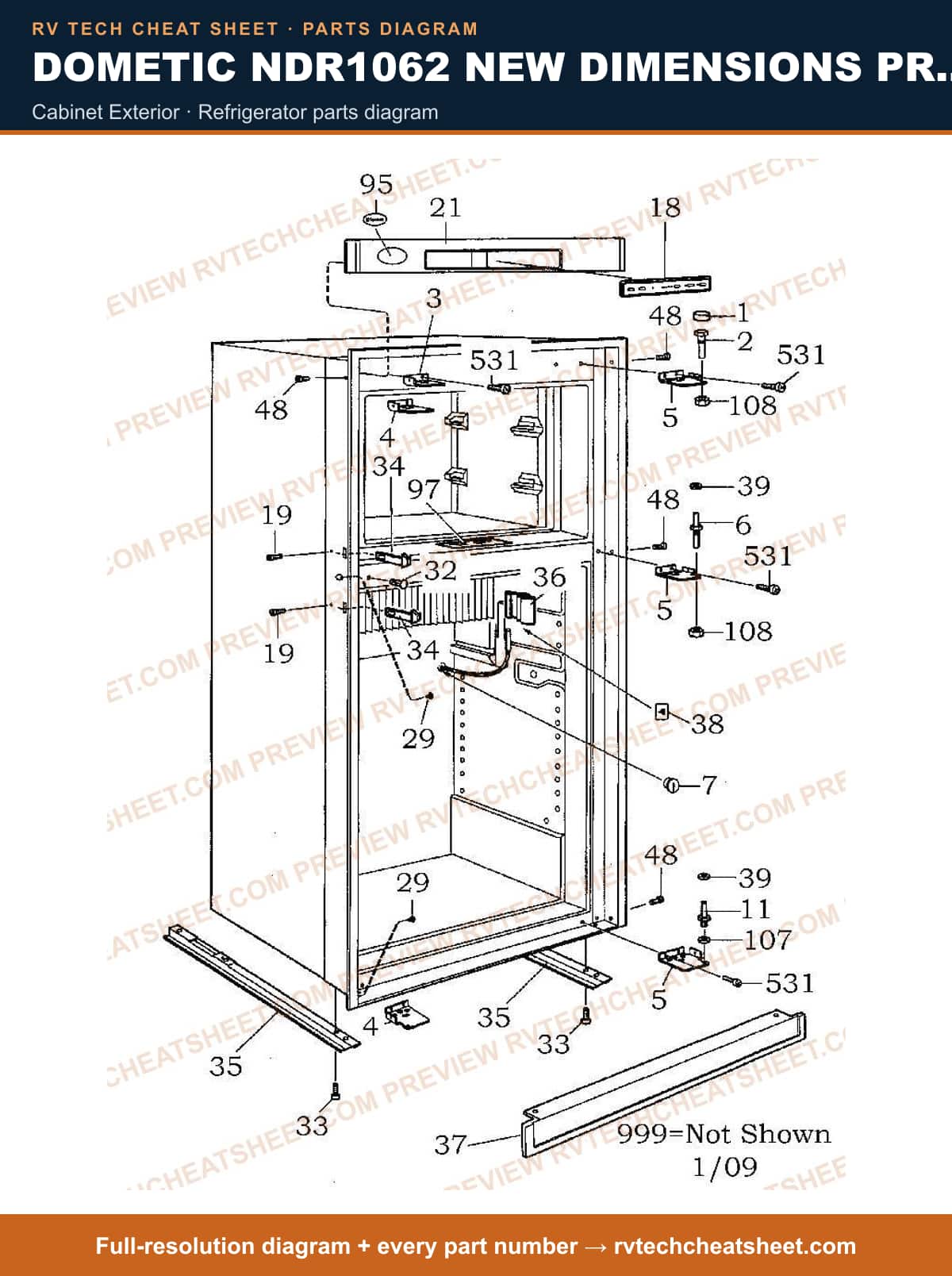

Cabinet Exterior

Components

27 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
3. #S,BRACKET,LH,BLK MFR # 2932644038
4. #HINGE,BLACK MFR # 3850528047
5. #PIN,HINGE MIDDLE BLACK MFR # 3850529011
6. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
7. #PIN,HINGE LOWER MFR # 3850399027
8. #Refrigerator Control Board Kit; Replacement For RV Refrigerator; Black MFR # 3850408018
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Refrigerator Trim; Use With Dometic Refrigerator Model NDM1062/ RM3862; Top; Black MFR # 3850520010 Superseded: see description
11. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
12. #PLUG,BLACK MFR # 3850585039
13. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
14. #CATCH,TRAVEL MFR # 3850527015
15. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
16. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
17. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
18. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
19. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
20. #LABEL MFR # 2933180016
21. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
22. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
23. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018
24. #DECAL MFR # 3850411004
25. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
26. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
27. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description

Burner & Control

Components

42 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
9. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
10. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #ELECTRODE MFR # 2932781012
13. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
14. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
15. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
16. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
17. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
18. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
19. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
20. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
21. #Thermistor; Use 3851059042 with lead 44" MFR # 2931863035 Superseded: see description
22. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
23. #Refrigerator Thermistor Assembly; Replacement For Dometic Refrigerator Thermistor MFR # 3851210025
24. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
25. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
26. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
27. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
28. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
29. #3858022019 MFR # 3858022019
30. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
31. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
32. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
33. #2932667047 MFR # 2932667047
34. #2002699094 MFR # 2002699094
35. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
36. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
37. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
38. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
39. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
40. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
41. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
42. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Door Assembly

Components

20 items

1. #APPLIANCE COMPONENTS RV; Door Freezer RH Stainless MFR # 3850537048
2. #APPLIANCE COMPONENTS RV; Door Refer RH Stainless MFR # 3850536040
3. #Refrigerator Trim Hole Plug; For Dometic NDR1062 Refrigerators MFR # 2932740018
4. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
6. #Refrigerator Door Handle; Replacement For Dometic DM3862/ NDM1062/ NDR1062/ RM3862 Model Refrigerator; Fits Lower Door; Black MFR # 3850558028
7. #S,DOOR HANDLE,BLK,NDR1062 MFR # 3850558010
8. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
9. #S,SHELF,FRZ DR,CLR,HALF MFR # 2932577048
10. #Refrigerator Door Bin; Replacement For Dometic NDM1062 Refrigerator; Clear MFR # 2932576081
11. #Refrigerator Door Bin; Replacement For Dometic NDR1062 Refrigerator; Clear MFR # 2932575075
12. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
13. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
14. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
15. #Ice Bin; Use With Dometic DM2663/ RM3862/ NDM1062 Refrigerators; Clear MFR # 2932579028 Superseded: see description
16. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
17. #PANELS, DOOR BLACK PLEXIGLASS TOP & BOTTOM MFR # NDR1062L
18. #PANELS, MAIN & FREEZER BRUSHED CHROME MFR # NDR1062BA
19. #PANELS, DOOR WOODGRAIN TOP & BOTTOM MFR # NDR1062G
20. #GASKET KIT, DOOR NDR1062 MFR # 3108708441
