Dometic NDR1282 New Dimensions Parts Diagram · Replacement Refrigerator

Refrigerator · 7 assemblies · 7 diagram sheets · 209 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1282 New Dimensions RV refrigerator: 7 assemblies (Replacement Refrigerator, Exterior Cabinet, Cabinet Rear View, Icemaker, Burner & Controls and more) and 209 manufacturer part numbers. 41 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

3 items

1. #Refer, 12 Cu Ft Use NDR1292BIMHN 59 1/16" X 32 3/4" X 24" MFR # NDR1292IMHN Superseded: see description
2. #Refer, 12 Cu Ft 2 Way W/Icemaker 59 5/16" X 37 3/8" X 24 7/8" MFR # RM1282N
3. #Refer, 12 Cu Ft 2 Way W/Icemaker 59 1/16" X 32 3/4" X 24" MFR # NDR1292BIMHN

Exterior Cabinet

Components

48 items

1. #Refrigerator Door Hinge Cover; Replacement For Dometic DM2652/ NDR1062/ NDR1272/ NDR1282/ RM2451/ RM2452/ RM2453/ RM2454/ RM2551/ RM2552/ RM2553/ RM2554/ RM2652/ RM2852/ RM3662/ RM3663/ RM3862/ RM3863/ RM4872/ RM4873/ RM7732/ RM7832 Refrigerators MFR # 2932736016
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2932646017
4. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
5. #SCREW M6S 5 X 20 MFR # 7252331405
6. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
7. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
8. #Board Control Assm ***Us MFR # 2932884022
9. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
10. #COVER, UPPER CONTROL W/DECAL MFR # 955024534
11. #Button Pushbutton On/Off MFR # 955024138
12. #Strip Decoration Front MFR # 2932663020
13. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
14. #Retainer MFR # 2932409010
15. #WASHER MFR # 2932418011
16. #APPLIANCE COMPONENTS RV; Hinge Lwr Lh THE FOLLOWING CAN ONLY BE USED ON REFERS WITH BLACK OR BEIGE TRIM, NOT STAINLESS STEEL. MFR # 2932846013
17. #HINGE, LOWER RH BEIGE... MFR # 2932846021
18. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
19. #S,HINGE PIN,LWR MFR # 2932649029
20. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
21. #S,COVER,NEA1402 MFR # 2931715011
22. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
23. #APPLIANCE COMPONENTS RV; Strip Front Decoration MFR # 2932664051
24. #APPLIANCE COMPONENTS RV; Cover MFR # 2932655026
25. #DECAL,ON/OFF SWITCH MFR # 2931877001
26. #SWITCH,DOOR USE 2932680024 (HUMIDITY) MFR # 2932680016 Superseded: see description
27. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
28. #Plate Freezer MFR # 2931476028
29. #Shelf MFR # 2931477026
30. #Plate Lower Freezer Tube MFR # 2931478016
31. #Plate Cover MFR # 2932853019
32. #SCREW MFR # 7243327405
33. #SCREW MFR # 7241333405
34. #SCREW MFR # 7241327407
35. #FREEZER UNIT MFR # 2931474015
36. #SHELF MFR # 2931982025
37. #SHELF MFR # 2931482026
38. #PLATE, FREEZER MFR # 2931483024
39. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
40. #DECAL MFR # 2932721000
41. #INST. SIGN PLATE FROM SERIAL NO.737 INCLUSIVE MFR # 2932439009
42. #DECAL MFR # 2932060003
43. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
44. #SCREW M4 X 10 S MFR # 7241289615
45. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
47. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
48. #SWITCH, ICEMAKER MFR # 2930891011

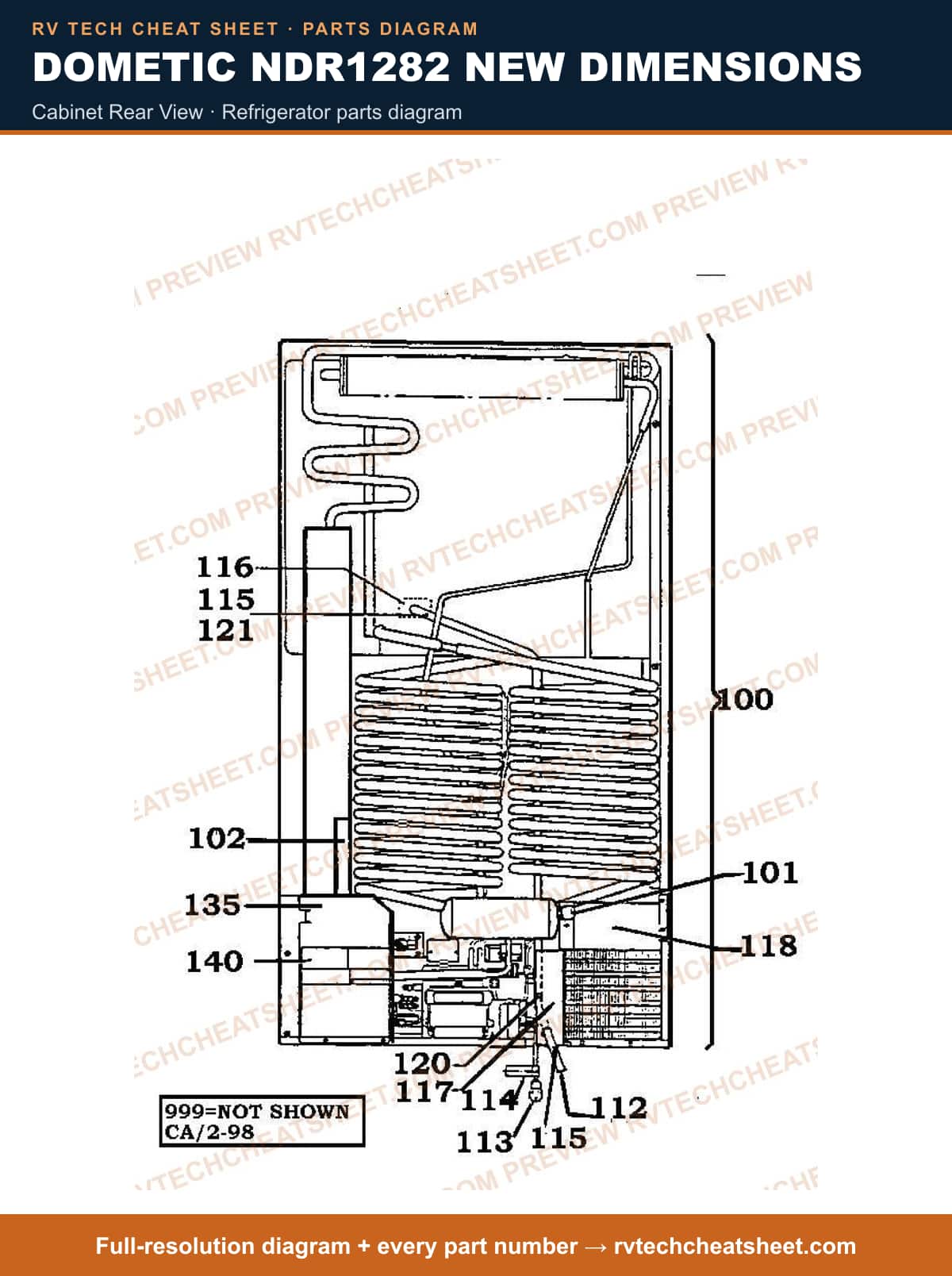

Cabinet Rear View

Components

19 items

1. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
2. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
3. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
4. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
10. #CORD, POWER USE 2002699037 MFR # 2002699060 Superseded: see description
11. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
12. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
13. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
14. #PLATE MFR # 2932176015
15. #PLATE MFR # 2932185016
16. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
17. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
18. #S,PROTECTION PLATE,REAR MFR # 2932155019
19. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

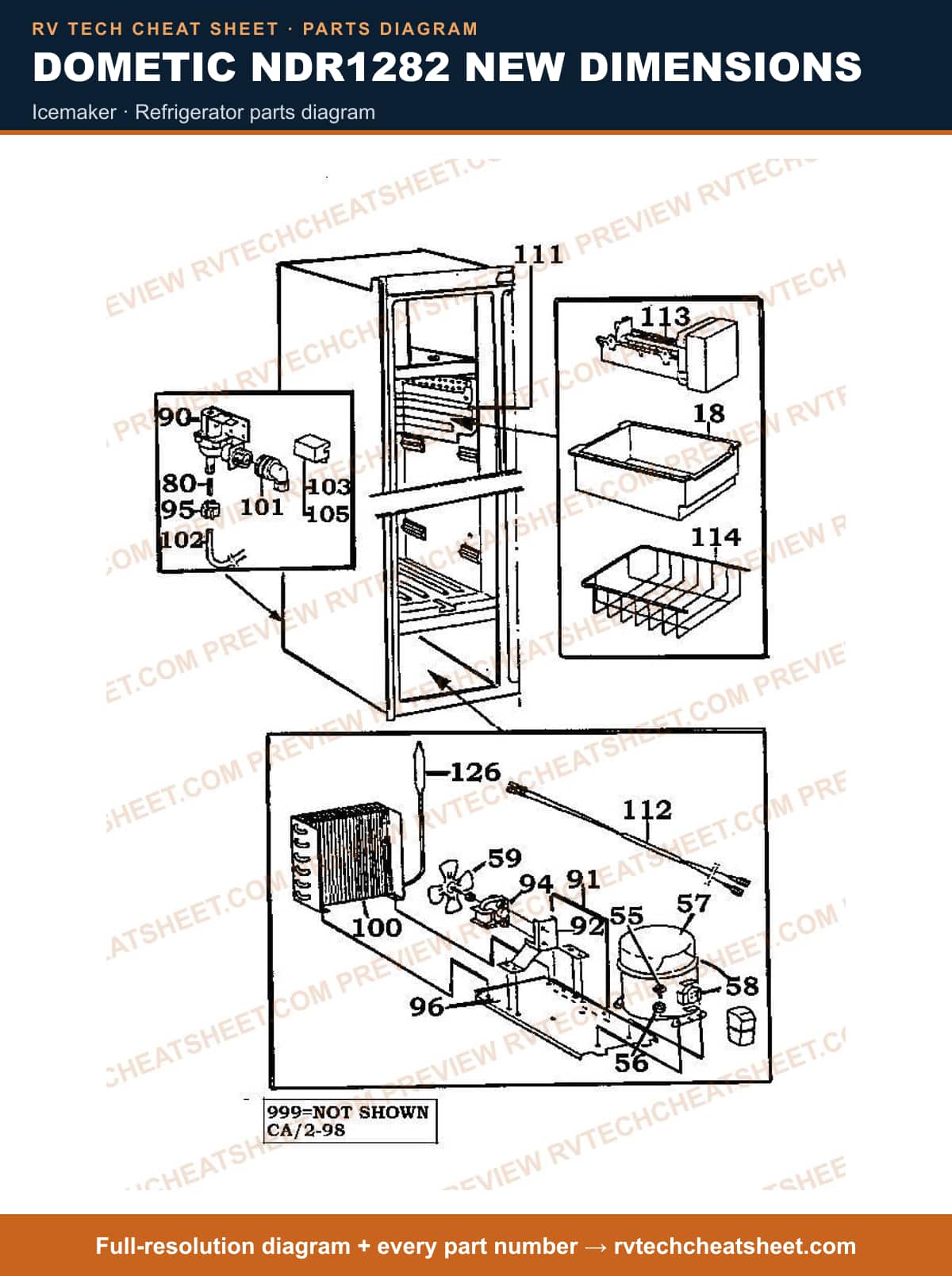

Icemaker

Components

28 items

1. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
2. #Spacer Screw MFR # 2001759006
3. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
5. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
6. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
7. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
8. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
9. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122
10. #Valve, Water MFR # 2932148022
11. #Plate, Divider MFR # 2932174010
12. #Bracket, Fan Motor MFR # 2931138016
13. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
14. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
15. #Plate, MTG. Comp./Fan MFR # 2932137017
16. #Coil, Condenser MFR # 2943926002
17. #APPLIANCE COMPONENTS RV; Connection Water MFR # 2930916024
18. #Hose, Water MFR # 2930905035
19. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
20. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
21. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
22. #WARNING LABEL MFR # 2931975003
23. #Cover MFR # 2932145010
24. #Coil, Evap. MFR # 2932134014
25. #Wire Harness MFR # 2932144013
26. #ICEMAKER ASM USE 3108703517 MFR # 2932147016 Superseded: see description
27. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM7832 MFR # 2932160019 Superseded: see description
28. #Drier MFR # 2053836025

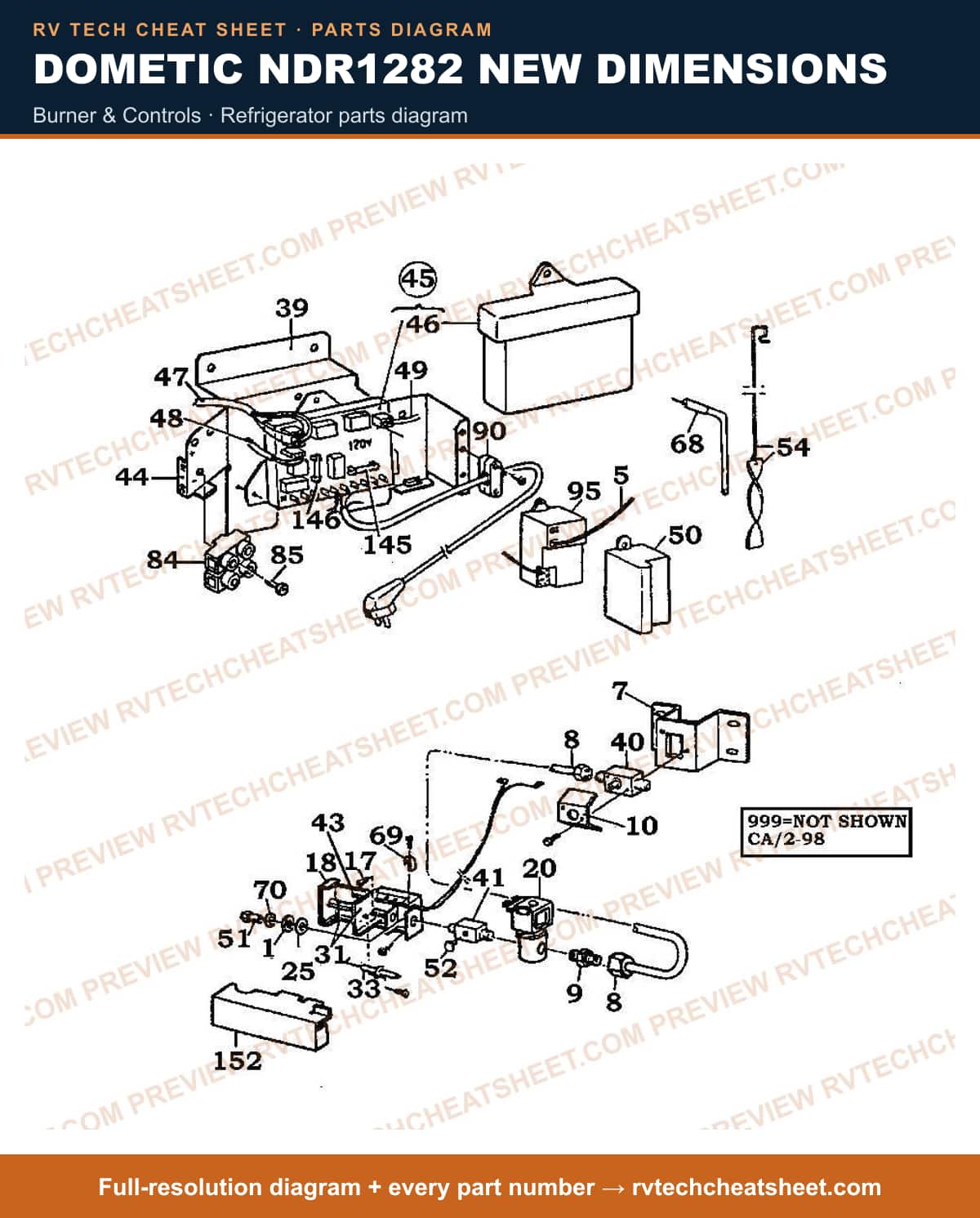

Burner & Controls

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Wire Leadreignitor/Elect MFR # 2007668045
3. #APPLIANCE COMPONENTS RV; Bracket Shutoff Valve MFR # 2932062017
4. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932061019
5. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2811/ RM3807/ RM7832 Model Refrigerator; Solenoid Inlet Nipple MFR # 2932063015
6. #PROTECTION PLATE MFR # 2932599018
7. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
8. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
9. #APPLIANCE COMPONENTS RV; Valve Solenoid MFR # 2943298022
10. #SOLENOID,GAS USE 2943298022 MFR # 2943298030 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
12. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
13. #Igniter Electrode; Use With Dometic Refrigerator Models RM1272/ NDR1272/ RM1282/ NDR1282/ NDR1292/ NDR1492/ RM7030/ RM7130/ RM7732/ RM7832 MFR # 2931495010MC Superseded: see description
14. #ELECTRODE RM7030 MFR # 2931495010
15. #Dometic RM2652 RM2662 Gas Valve Assembly MFR # 2932759018
16. #APPLIANCE COMPONENTS RV; Nipple Test MFR # 2931824011
17. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
18. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
19. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
20. #Label 12VDC MFR # 2931827006
21. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
22. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
23. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
24. #DOM REPLACEMENT BRD MFR # MICROP711
25. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
26. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
27. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
28. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
29. #S,COVER,LESS DECALS MFR # 2931858019
30. #LEAD,PC BOARD MFR # 2931862029
31. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
32. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
33. #HARNESS, GAS SOLENOID MFR # 2954437048
34. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
35. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
36. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
37. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
38. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
39. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
40. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
41. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
42. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
43. #3858022019 MFR # 3858022019
44. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
45. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
46. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
47. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
48. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
49. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
50. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
51. #APPLIANCE COMPONENTS RV; Valve Shut Off MFR # 2932616010
52. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
53. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
54. #DOMETIC REIGNITOR RM1303 MFR # 2931132019

Door

Components

29 items

1. #Appliance Components RV; Door Refer MFR # 2932985019
2. #Refrigerator Gasket; Replacement For Dometic NDR1272/ NDR1282 Refrigerators; Door Gasket MFR # 3108708458
3. #APPLIANCE COMPONENTS RV; Door Asm Freezer MFR # 2932986017
4. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #HANDLE, DOOR USE 2932094028 MFR # 2932406016 Superseded: see description
7. #Appliance Components RV; Handle Door Beige MFR # 3850227012
8. #Handle, Door Use 3850227012 MFR # 2932094028 Superseded: see description
9. #Appliance Components RV; Control Right MFR # 2932407014
10. #Appliance Components RV; Control Left MFR # 2932407022
11. #Appliance Components RV; Screw MFR # 2801049020
12. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
13. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
14. #Appliance Components RV; Strip, Decoration MFR # 3850919014
15. #S,DR DECOR,FRZ,BRN MFR # 3850381017
16. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
17. #Refrigerator Trim; Replacement For Dometic NDR1282 Refrigerator; Middle; Black MFR # 2932642198
18. #Decoration, Freezer Bottom MFR # 2932642024
19. #Strip, Deco Use 3850381108 Top Freezer MFR # 2932642180 Superseded: see description
20. #Appliance Components RV; Strip Deco Freezer Top MFR # 3850381108
21. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
22. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
23. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
24. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
25. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
26. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
27. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
28. #BRACKET MFR # 2932634013
29. #RIVET MFR # 2932679018

Interior Cabinet

Components

29 items

1. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
2. #COOLING FLANGE, LEFT MFR # 2932761030
3. #COVER, CRISPER SHELF MFR # 2931117101
4. #APPLIANCE COMPONENTS RV; Shelf Lower MFR # 2932979020
5. #Refrigerator Shelf; Replacement For Dometic NDR1062/ RM1282/ NDR1272/ NDR1282/ NDR1062/ RM1272 Model Refrigerator; Freezer Compartment; Wire; Without Cutout MFR # 2932979012
6. #APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018
7. #CRISPER, VEGETABLE NDR1272, NDR1282 MFR # 2932621051
8. #CRISPER USE 2932621051 MFR # 2932621069 Superseded: see description
9. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
10. #TRAY, DRIP MFR # 2932972017
11. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
12. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
13. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
14. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
15. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
16. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
17. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
18. #BULB 2/PK MFR # 2007290006
19. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
20. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
21. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
22. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
23. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
24. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
25. #COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description
26. #SCREW MFR # 7241333405
27. #SHELF, PLASTIC MFR # 2932391010
28. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932979038
29. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932997014
