Dometic NDR1402 Sidewise Product # 921148207 Stnls Parts Diagram · Cabinet Exterior

Refrigerator · 10 assemblies · 10 diagram sheets · 199 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1402 Sidewise Product # 921148207 Stnls RV refrigerator: 10 assemblies (Cabinet Exterior, Refrigerator Door, Front View, Cabinet Interior, Rear View and more) and 199 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

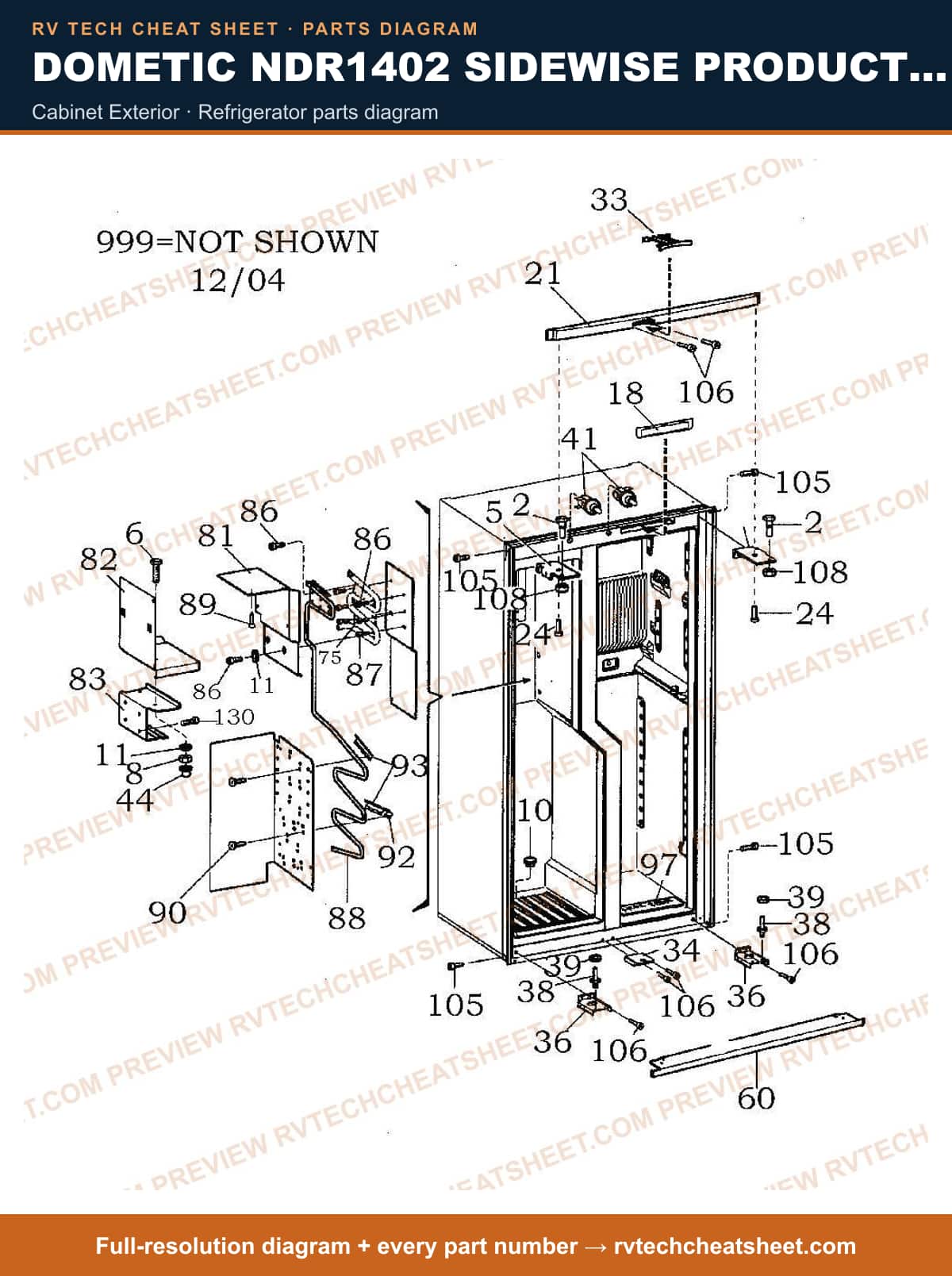

Cabinet Exterior

Components

33 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #HINGE,UPPER RH BLACK MFR # 3850398029
3. #SCREW, M6S SX 30 A2-80 MFR # 3858041035
4. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
5. #S,COVER,NEA1402 MFR # 2931715011
6. #WASHER,STAINLESS MFR # 3858010121
7. #Panel, Display Board Black MFR # 3850464011
8. #Refrigerator Trim; Replacement For Dometic NDA1042/ NDE1402/ NDR1402 Model Refrigerator; Decoration Trim; Black MFR # 3850460019
9. #SCREW,PT PH 4 X 10 MFR # 3858006012
10. #S,BRKT,LID,UPR,NDR1402 MFR # 3850461017
11. #APPLIANCE COMPONENTS RV; Bracket Lock Lower MFR # 3850462015
12. #S,HINGE,LWR,L,BLK MFR # 3850397013
13. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
14. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
15. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
16. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
17. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
18. #Screw, Stainless MRX 5x16 MFR # 3858004157
19. #Plate, Freezer MFR # 3850480017
20. #Shelf MFR # 3850481015
21. #Shelf, Icemaker MFR # 3850482013
22. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
23. #SCREW, STAINLESS MRX M 5 X 12 MFR # 3858004090
24. #Appliance Components RV; Freezer Unit MFR # 3850476015
25. #SCREW, KFXS B8X13 SFA MFR # 3858036035
26. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDE1292/ NDE1402/ NDR1292/ NDR1402 Model Refrigerator; 5 x 12 MFR # 3858037025
27. #Bracket MFR # 2931484022
28. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
29. #Plate, Instruction MFR # 3850517008
30. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
31. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
32. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
33. #SCREW MFR # 3858039013

Refrigerator Door

Components

16 items

1. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
2. #S,HANDLE,BLK,NDR1402 MFR # 3850492012
3. #Refrigerator Control Knob; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850499017 Superseded: see description
4. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
5. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
6. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
7. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
8. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
9. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
10. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
11. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
12. #BAR,LOCK MFR # 3850495015
13. #SPRING MFR # 3850497011
14. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
15. #SCREW,BLACK MFX X M4 X 12 MFR # 3858056041
16. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018

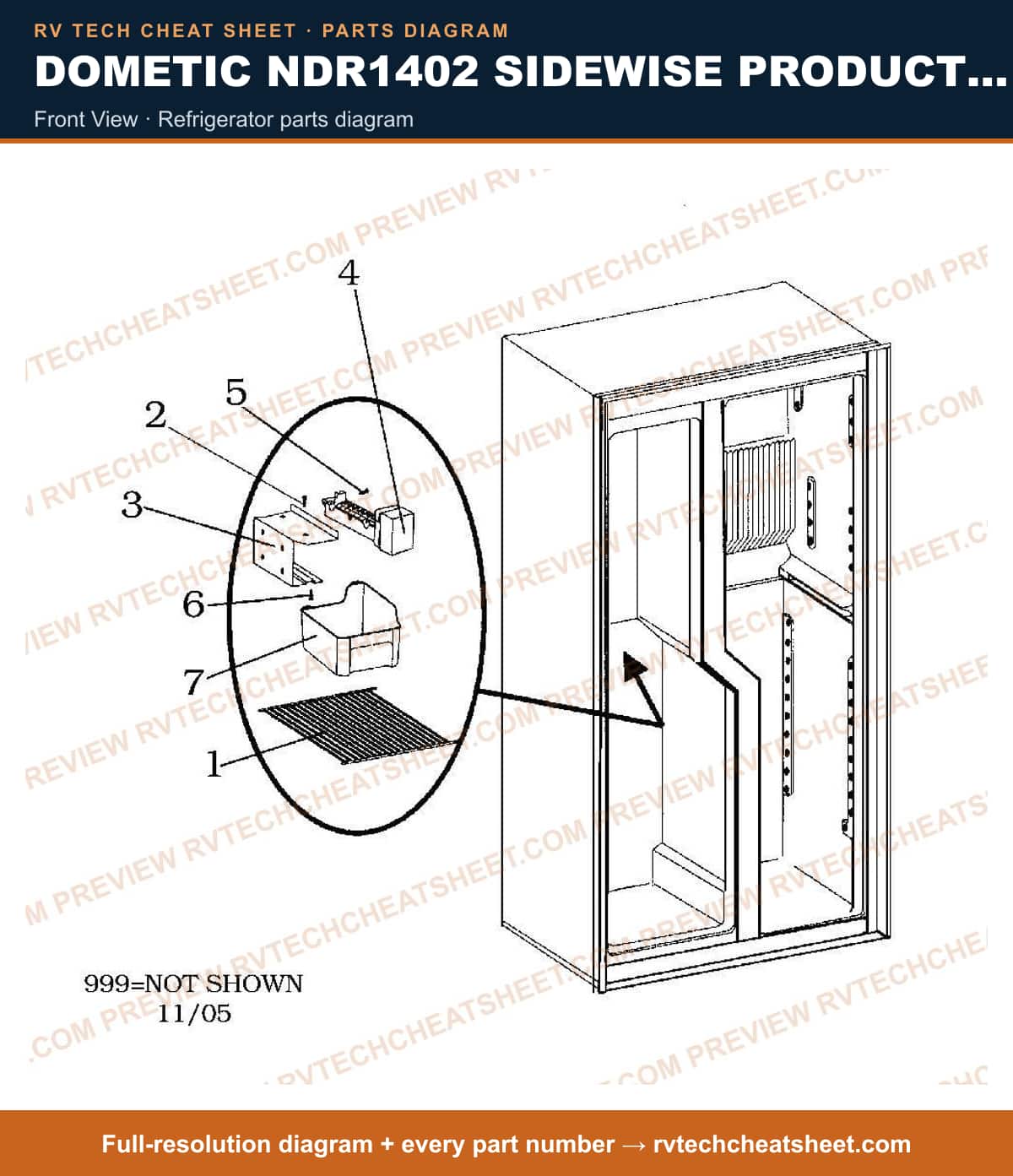

Front View

Components

7 items

1. #Shelf, Icemaker MFR # 3850482013
2. #SCREW, M6S SX 30 A2-80 MFR # 3858041035
3. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
4. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
5. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
6. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
7. #Refrigerator Shelf; Replacement For Dometic Refrigerator Shelf; Ice Bucket; Clear MFR # 3850443015

Cabinet Interior

Components

46 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #Flange, Cooling Left MFR # 3850473012
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #Refrigerator Shelf; For Use With Dometic NEA1402/ NDA1402ID Model Refrigerators; Wire MFR # 3850437017 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
10. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
11. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
12. #S,SHELF,WIRE FF,1402 MFR # 3850441019
13. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
18. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
19. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
20. #Refrigerator Flame Indicator; Housing Lamp MFR # 3850451018
21. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
22. #REFLECTOR,LAMP 5 WATT MFR # 3850453022
23. #Refrigerator Flame Indicator; Lamp Reflector; 10 Watts MFR # 3850453014
24. #APPLIANCE COMPONENTS RV; Cover Lamp MFR # 3850452016
25. #APPLIANCE COMPONENTS RV; BULB, HALOGEN FREEZER G4 MFR # 3850455027
26. #BULB,HALOGEN 12V 10W MFR # 3850455019
27. #BULB, HALOGEN, USE JC10W OR STAG# 55-8170 12V 10W MFR # JC10 Superseded: see description
28. #Multi Purpose Light Bulb; Halogen Bulb; 10 Watts; Box Of 10 MFR # JC10W
29. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
30. #RACK MFR # 2007337237
31. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
32. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
33. #RACK MFR # 2007337245
34. #BASKET,WIRE MFR # 3850430012
35. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
36. #Support, Basket Wire MFR # 3850483011
37. #HOLDER,OUTER MFR # 3850484019
38. #HOLDER,INNER MFR # 3850485016
39. #Refrigerator Shelf; Replacement For Dometic Refrigerator Shelf; Ice Bucket; Clear MFR # 3850443015
40. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
41. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
42. #COVER,FAN MFR # 3850448014
43. #SHELF MFR # 3850433016
44. #Appliance Components RV; Shelf Wire NDR1402 MFR # 3850432018
45. #Shelf MFR # 3850434014
46. #SCREW MFR # 3858039013

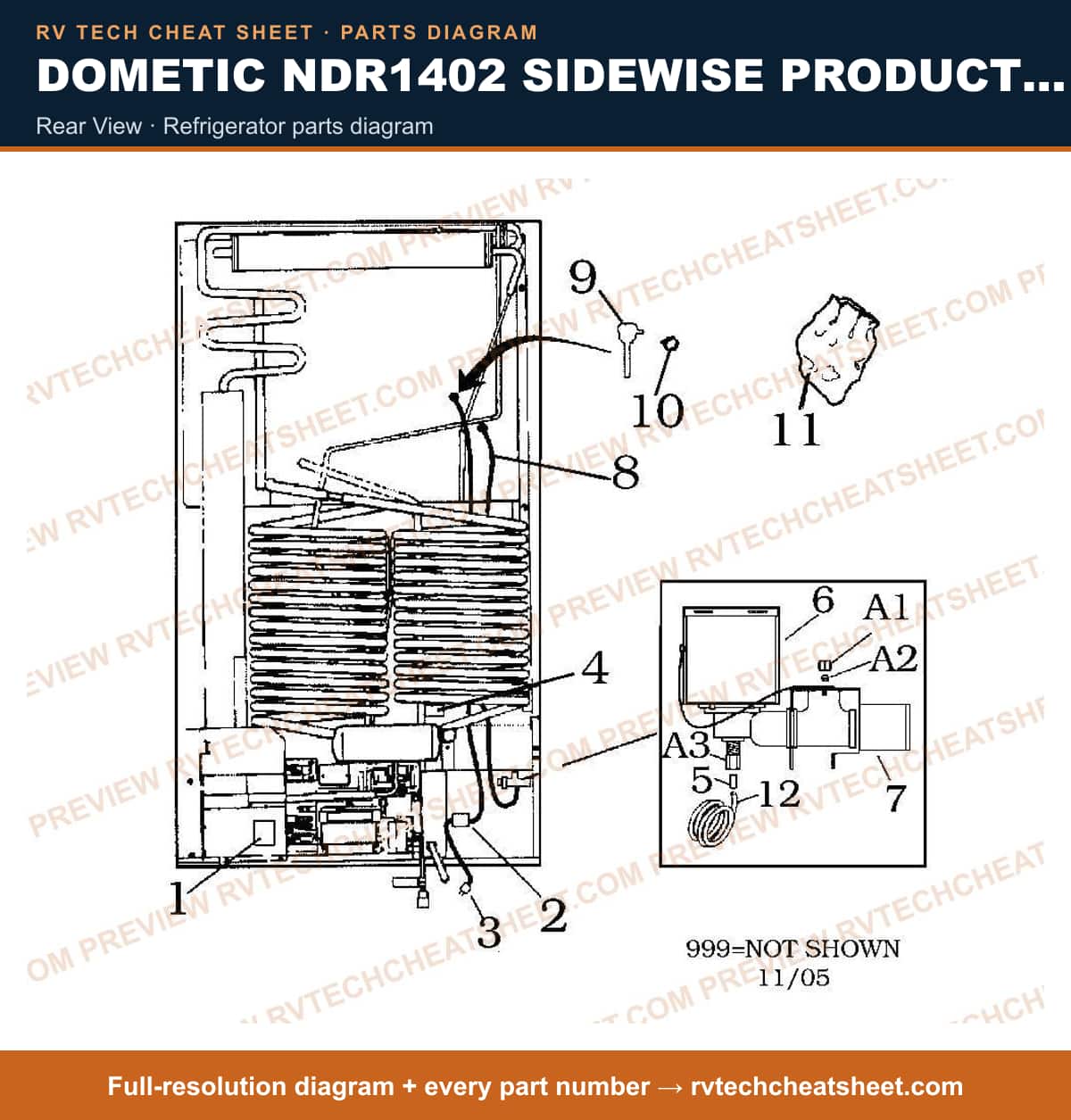

Rear View

Components

14 items

1. #APPLIANCE COMPONENTS RV; Diagram Wiring MFR # 2931988006
2. #TERMINAL, 4-WAY MFR # 2931963018
3. #Cord Set Straight MFR # 3108710264
4. #WARNING LABEL MFR # 2931975003
5. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
6. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
7. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
8. #HARNESS, WIRE 73" RM7732 MFR # 3105585008
9. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
10. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
11. #RING, HOG MFR # 3107614012
12. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122
13. #Heater Kit, Icemaker F/Univ. Power Module MFR # 3106868023
14. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM7732/ NDR1272/ NDR1282 Refrigerators MFR # 3108706080

Cabinet Rear View

Components

15 items

1. #COOLING UNIT W/THERMAL FUSE MFR # 2934947108
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #COVER,HEATER MFR # 2933557023
4. #LABEL MFR # 3850600010
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
7. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
8. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
9. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
11. #HOSE,DRAIN MFR # 2932749084
12. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749076
13. #S,PROTECTION PLATE,REAR MFR # 2932155019
14. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
15. #LABEL MFR # 3850583000

Replacement Refrigerator

Components

7 items

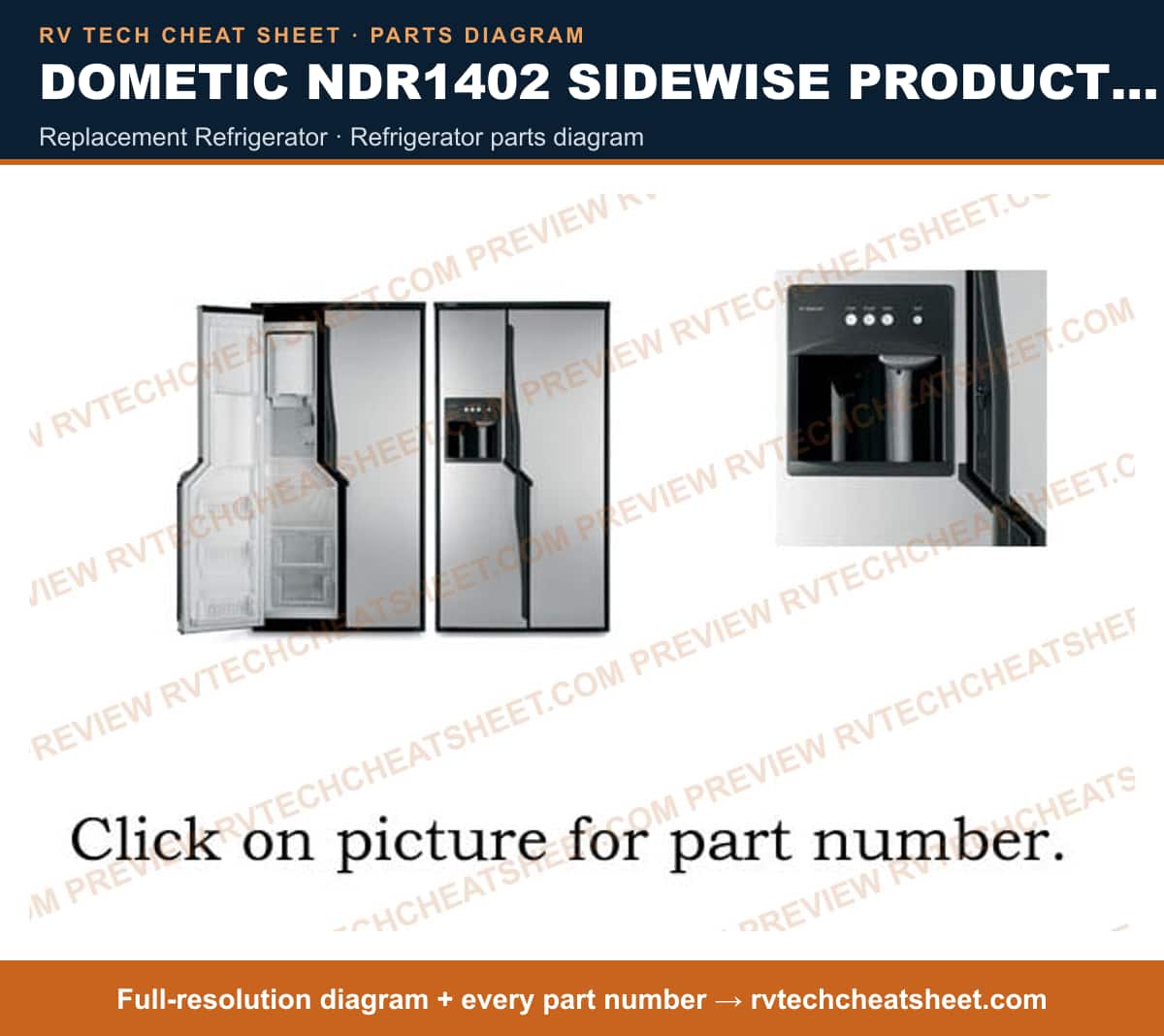

1. #REFER,14CUFT. STAINLESS AUTO/DEF W/ICEMAKER & FAN MFR # NDA1402SSIMF
2. #REFER,14 CU FT. W/WATER & ICE MFR # NDA1402WIDF
3. #REFER,14 CU FT. W/WATER & ICE BLACK STAINLESS MFR # NDA1402WIDBSF
4. #REFER,14 CU FT. W/WATER & ICE SILVER STAINLESS MFR # NDA1402WIDSSF
5. #REFER,14 CU FT W/ICE DISP.BLK AUTO DEFROST MFR # NDA1402IDBSF
6. #REFER,14CU FT AUTO/DEF BLACK W/ICEMAKER SIDEWISE MFR # NDA1402BIMF
7. #REFER,14 CU FT 2-WAY BLK/STNLS AUTO DEF ICEMKR MFR # NDA1402BSIMF

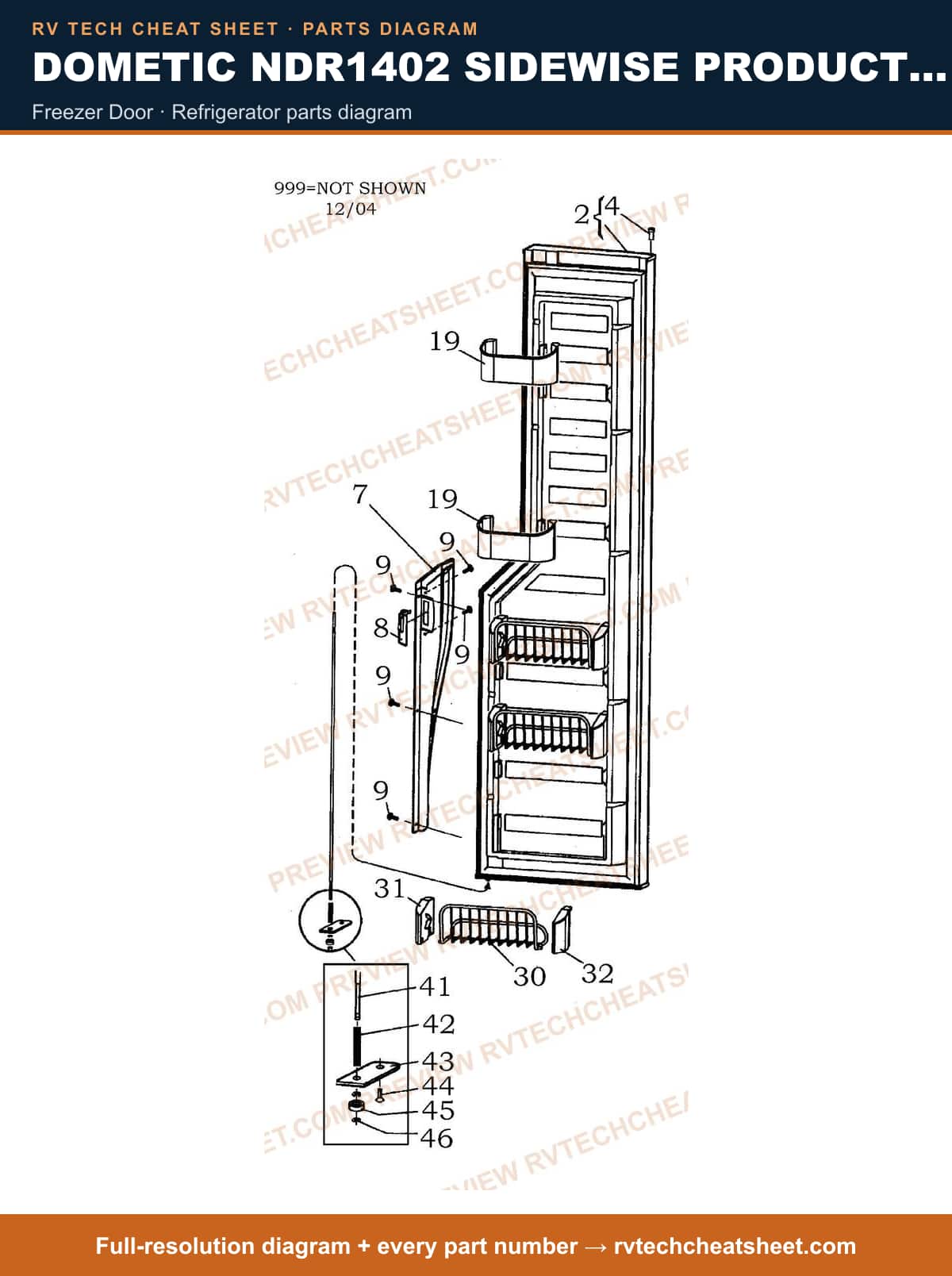

Freezer Door

Components

16 items

1. #DOOR, FREEZER USE 3850427083 OR 49-8810 STAINLESS MFR # 3850427034 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Door Freezer Ss MFR # 3850427083
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #S,HANDLE,BLK,NDR1402 MFR # 3850492012
5. #Refrigerator Control Knob; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850499017 Superseded: see description
6. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
7. #Refrigerator Shelf; Replacement For Dometic NDA1402/ NDE1402/ NDR1402/ NEA1402 Model Refrigerator; Freezer Compartment; Door Shelf MFR # 3850446018
8. #SHELF,DOOR WIRE MFR # 3850431010
9. #APPLIANCE COMPONENTS RV; S,HOLDER,DR ASM,L,NDA/NEA1402 MFR # 3850447016
10. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
11. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
12. #SPRING MFR # 3850497011
13. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
14. #SCREW,BLACK MFX X M4 X 12 MFR # 3858056041
15. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
16. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048

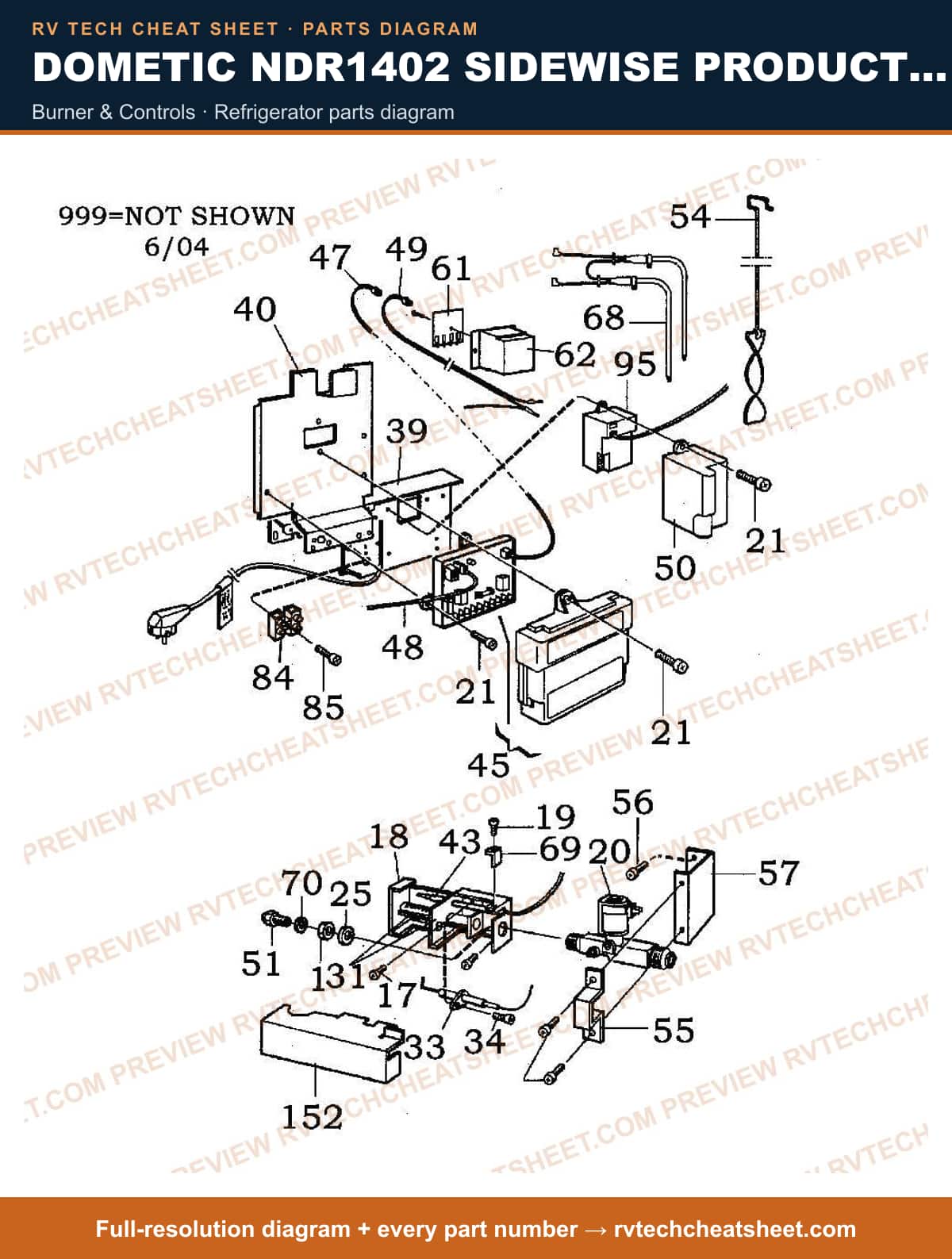

Burner & Controls

Components

42 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
5. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
6. #SCREW,RXS B6X13 ZINC MFR # 3858002151
7. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
8. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
9. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
10. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
11. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
12. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
13. #PLATE,MOUNTING MFR # 2932032010
14. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
15. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
16. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
17. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
18. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
19. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
20. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Black Box Board Kit 3850415.01 MFR # 385041501
21. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
22. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
23. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board MFR # 3850415013
24. #Conductor, Electronic MFR # 2954547010
25. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
26. #Conductor, Solenoid Valve MFR # 2954539025
27. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
28. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
29. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
30. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
31. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
32. #Support Plate MFR # -
33. #Board, PC MFR # 3850428016
34. #COVER,BOARD MFR # 3850429014
35. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
36. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
37. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
38. #3858022019 MFR # 3858022019
39. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
40. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
41. #Reigniter - NLA MFR # 2931132027
42. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

Icemaker Exploded View

Components

16 items

1. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
2. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
3. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
4. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
5. #EJECTOR MFR # 3108703434
6. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
7. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
8. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
14. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
15. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
16. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445
