Dometic NDR1492 New Dimensions Product # 921148021 Black Parts Diagram · Replacement Refrigerator

Refrigerator · 9 assemblies · 10 diagram sheets · 215 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1492 New Dimensions Product # 921148021 Black RV refrigerator: 9 assemblies (Replacement Refrigerator, Burner & Controls, Cabinet Interior, Front View, Rear View and more) and 215 manufacturer part numbers. 47 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

10 items

1. #50A PORTABLE GENERATOR PARALLEL KIT MFR # 1210
2. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
3. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
4. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
5. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
6. #Refrigerator; Ultra Line; Three Compartment 4 Door Side-By-Side Refrigerator With Two Freezer; Flush Mount; 12 Cubic Foot; 32-11/16 Inch Width x 24 Inch Depth x 63-1/4 Inch Height; 1.9 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With 2 Fans/ Shelving/ Door Bins; Without Door Panels MFR # 1210N
7. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
8. #REFER, 12 CU FT USE 72-4886; 2-WAY MFR # 1210LR Superseded: see description
9. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
10. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF

Burner & Controls

Components

50 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #APPLIANCE COMPONENTS RV; Wire Leadreignitor/Elect MFR # 2007668045
3. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
4. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
5. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
6. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
7. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
8. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
9. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
10. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
11. #PLATE,MOUNTING MFR # 2932032010
12. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
13. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
14. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
15. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
16. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
17. #DOM REPLACEMENT BRD MFR # MICROP711
18. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
19. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
20. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
21. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
22. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
23. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
24. #S,COVER,LESS DECALS MFR # 2931858019
25. #LEAD,PC BOARD MFR # 2931862029
26. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
27. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
28. #HARNESS, GAS SOLENOID MFR # 2954437048
29. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
30. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
31. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
32. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
33. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
34. #SCREW M4 X 10 S MFR # 7241289615
35. #SUPPORT PLATE MFR # 2932043017
36. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
37. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
38. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
39. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
40. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
41. #3858022019 MFR # 3858022019
42. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
43. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
44. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
45. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
46. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
47. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
48. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
49. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
50. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

Cabinet Interior

Components

30 items

1. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
2. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
3. #COOLING FLANGE, LEFT MFR # 2932761030
4. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
6. #SHELF, D210 MFR # 2933061018
7. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
8. #COVER, CRISPER 9 1/2" X 12" MFR # 2002727077
9. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
10. #Refrigerator Crisper Bin; Replacement For Dometic NDR1292/ NDR1492 Series Refrigerators MFR # 2002726145
11. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
12. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
13. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
14. #TRAY, DRIP MFR # 2932972017
15. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
16. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
17. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
20. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
21. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
22. #BULB 2/PK MFR # 2007290006
23. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
24. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
25. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
26. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
27. #Refrigerator Shelf; Replacement For Dometic NDR1292/ NDE1292/ NDR1492 Series Refrigerators; Wire MFR # 2007337195
28. #SCREW MFR # 7241333405
29. #SHELF, PLASTIC MFR # 2932391028
30. #SHELF,FREEZER MFR # 2932079011

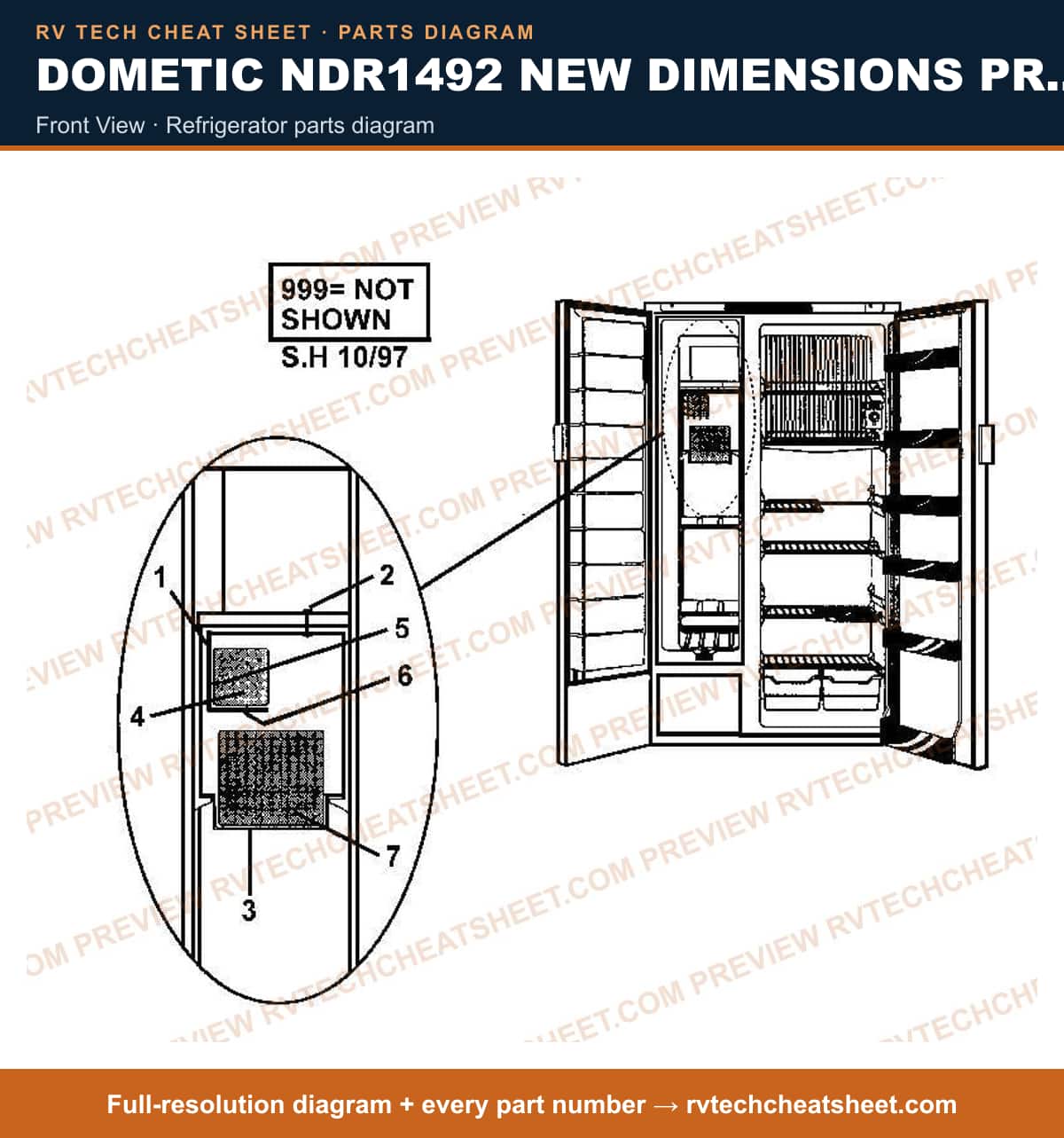

Front View

Components

10 items

1. #SHELF,ICEMAKER MFR # 3108706577
2. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
3. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
4. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
5. #APPLIANCE COMPONENTS RV; Screw #8 X 1/2" L Bracke MFR # 3108071006
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
9. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
10. #DECORATION DOOR MFR # 3108706684

Rear View

Components

20 items

1. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
2. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM7732/ NDR1272/ NDR1282 Refrigerators MFR # 3108706080
3. #NUT, WATER VALVE MFR # 3108706288
4. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
5. #Diagram, Wiring MFR # D7E2931988006
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
8. #TERMINAL, 4-WAY MFR # 2931963018
9. #CORD, SET STRAIGHT MFR # 2002699080
10. #WARNING LABEL MFR # 2931975003
11. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
13. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
14. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
15. #HARNESS, WIRE 73" RM7732 MFR # 3105585008
16. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
17. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
18. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
19. #RING, HOG MFR # 3107614012
20. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122

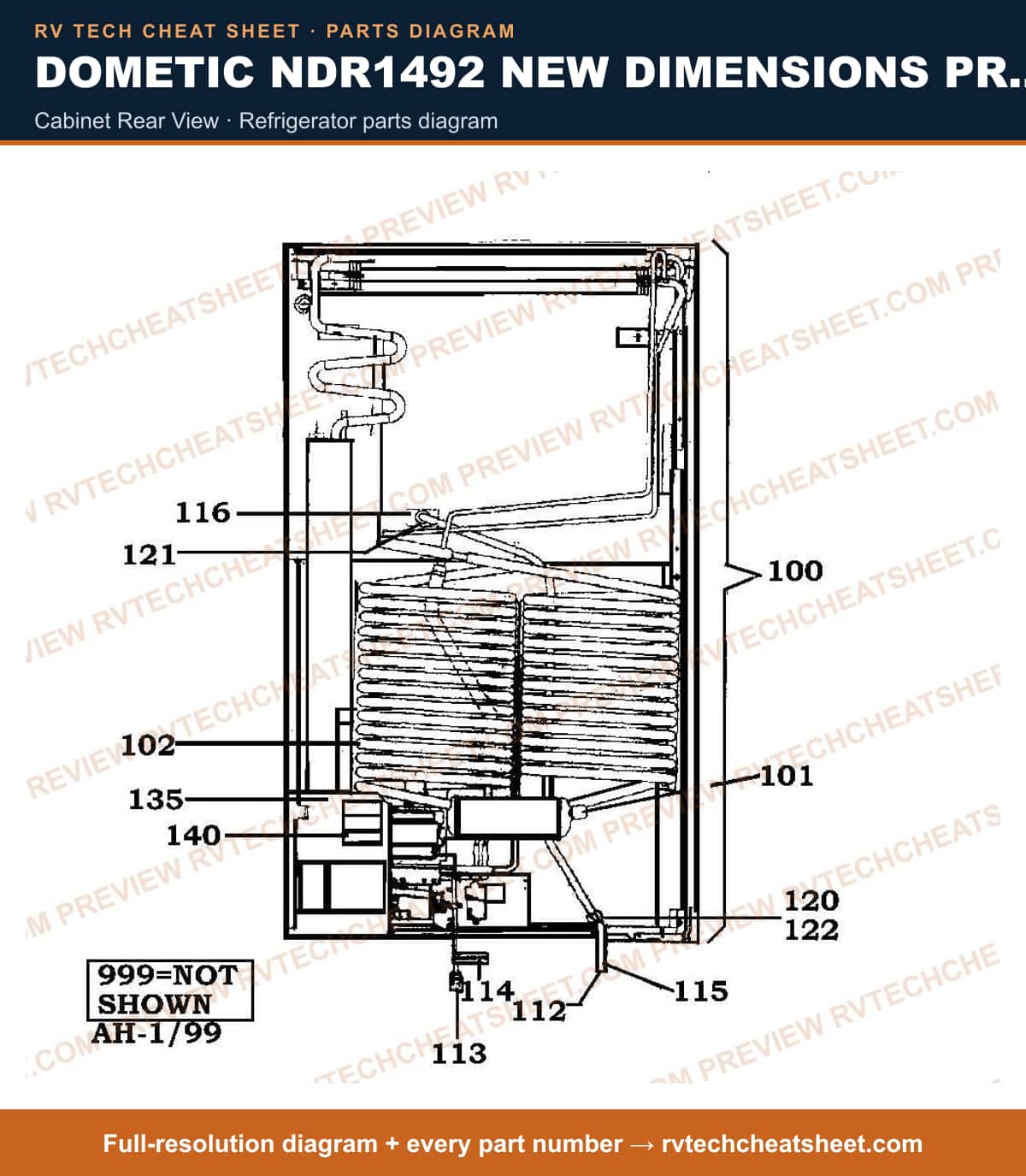

Cabinet Rear View

Components

19 items

1. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
2. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
3. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
4. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
10. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
11. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
13. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
14. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749076
15. #S,PROTECTION PLATE,REAR MFR # 2932155019
16. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
17. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
18. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
19. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description

Cabinet Exterior

Components

39 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model NDR1292; Upper Left Hand; Black MFR # 2932646033 Superseded: see description
3. #HINGE, UPPER RH BLACK MFR # 2932646041
4. #SCREW MFR # 7252335406
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
7. #Appliance Components RV; Board, Display Black MFR # 2932884063
8. #Front, Black MFR # 2932047042
9. #Refrigerator Door Cap; Replacement For Dometic NDR1292/ RM1272 Model Refrigerator; Fits Upper Left Side Decorative Strip; Black MFR # 2932040039
10. #Refrigerator Door Cap; Replacement For Dometic NDR1292/ RM1272 Model Refrigerator; Fits Upper Right Side Decorative Strip; Black MFR # 2932040047
11. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
12. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
13. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
14. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
15. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
16. #APPLIANCE COMPONENTS RV; LATCH, TRAVEL BLACK MFR # 2932048024
17. #Refrigerator Door Hinge; Replacement For Dometic NDR1492/ NDE1292/ NDR1292 Model Refrigerator; Lower Left Hand Side; Black MFR # 2932846039
18. #S,HINGE PIN,LWR MFR # 2932649029
19. #S,COVER,NEA1402 MFR # 2931715011
20. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
21. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
22. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
23. #PLATE, FREEZER MFR # 2932078021
24. #APPLIANCE COMPONENTS RV; Shelf Freezer White MFR # 2932077023
25. #COVERPLATE, PLASTIC MFR # 2932853027
26. #SCREW USE 3858037025 MFR # 2801059011 Superseded: see description
27. #SCREW MFR # 7241333405
28. #SCREW MFR # 7241327407
29. #APPLIANCE COMPONENTS RV; Freezer Unit MFR # 2932074012
30. #SCREW, B8 X 13 MFR # 7297342425
31. #APPLIANCE COMPONENTS RV; Plate Mounting MFR # 2932075019
32. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
33. #DECAL MFR # 2932438001
34. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
35. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
36. #SCREW M4 X 10 S MFR # 7241289615
37. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
38. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008
39. #WASHER,STAINLESS MFR # 7341153091

Door Assembly

Components

28 items

1. #Door, Refer Black MFR # 2932985027
2. #DOOR, FREEZER BLACK USE46-0535 MFR # 2932027028
3. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S,HANDLE,BLK-1282,92, MFR # 3850227020
6. #LATCH,CONTROL RH BLACK MFR # 2932407030
7. #LATCH, CONTROL LH BLACK MFR # 2932407048
8. #Refrigerator Door Handle Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272 Model Refrigerator; Black MFR # 2801049038
9. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
10. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
11. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
12. #Trim, Deco Use 3850381165 Black MFR # 2932642248 Superseded: see description
13. #Appliance Components RV; Trim Upper W/Logo Black MFR # 2932642313
14. #Trim, Upper Freezer, Black W/Logo Use 46-8259 MFR # 2932642305 Superseded: see description
15. #Appliance Components RV; Trim, Door Freezer Black MFR # 2932642255
16. #APPLIANCE COMPONENTS RV; TRIM,DOOR FREEZER BLACK IS A USE # FOR 2932642255 MFR # 3850381173 Superseded: see description
17. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
18. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
19. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
20. #SHELF,DOOR MFR # 2932577022
21. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
22. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
23. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
24. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
25. #BRACKET MFR # 2932634013
26. #RIVET MFR # 2932679018
27. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
28. #APPLIANCE COMPONENTS RV; Gasket Kit Door Ndr1492 MFR # 3108708474

Icemaker Exploded Assembly

Components

16 items

1. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
2. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
3. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
4. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
5. #EJECTOR MFR # 3108703434
6. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
7. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
8. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
14. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
15. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
16. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445
