Dometic NDR1492 New Dimensions Product # 921148022 Blk Frame Parts Diagram · Cabinet Rear View

Refrigerator · 8 assemblies · 9 diagram sheets · 152 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1492 New Dimensions Product # 921148022 Blk Frame RV refrigerator: 8 assemblies (Cabinet Rear View, Door Assembly, Rear View, Front View, Replacement Refrigerator and more) and 152 manufacturer part numbers. 33 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

19 items

1. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
2. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
3. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
4. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
10. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
11. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
13. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
14. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749076
15. #S,PROTECTION PLATE,REAR MFR # 2932155019
16. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
17. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description
18. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
19. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869

Door Assembly

Components

20 items

1. #APPLIANCE COMPONENTS RV; Door Stainless Steel MFR # 3850412010
2. #DOOR, FREEZER STNLS/BLK FRAME USE 49-8988 MFR # 3850406012 Superseded: see description
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Handle Door Black MFR # 3850383013
5. #APPLIANCE COMPONENTS RV; Knob Control Black MFR # 3850384011
6. #Refrigerator Door Handle Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272 Model Refrigerator; Black MFR # 2801049038
7. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
8. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
9. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
10. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
11. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
12. #SHELF,DOOR MFR # 2932577022
13. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
14. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
15. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
16. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
17. #BRACKET MFR # 2932634013
18. #RIVET MFR # 2932679018
19. #APPLIANCE COMPONENTS RV; Gasket Kit Door Ndr1492 MFR # 3108708474
20. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004

Rear View

Components

18 items

1. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM7732/ NDR1272/ NDR1282 Refrigerators MFR # 3108706080
2. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
3. #NUT, WATER VALVE MFR # 3108706288
4. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
5. #APPLIANCE COMPONENTS RV; Diagram Wiring MFR # 2931988006
6. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
7. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
8. #TERMINAL, 4-WAY MFR # 2931963018
9. #CORD, SET STRAIGHT MFR # 2002699080
10. #WARNING LABEL MFR # 2931975003
11. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
12. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
13. #Ice Maker Water Solenoid Valve; For Use With Dometic Refrigerator Model RM3662 Royale MFR # 3107803003 Superseded: see description
14. #HARNESS, WIRE 73" RM7732 MFR # 3105585008
15. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
16. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
17. #RING, HOG MFR # 3107614012
18. #Refrigerator Water Inlet Valve; Replacement For Dometic NDR1292/ RM4801/ NDR1402 Refrigerators; Single Port; With Bracket/ Nut/ Ferrule MFR # 3108706122

Front View

Components

10 items

1. #SHELF,ICEMAKER MFR # 3108706577
2. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
3. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
4. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
5. #APPLIANCE COMPONENTS RV; Screw #8 X 1/2" L Bracke MFR # 3108071006
6. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
7. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
9. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
10. #DECORATION DOOR MFR # 3108706684

Replacement Refrigerator

Components

10 items

1. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
2. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
3. #REFER, 12 CU FT USE 72-4886; 2-WAY MFR # 1210LR Superseded: see description
4. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
5. #50A PORTABLE GENERATOR PARALLEL KIT MFR # 1210
6. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
7. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
8. #Refrigerator; Ultra Line; Three Compartment 4 Door Side-By-Side Refrigerator With Two Freezer; Flush Mount; 12 Cubic Foot; 32-11/16 Inch Width x 24 Inch Depth x 63-1/4 Inch Height; 1.9 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With 2 Fans/ Shelving/ Door Bins; Without Door Panels MFR # 1210N
9. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
10. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF

Cabinet Exterior

Components

34 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #Refrigerator Door Hinge; Replacement For Dometic NDR1292/ NDA1402/ NDR1292/ NDR1492/ NEA1402 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand; Black MFR # 3850398011
3. #HINGE,UPPER RH BLACK MFR # 3850398029
4. #SCREW MFR # 7252335406
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #WASHER,STAINLESS MFR # 7341153091
7. #Refrigerator Control Board Kit; Replacement For RV Refrigerator; Black MFR # 3850408018
8. #FRONT,BLACK MFR # 3850404017
9. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
10. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model NDR4292; Black MFR # 3850405014 Superseded: see description
11. #S,HINGE,LWR,L,BLK MFR # 3850397013
12. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
13. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
14. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
15. #S,COVER,NEA1402 MFR # 2931715011
16. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
17. #FRONT,LOWER BLACK MFR # 2932664101
18. #PLATE, FREEZER MFR # 2932078021
19. #APPLIANCE COMPONENTS RV; Shelf Freezer White MFR # 2932077023
20. #COVERPLATE, PLASTIC MFR # 2932853027
21. #SCREW,MRX 5X12 MFR # 3858024015
22. #SCREW MFR # 7241327407
23. #APPLIANCE COMPONENTS RV; Freezer Unit MFR # 2932074012
24. #SCREW MFR # 7297342409
25. #SCREW USE 3858037025 MFR # 2801059011 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Plate Mounting MFR # 2932075019
27. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
28. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018
29. #DECAL MFR # 3850411004
30. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
31. #SCREW M4 X 10 S MFR # 7241289615
32. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
34. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014

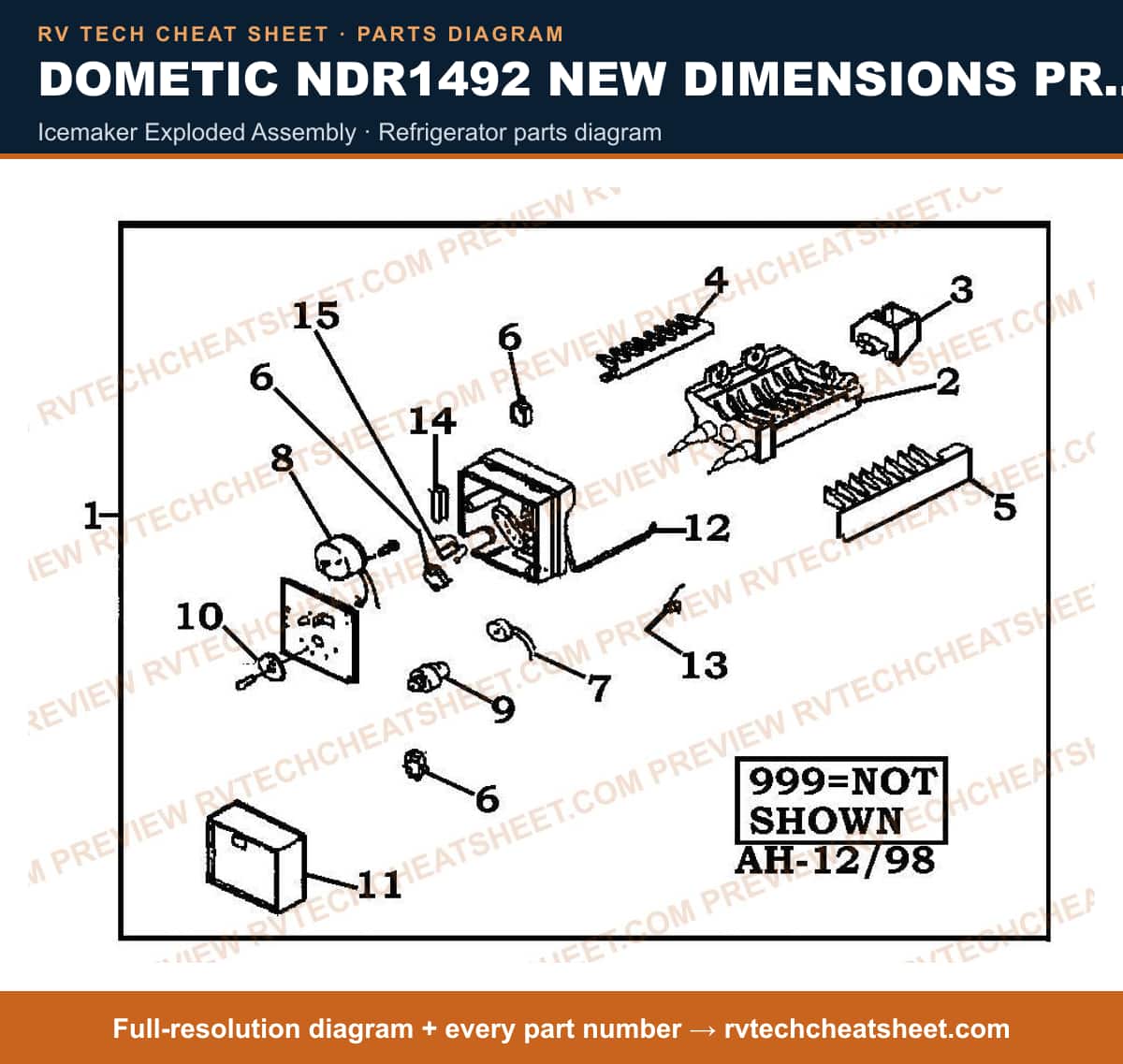

Icemaker Exploded Assembly

Components

16 items

1. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
2. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
3. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
4. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
5. #EJECTOR MFR # 3108703434
6. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
7. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
8. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
14. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
15. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
16. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445

Cabinet Interior

Components

30 items

1. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
2. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
3. #COOLING FLANGE, LEFT MFR # 2932761030
4. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
6. #SHELF, D210 MFR # 2933061018
7. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
8. #COVER, CRISPER 9 1/2" X 12" MFR # 2002727077
9. #APPLIANCE COMPONENTS RV; Lid Crisper Rm660-760 MFR # 2002727028
10. #Refrigerator Crisper Bin; Replacement For Dometic NDR1292/ NDR1492 Series Refrigerators MFR # 2002726145
11. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
12. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
13. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
14. #TRAY, DRIP MFR # 2932972017
15. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
16. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
17. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
20. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
21. #BULB 2/PK MFR # 2007290006
22. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
23. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
24. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
25. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #Refrigerator Shelf; Replacement For Dometic NDR1292/ NDE1292/ NDR1492 Series Refrigerators; Wire MFR # 2007337195
28. #SCREW,MRX 5X12 MFR # 3858024015
29. #SHELF, PLASTIC MFR # 2932391028
30. #SHELF,FREEZER MFR # 2932079011
