Dometic NDR1492 New Dimensions Product # 921148023 Black Parts Diagram · Cabinet Exterior

Refrigerator · 6 assemblies · 6 diagram sheets · 154 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NDR1492 New Dimensions Product # 921148023 Black RV refrigerator: 6 assemblies (Cabinet Exterior, Cabinet Interior, Burner & Control, Replacement Refrigerator, Cabinet Rear View and more) and 154 manufacturer part numbers. 32 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

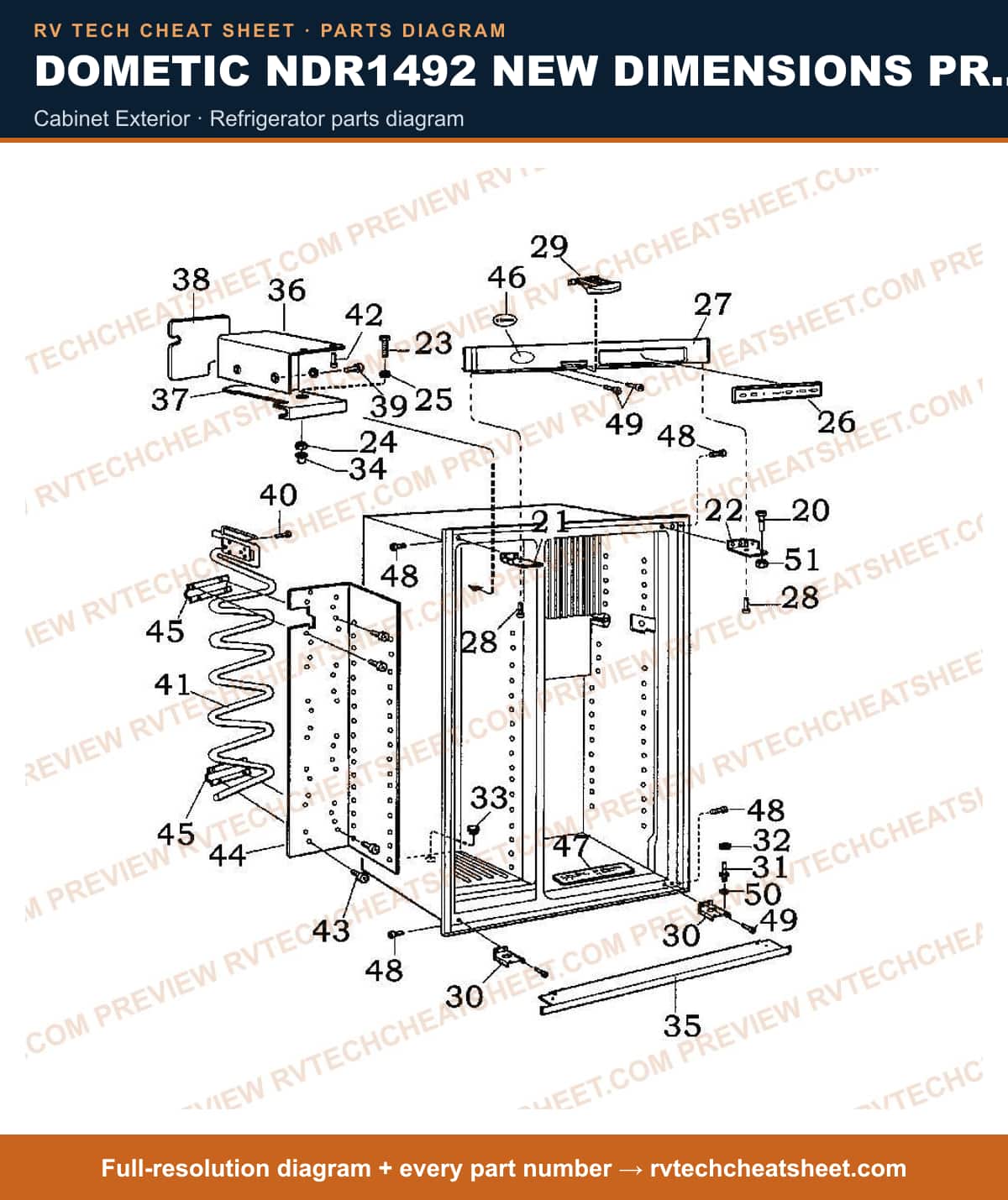

Cabinet Exterior

Components

34 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #Refrigerator Door Hinge; Replacement For Dometic NDR1292/ NDA1402/ NDR1292/ NDR1492/ NEA1402 Model Refrigerators; Fits Upper Cabinet Side; Upper Left Hand; Black MFR # 3850398011
3. #HINGE,UPPER RH BLACK MFR # 3850398029
4. #SCREW MFR # 7252335406
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #WASHER,STAINLESS MFR # 7341153091
7. #Refrigerator Control Board Kit; Replacement For RV Refrigerator; Black MFR # 3850408018
8. #FRONT,BLACK MFR # 3850404025
9. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
10. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model NDR4292; Black MFR # 3850405014 Superseded: see description
11. #S,HINGE,LWR,L,BLK MFR # 3850397013
12. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
13. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
14. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
15. #S,COVER,NEA1402 MFR # 2931715011
16. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
17. #FRONT,LOWER BLACK MFR # 2932664101
18. #PLATE, FREEZER MFR # 2932078021
19. #APPLIANCE COMPONENTS RV; Shelf Freezer White MFR # 2932077023
20. #COVERPLATE, PLASTIC MFR # 2932853027
21. #SCREW,MRX 5X12 MFR # 3858024015
22. #SCREW MFR # 7241327407
23. #APPLIANCE COMPONENTS RV; Freezer Unit MFR # 2932074012
24. #SCREW MFR # 7297342409
25. #SCREW USE 3858037025 MFR # 2801059011 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Plate Mounting MFR # 2932075019
27. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
28. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018
29. #DECAL MFR # 3850411004
30. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
31. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
32. #SCREW M4 X 10 S MFR # 7241289615
33. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
34. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

Cabinet Interior

Components

30 items

1. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933062016
2. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
3. #COOLING FLANGE, LEFT MFR # 2932761030
4. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDR1492 Refrigerators; Clear; Plastic MFR # 2931117143
5. #Refrigerator Shelf; Replacement For Dometic NDM1062/ NDR1062/ NDR1492 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2933061026
6. #SHELF, D210 MFR # 2933061018
7. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Model Refrigerator; Fresh Food Compartment; Wire MFR # 2933061034
8. #COVER, CRISPER 9 1/2" X 12" MFR # 2002727077
9. #Refrigerator Crisper Bin; Replacement For Dometic NDR1292/ NDR1492 Series Refrigerators MFR # 2002726145
10. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
11. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
12. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
14. #TRAY, DRIP MFR # 2932972017
15. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
16. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
17. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
18. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
20. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
21. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
22. #BULB 2/PK MFR # 2007290006
23. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
24. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
25. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #Refrigerator Shelf; Replacement For Dometic NDR1292/ NDE1292/ NDR1492 Series Refrigerators; Wire MFR # 2007337195
28. #SCREW,MRX 5X12 MFR # 3858024015
29. #SHELF, PLASTIC MFR # 2932391028
30. #SHELF,FREEZER MFR # 2932079011

Burner & Control

Components

44 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
5. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
6. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
7. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
8. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
11. #PLATE,MOUNTING MFR # 2932032010
12. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
13. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
14. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
15. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
16. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
17. #S,COVER,LESS DECALS MFR # 2931858019
18. #LEAD,PC BOARD MFR # 2931862029
19. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
20. #HARNESS, GAS SOLENOID MFR # 2954437048
21. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
22. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
23. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
24. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
25. #SCREW M4 X 10 S MFR # 7241289615
26. #SUPPORT PLATE MFR # 2932043017
27. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
28. #ELEMENT,HEATING USE 173758038 210W 120V (2 REQ) MFR # 173769019 Superseded: see description
29. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
30. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
31. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
32. #3858022019 MFR # 3858022019
33. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
34. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
35. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
36. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
37. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
38. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
39. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
40. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
41. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
42. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
43. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
44. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110

Replacement Refrigerator

Components

10 items

1. #50A PORTABLE GENERATOR PARALLEL KIT MFR # 1210
2. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
3. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
4. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
5. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
6. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF
7. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
8. #Refrigerator; Ultra Line; Three Compartment 4 Door Side-By-Side Refrigerator With Two Freezer; Flush Mount; 12 Cubic Foot; 32-11/16 Inch Width x 24 Inch Depth x 63-1/4 Inch Height; 1.9 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LED Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With 2 Fans/ Shelving/ Door Bins; Without Door Panels MFR # 1210N
9. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
10. #REFER, 12 CU FT USE 72-4886; 2-WAY MFR # 1210LR Superseded: see description

Cabinet Rear View

Components

19 items

1. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
2. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
3. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
4. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
10. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
11. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
13. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
14. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749076
15. #S,PROTECTION PLATE,REAR MFR # 2932155019
16. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
17. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
18. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
19. #HOSE,WATER USE 3108705637 SELL BY THE FOOT MFR # 3108705306 Superseded: see description

Door Assembly

Components

20 items

1. #DOOR, REFRIGERATOR BLACK MFR # 3850412028
2. #APPLIANCE COMPONENTS RV; Door Freezer Stainless Bl MFR # 3850406020
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Handle Door Black MFR # 3850383013
5. #APPLIANCE COMPONENTS RV; Knob Control Black MFR # 3850384011
6. #Refrigerator Door Handle Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272 Model Refrigerator; Black MFR # 2801049038
7. #Refrigerator Door Bin; Replacement For Dometic NDR1062/ NDR1282 Refrigerators MFR # 2932576040
8. #SHELF,DOOR USE 2932575018 MFR # 2932575042 Superseded: see description
9. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
10. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
11. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
12. #SHELF,DOOR MFR # 2932577022
13. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
14. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
15. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
16. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
17. #BRACKET MFR # 2932634013
18. #RIVET MFR # 2932679018
19. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
20. #APPLIANCE COMPONENTS RV; Gasket Kit Door Ndr1492 MFR # 3108708474
