Dometic NEA1402 Product # 921148259 Parts Diagram · Cabinet Freezer Components

Refrigerator · 8 assemblies · 8 diagram sheets · 179 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NEA1402 Product # 921148259 RV refrigerator: 8 assemblies (Cabinet Freezer Components, Cabinet Rear View, Cabinet Exterior, Icemaker Parts, Replacement Refrigerator and more) and 179 manufacturer part numbers. 26 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Freezer Components

Components

38 items

1. #SCREW M6S A2-80 5X25 MFR # 3858041027
2. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
3. #WASHER,STAINLESS MFR # 3858010121
4. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3850674015
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402/ NDA1402ID Model Refrigerator MFR # 3850675012
6. #ELEMENT USE 3851411011 OR 49-8513 MFR # 3850676010 Superseded: see description
7. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models NDA1402/ NDA1402ID/ NEA1402 MFR # 3851411011 Superseded: see description
8. #FLANGE,COOLING FREEZER MFR # 3850629019
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
10. #APPLIANCE COMPONENTS RV; Fan Svc Kit MFR # 3850486030
11. #FAN,FREEZER USE 3850486030 FOR SERIAL # BEFORE 7020000 MFR # 3850486022 Superseded: see description
12. #165521030 MFR # 165521030
13. #BOTTOM,TERMINAL BOX MFR # 3850677018
14. #COVER,TERMINAL BOX MFR # 3850678016
15. #CHANNEL,SUCTION MFR # 3850648019
16. #BRACKET,MOTOR MFR # 3850649017
17. #AIR DISTRIBUTOR MFR # 3850650015
18. #COVER,W/DRIP PAN MFR # 3850651013
19. #INSULATION MFR # 3850652011
20. #STRIP,SUPPORT MFR # 3850656012
21. #HOSE,DRAINAGE MFR # 3850658018
22. #Refrigerator Door; Replacement For Dometic Refrigerator Door Liner MFR # 3850659016
23. #STRIP,SEALING COOLING FLANGE MFR # 3850660014
24. #PIN,LOCKING MFR # 3850661012
25. #BRACKET,THERMISTER MFR # 3850679014
26. #SCREW EML 5 X 12 STAINLESS MFR # 3858040037
27. #SCREW RXS B8X19 MFR # 3858002268
28. #SCREW MRX M4X40 STAINLESS MFR # 3858004165
29. #NUT,LOCK M4 STAINLESS MFR # 3858028032
30. #SCREW,MRTX M4X10 STAINLESS MFR # 3858004173
31. #SUPPORT MFR # 3850657010
32. #SCREW RXS B6 X 9.5 MFR # 3858002235
33. #INSULATION MFR # 3850896014
34. #SHELF,ICEMAKER MFR # 3850666011
35. #PLATE MFR # 3850667019
36. #STRIP,SEALING (BEFORE S/N 70700002) MFR # 3850734017
37. #COVER,OUTER INSTALLATION MFR # 3850668017
38. #PLATE,INSULATING MFR # 3850669015

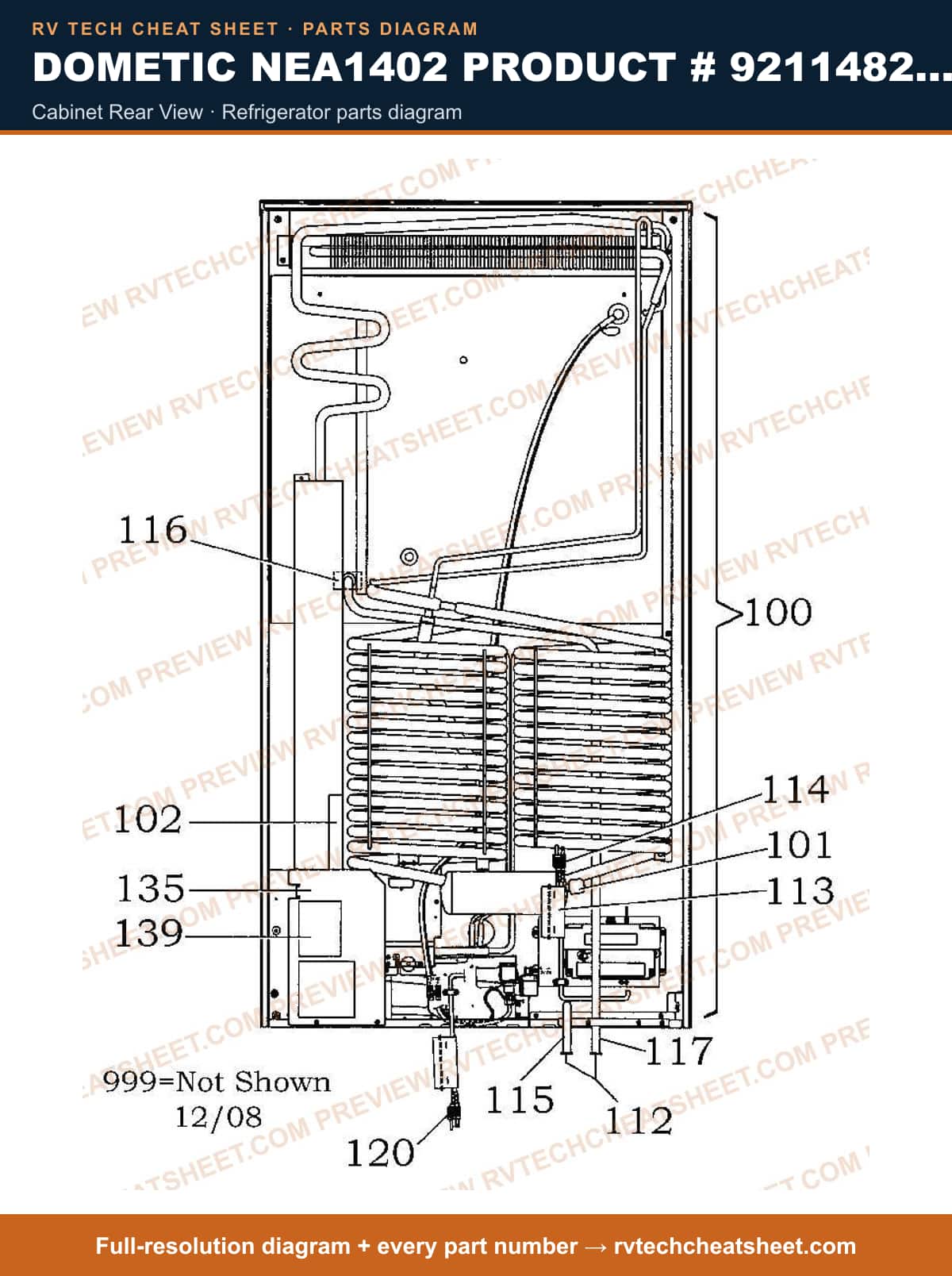

Cabinet Rear View

Components

12 items

1. #COOLING UNIT W/THERMAL FUSE MFR # 2934948106
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #COVER,HEATER MFR # 2933557023
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
6. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
7. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
8. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
9. #HOSE, DRAIN MFR # 2932749100
10. #SET,CORD USE 2002699110 MFR # 2002699177 Superseded: see description
11. #S,PROTECTION PLATE,REAR MFR # 2932155019
12. #LABEL MFR # 3850627005

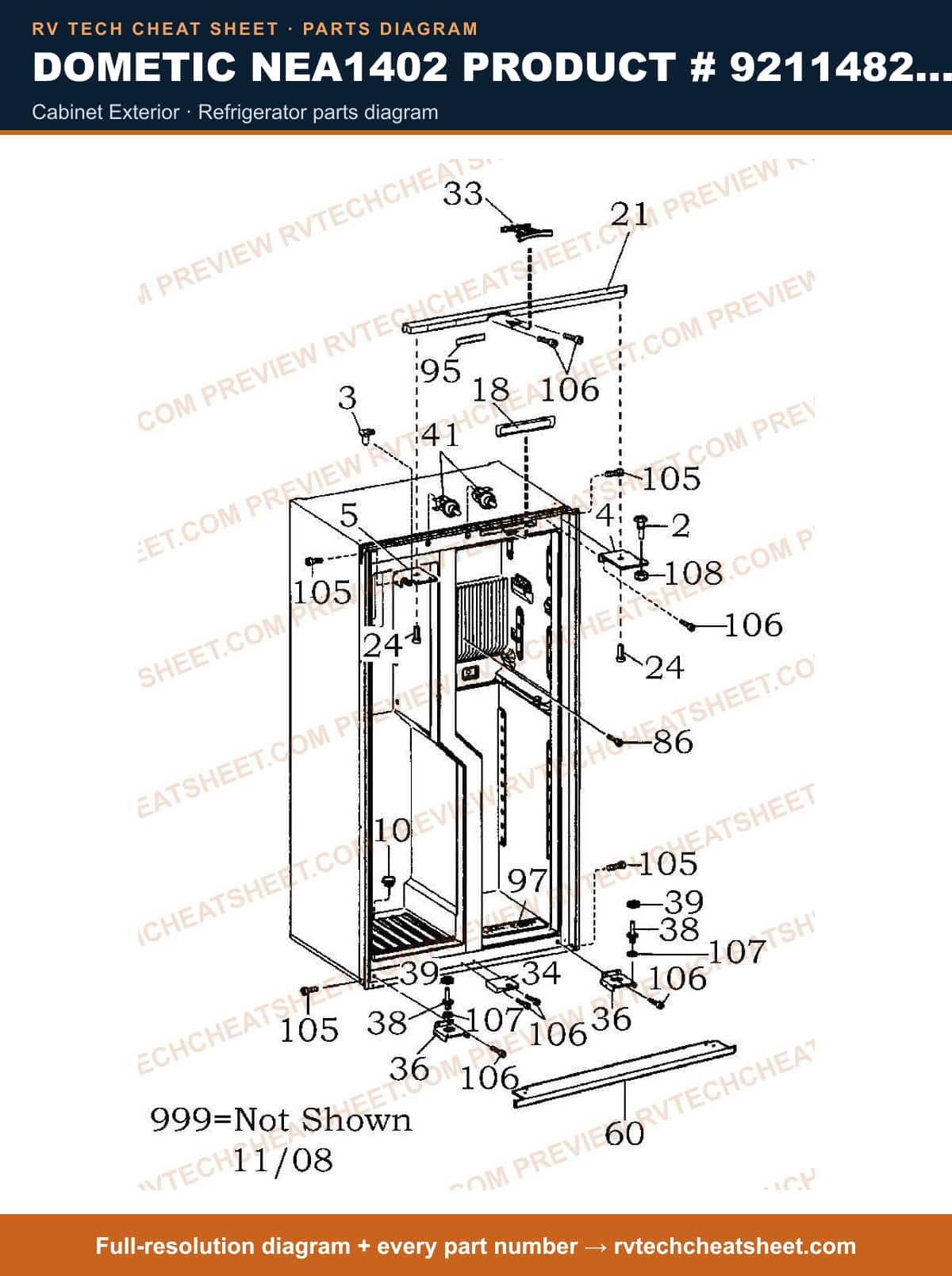

Cabinet Exterior

Components

22 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #PIN,HINGE MFR # 3850801014
3. #HINGE, UPPER BLACK MFR # 3850889019
4. #HINGE, UPPER BLACK MFR # 3850890017
5. #S,COVER,NEA1402 MFR # 2931715011
6. #PANEL, DISPLAY BOARD AC, BLACK MFR # 3850682026
7. #FRONT, BLACK MFR # 3850823018
8. #SCREW,PT PH 4 X 10 MFR # 3858006012
9. #HOLDER LOCK, UPPER MFR # 3850824016
10. #Refrigerator Door Panel Holder; Use With Dometic Refrigerator Model NDA1402/ NEA1402; For Lower Door MFR # 3850825013 Superseded: see description
11. #HINGE, LOWER BLACK MFR # 3850888011
12. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
13. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
14. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
15. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
16. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
17. #SIGN PLATE MFR # 3850932025
18. #PLATE, INSTRUCTION MFR # 3850694005
19. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
20. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
21. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
22. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

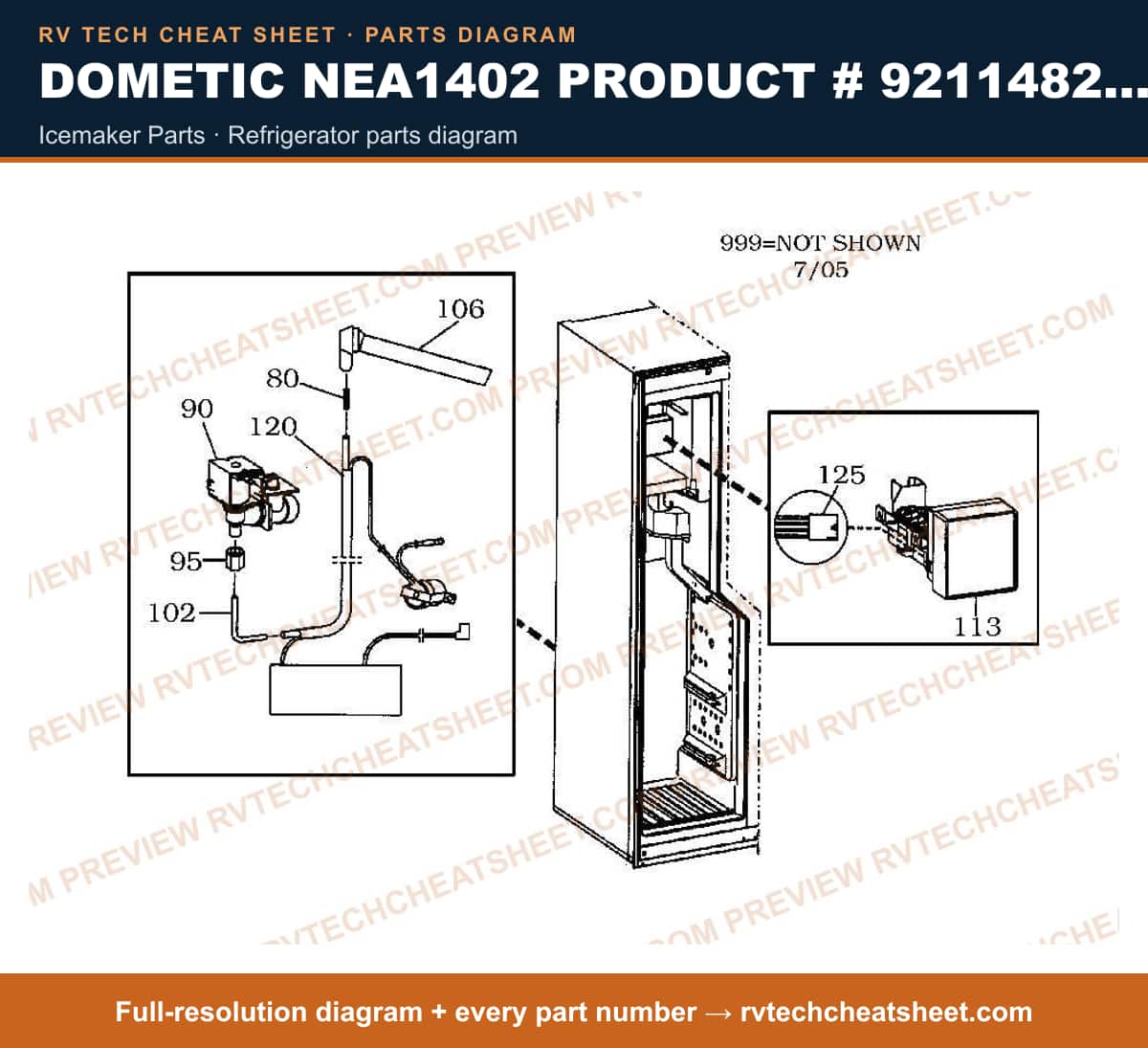

Icemaker Parts

Components

13 items

1. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
3. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
4. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
5. #APPLIANCE COMPONENTS RV; Insert Water Inlet Valve MFR # 3850220017
6. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
7. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
8. #ICEMAKER ASM USE 3108703517 MFR # 2932147016 Superseded: see description
9. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
10. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
11. #Ice Maker Heater; For Dometic Refrigerators MFR # 3850688015
12. #HARNESS,BEFORE SN 509XXXX MFR # 2954559015
13. #HARNESS,AFTER SN 509XXXX MFR # 2954559023

Replacement Refrigerator

Components

2 items

1. #NEA1402BSIM MFR # REFER, SIDEWISE W/IM BLACK
2. #NEA1402WIDF MFR # REFER, SIDEWISE WTR/ICE/FAN

Controls

Components

21 items

1. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
2. #SCREW,RXS B6X13 ZINC MFR # 3858002151
3. #HOLDER MFR # 2932031020
4. #PLATE,MOUNTING MFR # 2932032010
5. #BRACKET MFR # 3850710017
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board; 120 Volts AC/ 12 Volt DC; 8 Amps MFR # 3850681010
7. #S,HEATER,(2X) 60V,210W,RM1350 MFR # 3850644620
8. #ELEMENT USE 3850644539 110V 210 WATT MFR # 173772021 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Element 120V 210 Watt MFR # 3850644539
10. #3858022019 MFR # 3858022019
11. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
12. #BRACKET,WATER VALVE MFR # 3850777016
13. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
14. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
15. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 99 Inch Length MFR # 3850680012
16. #APPLIANCE COMPONENTS RV; Conductor Thermistor Free MFR # 3850680020
17. #HARNESS (BEFORE S/N 7020000) MFR # 2954555013
18. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
19. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
20. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
21. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Cabinet Interior

Components

45 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #FINS,COOLING LH MFR # 3850473038
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #Refrigerator Shelf; For Use With Dometic NEA1402/ NDA1402ID Model Refrigerators; Wire MFR # 3850437017 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
10. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
11. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
12. #S,SHELF,WIRE FF,1402 MFR # 3850441019
13. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
18. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
19. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
20. #Refrigerator Flame Indicator; Housing Lamp MFR # 3850451018
21. #REFLECTOR,LAMP 5 WATT MFR # 3850453022
22. #Refrigerator Flame Indicator; Lamp Reflector; 10 Watts MFR # 3850453014
23. #APPLIANCE COMPONENTS RV; Cover Lamp MFR # 3850452016
24. #APPLIANCE COMPONENTS RV; BULB, HALOGEN FREEZER G4 MFR # 3850455027
25. #BULB,HALOGEN 12V 10W MFR # 3850455019
26. #Multi Purpose Light Bulb; Halogen Bulb; 10 Watts; Box Of 10 MFR # JC10W
27. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
28. #RACK MFR # 2007337237
29. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
30. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
31. #RACK MFR # 2007337245
32. #BASKET,WIRE MFR # 3850430012
33. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
34. #HOLDER,OUTER MFR # 3850484019
35. #HOLDER,INNER MFR # 3850485016
36. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
37. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
38. #COVER,FAN MFR # 3850448014
39. #SHELF MFR # 3850433016
40. #S,SHELF,WIRE,NOTCHED,NEA1402 MFR # 3850726013
41. #BIN, ICE MFR # 3850752019
42. #SHELF MFR # 3850655014
43. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
44. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
45. #SCREW MFR # 3858039013

Door Assembly

Components

27 items

1. #DOOR, REFRIGERATOR BLACK MFR # 3850881024
2. #DOOR, FREEZER MFR # 3850882022
3. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
4. #HINGE,BUSHING BLACK MFR # 3850800016
5. #S,HANDLE,BLK,NDR1402 MFR # 3850492012
6. #KNOB, CONTROL BLACK MFR # 3850822010
7. #Refrigerator Door Handle Screw; Replacement For Dometic NDA1402/ NDE1292/ NDE1402/ NDR1062/ NDR1292/ NDR1402/ NEA1402/ RM1350/ RM3762/ RM3862/ RM3962 Model Refrigerator MFR # 3858040029
8. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
9. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
10. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
11. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
12. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
13. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
14. #Refrigerator Shelf; Replacement For Dometic NDA1402/ NDE1402/ NDR1402/ NEA1402 Model Refrigerator; Freezer Compartment; Door Shelf MFR # 3850446018
15. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
16. #SHELF,DOOR WIRE MFR # 3850431010
17. #APPLIANCE COMPONENTS RV; S,HOLDER,DR ASM,L,NDA/NEA1402 MFR # 3850447016
18. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
19. #BAR,LOCK MFR # 3850495015
20. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
21. #SPRING MFR # 3850497011
22. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
23. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
24. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048
25. #TRIM, DOOR FREEZER UPPER MFR # 3850827019
26. #TRIM, REFRIGERATOR DOOR MFR # 3850828017
27. #SCREW, ETP MFR # 3858071016
