Dometic NEA1402 Product # 921148410 Parts Diagram · Cabinet Icemaker Parts

Refrigerator · 10 assemblies · 10 diagram sheets · 202 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic NEA1402 Product # 921148410 RV refrigerator: 10 assemblies (Cabinet Icemaker Parts, Cabinet Interior, Control, Cabinet Rear View, Cabinet Exterior and more) and 202 manufacturer part numbers. 24 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Icemaker Parts

Components

17 items

1. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
2. #S,HOSE,CLR-TO WATER VALVE MFR # 3851127013
3. #SLEEVE, PROTECTION MFR # 3851186019
4. #NUT, 1/2" MFR # 3851117014
5. #APPLIANCE COMPONENTS RV; Ferrule Water Valve MFR # 3108706296
6. #NUT, WATER VALVE MFR # 3108706288
7. #CONNECTION 90 DEGREE MFR # 3851081020
8. #CLIPS MFR # 3858080017
9. #Refrigerator Water Dispenser Valve; Replacement For Dometic Refrigerator Water Dispenser Valve MFR # 3851116016
10. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
11. #APPLIANCE COMPONENTS RV; Insert Water Inlet Valve MFR # 3850220017
12. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
13. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Icemaker Complete MFR # 3108705553
15. #APPLIANCE COMPONENTS RV; ICEMAKER REPL SERVICE KIT MFR # 3313470085
16. #APPLIANCE COMPONENTS RV; Heater Kit Water Valve MFR # 3850688023
17. #HARNESS, WIRE MFR # 2954549032

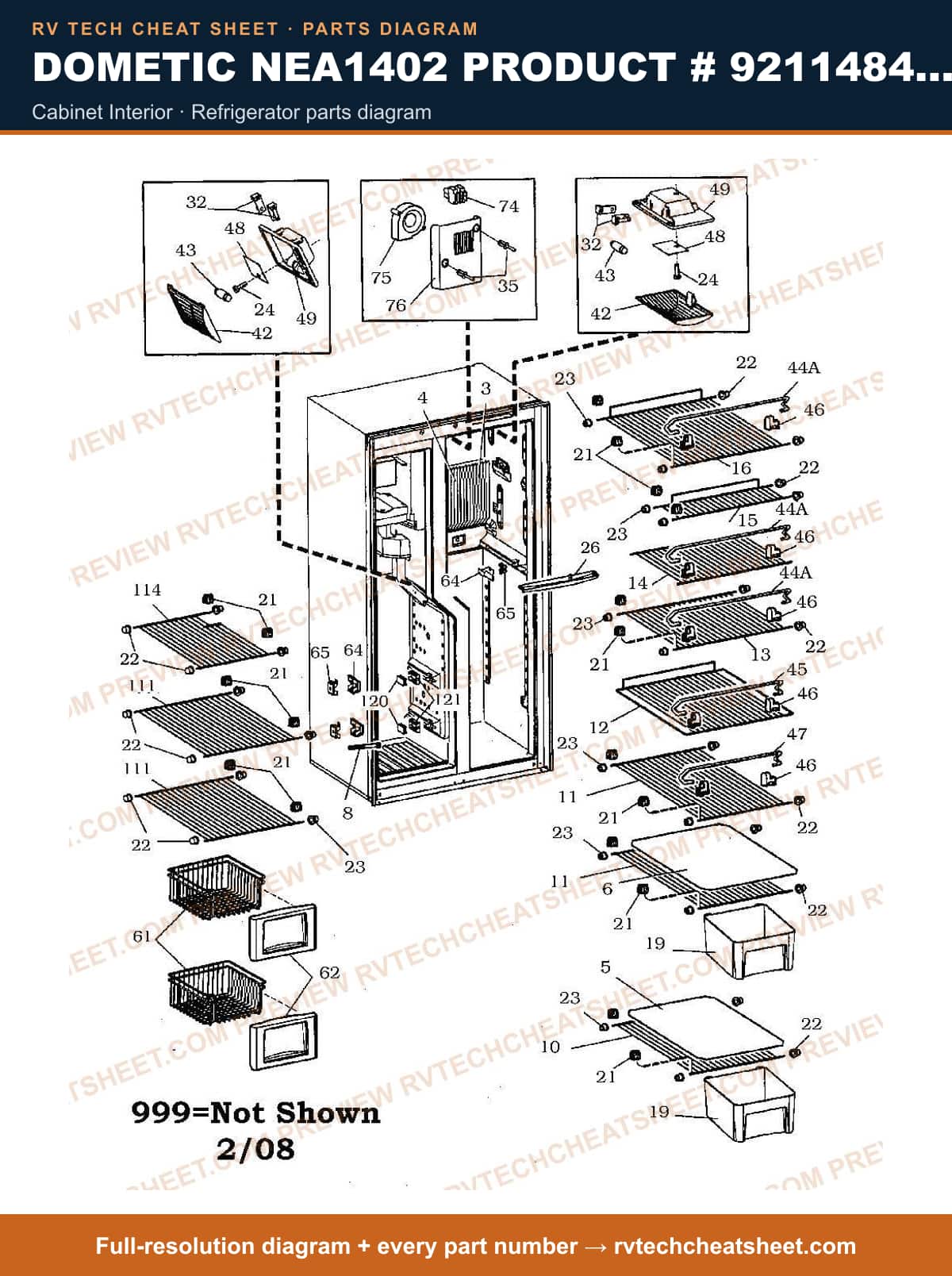

Cabinet Interior

Components

41 items

1. #FLANGE,COOLING RH MFR # 3850473020
2. #FINS,COOLING LH MFR # 3850473038
3. #SHELF,PLASTIC MFR # 2931117192
4. #SHELF,PLASTIC MFR # 2931117184
5. #OUTLET MFR # 2931714022
6. #SHELF 12 1/4" MFR # 3850435011
7. #S,SHELF,WIRE,FF,1402 MFR # 3850436019
8. #Refrigerator Shelf; For Use With Dometic NEA1402/ NDA1402ID Model Refrigerators; Wire MFR # 3850437017 Superseded: see description
9. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NEA1402 MFR # 3850438015
10. #WIRING & SERVICE ACCESSORYS RV; S,SHELF,WIRE,FF,NDA/NEA1402 MFR # 3850440011
11. #S,SHELF,WIRE,FF,1402 MFR # 3850439013
12. #S,SHELF,WIRE FF,1402 MFR # 3850441019
13. #APPLIANCE COMPONENTS RV; S,BIN,CRISPER,NDA/NEA1402 MFR # 3850442017
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #SCREW,PT PH 4 X 10 MFR # 3858006012
18. #APPLIANCE COMPONENTS RV; S,DRIP TRAY,NDA/NEA1402 MFR # 3850449012
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #165521030 MFR # 165521030
21. #Refrigerator Door Light Switch; Lamp Glass MFR # 3850962014
22. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
23. #BULB 2/PK MFR # 2007290006
24. #APPLIANCE COMPONENTS RV; RACK, WIRE SHELF MFR # 2007337153
25. #RACK MFR # 2007337237
26. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
27. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
28. #RACK MFR # 2007337245
29. #REFRIGERATORS & ICE MAKERS RV; REFRIGERATOR LIGHT REFLECTOR F/ 12' MFR # 3850963012
30. #NO GENERIC NAME; REFRIGERATOR ABS LIGHT HOUSING F/ 1 MFR # 3850961016
31. #BASKET,WIRE MFR # 3850430012
32. #APPLIANCE COMPONENTS RV; FRONT,BASKET FREEZER MFR # 3850444013
33. #HOLDER,OUTER MFR # 3850484019
34. #HOLDER,INNER MFR # 3850485016
35. #S,TERMINAL BLOCK,SW180 MFR # 3858062023
36. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model NDA1402 MFR # 3850486014 Superseded: see description
37. #COVER,FAN MFR # 3850448014
38. #SHELF MFR # 3850433016
39. #S,SHELF,WIRE,NOTCHED,NEA1402 MFR # 3850726013
40. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
41. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026

Control

Components

22 items

1. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
2. #SCREW,RXS B6X13 ZINC MFR # 3858002151
3. #HOLDER MFR # 2932031020
4. #PLATE,MOUNTING MFR # 2932032010
5. #BRACKET MFR # 3850710017
6. #Refrigerator Power Supply Circuit Board; Replacement For Dometic Refrigerator Power Supply Circuit Board; 120 Volts AC/ 12 Volt DC; 8 Amps MFR # 3850681010
7. #S,HEATER,(2X) 60V,210W,RM1350 MFR # 3850644620
8. #APPLIANCE COMPONENTS RV; Element 120V 210 Watt MFR # 3850644539
9. #3858022019 MFR # 3858022019
10. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
11. #BRACKET,WATER VALVE MFR # 3851106017
12. #S,ELEC RELIEF OUT,WHT,DMC/DMR MFR # 2932342013
13. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
14. #S,CONTROL,ICE DISPENSER MFR # 3850879010
15. #APPLIANCE COMPONENTS RV; Conductor Thermistor Free MFR # 3850680020
16. #HARNESS (AFTER S/N 7030000) MFR # 2954555021
17. #HARNESS MFR # 2954573016
18. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
19. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
20. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
21. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
22. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 99 Inch Length MFR # 3850680012

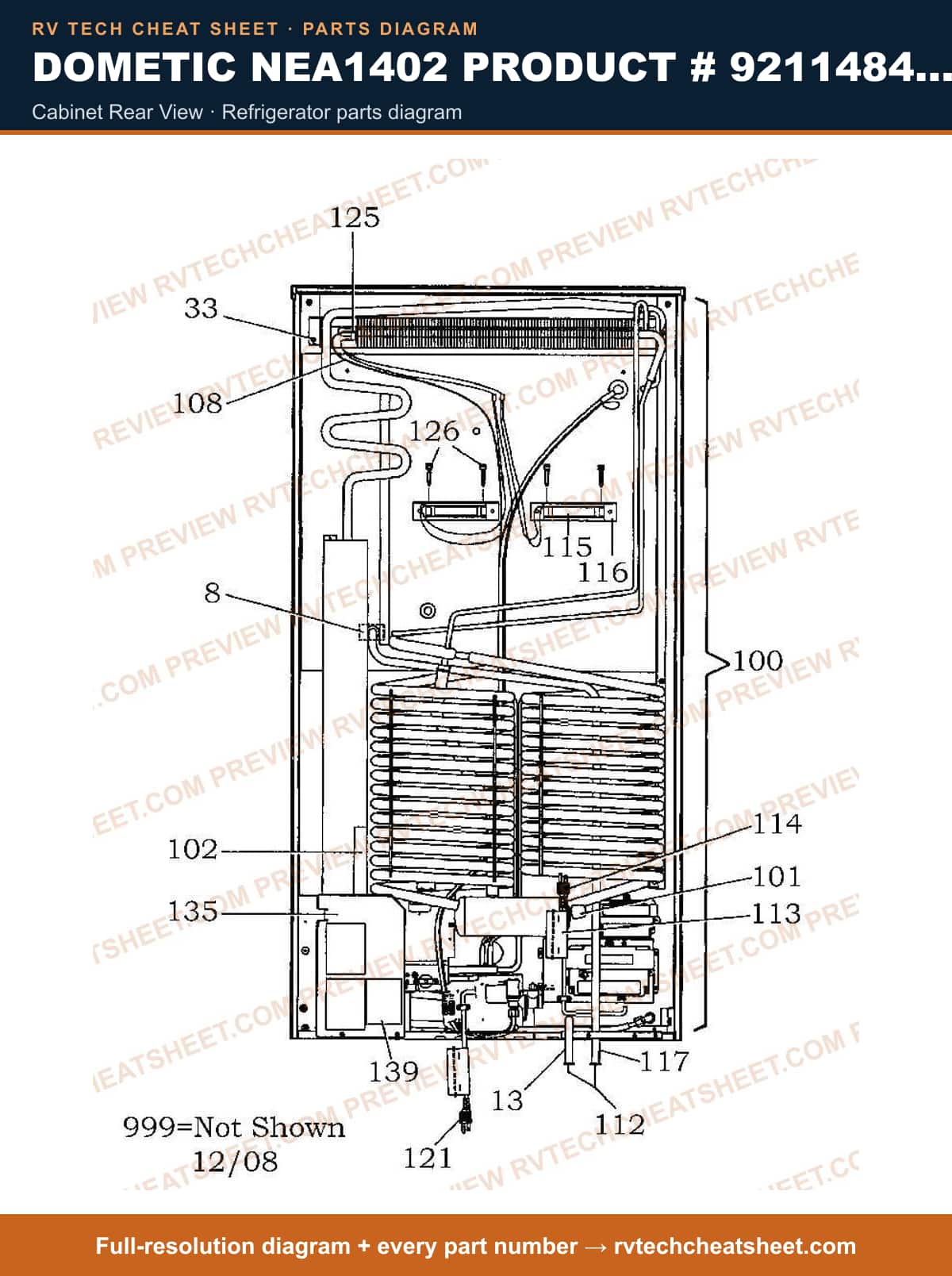

Cabinet Rear View

Components

19 items

1. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
3. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
4. #COOLING UNIT W/THERMAL FUSE TYPE 948 MFR # 2934948114
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #S,WIRE ASM,FUSED 3A,FAN MFR # 3850085022
8. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
9. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
10. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
11. #S,FAN,92MM,T=25MM MFR # 3851183016
12. #BRACKET, FAN MFR # 3851184014
13. #HOSE, DRAIN MFR # 2932749100
14. #CORD SET MFR # 2002699169
15. #THERMO FUSE USE 3850306063 MFR # 3850306055 Superseded: see description
16. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
17. #SCREW MFR # 3858002318
18. #S,PROTECTION PLATE,REAR MFR # 2932155019
19. #LABEL MFR # 3850627005

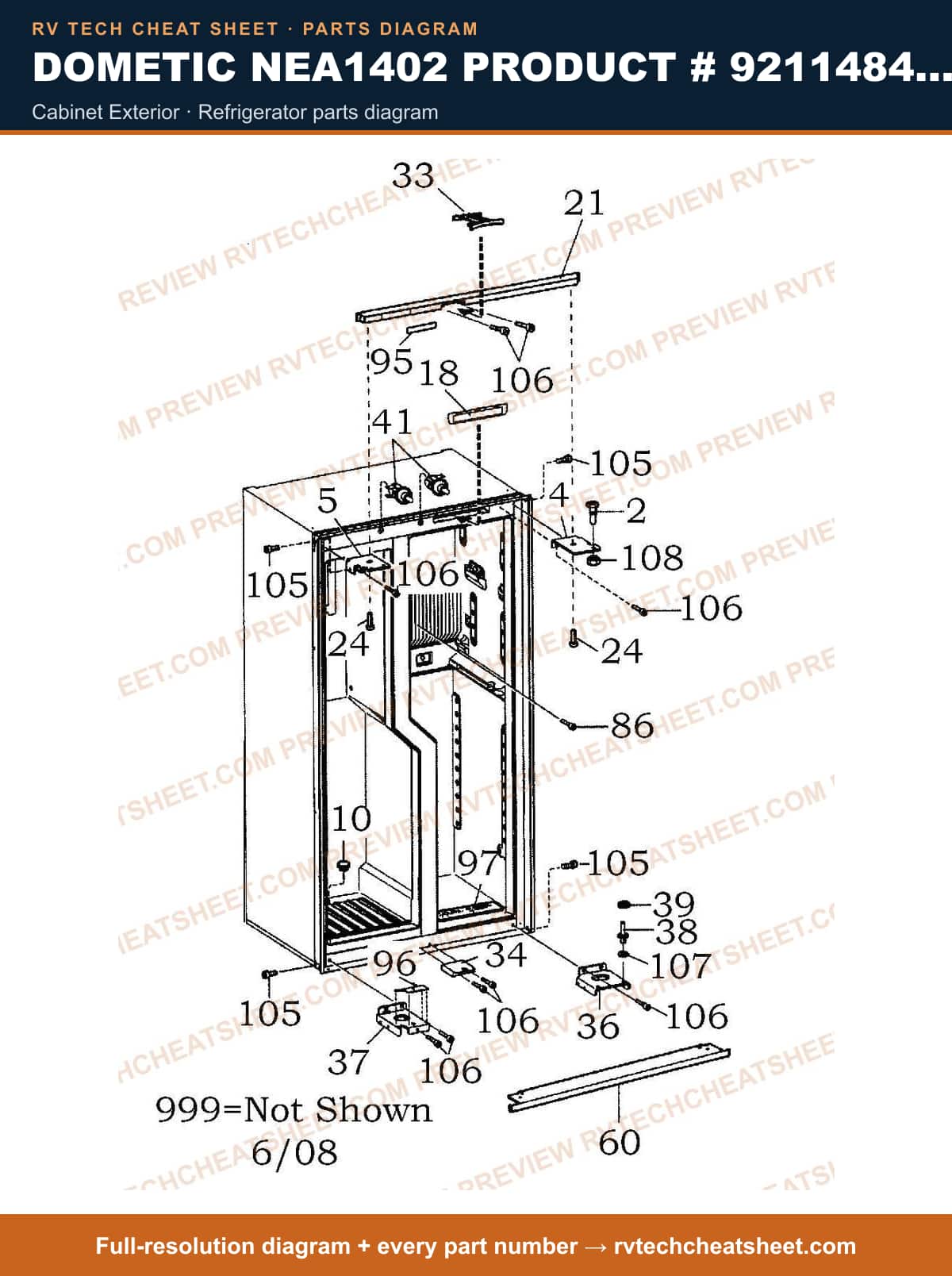

Cabinet Exterior

Components

23 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model NDR1402 Sidewise; Fits Upper Hinge MFR # 3850400015 Superseded: see description
2. #HINGE, UPPER BLACK MFR # 3850889019
3. #HINGE, UPPER BLACK MFR # 3850890017
4. #S,COVER,NEA1402 MFR # 2931715011
5. #PANEL, DISPLAY BOARD AC, BLACK MFR # 3850682026
6. #FRONT, BLACK MFR # 3850823018
7. #SCREW,PT PH 4 X 10 MFR # 3858006012
8. #HOLDER LOCK, UPPER MFR # 3850824016
9. #Refrigerator Door Panel Holder; Use With Dometic Refrigerator Model NDA1402/ NEA1402; For Lower Door MFR # 3850825013 Superseded: see description
10. #HINGE, LOWER BLACK MFR # 3850888011
11. #HINGE, LOWER BLACK MFR # 3851079016
12. #Refrigerator Door Hinge Pin; Replacement For Dometic NDA1402/ NDA1402ID Model Refrigerators; Fits Bottom Hinge; Black MFR # 3850399019
13. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
14. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
15. #Refrigerator Door Frame; Replacement For Dometic NDR1292/ NDA1402/ RM1350 Refrigerators; Front; Black MFR # 2932664093
16. #SCREW,STAINLESS MRX 5 X 25 MFR # 3858004108
17. #SIGN PLATE MFR # 3850932025
18. #SPACER, PLASTIC BLACK MFR # 3851130017
19. #PLATE, INSTRUCTION MFR # 3850694005
20. #SCREW,LATCH MRX M4X6 FZ MFR # 3858004041
21. #SCREW,BLACK MRX-TT M4X 10 MFR # 3858039104
22. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
23. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

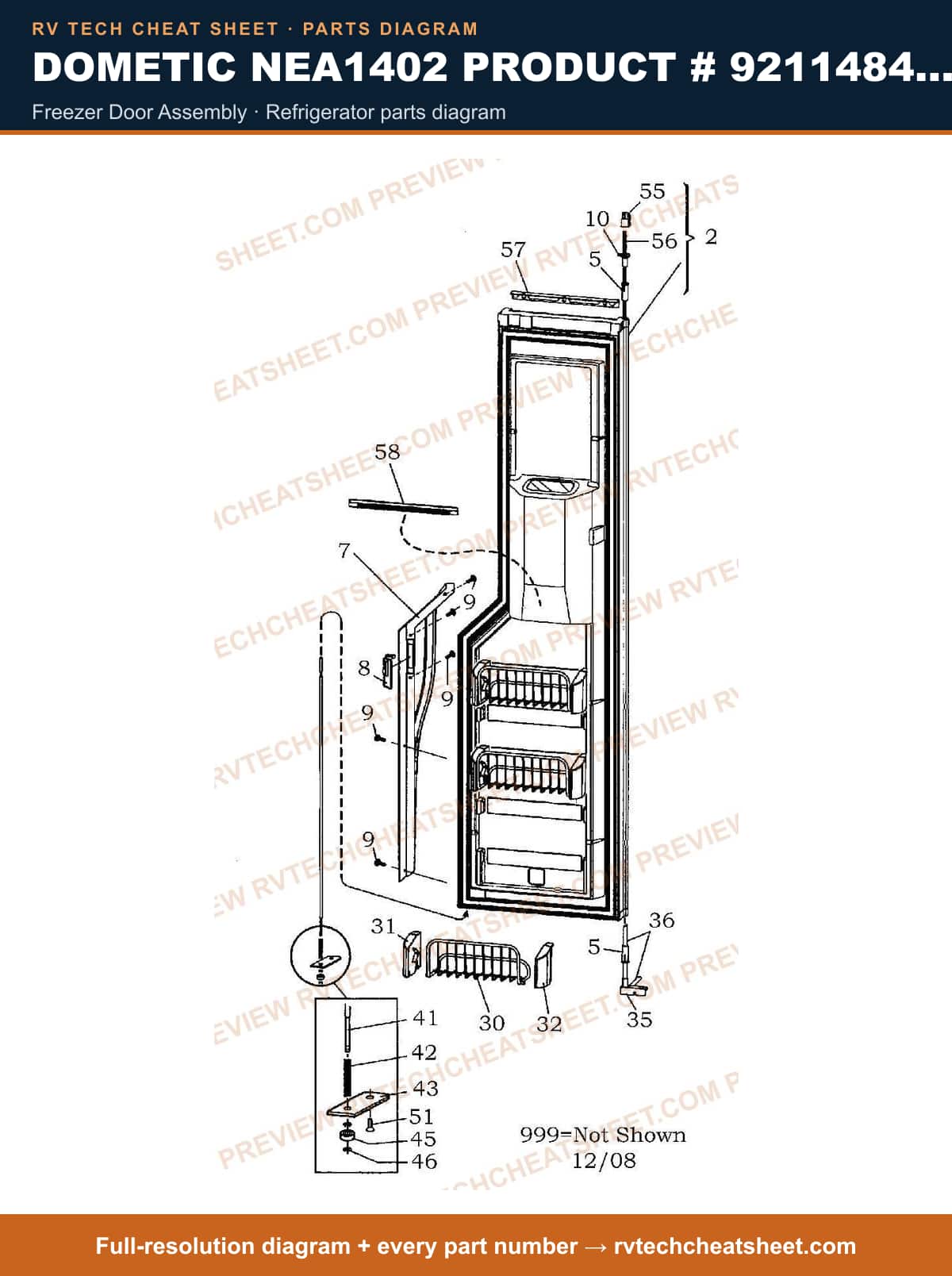

Freezer Door Assembly

Components

21 items

1. #DOOR,FREEZER MFR # 3851125025
2. #HINGE,BUSHING BLACK MFR # 3850800016
3. #HANDLE,DOOR BLACK (AFTER S/N 70700003) MFR # 3850821020
4. #KNOB, CONTROL BLACK MFR # 3850822010
5. #S,SCREW,EML,5*10,ZP,BLK-6-10/ MFR # 3858089018
6. #PIN,HINGE MFR # 3850801014
7. #SHELF,DOOR WIRE MFR # 3850431010
8. #APPLIANCE COMPONENTS RV; S,HOLDER,DR ASM,L,NDA/NEA1402 MFR # 3850447016
9. #HOLDER,DOOR SHELF RIGHT MFR # 3850447024
10. #PIN,HINGE FREEZER LOWER MFR # 3851080014
11. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model RM1402/ RM1402ID; 1/4 Inch x 7 Foot; 1/4 Inch Inlet Connection; 7 Foot Length MFR # 3851108013 Superseded: see description
12. #Refrigerator Door Latch; Bar Lock; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402 MFR # 3850495023 Superseded: see description
13. #SPRING MFR # 3850497011
14. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
15. #Washer; Use With Dometic Refrigerator Model NEA 1402/ NEA1402ID; Black MFR # 3850498019 Superseded: see description
16. #Refrigerator Door Hinge Bushing; Replacement For Dometic NDA1402/ NDE1402/ NDR1402 Refrigerator; Fits Bottom Hinge MFR # 3858034048
17. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DMH1072/ NDA1402/ NEA1402/ RM1350/ RM3762/ RM3962 Model Refrigerator; Black MFR # 3858071024
18. #CONNECTOR MFR # 3858073020
19. #HARNESS MFR # 2954560021
20. #TRIM, DOOR FREEZER UPPER MFR # 3850827019
21. #TRIM,DOOR FREEZER MIDDLE MFR # 3850891015

Cabinet Freezer Parts

Components

38 items

1. #SCREW M6S A2-80 5X25 MFR # 3858041027
2. #NUT ML6 M5 BRASS, NICKEL PLATED MFR # 3858009073
3. #WASHER,STAINLESS MFR # 3858010121
4. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3850674015
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic NDA1402/ NEA1402/ NDA1402ID Model Refrigerator MFR # 3850675012
6. #ELEMENT USE 3851411011 OR 49-8513 MFR # 3850676010 Superseded: see description
7. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models NDA1402/ NDA1402ID/ NEA1402 MFR # 3851411011 Superseded: see description
8. #FLANGE,COOLING FREEZER MFR # 3850629019
9. #APPLIANCE COMPONENTS RV; Fan Svc Kit MFR # 3850486030
10. #165521030 MFR # 165521030
11. #BOTTOM,TERMINAL BOX MFR # 3850677018
12. #COVER,TERMINAL BOX MFR # 3850678016
13. #CHANNEL,SUCTION MFR # 3850648019
14. #BRACKET,MOTOR MFR # 3850649017
15. #AIR DISTRIBUTOR MFR # 3850650015
16. #COVER,W/DRIP PAN MFR # 3850651013
17. #INSULATION MFR # 3850652011
18. #STRIP,SUPPORT MFR # 3850656012
19. #HOSE,DRAINAGE MFR # 3850658018
20. #Refrigerator Door; Replacement For Dometic Refrigerator Door Liner MFR # 3850659016
21. #STRIP,SEALING COOLING FLANGE MFR # 3850660014
22. #PIN,LOCKING MFR # 3850661012
23. #BRACKET,THERMISTER MFR # 3850679014
24. #SCREW EML 5 X 12 STAINLESS MFR # 3858040037
25. #SCREW RXS B8X19 MFR # 3858002268
26. #SCREW MRX M4X40 STAINLESS MFR # 3858004165
27. #NUT,LOCK M4 STAINLESS MFR # 3858028032
28. #SCREW,MRTX M4X10 STAINLESS MFR # 3858004173
29. #SCREW RXS B6 X 9.5 MFR # 3858002235
30. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
31. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
32. #EDGE PROTECTION MFR # 3850895016
33. #BASE,ICE CONTAINER MFR # 3850786017
34. #SHELF,ICE MAKER MFR # 3850785019
35. #PLATE MFR # 3850667019
36. #STRIP,SEALING (AFTER S/N 70700003) MFR # 3850734025
37. #COVER,OUTER INSTALLATION MFR # 3850668017
38. #PLATE,INSULATING MFR # 3850669015

Replacement Refrigerator

Components

2 items

1. #REFER, SIDEWISE WTR/ICE/FAN MFR # NEA1402WIDF
2. #REFER, SIDEWISE W/IM BLACK MFR # NEA1402BSIM

Ice Dispenser Door Parts

Components

12 items

1. #APPLIANCE COMPONENTS RV; Module Dispencer Black MFR # 3850811021
2. #CARRIER MFR # 3850862016
3. #APPLIANCE COMPONENTS RV; Board Pc MFR # 3850861018
4. #CONDUCTOR, LIGHT LONG MFR # 3850864012
5. #CONDUCTOR, LIGHT SHORT MFR # 3850865019
6. #FRONT MFR # 3850892013
7. #LABEL MFR # 3850807029
8. #TRAY, DRIP BLACK MFR # 3850894019
9. #HARNESS, RIBBON CABLE MFR # 3850863014
10. #SCREW MFR # 3858006087
11. #SCREW,PT PH 4 X 10 MFR # 3858006012
12. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDA1402/ NEA1402 Model Refrigerator MFR # 3858006103

Refrigerator Door Assembly

Components

16 items

1. #DOOR, REFRIGERATOR BLACK MFR # 3850881024
2. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
3. #HANDLE,DOOR BLACK (AFTER S/N 70700003) MFR # 3850821020
4. #KNOB, CONTROL BLACK MFR # 3850822010
5. #S,SCREW,EML,5*10,ZP,BLK-6-10/ MFR # 3858089018
6. #Refrigerator Door Bin; Replacement For Dometic NEA1402 Refrigerator MFR # 2932583046
7. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 3850445010
8. #APPLIANCE COMPONENTS RV; Shelf Upper Door MFR # 2932577030
9. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
10. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
11. #Refrigerator Shelf; Use With Dometic Refrigerator Model NDA1402ID/ NDA1402; Fresh Food Compartment; Wire MFR # 3850459011 Superseded: see description
12. #BAR,LOCK MFR # 3850495015
13. #SPRING MFR # 3850497011
14. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model NDA1402/ RM1350 MFR # 3850496013 Superseded: see description
15. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DMH1072/ NDA1402/ NEA1402/ RM1350/ RM3762/ RM3962 Model Refrigerator; Black MFR # 3858071024
16. #TRIM, REFRIGERATOR DOOR MFR # 3850828017
