Dometic RA125 Series RA125H1 Parts Diagram · Cabinet Assembly

Refrigerator · 3 assemblies · 3 diagram sheets · 44 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RA125 Series RA125H1 RV refrigerator: 3 assemblies (Cabinet Assembly, Door Asm, Rear View) and 44 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Assembly

Components

18 items

1. #VENT GRILL MFR # 2923062000
2. #PLATE, EVAP. USE 2923823005 MFR # 2923681007 Superseded: see description
3. #Refrigerator Shelf; Use With Dometic Refrigerators RA138HD/ RA138HD1/ RA125H1 MFR # 2923823005 Superseded: see description
4. #DRIP TRAY USE 2935654109 MFR # 2923680009 Superseded: see description
5. #RETAINER MFR # 2923677005
6. #COVER MFR # 2923028001
7. #Refrigerator Thermostat Cover; Use With Dometic Refrigerators RA125H1/ RH225 MFR # 2923711002 Superseded: see description
8. #T-STAT USE 2923738104 RA125HI,138HI MFR # 2923342006 Superseded: see description
9. #APPLIANCE COMPONENTS RV; T-Stat W/1000Mm Cap. MFR # 2923738104
10. #THERMOSTAT KNOB (RH225) MFR # 2923343004
11. #BUTTON MFR # 2923344002
12. #GROMMET FOR HEATER MFR # 2923775000
13. #SHELF MFR # 2923678003
14. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
16. #PLATE MFR # 2923773000
17. #PROTECTIVE HOSE MFR # 2923776000
18. #ROLLER MFR # 2923770008

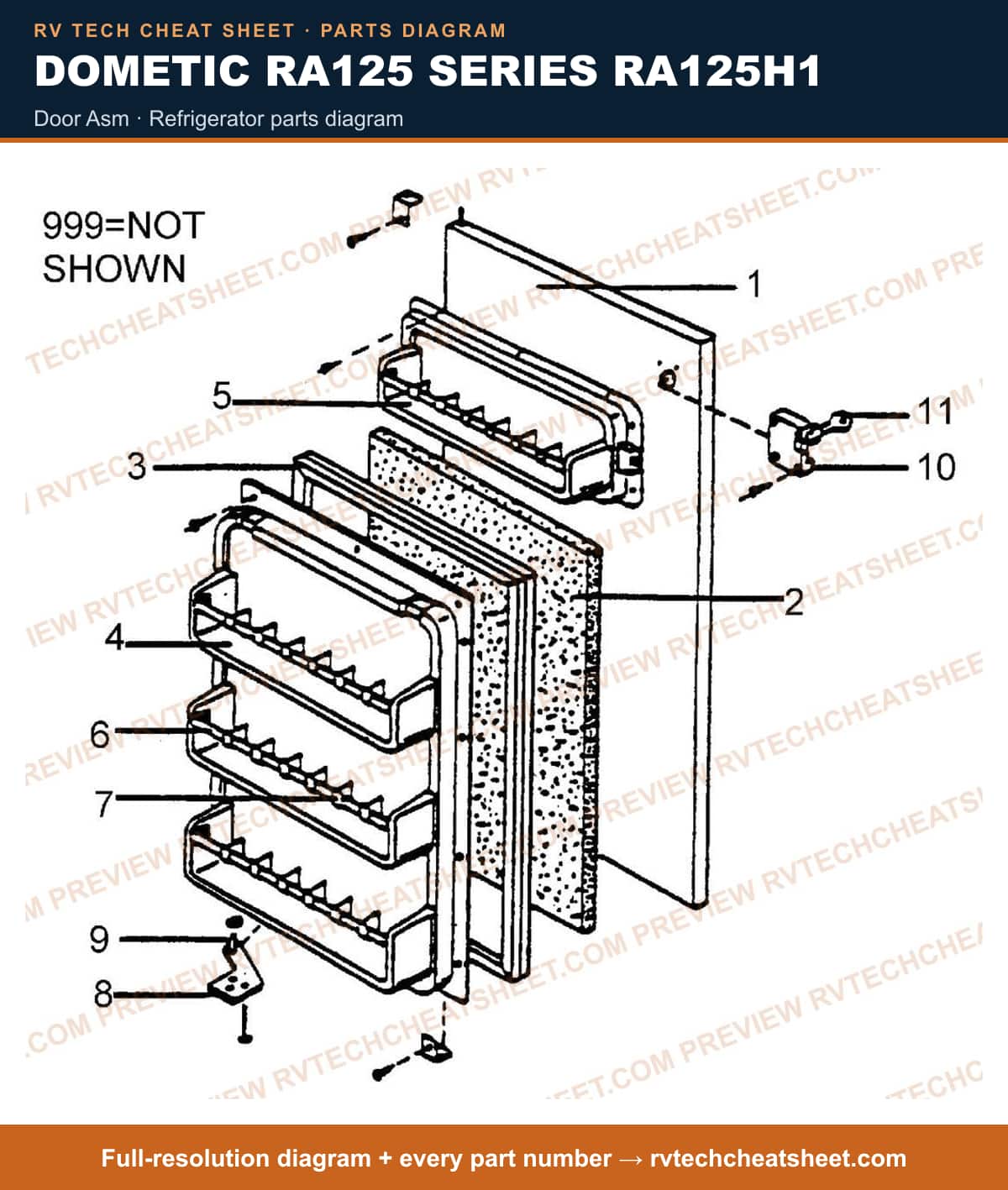

Door Asm

Components

18 items

1. #DOOR MFR # 2923712000
2. #INSULATION MFR # 2923053001
3. #GASKET USE 2951062245 MFR # 2923095000 Superseded: see description
4. #Refrigerator Gasket; Use With Dometic Minibar RH225/ RA125HD1/ RA125H1/ RA125HD Refrigerators MFR # 2951062245 Superseded: see description
5. #LINER, DOOR LWR USE 2936011002 RM125 MFR # 2923682006 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Liner Door White MFR # 2936011002
7. #LINER, UPPER USE 2923888008 RM125 MFR # 2923713008 Superseded: see description
8. #LINER, WARM DOOR USE 2923888222 HOTEL MFR # 2923888024 Superseded: see description
9. #LINER, UPPER USE 2923888024 MFR # 2923888008 Superseded: see description
10. #RAIL MFR # 2923564005
11. #SPACER MFR # 2923565002
12. #Refrigerator Door Hinge; Use With Dometic Refrigerators RA125HD/ RA125H1/ RH280D; Lower MFR # 2923560005 Superseded: see description
13. #PLATE, HINGE USE 2923560005 RA130 MFR # 2923560003 Superseded: see description
14. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
15. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
16. #LOCK, KABA RH125 MFR # 2923704007
17. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
18. #KEY USE 3106679016 #500-500 MFR # 2923705004 Superseded: see description

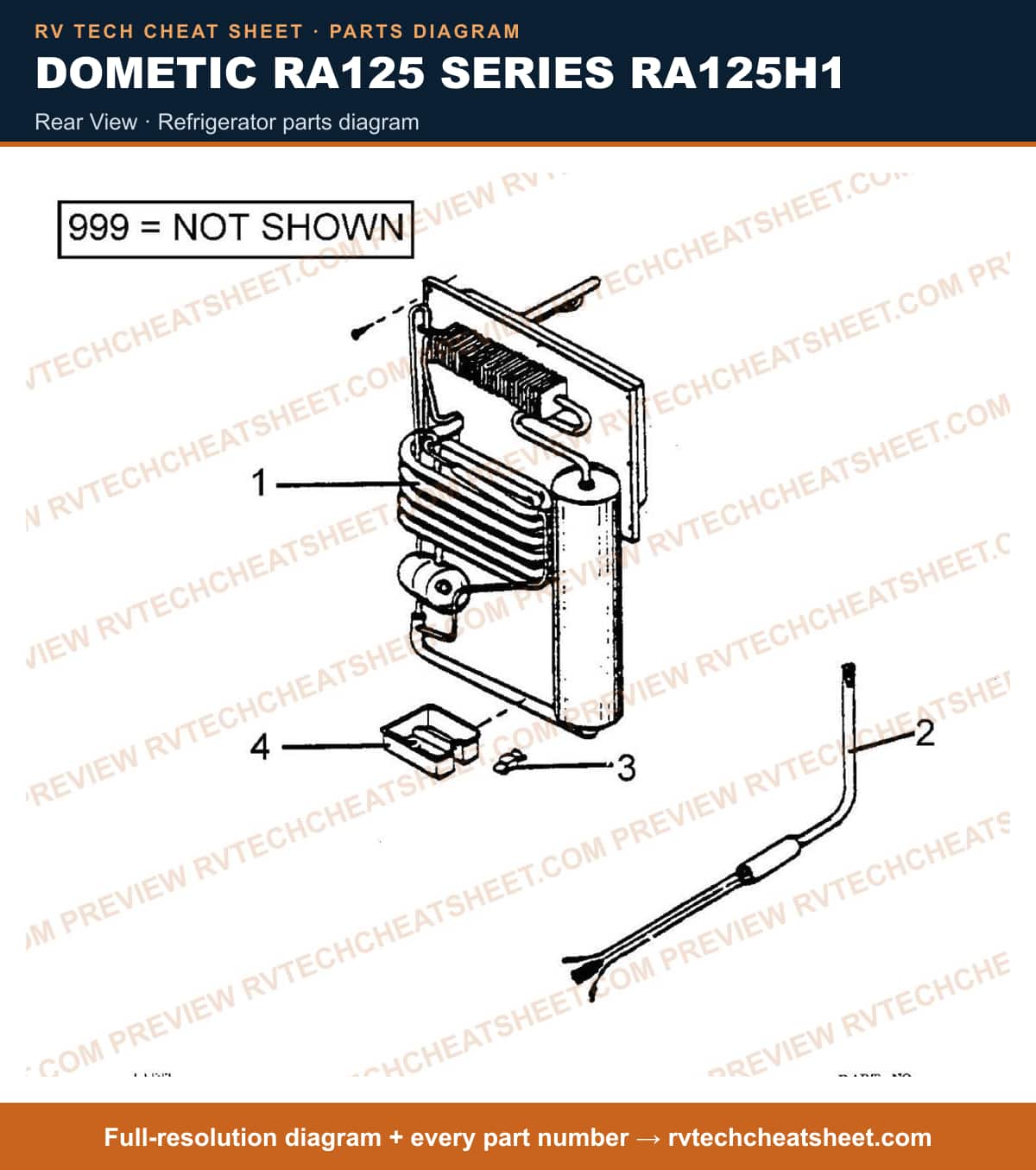

Rear View

Components

8 items

1. #COOLING UNIT USE 2935309100N MFR # 2923706002N Superseded: see description
2. #COOLING UNIT RECON MFR # 2923706002R
3. #APPLIANCE COMPONENTS RV; Cooling Unit Ra138Hd MFR # 2935309100N
4. #ELEMENT, HEATING 3 WIRE 3/8" DIAM 90 DEG BEND 80W/120V MFR # 2951228002
5. #ELEMENT, HEATING USE 2951228002 80W/120V MFR # 2923707059 Superseded: see description
6. #ELEMENT, HTG USE 2923771006G RA125, RA138HD MFR # 2923771006 Superseded: see description
7. #Coolant Temperature Sensor Retaining Clip; Use With Dometic Refrigerator RA125HD/ RM4202/ RA138H1 MFR # 2923708008 Superseded: see description
8. #EVAPORATOR TRAY MFR # 2923709006
