Dometic RA1302 Product # 926724501 - Cabinet Exterior Parts Diagram · Product # 926727101 - Cabinet Exterior

Refrigerator · 9 assemblies · 9 diagram sheets · 158 parts · by Andrew Strick, mobile RV technician

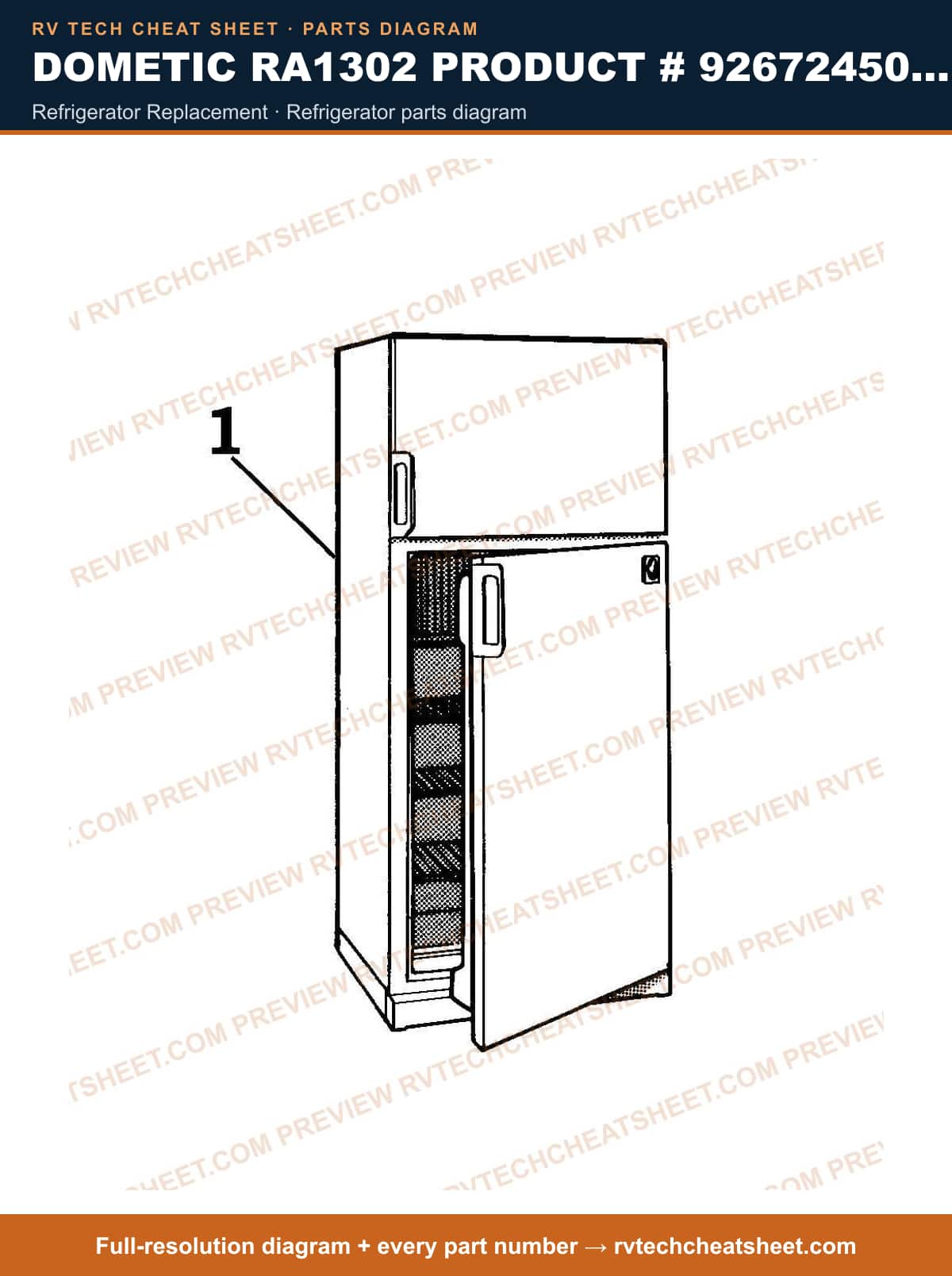

OEM exploded parts diagrams for the Dometic RA1302 Product # 926724501 - Cabinet Exterior RV refrigerator: 9 assemblies (Product # 926727101 - Cabinet Exterior, Product # 926724501 - Cabinet Exterior, All Product Numbers - Cooling Unit, Refrigerator Replacement, Product # 926724501 - Controls and more) and 158 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Product # 926727101 - Cabinet Exterior

Components

25 items

1. #Pin, Hinge RA1302 MFR # 2930215005
2. #Appliance Components RV; Pin Hinge MFR # 2007313014
3. #Cover RM1302 MFR # 2930227000
4. #Washer MFR # 2930228008
5. #Refrigerator Support Rail Screw; Replacement For Dometic RA1302/ RGE400 Model Refrigerators MFR # 2002599005
6. #Pin, Hinge Upper MFR # 2930384009
7. #Pin, Hinge Upper MFR # 2930612003
8. #Plate, Cover MFR # 2930275033
9. #Appliance Components RV; Hinge Middle RA1302 MFR # 2007272046
10. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
11. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
12. #Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description
13. #Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description
14. #Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094
15. #Appliance Components RV; Knob Selector 115V MFR # 2007480029
16. #Hinge, RH MFR # 2930232018
17. #Hinge, LH MFR # 2930233016
18. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
19. #Panel, Gray/Brown MFR # 2007463074
20. #Retainer, Lamp MFR # 2930557000
21. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
22. #Appliance Components RV; Plug Grey/Brown MFR # 2930083031
23. #Base Front MFR # 2930591124
24. #Cabinet Base MFR # 2007465038
25. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112

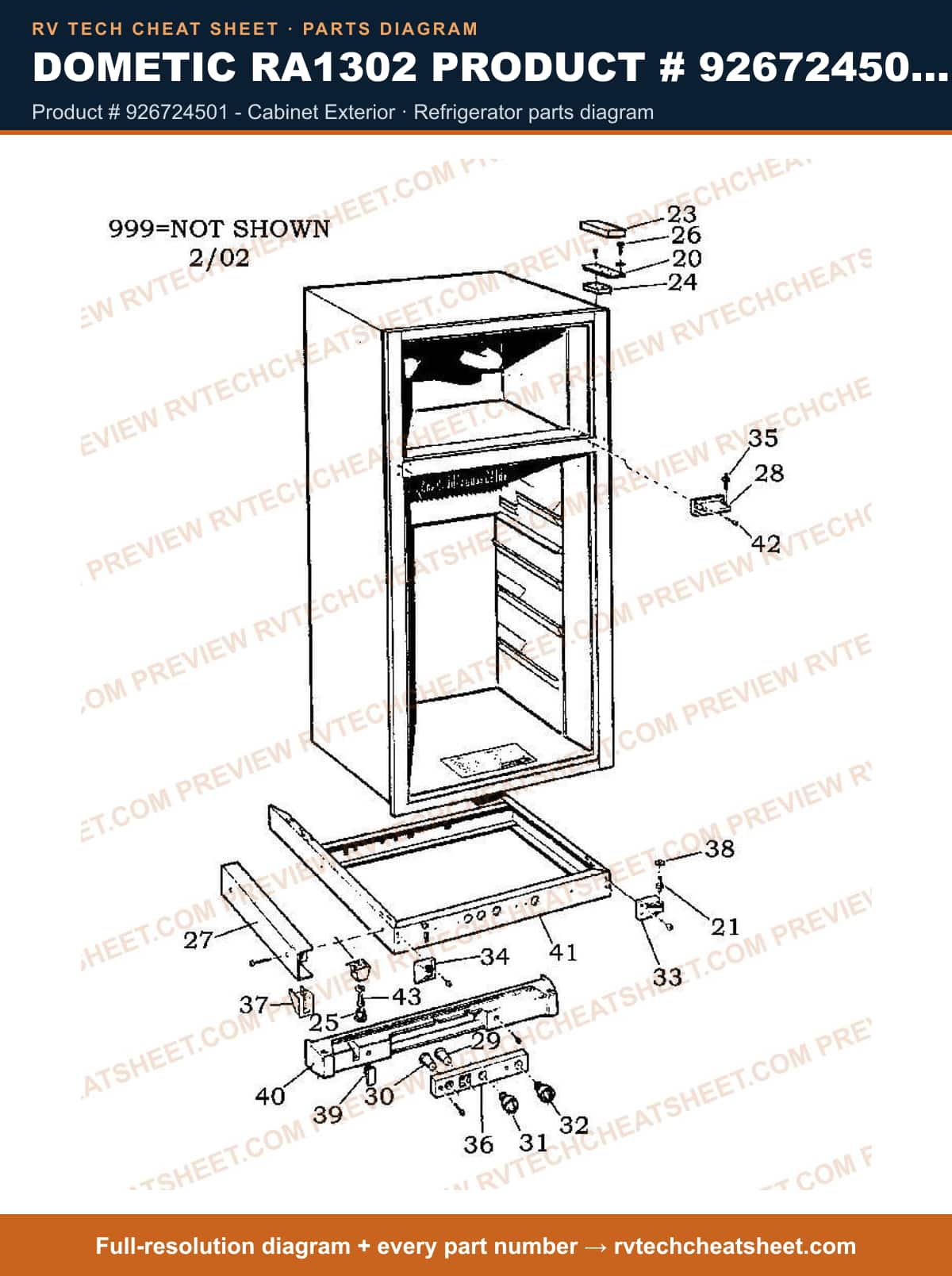

Product # 926724501 - Cabinet Exterior

Components

25 items

1. #Pin, Hinge RA1302 MFR # 2930215005
2. #Appliance Components RV; Pin Hinge MFR # 2007313014
3. #Cover RM1302 MFR # 2930227000
4. #Washer MFR # 2930228008
5. #Refrigerator Support Rail Screw; Replacement For Dometic RA1302/ RGE400 Model Refrigerators MFR # 2002599005
6. #Pin, Hinge Upper MFR # 2930612003
7. #Pin, Hinge Upper MFR # 2930384009
8. #Plate, Cover MFR # 2930275033
9. #Appliance Components RV; Hinge Middle RA1302 MFR # 2007272046
10. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
11. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
12. #Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description
13. #Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094
14. #Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description
15. #Appliance Components RV; Knob Selector 115V MFR # 2007480029
16. #Hinge, RH MFR # 2930232018
17. #Hinge, LH MFR # 2930233016
18. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
19. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
20. #Retainer, Lamp MFR # 2930557000
21. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
22. #Appliance Components RV; Plug Grey/Brown MFR # 2930083031
23. #Base Front MFR # 2930591124
24. #Cabinet Base MFR # 2007465038
25. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112

All Product Numbers - Cooling Unit

Components

7 items

1. #REMAN C/U USE 5513 RM1300/1301,1303,RA1302 MFR # 9286169009R Superseded: see description
2. #APPLIANCE COMPONENTS RV; Cooling Unit (Ups) MFR # 9286169009N
3. #Refrigerator Cooling Unit; Use With Dometic RM1300/ RM1301/ RM1302/ RM1303 Model Refrigerators; Steel Tubing MFR # 5513 Superseded: see description
4. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
5. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
6. #SIGN PLATE MFR # 2007658004
7. #DECAL, WARNING 2807/4801 MFR # 2002577001

Refrigerator Replacement

Components

12 items

1. #REFER,6 CU FT 2 WAY SILVER 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652S
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
3. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK
4. #Refrigerator Door Panel;;Fits Dometic DM2652/ RM2652/ DM2662/ RM2662/ RM3662/ RM3663 Series Refrige MFR # RM2652BA
5. #Refrigerator / Freezer; 2 Door; Right Hand; 8 Cubic Foot; 59-7/8 Inch x 23-1/2 Inch x 24 Inch; 3 Way MFR # N8413N
6. #REFER,6 CU.FT USE RM2652B 2-WAY BEIGE MFR # RM2652N Superseded: see description
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK
8. #REFER, 6 CU FT 2 WAY BLACK 53 3/4"H X 23 11/16"W X 24"D MFR # RM2652B
9. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
10. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC/ 14.8 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N8413BK
11. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR
12. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS

Product # 926724501 - Controls

Components

63 items

1. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
4. #Coupling MFR # 2007518000
5. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
6. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
7. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
8. #Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description
9. #Thermocouple MFR # 2931496091MC
10. #T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description
11. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
12. #Appliance Components RV; Nut Union MFR # 172809006
13. #Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003
14. #S,SWITCH,RM2410-2810 MFR # 2007432004
15. #Appliance Components RV; Cover Switch MFR # 2007439009
16. #Screw MFR # 140730011
17. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
18. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
19. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
20. #Igniter, Piezo MFR # 2007423003
21. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
22. #Appliance Components RV; Retainer MFR # 2007424001
23. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
24. #Bracket Mount MFR # 2007410000
25. #Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description
26. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
27. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
28. #Ring, Sealing 2 Req. MFR # 140748005
29. #Catch Snap 12/120 (Fus) MFR # 2930066028
30. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
31. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
32. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
33. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
34. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
35. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
36. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
37. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
38. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
39. #Block Terminal Small 3 Poi MFR # 7627202562
40. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
41. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
42. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
43. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
44. #SCREW M4 X 10 S MFR # 7241289615
45. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
46. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
47. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
48. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
49. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
50. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
51. #S,CAP,FLUE MFR # 2007598010
52. #Appliance Components RV; Baffle Flue MFR # 2007590033
53. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
54. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
55. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
56. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
57. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description
58. #Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description
59. #Screw MFR # 7295340017
60. #Appliance Components RV; T-STAT MFR # 2007199041
61. #Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038
62. #Clamp MFR # 2007395003
63. #Protection Hose MFR # 2007069087

Product # 926724501 - Door

Components

19 items

1. #DOOR, UPPER S WHITE MFR # 2930163148
2. #DOOR, UPPER (FREEZER) S MFR # 2930163155
3. #APPLIANCE COMPONENTS RV; Door Lower W/O Shelves MFR # 2931797043
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #SCREW MFR # 140722000
6. #HANDLE, DOOR USE 2940236025 BROWN MFR # 2940236009 Superseded: see description
7. #BOX, ICE WHITE MFR # 2930536020
8. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
9. #HOLDER, BOTTLE-BRN MFR # 2002794101
10. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
11. #SHELF, DOOR USE 2001732136 RM1300,1303 MFR # 2001732110 Superseded: see description
12. #COMPARTMENT, BUTTER MFR # 2002623045
13. #NAME PLATE MFR # 2931307017
14. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
15. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
17. #BRACKET, FLAP RM 3 804 MFR # 2930594011
18. #LABEL, WARNING FOR DOOR MFR # 2931620005
19. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009

Product # 926727101 - Controls

Components

62 items

1. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
4. #Coupling MFR # 2007518000
5. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
6. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
7. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
8. #S,THERMOCOUPLE-232MM MFR # 2931496042
9. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
10. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
11. #Appliance Components RV; Nut Union MFR # 172809006
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003
13. #S,SWITCH,RM2410-2810 MFR # 2007432004
14. #Appliance Components RV; Cover Switch MFR # 2007439009
15. #Screw MFR # 140730011
16. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
17. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
18. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
19. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
20. #Igniter, Piezo MFR # 2007423003
21. #Appliance Components RV; Retainer MFR # 2007424001
22. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
23. #Bracket Mount MFR # 2007410000
24. #Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description
25. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
26. #Ring, Sealing 2 Req. MFR # 140748005
27. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
28. #Catch Snap 12/120 (Fus) MFR # 2930066028
29. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
30. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
31. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
32. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
33. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
34. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
35. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
36. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
37. #Washer; Replacement For Dometic RM2410/ RA1302/ RGE400 Model Refrigerators; E-Shape; Use Refrigerator Gas Valve Adapter Fitting MFR # 7353113215 Superseded: see description
38. #Block Terminal Small 3 Poi MFR # 7627202562
39. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
40. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
41. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
42. #SCREW M4 X 10 S MFR # 7241289615
43. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
44. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
45. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
46. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
47. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
48. #S,CAP,FLUE MFR # 2007598010
49. #Appliance Components RV; Baffle Flue MFR # 2007590033
50. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
51. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
52. #Retainer, Burner MFR # 2007651017
53. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
54. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
55. #Element, Heating 325W 120V MFR # CS000006
56. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description
57. #Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description
58. #Screw MFR # 7295340017
59. #Appliance Components RV; T-STAT MFR # 2007199041
60. #Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038
61. #Clamp MFR # 2007395003
62. #Protection Hose MFR # 2007069087

Product # 926724501 - Cabinet Interior

Components

24 items

1. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
2. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
3. #SHELF USE 2930133117 MFR # 2930133042 Superseded: see description
4. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM3807; Plastic MFR # 2931117051 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
6. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
7. #PLATE RETAINING MFR # 2007649011
8. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
9. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
10. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
11. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
12. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
13. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
14. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
15. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
16. #BAR, DRIP TRAY MFR # 2930606005
17. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029
18. #TRAY, DRIP MFR # 162322002
19. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
20. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
21. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
22. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
23. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134

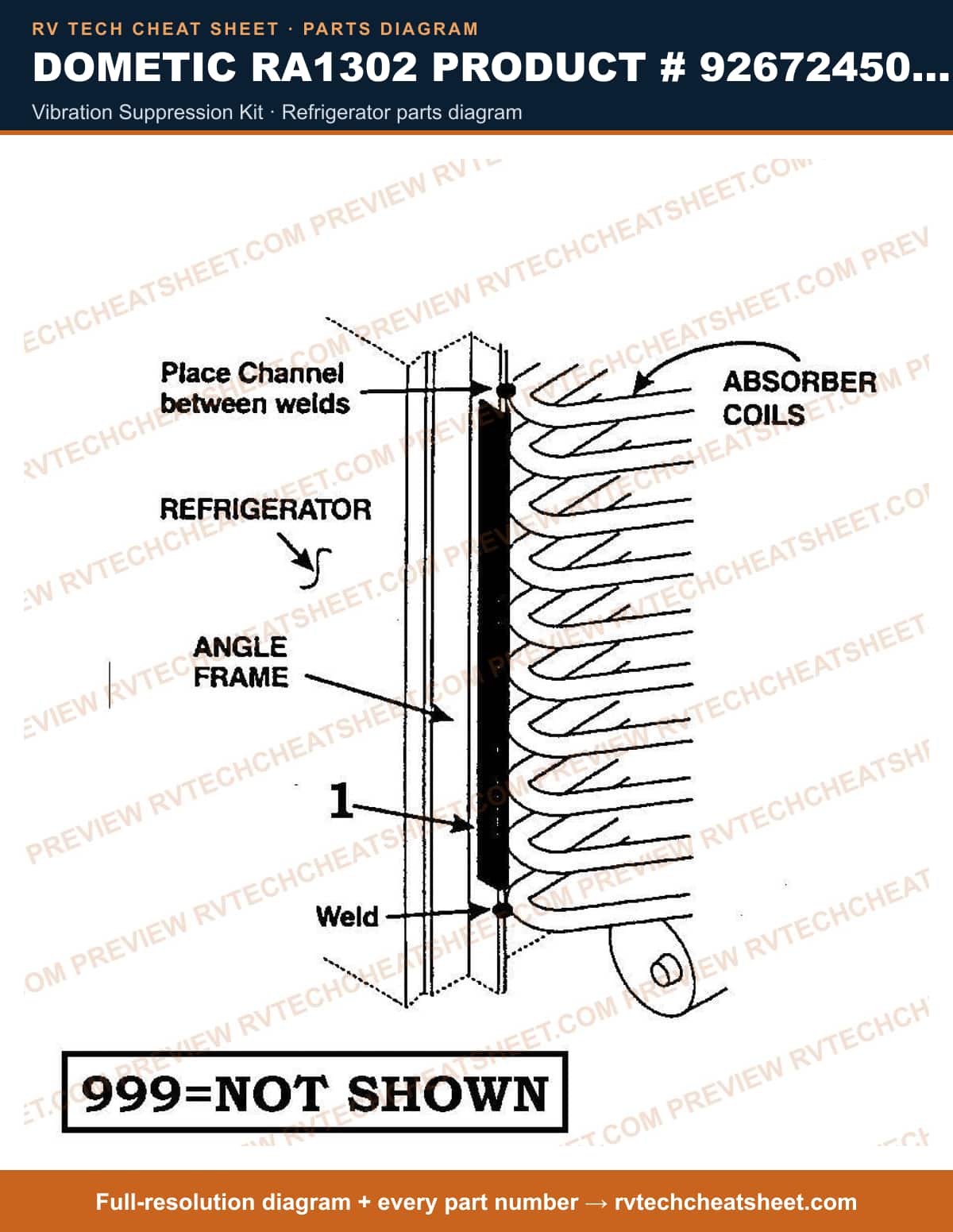

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515
