Dometic RA138 Series RA138HD1 Parts Diagram · Rear View

Refrigerator · 3 assemblies · 3 diagram sheets · 39 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RA138 Series RA138HD1 RV refrigerator: 3 assemblies (Rear View, Door Asm, Cabinet Asm) and 39 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

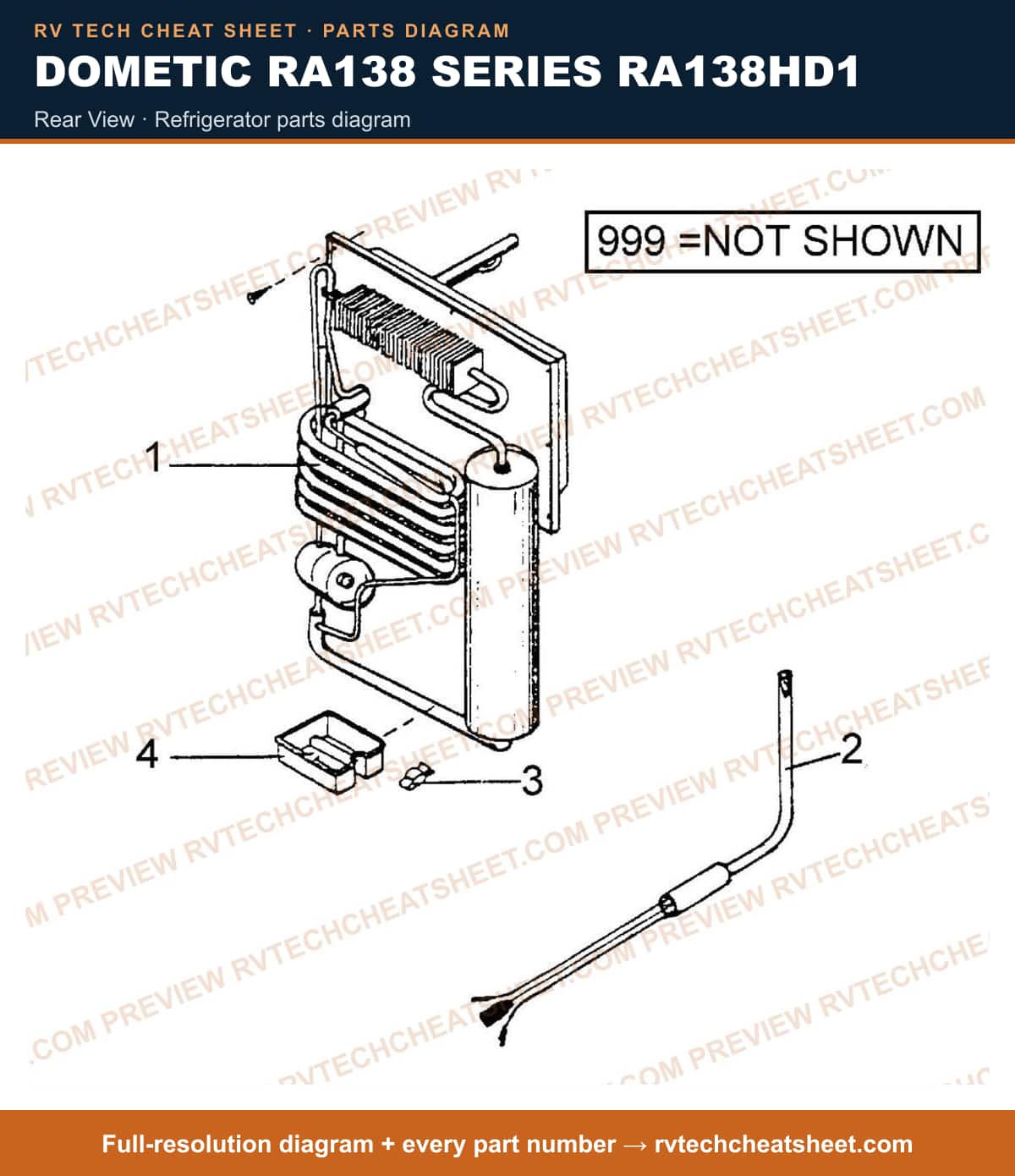

Rear View

Components

8 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit Ra138Hd MFR # 2935309100N
2. #COOLING UNIT USE 2935309100N MFR # 2923706002N Superseded: see description
3. #COOLING UNIT RECON MFR # 2923706002R
4. #ELEMENT, HEATING USE 2951228002 80W/120V MFR # 2923707059 Superseded: see description
5. #ELEMENT, HTG USE 2923771006G RA125, RA138HD MFR # 2923771006 Superseded: see description
6. #ELEMENT, HEATING 3 WIRE 3/8" DIAM 90 DEG BEND 80W/120V MFR # 2951228002
7. #Coolant Temperature Sensor Retaining Clip; Use With Dometic Refrigerator RA125HD/ RM4202/ RA138H1 MFR # 2923708008 Superseded: see description
8. #EVAPORATOR TRAY MFR # 2923709006

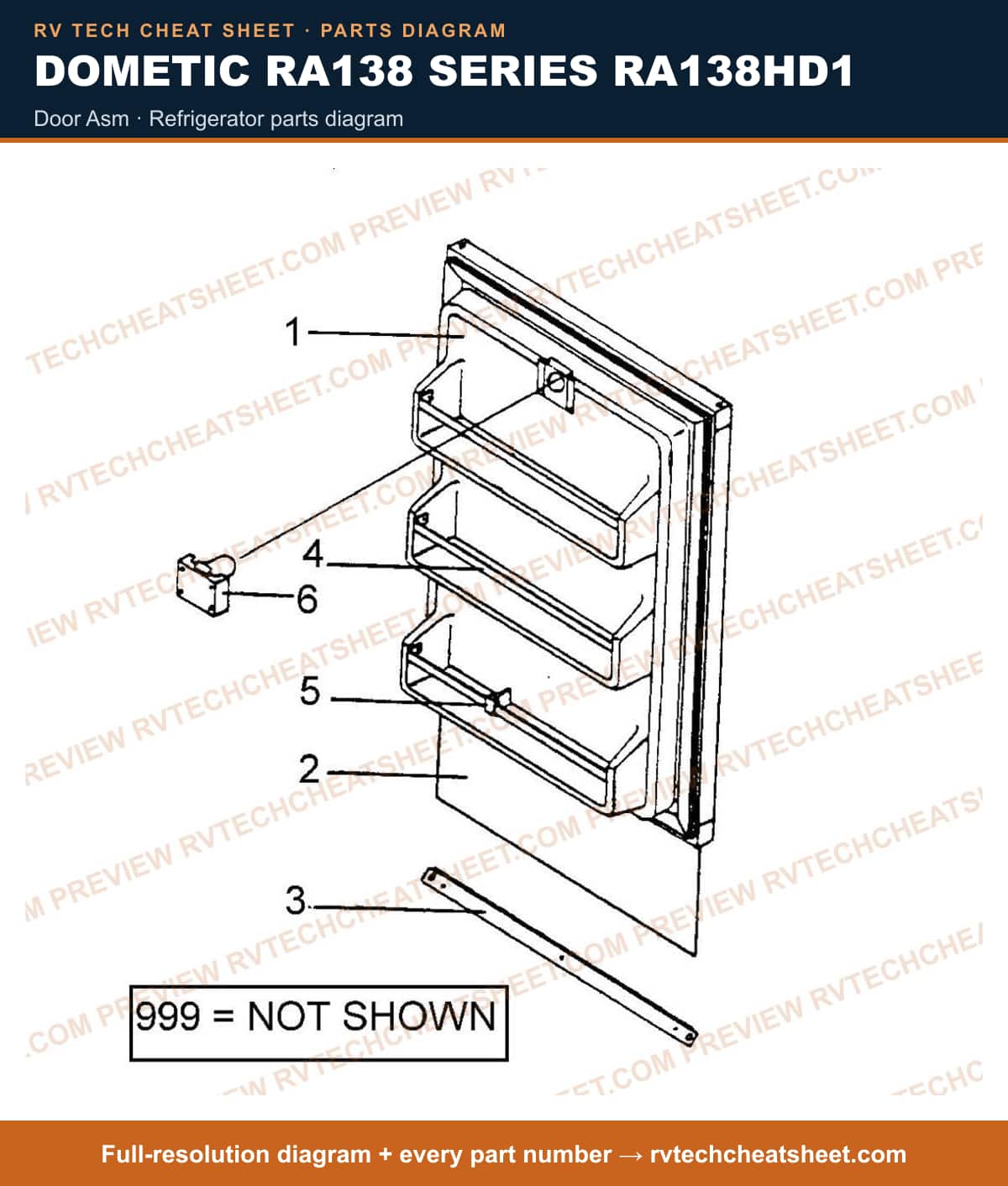

Door Asm

Components

10 items

1. #DOOR COMPLETE MFR # 2923728006
2. #DECORATION MFR # 2923726008
3. #STRIP MFR # 2923727008
4. #RAIL 138 MFR # 2923833004
5. #SPACER MFR # 2923826008
6. #Refrigerator Door Lock; Replacement For Dometic RA138LD Refrigerators MFR # 2935371407
7. #LOCK,KABA USE 2935371407 RA138HD-1 MFR # 2923730002 Superseded: see description
8. #LOCK,KABA USE 2923730002 MFR # 2923730001 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
10. #KEY USE 3106679016 #500-500 MFR # 2923705004 Superseded: see description

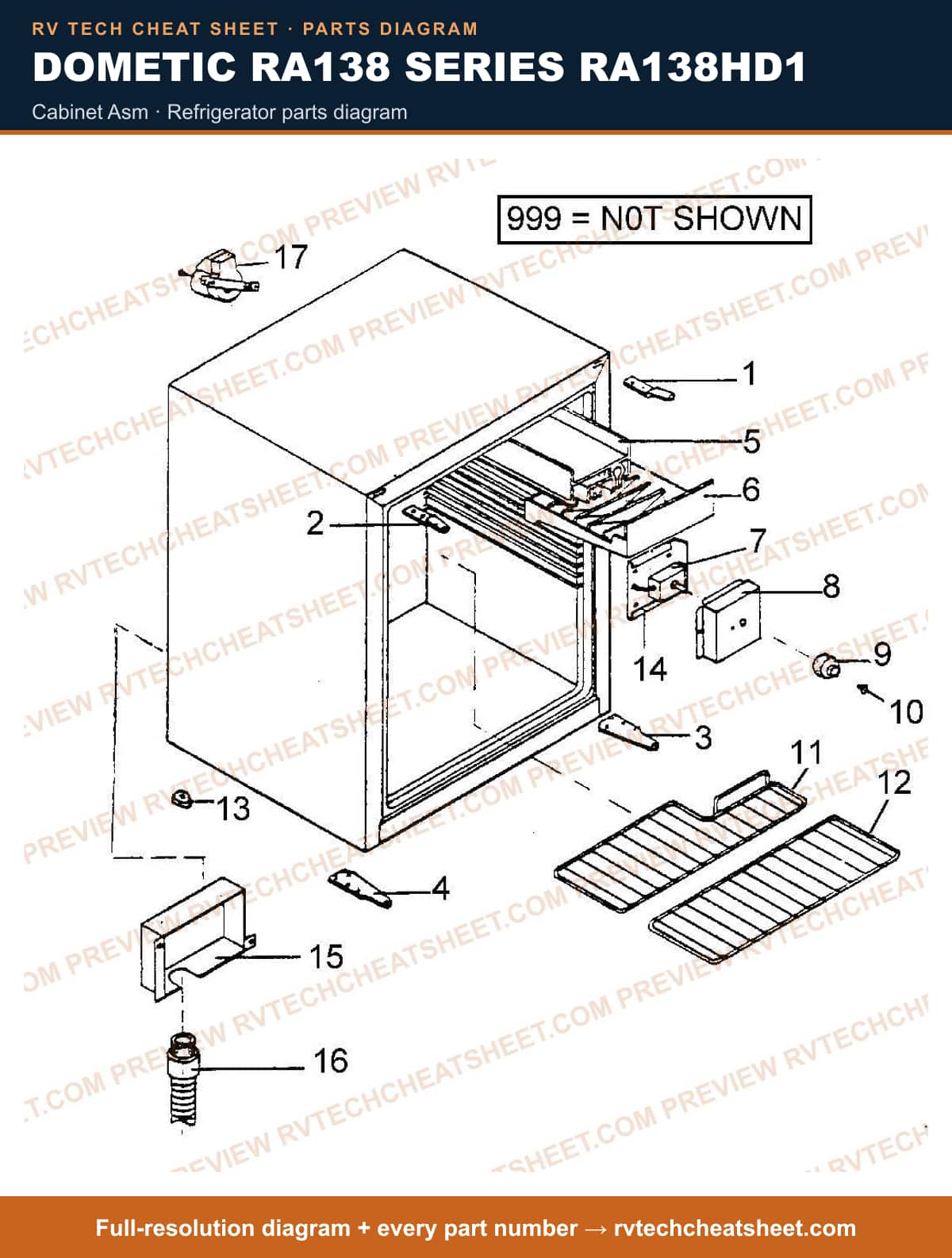

Cabinet Asm

Components

21 items

1. #HINGE (RIGHT) MFR # 2923716001
2. #HINGE (LEFT) MFR # 2923717009
3. #HINGE (LOWER RIGHT) MFR # 2923526002
4. #HINGE (LOWER LEFT) MFR # 2923622001
5. #PLATE, EVAP. USE 2923823005 MFR # 2923681007 Superseded: see description
6. #Refrigerator Shelf; Use With Dometic Refrigerators RA138HD/ RA138HD1/ RA125H1 MFR # 2923823005 Superseded: see description
7. #DRIP TRAY USE 2935654109 MFR # 2923680009 Superseded: see description
8. #T-STAT,ELECTRIC USE 2926529104 MFR # 2923780007 Superseded: see description
9. #T-STAT USE 2923738104 MFR # 2926529104 Superseded: see description
10. #APPLIANCE COMPONENTS RV; T-Stat W/1000Mm Cap. MFR # 2923738104
11. #COVER,T-STAT MFR # 2923779009
12. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Thermostat Control Knob MFR # 2923379008 Superseded: see description
13. #BUTTON MFR # 2923344002
14. #SHELF (REAR) MFR # 2923719005
15. #SHELF (FRONT) MFR # 2923720003
16. #FOOT MFR # 2923297002
17. #PLATE,T-STAT MFR # 2923777003
18. #COVER,T-STAT MFR # 2923778001
19. #PROTECTIVE HOSE MFR # 2923776000
20. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
21. #TIMER, AUTO USE 2935492104 MFR # 2923873000 Superseded: see description
