Dometic RAK100 Parts Diagram · Door Assembly

Refrigerator · 4 assemblies · 4 diagram sheets · 133 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RAK100 RV refrigerator: 4 assemblies (Door Assembly, Rear View Assembly, Cabinet Assembly, Electric) and 133 manufacturer part numbers. 18 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

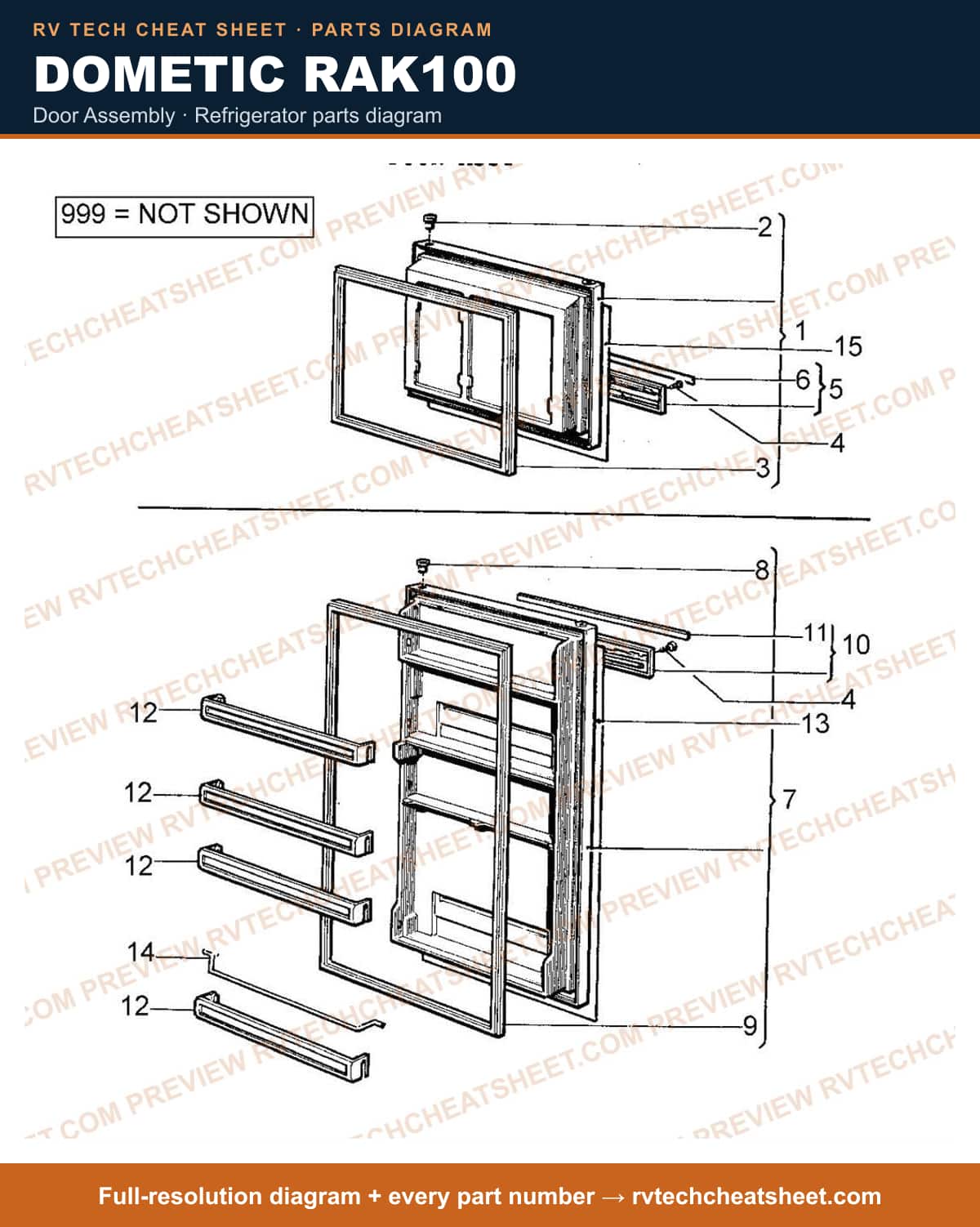

Door Assembly

Components

16 items

1. #DOOR, UPPER, COMP. MFR # 2002620056
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #APPLIANCE COMPONENTS RV; Gasket Set White Rm100 MFR # 3108700473
4. #APPLIANCE COMPONENTS RV; Gasket Use 2002626006D MFR # 2002626006 Superseded: see description
5. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
6. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
7. #DECORATION, COMPL. MFR # 2002690036
8. #STRIP, DECORATION MFR # 2002675110
9. #DOOR, LOWER, COMPL. MFR # 2002610067
10. #GASKET, MAIN USE 3108700473 MFR # 2002626014 Superseded: see description
11. #DECORATION, COMPL. MFR # 2002678130
12. #NAME PLATE "DOMETIC" MFR # 2002777080
13. #DOOR COMPARTMENT MFR # 2001732078
14. #DOOR PANEL, YELLOW, LOWER MFR # 2002264196
15. #BOTTLE HOLDER MFR # 2002433023
16. #DOOR PANEL, YELLOW, UPPER MFR # 2002264204

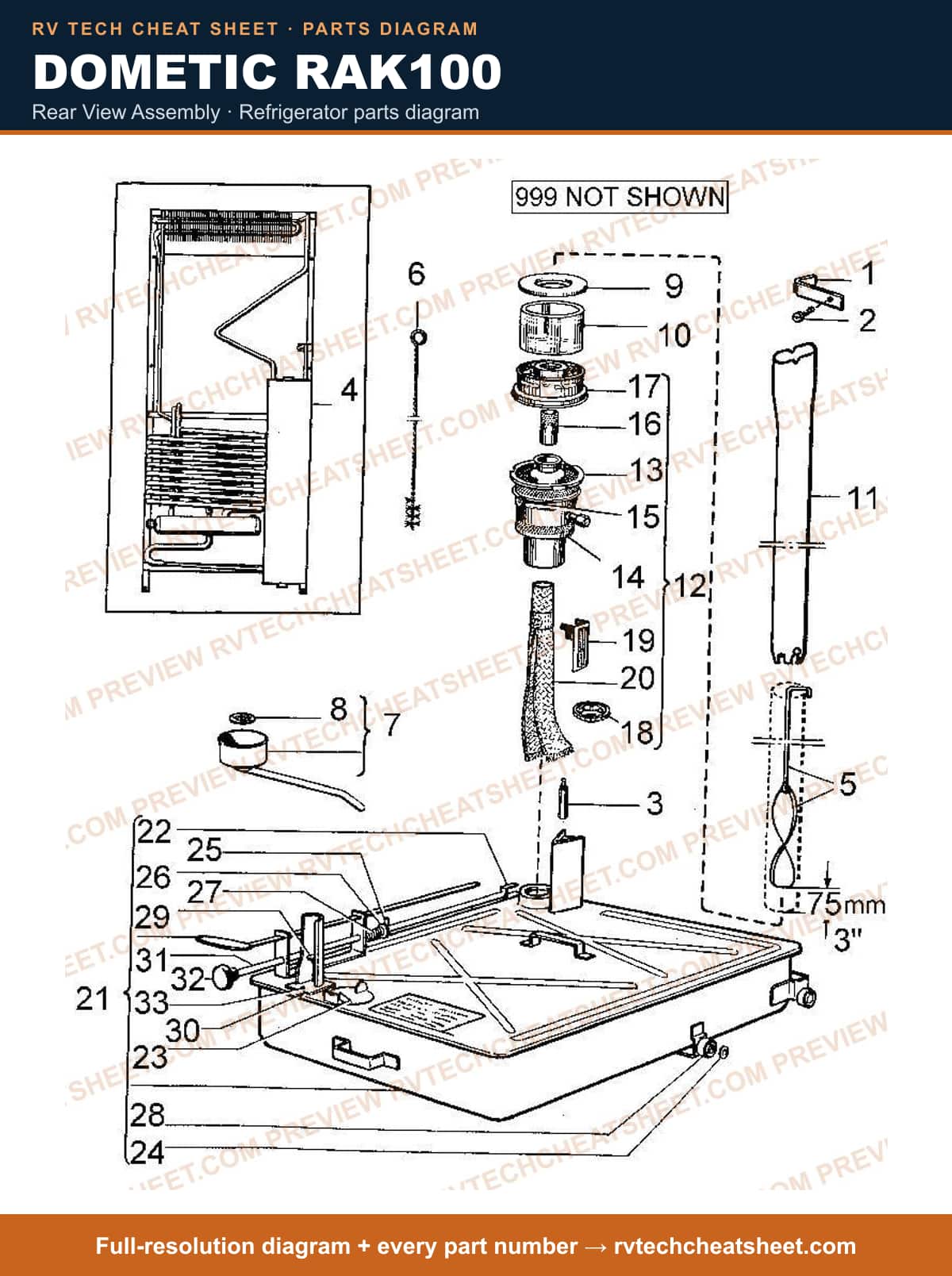

Rear View Assembly

Components

38 items

1. #FLUE BRACKET MFR # 2007108000
2. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
3. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
4. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
5. #GUIDE PIN MFR # 2910082003
6. #COOLING UNIT, 611A, COMP. MFR # 92866111001R
7. #COOLING UNIT NEW MFR # 92866111001N
8. #BAFFLE, COMPL. MFR # 161528021
9. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RK400/ RAK100/ RAK1302/ RC65K Refrigerators MFR # 157418005
10. #FUNNEL,FILLING MFR # 166943001
11. #STRAINER MFR # 166942003
12. #SEAL RING MFR # 2007019009
13. #LAMP GLASS MFR # 2007020007
14. #FLUE, LENGTH 428mm MFR # 2890040021
15. #FLUE, LENGTH 428mm MFR # 293751004
16. #WICK GUIDE MFR # 294891007
17. #BURNER BASE MFR # 294892005
18. #LOOKING UNIT MFR # 294896006
19. #TUBE CAP MFR # 294889001
20. #BURNER TOP MFR # 294890009
21. #WICK CLEANER MFR # 294894001
22. #WICK CARRIER MFR # 294893003
23. #WICK MFR # 293757001
24. #FUEL TANK, COMPL. MFR # 160127015
25. #DRIVER MFR # 2007013002
26. #Cover RM1302 MFR # 2930227000
27. #COVER,RM1302 USE 2930227000 MFR # 160124004 Superseded: see description
28. #LOOKING RING, SCO-1863-17-4 MFR # 160126009
29. #SPLIT COTTER PIN, SP 2xl2, BRASS, NI.PL. MFR # 7216150131
30. #WASHER, 8, 5 x l6, Z.PL. MFR # 7344963017
31. #SPRING MFR # 156589004
32. #ROLLER MFR # 160125001
33. #LEVEL INDICATOR MFR # 160076006
34. #PACKING MFR # 154758007
35. #FLAME REG. SPINDLE RAK1 302 MFR # 2007012004
36. #KNOB MFR # 172497000
37. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
38. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description

Cabinet Assembly

Components

55 items

1. #SPACER MFR # 2002266019
2. #PLUG MFR # 2007097005
3. #BRICKA 6, 3, Z.PL. MFR # 7344912014
4. #TRAY, DRIP MFR # 162322002
5. #SCREWS RM10 0 MFR # 7241328017
6. #N/A PLUG MFR # 2007063007
7. #SUPPORT MFR # 2007087006
8. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
9. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
10. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
11. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
12. #APPLIANCE COMPONENTS RV; Latch Hinge MFR # 2002535009
13. #STOP,SHELF MFR # 2002635007
14. #SCREW MFR # 7295281658
15. #SHELF,TOP RM100 MFR # 2002652069
16. #Screw MFR # 7295340017
17. #HOLDER MFR # 2002641005
18. #SCREW - RXS B10X32 - Z. PL. MFR # 140245036
19. #SHELF WIRE W/FLAP RM10 MFR # 2002651129
20. #FLAP MFR # 2001659065
21. #SHELF MFR # 2002652051
22. #RADIATOR MFR # 2002637003
23. #SPRING WASHER, FBB 5.1, Z. PL. MFR # 7351146019
24. #Nut M6M5, Zinc Plated MFR # 7312314011
25. #LID,CRISPER USE 2002727010 MFR # 2002727002 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
27. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
28. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
29. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
30. #CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description
31. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
32. #CRISPER,YELLOW USE 2002726103 MFR # 2002726004 Superseded: see description
33. #LID MFR # 2007088004
34. #GUIDE MFR # 2007021005
35. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
36. #TANK HOLDER MFR # 2007023001
37. #LOCK HOUSING MFR # 2007222009
38. #SHELF MFR # 2002642003
39. #COVERING PLATE MFR # 2008025005
40. #SCREW, FXS 5X16 BRASS, Z. PL. MFR # 7243327132
41. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2002636005
42. #SNAP SPRING MFR # 2000547006
43. #LABEL MFR # 2007117001
44. #LOCK NUT SNJ 1915 MFR # 7337813062
45. #APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017
46. #LOCK WASHER 5, 3, Z.PL. MFR # 73521460l8
47. #BUSHING MFR # 2910533005
48. #TRAY,ICE W/RELEASER MFR # 2002337000
49. #N/A LOCK MFR # 2007221001
50. #COVER MFR # 2002799001
51. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029
52. #HOSE USE 2002604029 MFR # 2002604003 Superseded: see description
53. #HOLDER MFR # 2002728000
54. #SCREW, RXS Bl0 x l6, Z.PL. MFR # 72954120l4
55. #SCREW, RX 5xl2, Z.PL. MFR # 72413270l9

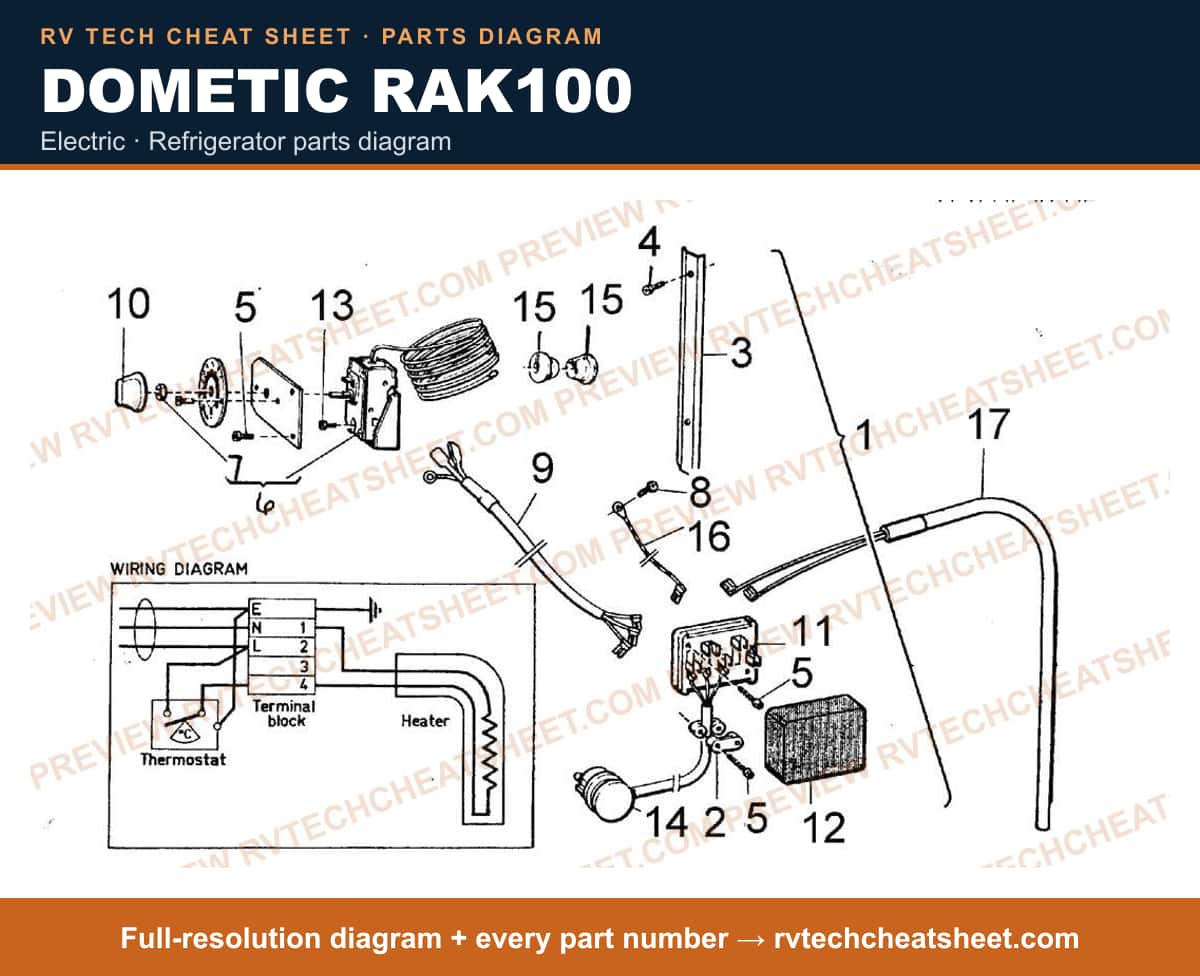

Electric

Components

26 items

1. #ELEC EQUIPMENT, COMP., W/MOUNTING INSTRUCTION MFR # 2007227008
2. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
3. #CLIP MFR # 202798003
4. #SCREW - RXS B8X16 - Z. PL. MFR # 140245002
5. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
6. #SCREW MFR # 7298285402
7. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
8. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
9. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
10. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
11. #NUT, HEX F/T-STAT RM22 01, RB2195 MFR # 2900705001
12. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
13. #SCREW M4 X 10 S MFR # 7241289615
14. #CABLE MFR # 2008041010
15. #THERMOSTAT KNOB MFR # 2008038008
16. #BLOCK, TERMINAL RM36 - RM100 MFR # 581557709
17. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
18. #SCREW, KCS 5.5X5, Z. PL. MFR # 7232250311
19. #PLUG MFR # 168826006
20. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
21. #CABLE MFR # 173493016
22. #APPLIANCE COMPONENTS RV; Element Heating Alt 48-9 MFR # 173720012
23. #ELEMENT,HEATING 275W 120V RM100 MFR # CS000003
24. #HEATER, 240V, 275W MFR # 173720038
25. #ELEMENT,HEATING MFR # 173720020
26. #ELEMENT,HEATING MFR # 173720020D
