Dometic RAK1302 Parts Diagram · Rear View

Refrigerator · 4 assemblies · 4 diagram sheets · 102 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RAK1302 RV refrigerator: 4 assemblies (Rear View, Door Assembly, Electric, Cabinet Assembly) and 102 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Rear View

Components

25 items

1. #FLUE USE 2930377003 MFR # 2930164005 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2930377003
3. #SCREWS RM10 0 MFR # 7241328017
4. #Cotter Pin; Replacement For Dometic RK400/ RAK1302 Refrigerators MFR # 2910082029
5. #COOLING UNIT USE 9286179008N RAK1302 167A MFR # 9286159000N Superseded: see description
6. #Refrigerator Cooling Unit; Use With Dometic RAK1302 Model Refrigerator MFR # 9286179008N Superseded: see description
7. #BAFFLE,FLUE RAK1302 MFR # 161528047
8. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RK400/ RAK100/ RAK1302/ RC65K Refrigerators MFR # 157418005
9. #FUNNEL,FILLING MFR # 166943001
10. #GLASS,LAMP ASSEMBLY MFR # 157052010
11. #CAP MFR # 157051004
12. #Refrigerator Burner Tube; Replacement For Dometic RAK1302/ RC65K/ RK400 Refrigerators MFR # 2890060003
13. #BURNER ASM MFR # 157054008
14. #WICK CARRIER MFR # 2890061001
15. #WICK #23 MFR # 2890062009
16. #WICK CLEANER MFR # 2890065002
17. #N/A RESERVOIR,OIL *N* MFR # 160127031
18. #KNOB RAK1302 MFR # 172496002
19. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
20. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
21. #COVER,RM1302 USE 2930227000 MFR # 160124004 Superseded: see description
22. #Cover RM1302 MFR # 2930227000
23. #ROLLER MFR # 160125001
24. #FLAME REG. SPINDLE RAK1 302 MFR # 2007012004
25. #NO PART # GIVEN BY VENDOR MFR # NPG

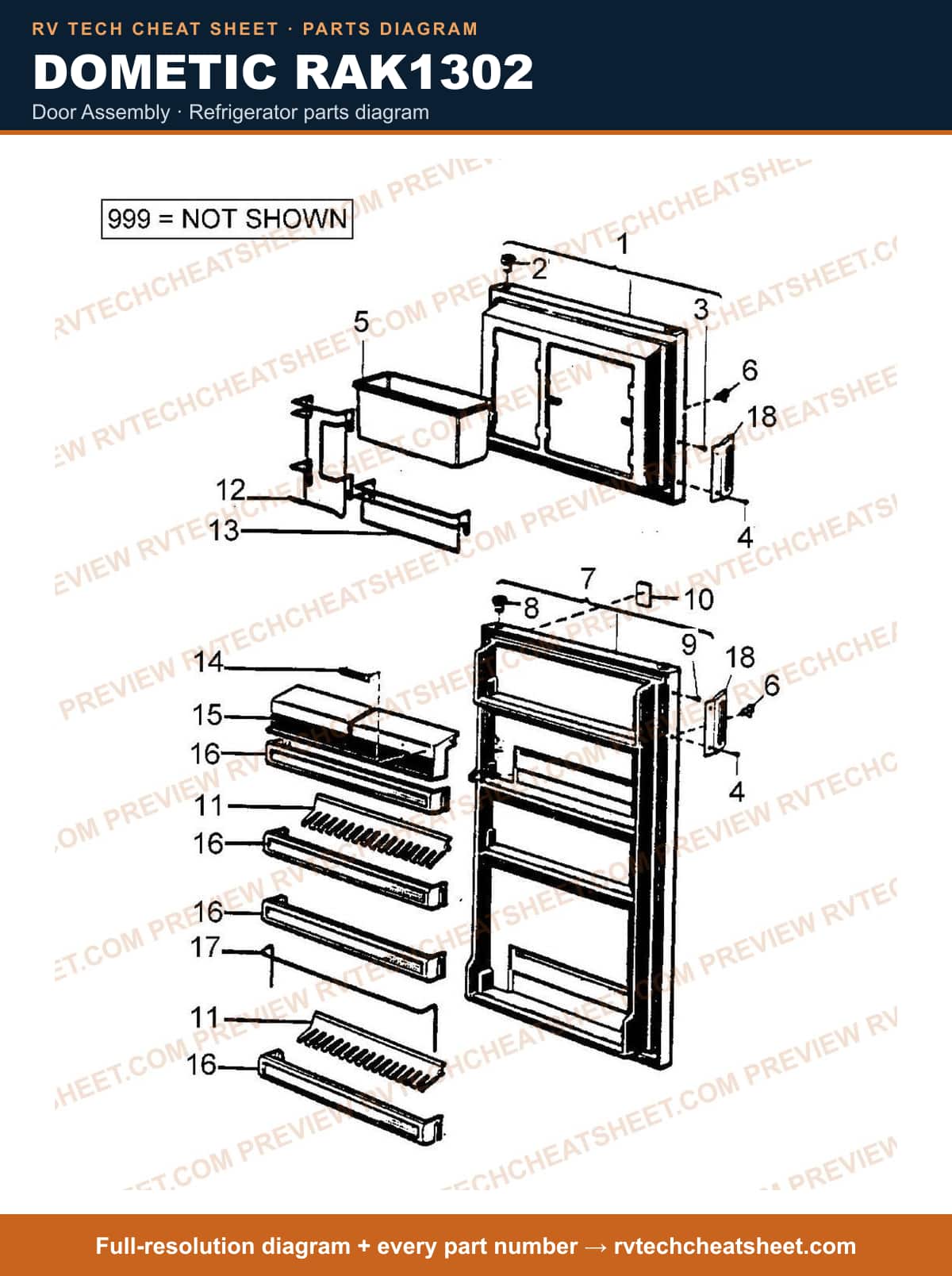

Door Assembly

Components

26 items

1. #DOOR,UPPER COMPLETE MFR # 2930163064
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #PLUG, YELLOW MFR # 2006460030
4. #SCREW MFR # 7243328619
5. #ICEBOX CTR USE 2930536020 MFR # 2006136069 Superseded: see description
6. #BOX, ICE WHITE MFR # 2930536020
7. #LOCK MFR # 2930225004
8. #DOOR ASM,LOWER MFR # 2930161068
9. #NAME PLATE "ELECTROLUX" MFR # 2940163005
10. #Holder, Bottle Use 2002794168; Can Use 2002794010 For Brown MFR # 2002794069 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
12. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
13. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
14. #RACK, WIRE MFR # 2007040005
15. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
16. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
17. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
18. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
19. #NAME PLATE "ELECTROLUX" MFR # 2007246008
20. #APPLIANCE COMPONENTS RV; Door Dairy Use 200500711 MFR # 2005007147 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Door Dairy MFR # 2005007113
22. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
23. #SHELF, DOOR USE 2001732136 RM1300,1303 MFR # 2001732110 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
25. #HANDLE, DOOR USE 2940236025 BROWN MFR # 2940236009 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Handle Door Use 294023600 MFR # 2902426010 Superseded: see description

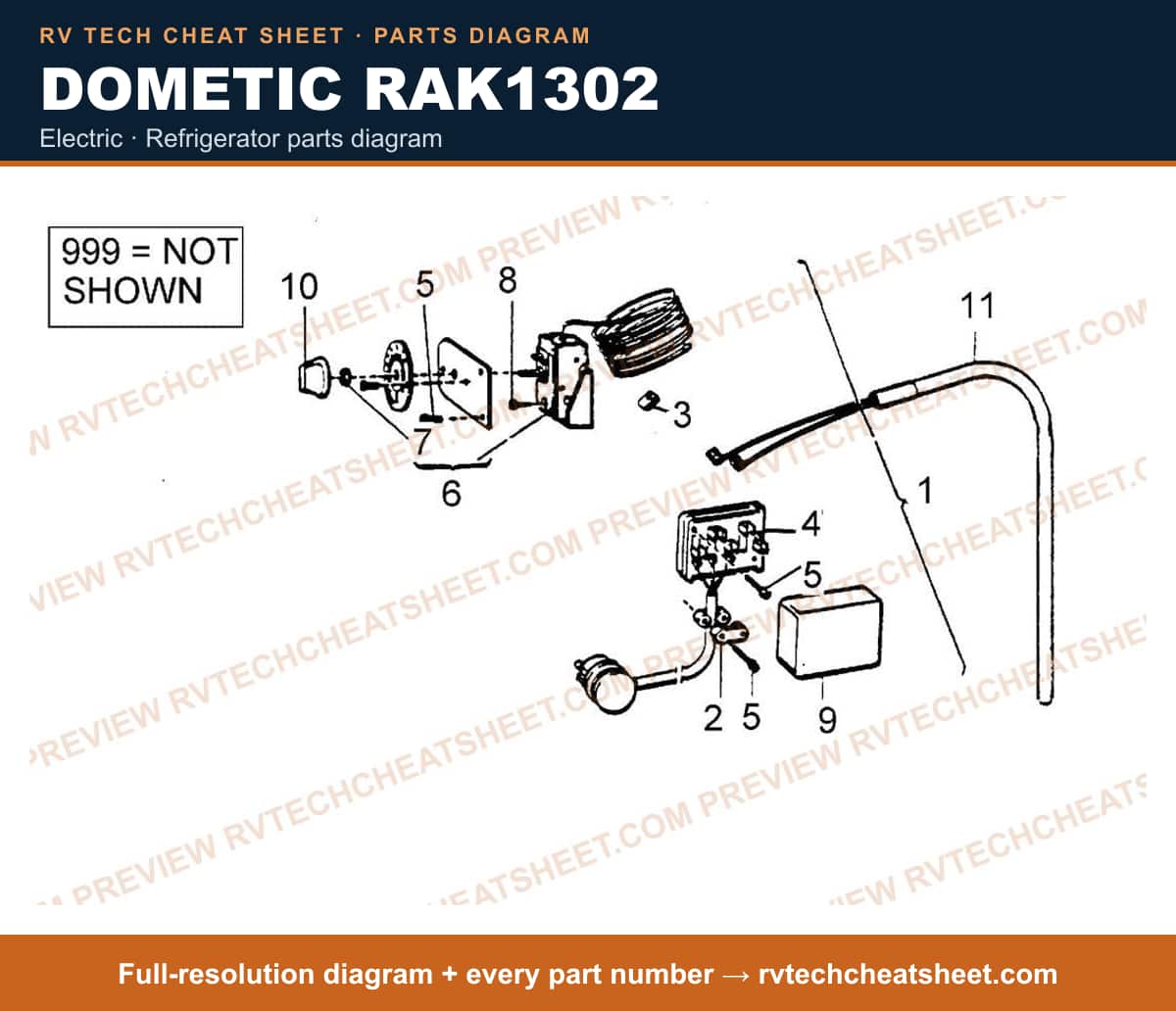

Electric

Components

15 items

1. #ELECTRIC EQUIPMENT COMPL. W / MOUNTING INSTRUCTION MFR # 2007227016
2. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
3. #Clamp MFR # 2007395003
4. #TERMINAL BLOCK MFR # 581557707
5. #NO PART # GIVEN BY VENDOR MFR # NPG
6. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
7. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
8. #NUT, HEX F/T-STAT RM22 01, RB2195 MFR # 2900705001
9. #APPLIANCE COMPONENTS RV; Cover W/Screw MFR # 581565728
10. #THERMOSTAT KNOB MFR # 2008038008
11. #ELEMENT, HEATING *Q* (25) 275W 220V 3/8" BENT MFR # 173742024
12. #Element, Heating 325W 120V MFR # CS000006
13. #Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description
14. #HEATER, 240V, 275W MFR # 173742032
15. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description

Cabinet Assembly

Components

38 items

1. #N/A CLASP,LOCKING MFR # 2930253006
2. #NO PART # GIVEN BY VENDOR MFR # NPG
3. #APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049
4. #TRAY, DRIP MFR # 162322002
5. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
6. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
7. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
8. #GUIDE MFR # 2930159005
9. #Pin, Hinge RA1302 MFR # 2930215005
10. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
11. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
12. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
13. #Appliance Components RV; Hinge Middle RA1302 MFR # 2007272046
14. #TRAY,ICE W/RELEASER MFR # 2002337000
15. #BUSHING MFR # 2910533005
16. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
17. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
18. #Shelf, Upper Use 2002652267 MFR # 2002652176 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
20. #Shelf, Middle Use 2002652259 MFR # 2002652168 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
22. #SHELF USE 2930133117 MFR # 2002650071 Superseded: see description
23. #PLATE, FREEZER USE 2007649011 4 HOLE MFR # 2007649003 Superseded: see description
24. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
25. #PLATE RETAINING MFR # 2007649011
26. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
27. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
28. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
29. #SCREW, RXS Bl0 X 16, Z. PL. MFR # 7295412014
30. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
31. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
32. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
33. #SHELF, FREEZER MFR # 2007535012
34. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
35. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
36. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
37. #LID MFR # 2007088004
38. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029
