Dometic RB2195 Product # 991630401 Parts Diagram · Rear View

Refrigerator · 4 assemblies · 4 diagram sheets · 50 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RB2195 Product # 991630401 RV refrigerator: 4 assemblies (Rear View, Thermostat, Cabinet & Door, Replacement Refrigerator) and 50 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Rear View

Components

10 items

1. #COMPRESSOR, 12V MFR # 29004712011
2. #Leveling System Hydraulic Pump;;Used With 725 Series Class C Leveling System; 12 Volt DC; 125 Amps; MFR # 2904713001
3. #FIXING PIN RETAINER MFR # 2904714009
4. #CONDENSER MFR # 2905354003
5. #DRYER MFR # 2904732001
6. #WASHER (4 REQ.) MFR # 2904715006
7. #GROMMET (4 REQ.) MFR # 2904721004
8. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
9. #BOX, CONTROL MFR # 2905836009
10. #Leveling System Hydraulic Pump;;Used With 725 Series Class A Leveling System; 12 Volt DC; 125 Amps; MFR # 2904716004

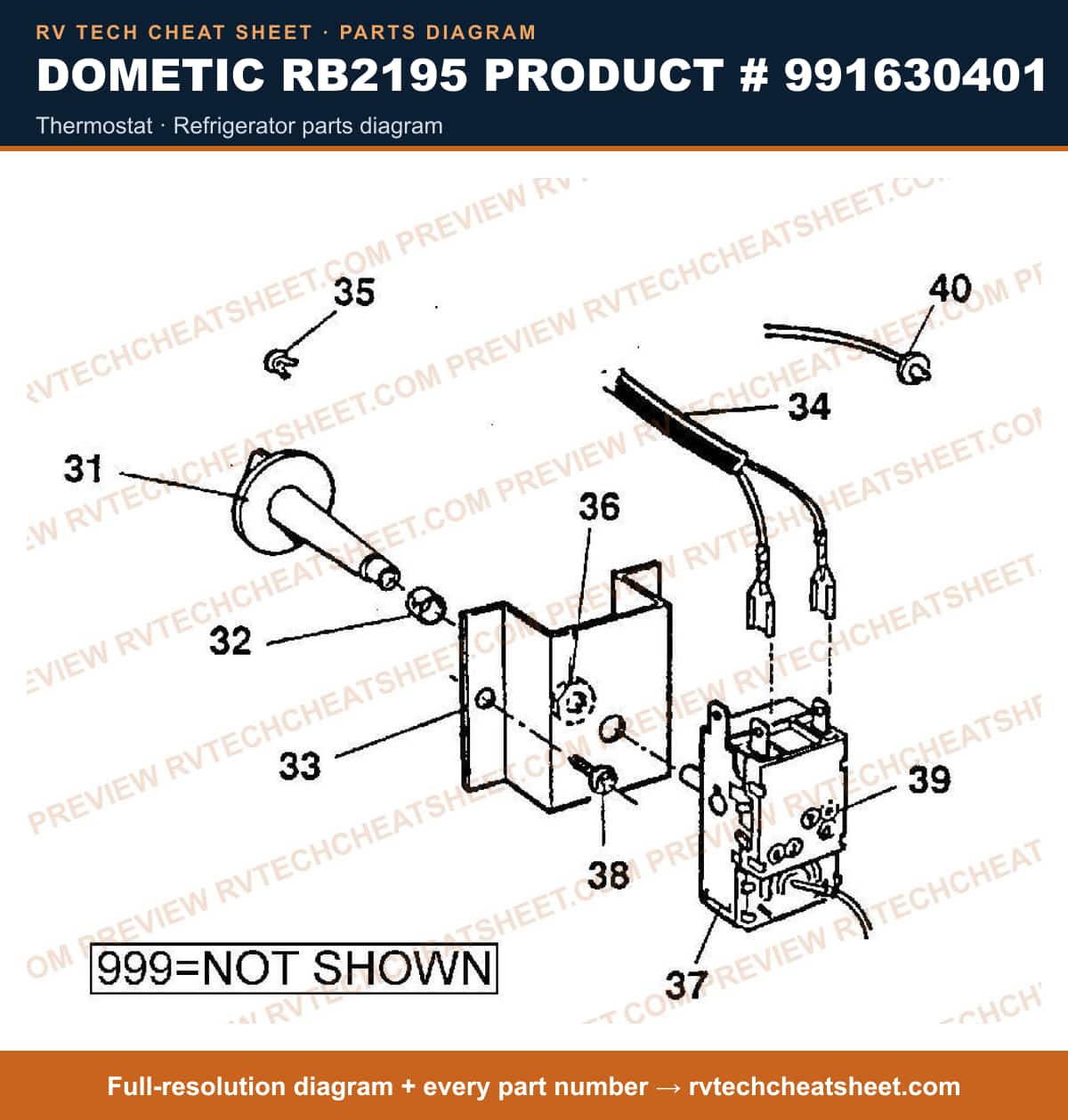

Thermostat

Components

10 items

1. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 2902514047
2. #CLIP FOR THERMOSTAT KNOB MFR # 290068003
3. #BRACKET FOR THERMOSTAT MFR # 2904692015
4. #CABLE, THERMOSTAT MFR # 2904731011
5. #INDICATOR, FOR THERMOSTAT, BROWN MFR # 292611043
6. #NUT, HEX F/T-STAT RM22 01, RB2195 MFR # 2900705001
7. #T-STAT,ELECTRIC MFR # 2902595020
8. #SCREW POSI-PAN MFR # 340484005
9. #Refrigerator Thermostat Cover; Replacement For Dometic RB2195 Refrigerator MFR # 2902607007
10. #INDICATOR, LED., 12V MFR # 2904724024

Cabinet & Door

Components

25 items

1. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
2. #CATCH,TRAVEL BLACK MFR # 2904817018
3. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
4. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
5. #SCREW, TRAVEL CATCH MFR # 2904818016
6. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
7. #TRIM,DECORATION STRIP RB21 95 MFR # 2901479184
8. #SCREW, 3/4 POZI N04 MFR # 2901431011
9. #HINGE, LOWER, R/H MFR # 2904910094
10. #HINGE,UPPER, R/H MFR # 2904910102
11. #FREEZER DOOR MFR # 2904720014
12. #TRAY,DRIP MFR # 2904695000
13. #DEFROST PLUG MFR # 2904722002
14. #CABINET SHELF (SMALL) MFR # 2904866007
15. #SHELF,CABINET MFR # 2904859002
16. #SHELF,DOOR MFR # 2904723018
17. #DOOR,MAIN W/O SHELVES RB21 95 MFR # 2904708001
18. #Hinge bearing, mushroom MFR # 2900348067
19. #TRAY,ICE MFR # 343109005
20. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
21. #HINGE, LOWER, L/H MFR # 2904910086
22. #HINGE,UPPER LH MFR # 2904910110
23. #TOP RAIL MFR # 2903801013
24. #BAR MFR # 2904889017
25. #POP RIVET MFR # 2904005002

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Single Compartment Refrigerator With Freezer; Proud Mount/ Flush Mount Without Additional Hardware; 2.7 Cubic Foot; 18-1/2 Inch Width x 21-1/16 Inch Depth(Proud Mount) 23.19 Inch Depth(Flush Mount) x 20-1/2 Inch Height; 0.7 Amps At 120 Volt AC/ 3 Amps At 12 Volt DC/ 1.5 Amps At 24 Volt DC; 2-Way Alternating Current/ Direct Current; Without Ice Maker; Dial Temperature Control; With LED Cabinet Light; Black Panel; With Shelving And Door Bins MFR # DE0251T
2. #Refrigerator; Single Compartment Refrigerator With Freezer; Proud Mount/ Flush Mount; 2.7 Cubic Foot; 18-1/2 Inch Width x 21 Inch Depth x 20-1/2 Inch Height; 0.7 Amps At 120 Volt AC/ 3 Amps At 12 Volt DC/ 1.5 Amps At 24 Volt DC; 2-Way Alternating Current/ Direct Current; With Ice Maker; Dial Temperature Control; Black Panel; With Shelving And Door Bins MFR # DE0751BBT
3. #REFER,NEW 12V COMP.TYPE 22 1 /8" X 19 5/16" X 22" MFR # RB2195N
4. #REFER 2.7 CU FT USE DE0751BB 20 1/2"H X 18 1/2"W X 21"D AC/ MFR # DE0051N Superseded: see description
5. #Refrigerator; Single Compartment Refrigerator With Freezer; Proud Mount/ Flush Mount Without Additional Hardware; 2.7 Cubic Foot; 18-1/2 Inch Width x 21-1/16 Inch Depth(Proud Mount) 23.19 Inch Depth(Flush Mount) x 20-1/2 Inch Height; 0.7 Amps At 120 Volt AC/ 3 Amps At 12 Volt DC/ 1.5 Amps At 24 Volt DC; 2-Way Alternating Current/ Direct Current; Without Ice Maker; Dial Temperature Control; With LED Cabinet Light; Black Panel; With Shelving And Door Bins MFR # DE0751BB
