Dometic RB2195 Product # 991630801 Parts Diagram · Rear View

Refrigerator · 4 assemblies · 4 diagram sheets · 55 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RB2195 Product # 991630801 RV refrigerator: 4 assemblies (Rear View, Cabinet & Door, Thermostat, Replacement Refrigerator) and 55 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Rear View

Components

13 items

1. #Leveling System Control Unit;;Use With Class C Straight-Acting Jack Leveling System; Automatic; Wit MFR # 2904712011 Superseded: see description
2. #Leveling System Hydraulic Pump;;Used With 725 Series Class C Leveling System; 12 Volt DC; 125 Amps; MFR # 2904713001
3. #FIXING PIN RETAINER MFR # 2904714009
4. #CONDENSER MFR # 2905354003
5. #DRYER MFR # 2904732001
6. #WASHER (4 REQ.) MFR # 2904715006
7. #GROMMET (4 REQ.) MFR # 2904721004
8. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
9. #POWER PACK AC/DC 110V/12V MFR # 2905372005
10. #BOX, CONTROL MFR # 2905836009
11. #Leveling System Hydraulic Pump;;Used With 725 Series Class A Leveling System; 12 Volt DC; 125 Amps; MFR # 2904716004
12. #COVER, POWER PACK MFR # 2905369001
13. #PLATE, SUB MFR # 2905423006

Cabinet & Door

Components

26 items

1. #CATCH,TRAVEL BLACK MFR # 2904817018
2. #SCREW, TRAVEL CATCH MFR # 2904818016
3. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
4. #PANEL, DOOR INSERT, WHITE MFR # 2903106157
5. #STRIP DOOR WHITE MFR # 2903080063
6. #HINGE,UPPER, R/H MFR # 2904910102
7. #HINGE, LOWER, R/H MFR # 2904910094
8. #TRAY,DRIP MFR # 2904695000
9. #DEFROST PLUG MFR # 2904722002
10. #CABINET SHELF (SMALL) MFR # 2904866007
11. #SHELF,CABINET MFR # 2904859002
12. #SHELF,DOOR MFR # 2904723018
13. #DOOR,MAIN W/O SHELVES RB21 95 MFR # 2904708001
14. #APPLIANCE COMPONENTS RV; Bearing Hinge Pin MFR # 2900348000
15. #TRAY,ICE MFR # 343109005
16. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
17. #HINGE, LOWER, L/H MFR # 2904910086
18. #HINGE,UPPER LH MFR # 2904910110
19. #APPLIANCE COMPONENTS RV; Rail Top & Bottom Rm2190 MFR # 2903801005
20. #TOP RAIL MFR # 2903801013
21. #BAR MFR # 2904889017
22. #POP RIVET MFR # 2904005002
23. #EVAPORATOR ASSM NLA MFR # 2904654007
24. #FREEZER DOOR MFR # 2904720014
25. #RUNNER, SIDE, L/H MFR # 2904915036
26. #RUNNER, SIDE, R/H MFR # 2904915028

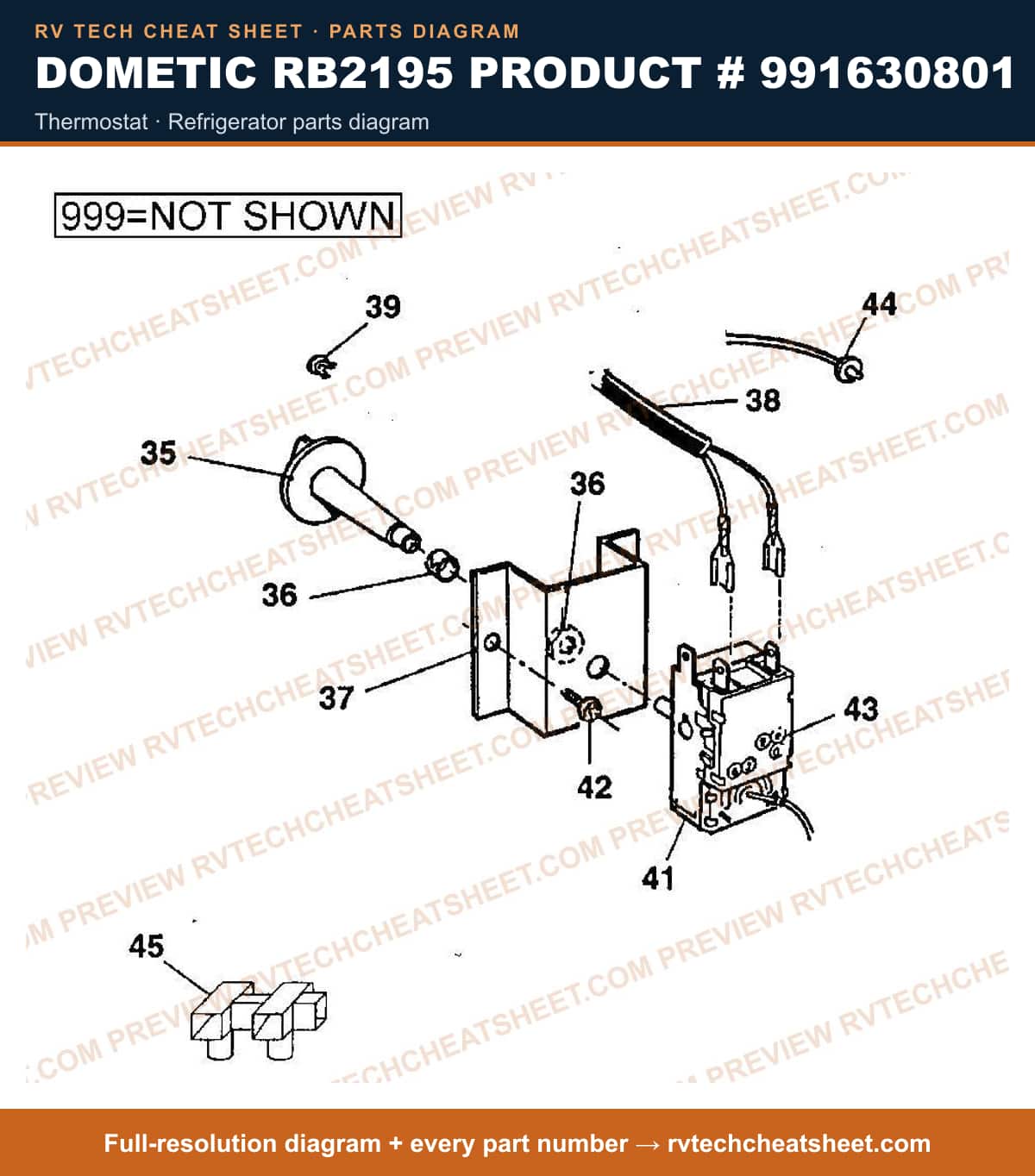

Thermostat

Components

11 items

1. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 2902514047
2. #CLIP FOR THERMOSTAT KNOB MFR # 290068003
3. #BRACKET FOR THERMOSTAT MFR # 2904692015
4. #CABLE, THERMOSTAT MFR # 2904731011
5. #INDICATOR, FOR THERMOSTAT, BROWN MFR # 292611043
6. #NUT, HEX F/T-STAT RM22 01, RB2195 MFR # 2900705001
7. #T-STAT,ELECTRIC MFR # 2902595020
8. #SCREW POSI-PAN MFR # 340484005
9. #Refrigerator Thermostat Cover; Replacement For Dometic RB2195 Refrigerator MFR # 2902607007
10. #INDICATOR, LED., 12V MFR # 2904724024
11. #TERMINAL BLOCK, 30 AMP MFR # 2904831001

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Single Compartment Refrigerator With Freezer; Proud Mount/ Flush Mount Without Additional Hardware; 2.7 Cubic Foot; 18-1/2 Inch Width x 21-1/16 Inch Depth(Proud Mount) 23.19 Inch Depth(Flush Mount) x 20-1/2 Inch Height; 0.7 Amps At 120 Volt AC/ 3 Amps At 12 Volt DC/ 1.5 Amps At 24 Volt DC; 2-Way Alternating Current/ Direct Current; Without Ice Maker; Dial Temperature Control; With LED Cabinet Light; Black Panel; With Shelving And Door Bins MFR # DE0751BB
2. #REFER,NEW 12V COMP.TYPE 22 1 /8" X 19 5/16" X 22" MFR # RB2195N
3. #Refrigerator; Single Compartment Refrigerator With Freezer; Proud Mount/ Flush Mount; 2.7 Cubic Foot; 18-1/2 Inch Width x 21 Inch Depth x 20-1/2 Inch Height; 0.7 Amps At 120 Volt AC/ 3 Amps At 12 Volt DC/ 1.5 Amps At 24 Volt DC; 2-Way Alternating Current/ Direct Current; With Ice Maker; Dial Temperature Control; Black Panel; With Shelving And Door Bins MFR # DE0751BBT
4. #REFER 2.7 CU FT USE DE0751BB 20 1/2"H X 18 1/2"W X 21"D AC/ MFR # DE0051N Superseded: see description
5. #Refrigerator; Single Compartment Refrigerator With Freezer; Proud Mount/ Flush Mount Without Additional Hardware; 2.7 Cubic Foot; 18-1/2 Inch Width x 21-1/16 Inch Depth(Proud Mount) 23.19 Inch Depth(Flush Mount) x 20-1/2 Inch Height; 0.7 Amps At 120 Volt AC/ 3 Amps At 12 Volt DC/ 1.5 Amps At 24 Volt DC; 2-Way Alternating Current/ Direct Current; Without Ice Maker; Dial Temperature Control; With LED Cabinet Light; Black Panel; With Shelving And Door Bins MFR # DE0251T
