Dometic RB2205 Parts Diagram · Cabinet Components

Refrigerator · 3 assemblies · 3 diagram sheets · 23 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RB2205 RV refrigerator: 3 assemblies (Cabinet Components, Cooling Components, Door Components) and 23 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

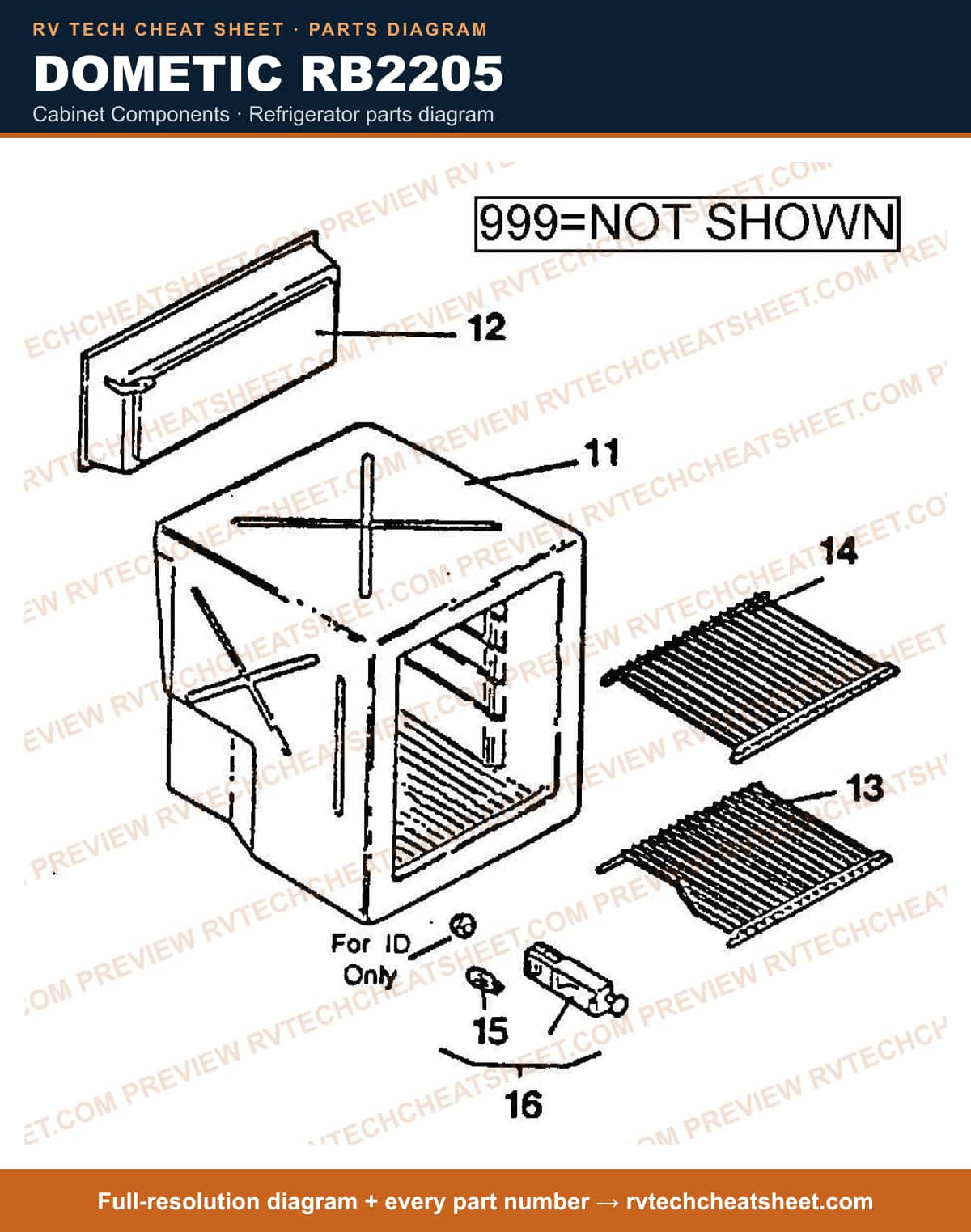

Cabinet Components

Components

5 items

1. #CONTAINER MFR # 2942709003
2. #COVER MFR # 2962808008
3. #SHELF, LOWER MFR # 2929427082
4. #SHELF, UPPER MFR # 2929427074
5. #LIGHTING ASM. MFR # 2969814009

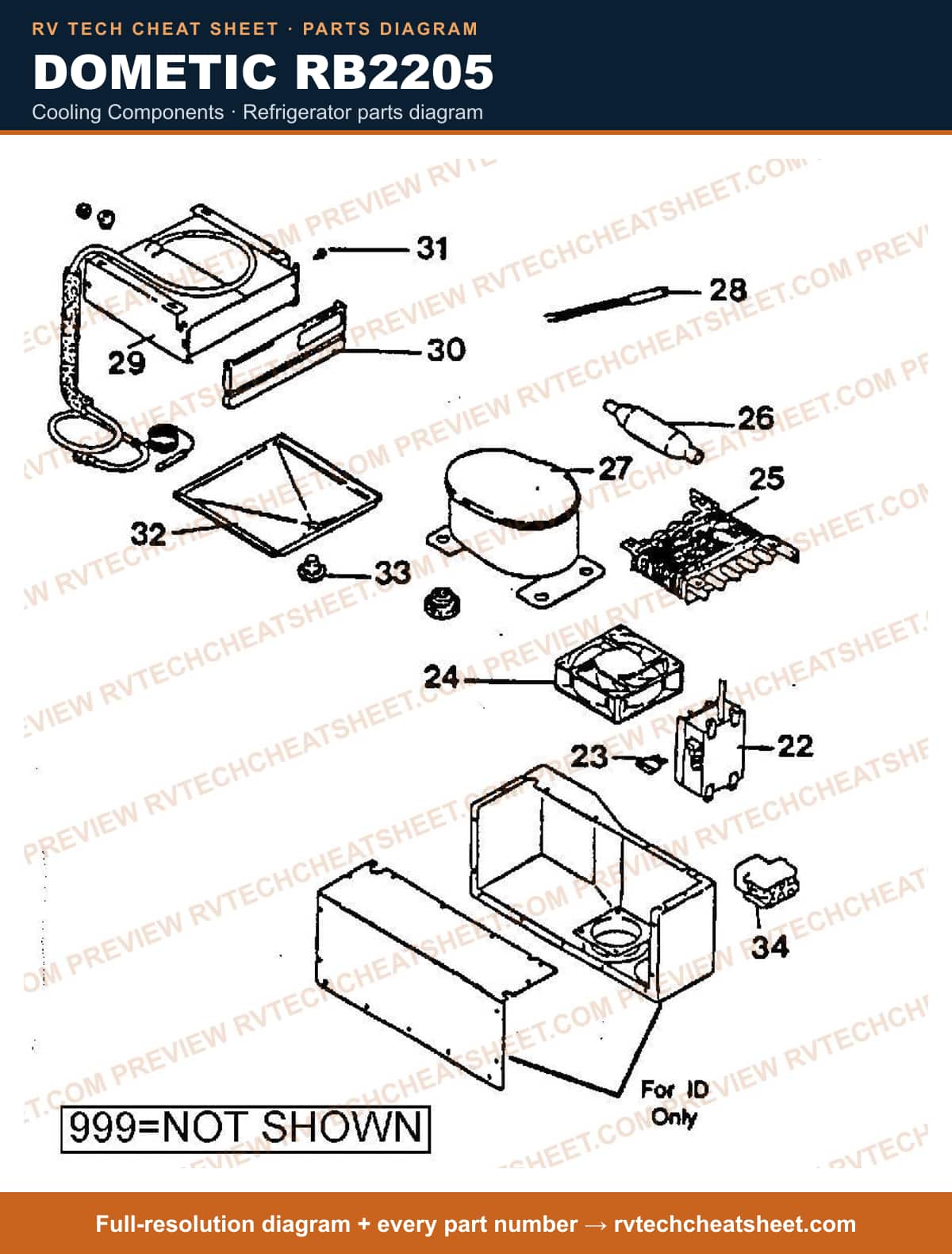

Cooling Components

Components

13 items

1. #ELECTRONICS MFR # 2969704028
2. #FUSE, PLAIN MFR # 2969243407
3. #FAN MFR # 2969710009
4. #CONDENSER MFR # 2928566112
5. #DRIER MFR # 2920945009
6. #COMPRESSOR MFR # 2969702022
7. #SENSOR MFR # 2969711015
8. #EVAPORATOR MFR # 2965006006
9. #FLAP MFR # 2963428004
10. #RIVET MFR # 2928403001
11. #DRIP TRAY MFR # 2963427006
12. #STOPPER MFR # 2964722009
13. #HOUSING, PLUG MFR # 2929466064

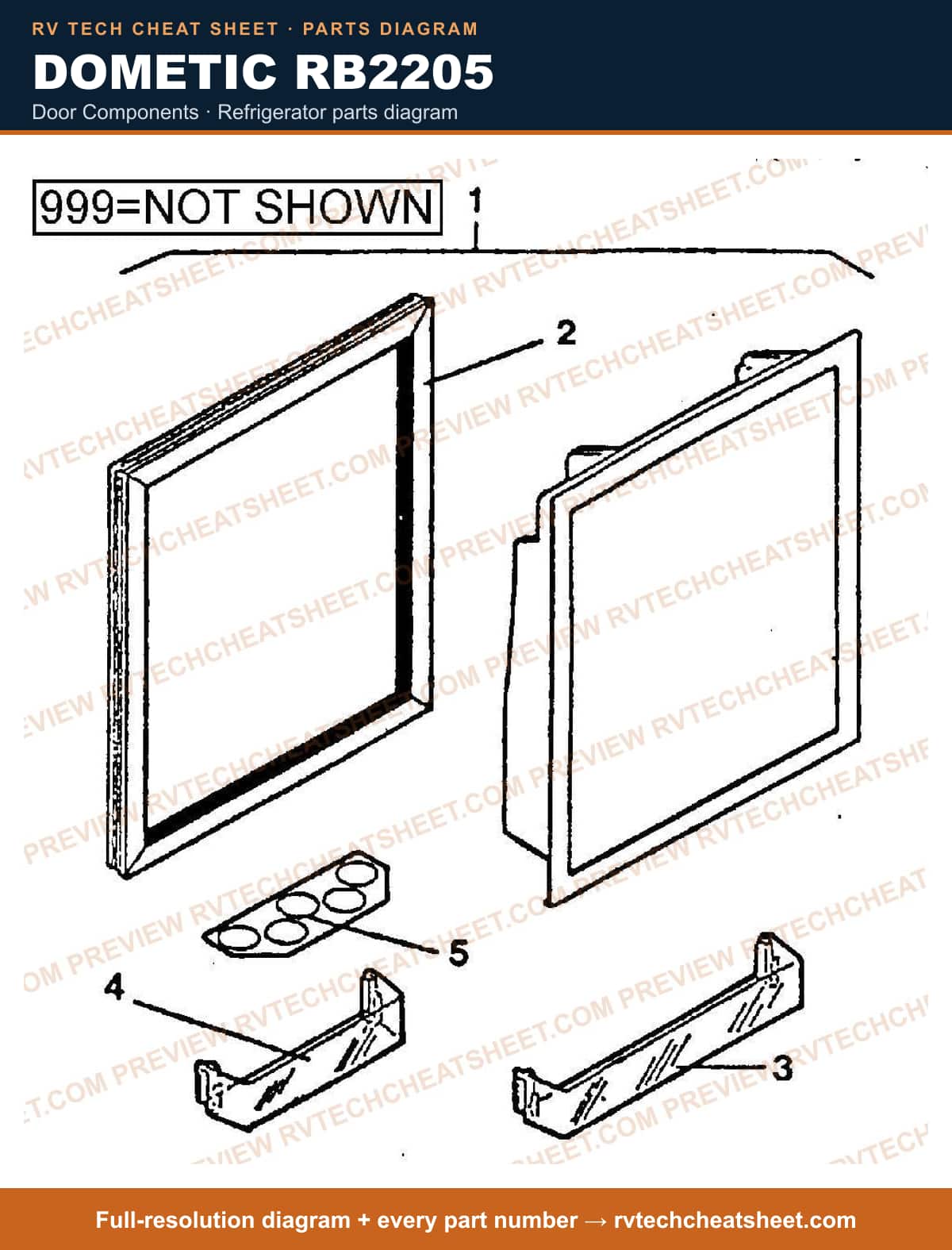

Door Components

Components

5 items

1. #DOOR ASM., WITH GASKET MFR # 2942807005
2. #DOOR GASKET MFR # 2945102016
3. #DOOR SHELF, LOWER MFR # 2928160163
4. #DOOR SHELF, UPPER MFR # 2963426008
5. #EGG COMPARTMENT MFR # 2963425000
