Dometic RB2265 Parts Diagram · Cabinet Assembly

Refrigerator · 2 assemblies · 2 diagram sheets · 43 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RB2265 RV refrigerator: 2 assemblies (Cabinet Assembly, Cabinet Rearview Assembly) and 43 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

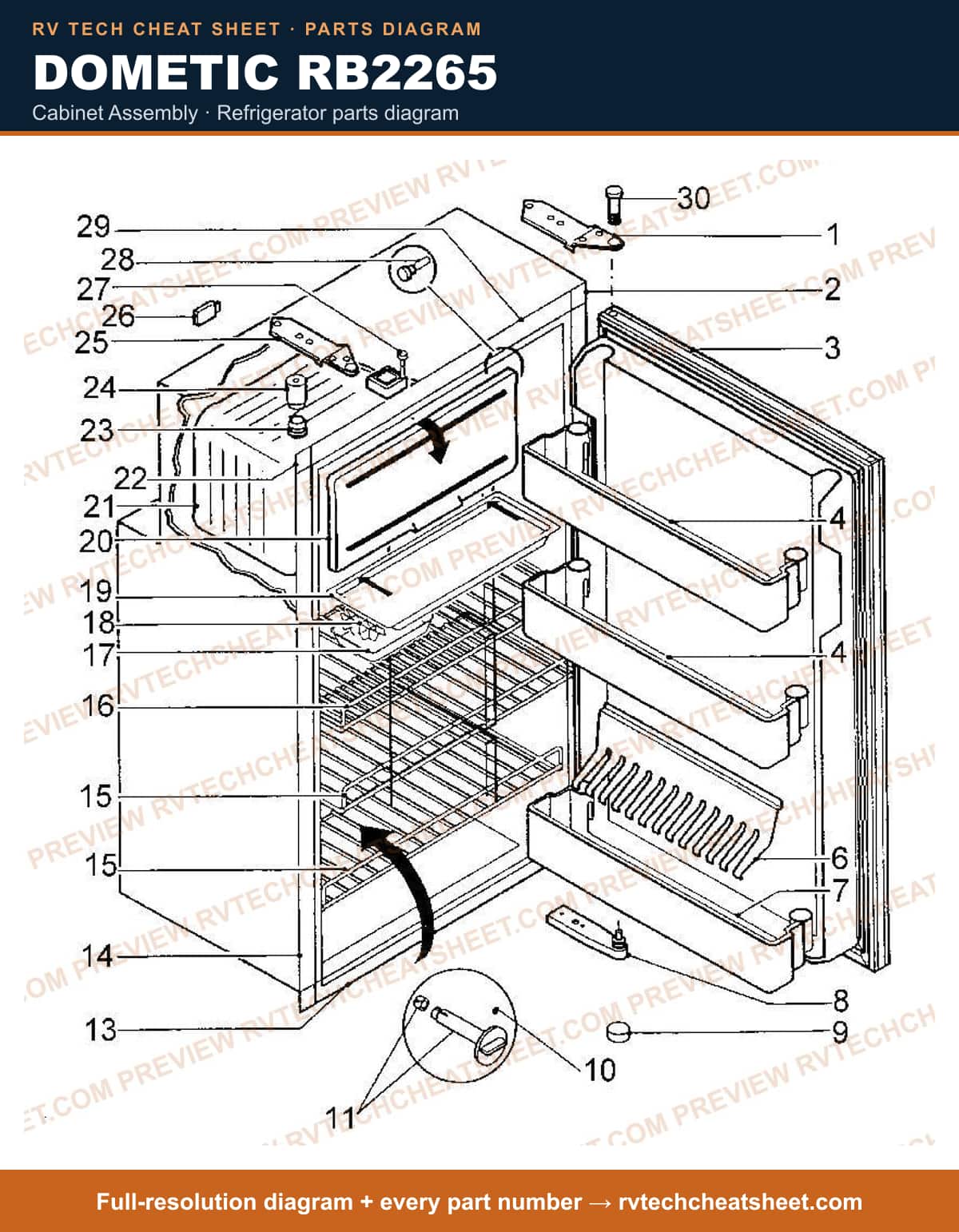

Cabinet Assembly

Components

29 items

1. #HINGE, R/H, UPPER MFR # 2904671068
2. #MOULDING, CORNER, WHITE, R/H MFR # 2905004012
3. #DOOR, CPL, WHITE (LESS SHELVES AND BOTTLE HOLDER) MFR # 2904660046
4. #SHELF,DOOR UPPER MFR # 2904618002
5. #BOTTLE FINGERS, WHITE MFR # 2904780034
6. #SHELF, DOOR LOWER MFR # 2904619000
7. #HINGE,LOWER MFR # 2905127003
8. #FOOT MFR # 2905340002
9. #INDICATOR DOT, THERMOSTAT (PINK) MFR # 292611050
10. #KNOB,T-STAT WHITE MFR # 2904390222
11. #FLANGE, BOTTOM, WHITE MFR # 2905534018
12. #SHELF MFR # 2905290025
13. #SHELF,PARTIAL DEP. MFR # 2905290033
14. #TRAY, ICE MFR # 2901681003
15. #ICE CUBE DIVIDER N/A MFR # 2901713004
16. #TRAY,DRIP MFR # 2905429003
17. #EVAPORATOR, ASSY MFR # 2905418022
18. #EVAPORATOR, ASSY MFR # 2905450017
19. #MOULDING, CORNER, WHITE, L/H MFR # 2905005019
20. #RETAINER GROMMIT, QUICK FIT MFR # 2905485005
21. #SUPPORT , EVAPORATOR, 1 1/2MM, FRONT MFR # 2904679012
22. #SUPPORT, EVAPORATOR, 3MM, REAR MFR # 2904679020
23. #HINGE, L/H, UPPER MFR # 2904672066
24. #SCREW CAPS, SET OF FOUR MFR # 2905421000
25. #LATCH,TRAVEL MFR # 2905126013
26. #PIN, HINGE, EVAPORATOR DOOR MFR # 2905432007
27. #FLANGE, TOP, WHITE MFR # 2905535015
28. #Refrigerator Support Rail Screw; Use With Dometic Refrigerator Model RB2265; Upper Hinge MFR # 2904752033 Superseded: see description
29. #PIN,HINGE USE 2904752033 MFR # 2904752058 Superseded: see description

Cabinet Rearview Assembly

Components

14 items

1. #COMPRESSOR RB22 65 MFR # 2904712052
2. #Leveling System Hydraulic Pump;;Used With 725 Series Class C Leveling System; 12 Volt DC; 125 Amps; MFR # 2904713001
3. #WASHER (4 REQ.) MFR # 2904715006
4. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
5. #FIXING PIN RETAINER MFR # 2904714009
6. #T-STAT,ELECTRIC MFR # 2902595020
7. #CONDENSER MFR # 2905477002
8. #BOX, CONTROL MFR # 2905836009
9. #DRYER MFR # 2904732001
10. #TERMINAL BLOCK, 30 AMP MFR # 2904831001
11. #POWER PACK AC/DC 110V/12V MFR # 2905372005
12. #INSTRUCTIONS, RB2265 MFR # 8222602008
13. #APPLIANCE COMPONENTS RV; Power Pack Ac/Dc 220V MFR # 2905372013
14. #POWER PACK,AC/DC 110/220/12 MFR # 2905476004
