Dometic RB2405 Parts Diagram · Refrigerator Replacement

Refrigerator · 4 assemblies · 4 diagram sheets · 91 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RB2405 RV refrigerator: 4 assemblies (Refrigerator Replacement, Cabinet Assembly, Rear View, Door Assembly) and 91 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Refrigerator Replacement

Components

2 items

1. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
2. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N

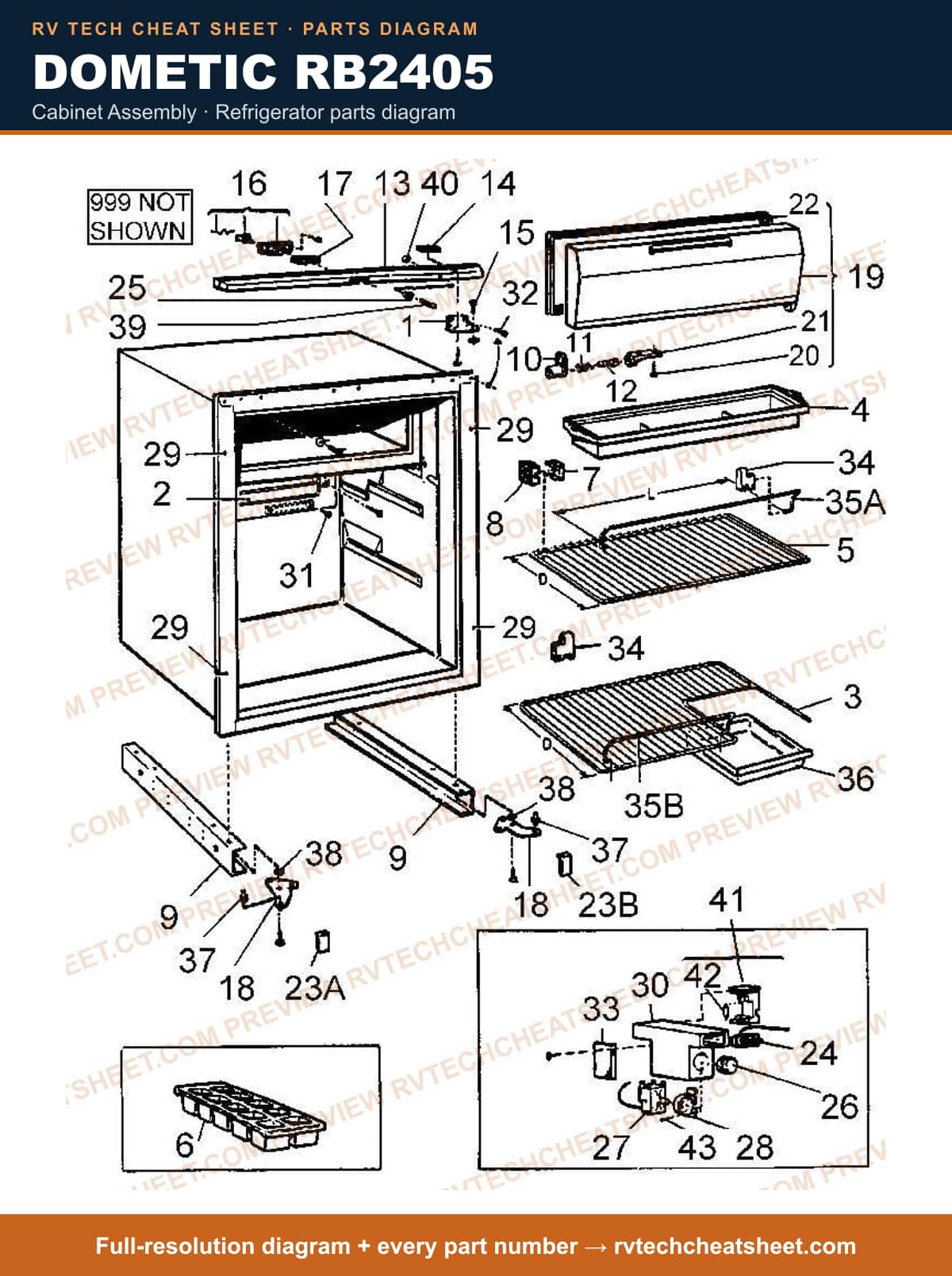

Cabinet Assembly

Components

65 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #EVAPORATOR RB2405 MFR # 2931026013
3. #SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067
5. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
6. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
7. #SHELF, WIRE USE 2002652242 MDL#660 9.5" DEEP MFR # 2002652150 Superseded: see description
8. #SHELF, 9.5" X 17 7/8" MFR # 2002652242
9. #TRAY,ICE MFR # 343109005
10. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
11. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
12. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
13. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
14. #BASE, LH MFR # 2931036020
15. #BASE, RH MFR # 2931036012
16. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
17. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
18. #Spring, Freezer Door RH MFR # 2002237010
19. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
20. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
21. #APPLIANCE COMPONENTS RV; Door Front Upper MFR # 2931058016
22. #APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005
23. #Pin, Hinge Upper MFR # 2930612003
24. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027
25. #APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021
26. #PIN,HINGE MFR # 2007597012
27. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
28. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
29. #SHUTTER USE 2002239271 MFR # 2002239198 Superseded: see description
30. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
32. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
33. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
34. #COVER PLATE, LH MFR # 2931034017
35. #COVER PLATE, RH MFR # 2931033019
36. #SWITCH, LIGHT WH USE 3850959010 DOOR-ACTIVA MFR # 2940825009 Superseded: see description
37. #S,SWITCH,DR LIGHT,DMR702 MFR # 3850959010
38. #HOLDER DIODE MFR # 2931059014
39. #Refrigerator Thermostat Control Knob; Use With Dometic Refrigerator Model RB2405 MFR # 2004067183 Superseded: see description
40. #T-STAT MFR # 2931072017
41. #RETAINER, T-STAT INCL UDES LOCK PIN MFR # 2004042004
42. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
43. #Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description
44. #COVER, LIGHT USE 2004044091 MFR # 2004044083 Superseded: see description
45. #COVER, LIGHT SWITCH MFR # 2004044109
46. #2004044091 MFR # 2004044091
47. #COVER, CONTROLS USE 2004044091 MFR # 2004044075 Superseded: see description
48. #SCREW MFR # 7241287403
49. #APPLIANCE COMPONENTS RV; Screw MFR # 7241323612
50. #SHADE, LAMP MFR # 2004043002
51. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
52. #RETAINER USE 2930693045 MFR # 2930693029 Superseded: see description
53. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
54. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
55. #APPLIANCE COMPONENTS RV; Bar L Approx 8" 460-660 MFR # 2007337062
56. #APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011
57. #TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description
58. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description
59. #WASHER MFR # 7344926014
60. #APPLIANCE COMPONENTS RV; Diode Rm2405 MFR # 2931060012
61. #RING, PANEL HOLDER MFR # 2931061010
62. #APPLIANCE COMPONENTS RV; Light 12V MFR # 2930744012
63. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
64. #BULB 2/PK MFR # 2007290006
65. #PIN,RETAINING MFR # 2001281019

Rear View

Components

9 items

1. #DRYER MFR # 2006378000
2. #Ice Machine Condenser; For Use With RB2405 MFR # 2931073015 Superseded: see description
3. #ELECTRIC UNIT RB24 05 MFR # 2931029017
4. #NO PART # GIVEN BY VENDOR MFR # NPG
5. #SPACER SCREW MFR # 2931028027
6. #Spacer Screw MFR # 2001759006
7. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Washer Lock Rb2405 MFR # 7322116513
9. #COMPRESSOR HOLDER MFR # 2931021014

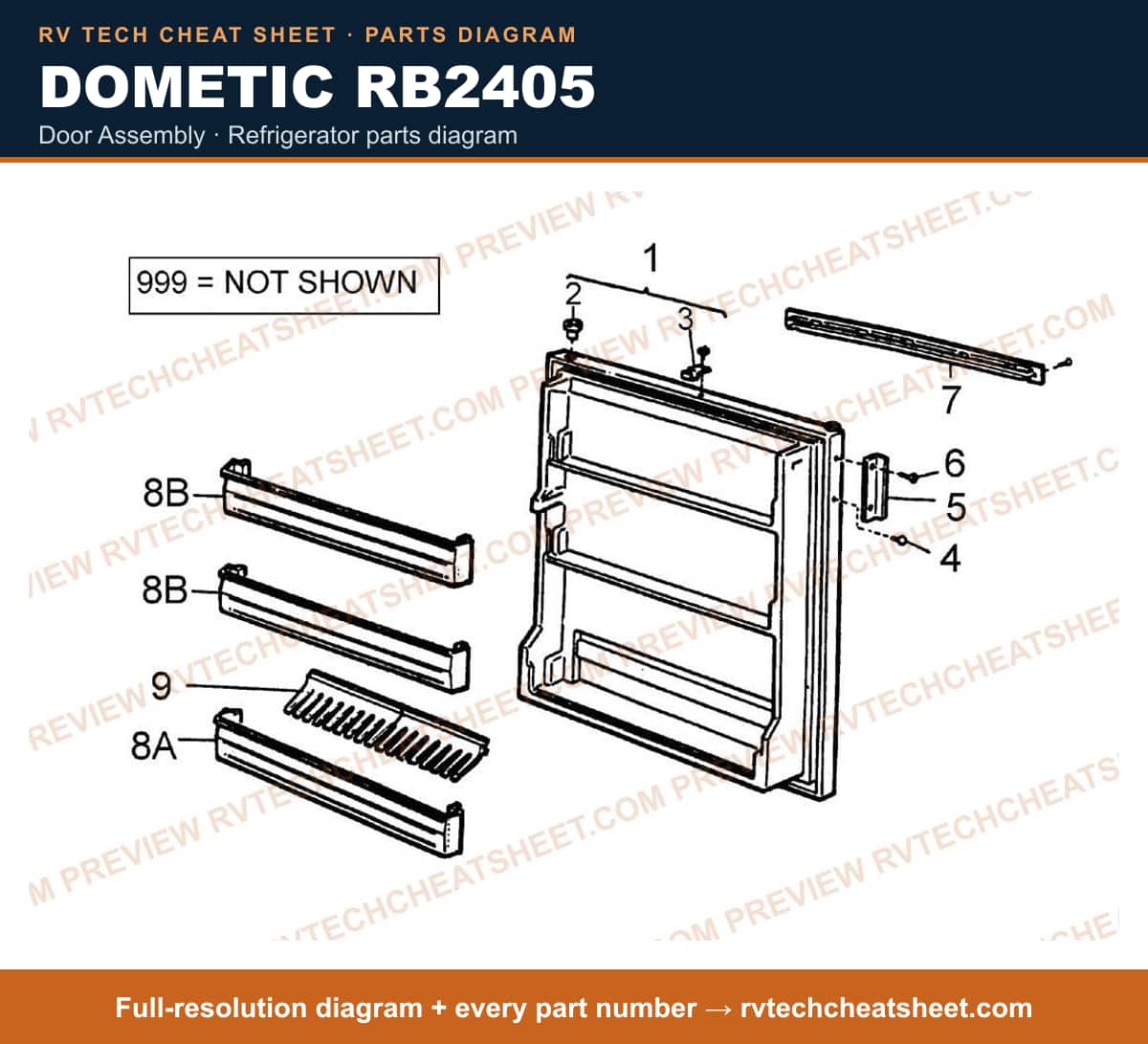

Door Assembly

Components

15 items

1. #Appliance Components RV; Gasket Kit MFR # 3103691006
2. #DOOR, WITHOUT SHELVES MFR # 2931035014
3. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
4. #APPLIANCE COMPONENTS RV; Retainer Catch 2300 MFR # 2930994013
5. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # FR# 2930736018 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
7. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
8. #DECORATION STRIP "DOMETIC" MFR # 2930640368
9. #SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description
10. #S,SHELF,DR,WHT,2410/2510/2620 MFR # 2000571253
11. #SHELF, UPPER USE 2000571253 RM2410 FOR DOOR SHELF RETAINER USE 2000571170 DOOR TAKES 3 SHELVES. DEALER DOES NOT HAVE TO ORDER ALL THREE SHELVES. THE DOOR ITSELF JUST TAKES 3 OF T... MFR # 2000571220 Superseded: see description
12. #SHELF, DOOR USE 2000571220 LOWER MFR # 2000571196 Superseded: see description
13. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
14. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020
15. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012
