Dometic RC1070 Parts Diagram · Control Components

Refrigerator · 4 assemblies · 4 diagram sheets · 34 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RC1070 RV refrigerator: 4 assemblies (Control Components, Cabinet Assembly, Cooling Components, Power Supply Options) and 34 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

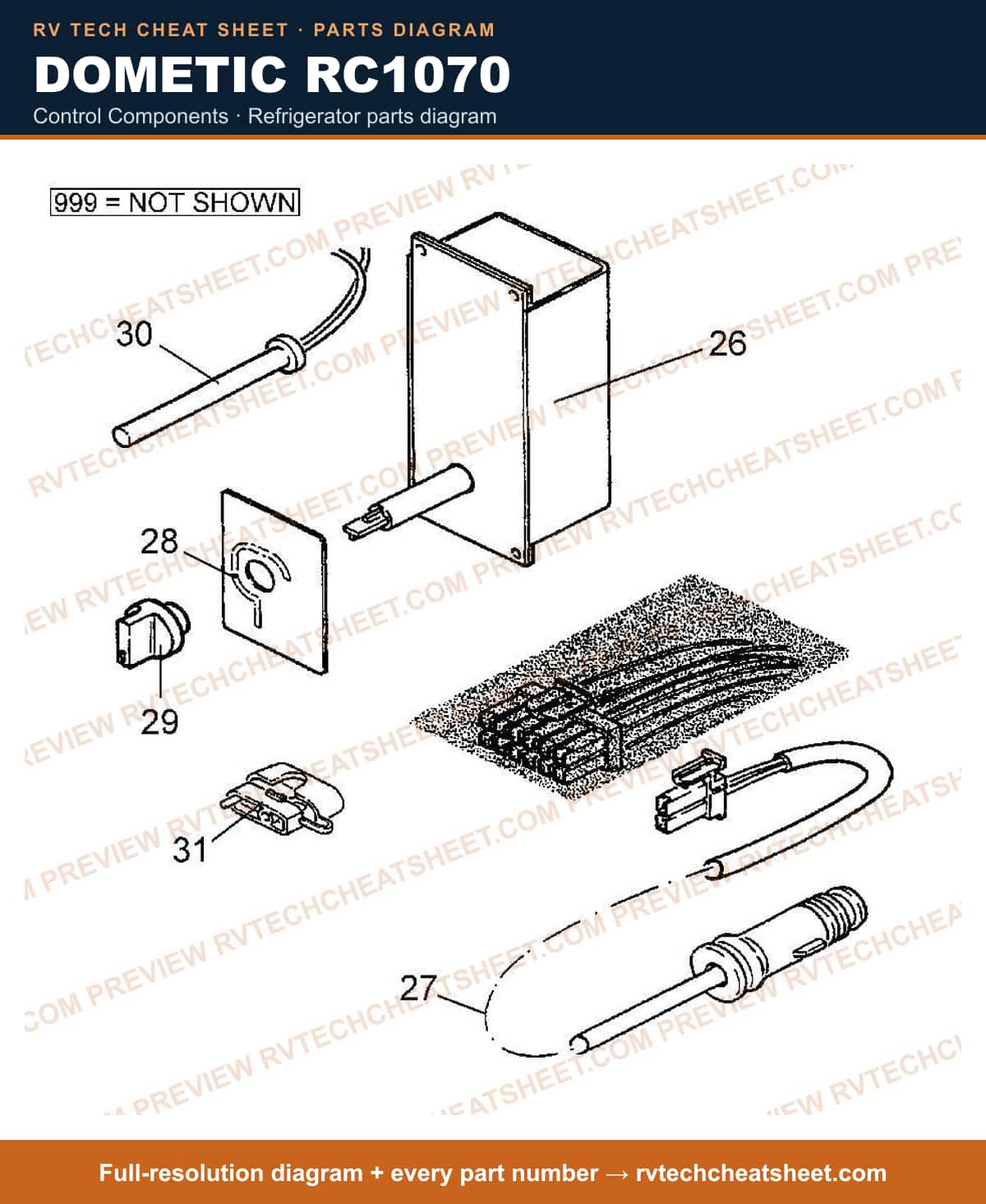

Control Components

Components

8 items

1. #Refrigerator Thermostat Control Assembly; For Dometic Refrigerator Model RC1070 MFR # 2969716030
2. #ELECTRONICS MFR # 2969716014
3. #CONNECTION CABLE, 12V MFR # 2969907001
4. #PANEL MFR # 2945227003
5. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
6. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
7. #THERMOSENSOR MFR # 2969804026
8. #CLIP MFR # 2922367103

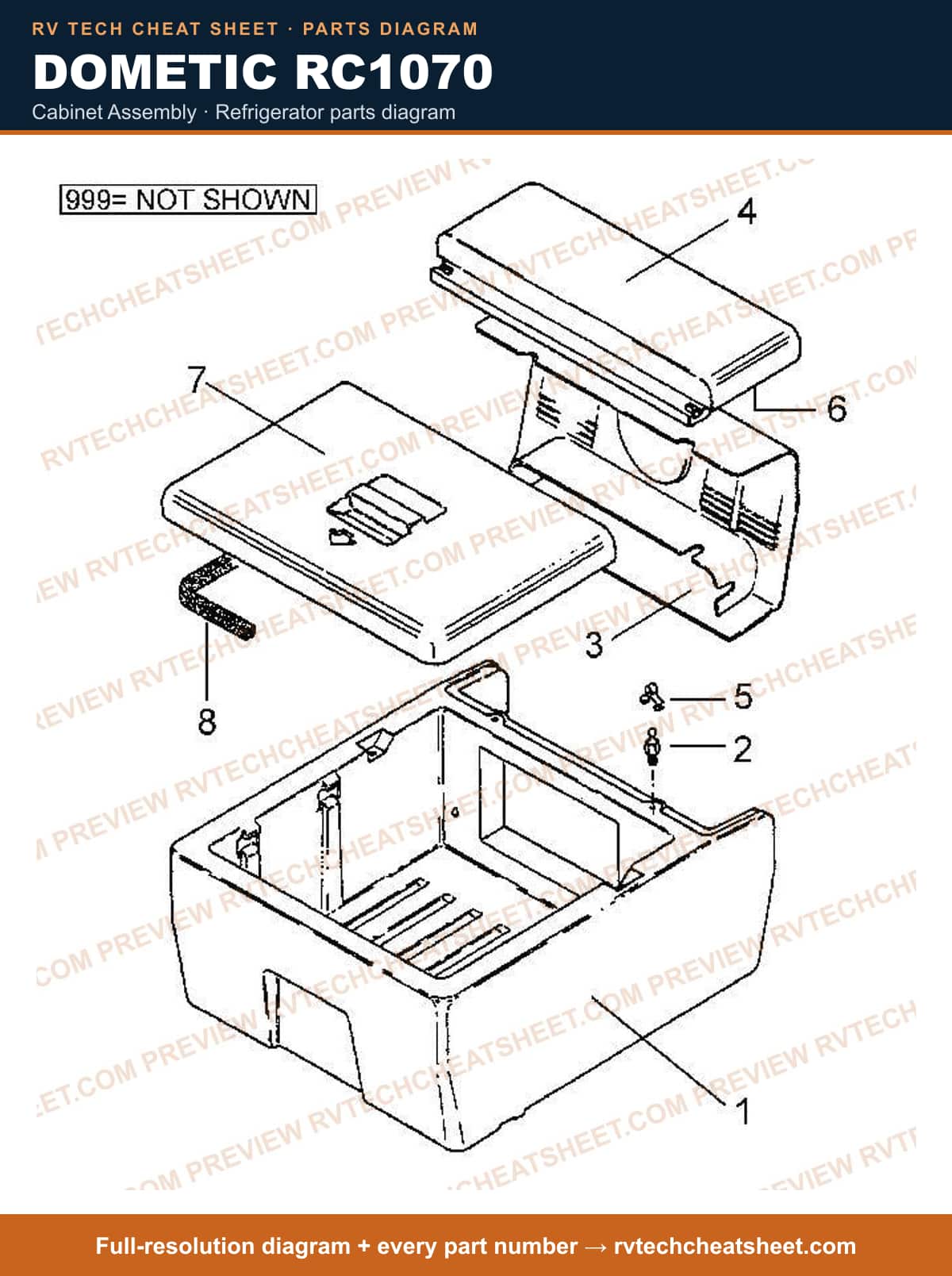

Cabinet Assembly

Components

8 items

1. #CONTAINER MFR # 2942708500
2. #PEG, RAPID MFR # 2963813007
3. #COVER MFR # 2963211004
4. #LID, BEHIND WITH GASKET MFR # 2942806007
5. #TERMINAL, RAPID MFR # 2963914003
6. #GASKET, LID 600 MM LONG MFR # 2945106009
7. #LID, IN FRONT WITH GASKET MFR # 2942806015
8. #GASKET, LID 1200 MM LONG MFR # 2945106033

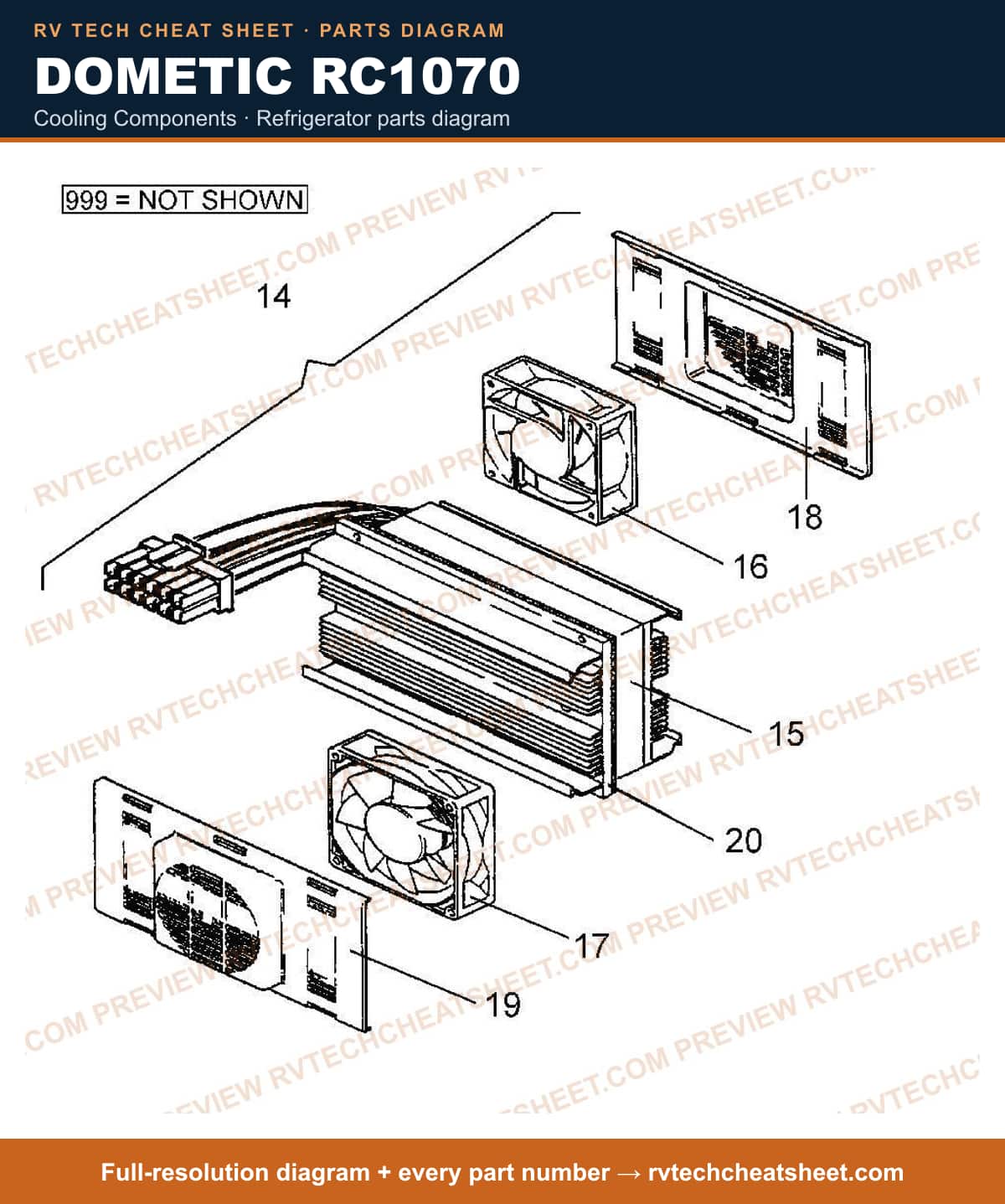

Cooling Components

Components

7 items

1. #2969716006 MFR # 2969716006
2. #2969716022 MFR # 2969716022
3. #2969710025 MFR # 2969710025
4. #2969710033 MFR # 2969710033
5. #2963424011 MFR # 2963424011
6. #2963424003 MFR # 2963424003
7. #2945106025 MFR # 2945106025

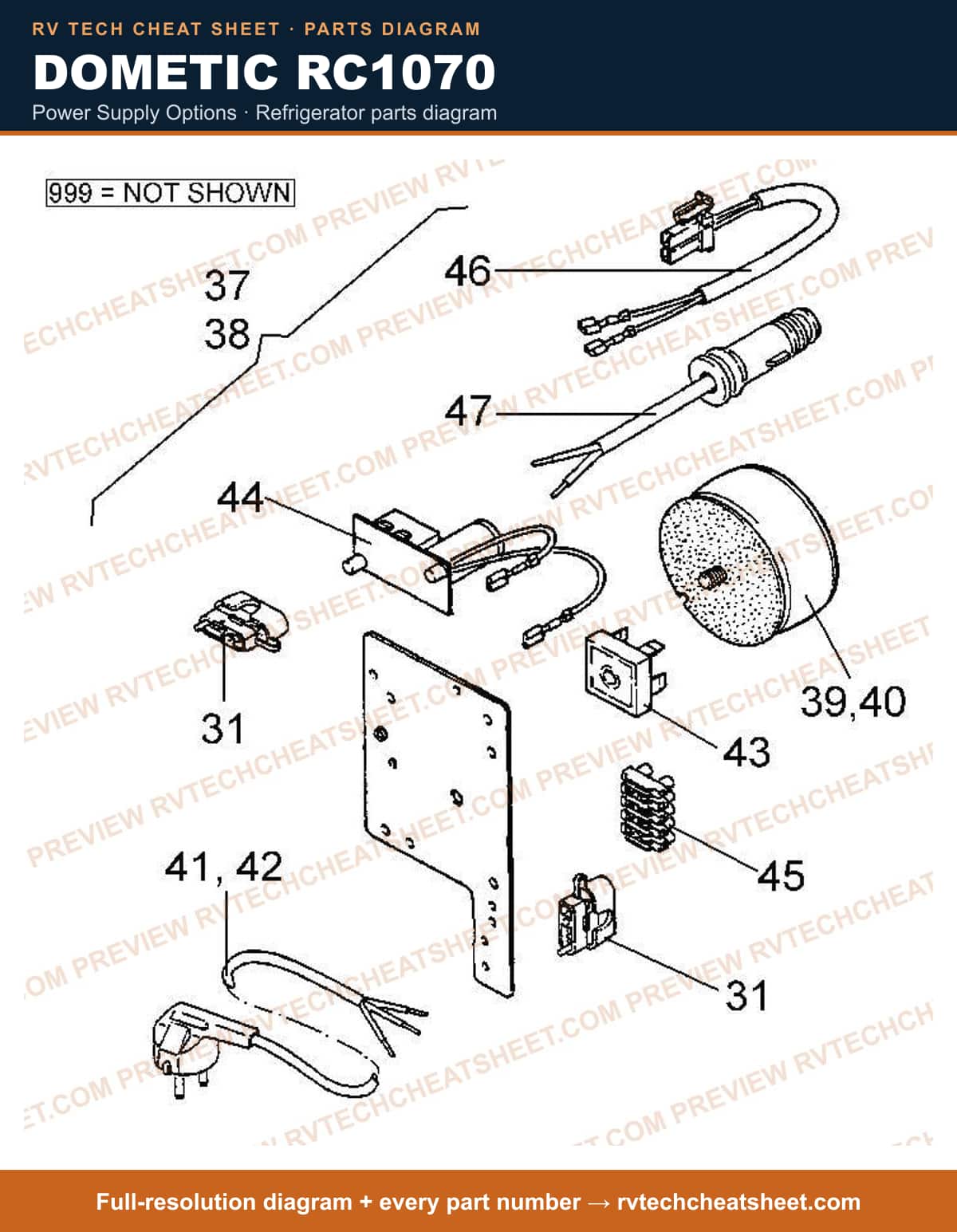

Power Supply Options

Components

12 items

1. #CLIP MFR # 2922367103
2. #TERMINAL MULTIPLEXER 230V RC1070 MFR # 9911851013
3. #Refrigerator Terminal Block; Replacement For Dometic RC1070 Refrigerators MFR # 9911852011
4. #TRANSFORMER 230 VOLT MFR # 2969752001
5. #TRANSFORMER 120 VOLT MFR # 2969752019
6. #CONNECTION CABLE., 230 VOLT MFR # 2969907100
7. #CONNECTION CABLE 120 VOLT MFR # 2969907118
8. #RECTIFIER MFR # 2929579007
9. #APPLIANCE COMPONENTS RV; Board Asm Pc. MFR # 2969751003
10. #TERMINAL BLOCK MFR # 2922404302
11. #CONNECTION CORD MFR # 2968937009
12. #Refrigerator Wiring Harness; For Dometic Refrigerator Model RC1070 MFR # 2969907209
