Dometic RC10702 Product # 958360702 Parts Diagram · Cabinet Components

Refrigerator · 2 assemblies · 2 diagram sheets · 15 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RC10702 Product # 958360702 RV refrigerator: 2 assemblies (Cabinet Components, Controls) and 15 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

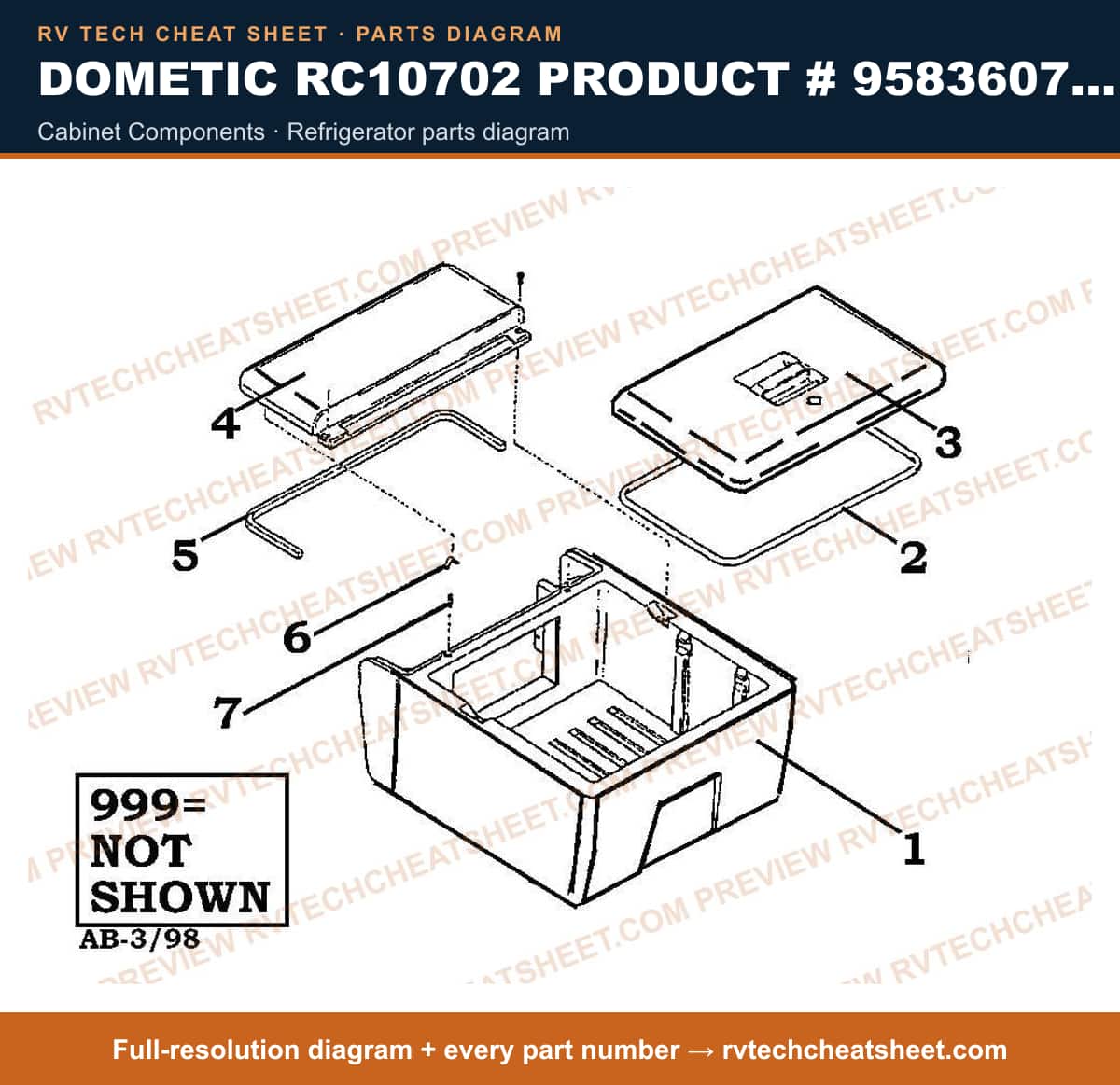

Cabinet Components

Components

7 items

1. #HOUSING, FOAMED BLUE MFR # 2942708112
2. #GASKET, LID FRONT MFR # 2945106132
3. #LID, BLUE FRONT MFR # 2942806056
4. #LID, BLUE BACK MFR # 2942806049
5. #GASKET, LID BACK MFR # 2945106108
6. #TERMINAL, RAPID MFR # 2963914003
7. #PEG, RAPID MFR # 2963813007

Controls

Components

8 items

1. #COVER MFR # 2963211046
2. #CONNECTION CABLE MFR # 2922015280
3. #SWITCH, 1-POL. MFR # 2929865018
4. #TENSION RELIEF MFR # 2922367020
5. #Refrigerator Terminal Block; Replacement For Dometic RC10702 Refrigerators MFR # 2928109061
6. #COOLING BLOCK MFR # 2969716550
7. #FAN, KD 1209 (2 REQ.) MFR # 2969710074
8. #2963424003 MFR # 2963424003
