Refrigerator · 2 assemblies · 2 diagram sheets · 14 parts · by Andrew Strick, mobile RV technician

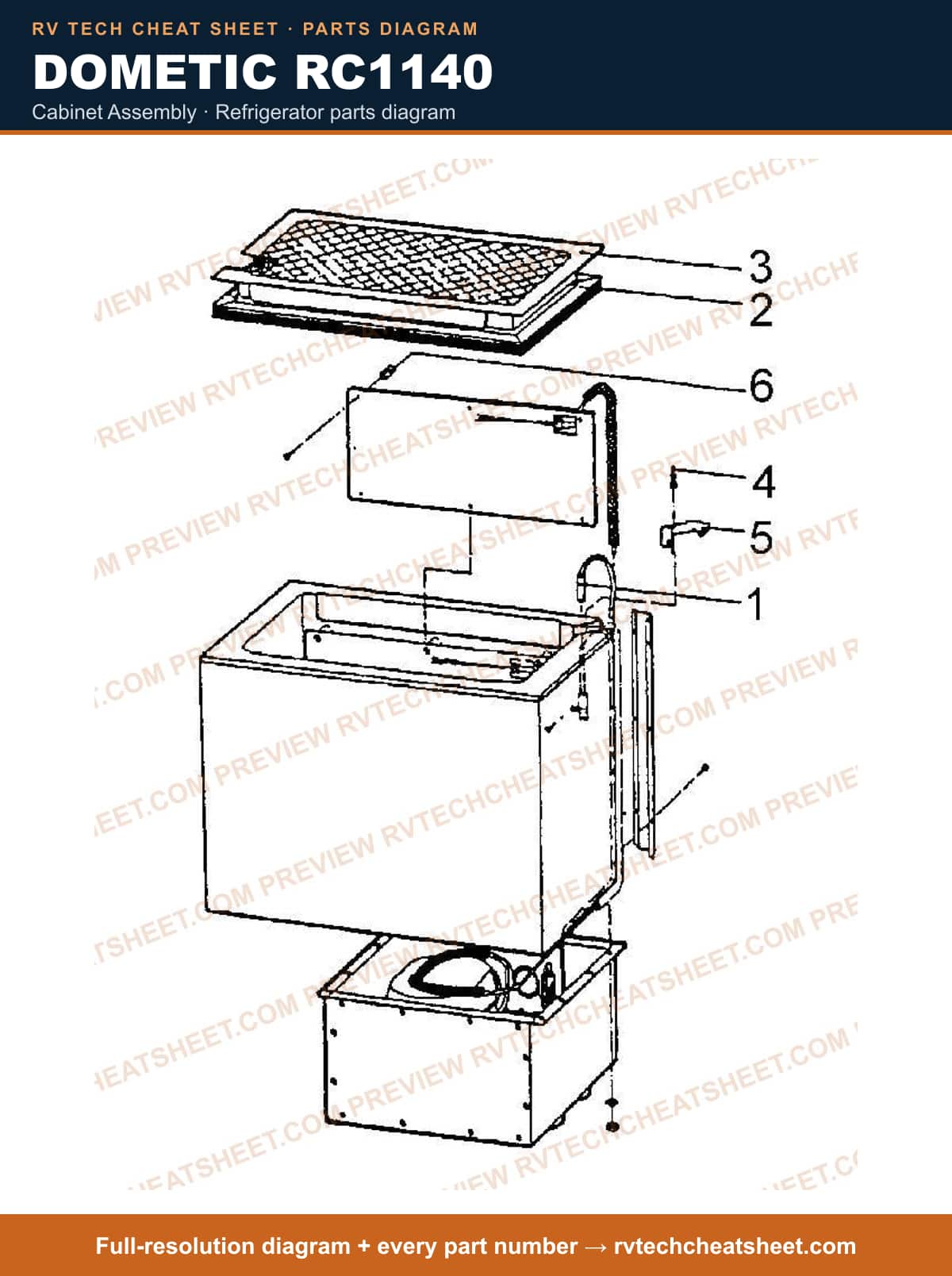

OEM exploded parts diagrams for the Dometic RC1140 RV refrigerator: 2 assemblies (Cabinet Assembly, Cooling Assembly) and 14 manufacturer part numbers.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
