Dometic RC150 Parts Diagram

Refrigerator · 1 diagram sheet · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic RC150 RV refrigerator: 33 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

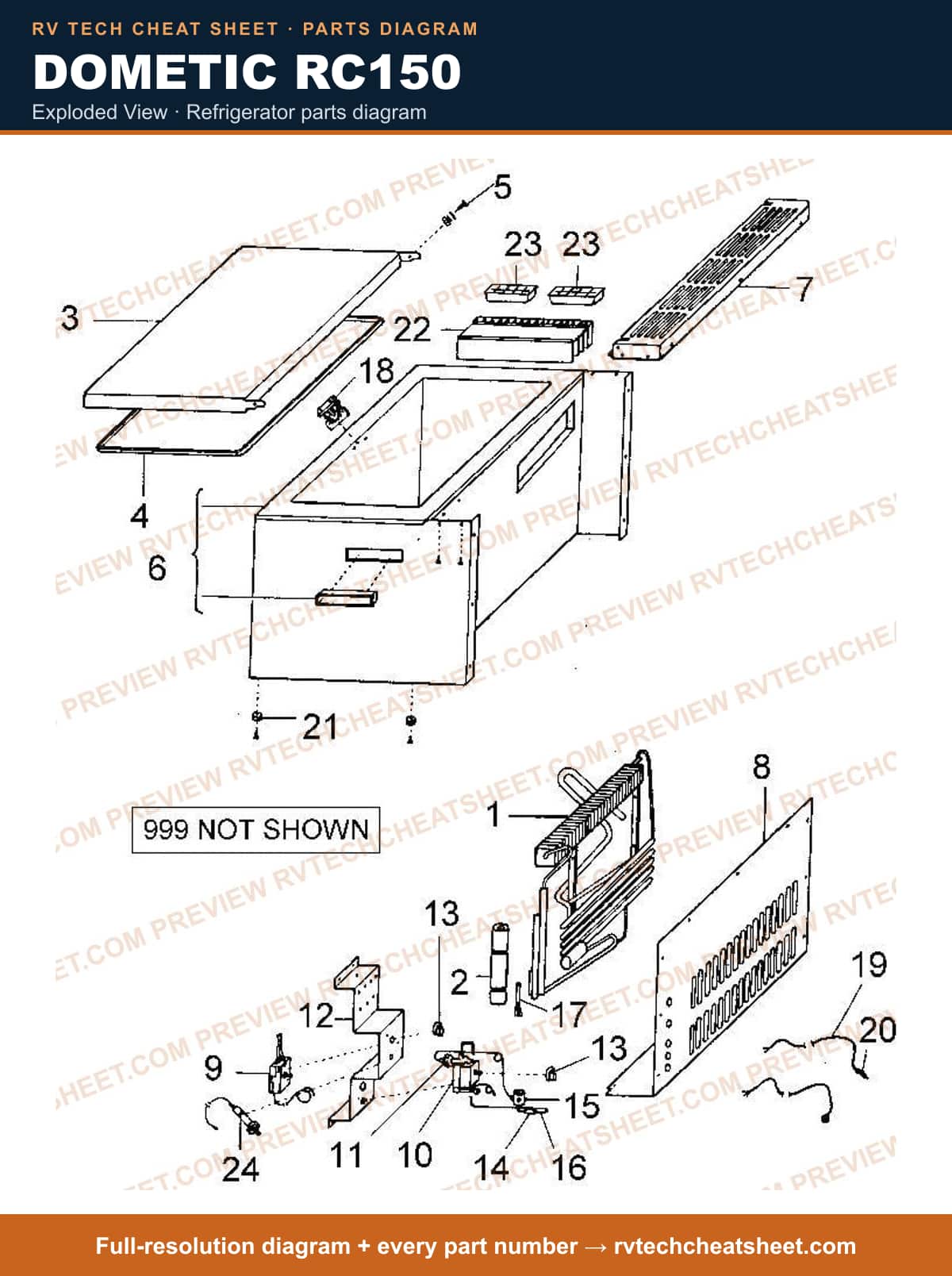

Exploded View

Components

33 items

1. #REMAN COOLING UNIT RC150 (UPS) MFR # 2922302001R
2. #INSULATION RC150 MFR # 2922054008
3. #INSULATION RC150 MFR # 2922301003
4. #GASKET MFR # 2922317009
5. #SCREW (HINGE) CAN BE OBTA INED FROM HARDWARE MFR # 2922362005
6. #CONTAINER,COMPLETE RC15 0 MFR # 2922300005
7. #COVER RC150 MFR # 2922375007
8. #PLATE,BACK RC150 MFR # 2922381005
9. #T-STAT, ELECTRIC USE 948315007 MFR # 2922007006 Superseded: see description
10. #APPLIANCE COMPONENTS RV; T-Stat Kit MFR # 948315007
11. #T-STAT,GAS RC150TEG MFR # 2922005018
12. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
13. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
14. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
15. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
16. #HOLDER RC150 MFR # 2922357005
17. #KNOB,T-STAT RC15 0 MFR # 2922009002
18. #ORIFICE #22 RC150 MFR # 2922033002
19. #BURNER RC150 MFR # 2922012014
20. #TUBE,GAS MFR # 2922358003
21. #HEATER 12 / 120V MFR # 2922025016
22. #APPLIANCE COMPONENTS RV; Snap And Catch Rc2000 MFR # 2922380007
23. #CABLE 12V RC150 MFR # 2922014002
24. #PLUG,12V USE 2929540041 MFR # 2929540000 Superseded: see description
25. #PLUG,LIGHTER 16 AMP MODE L # RC2000 MFR # 2929540041
26. #PLUG USE 2929540000 MFR # 2922015009 Superseded: see description
27. #Refrigerator Bushing; Replacement For Dometic Refrigerator Rc150Teg; Black MFR # 2922379009
28. #FLANGE,COOLING MFR # 2922305004
29. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
31. #TRAY, ICE USE 2922021015 MFR # 2922021007 Superseded: see description
32. #LIGHTER,PIEZO MFR # 2922043019
33. #APPLIANCE COMPONENTS RV; Plate For Lid Rc1507Eg MFR # 2922616152
