Dometic RC150TEG Parts Diagram

Refrigerator · 1 diagram sheet · 78 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic RC150TEG RV refrigerator: 78 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

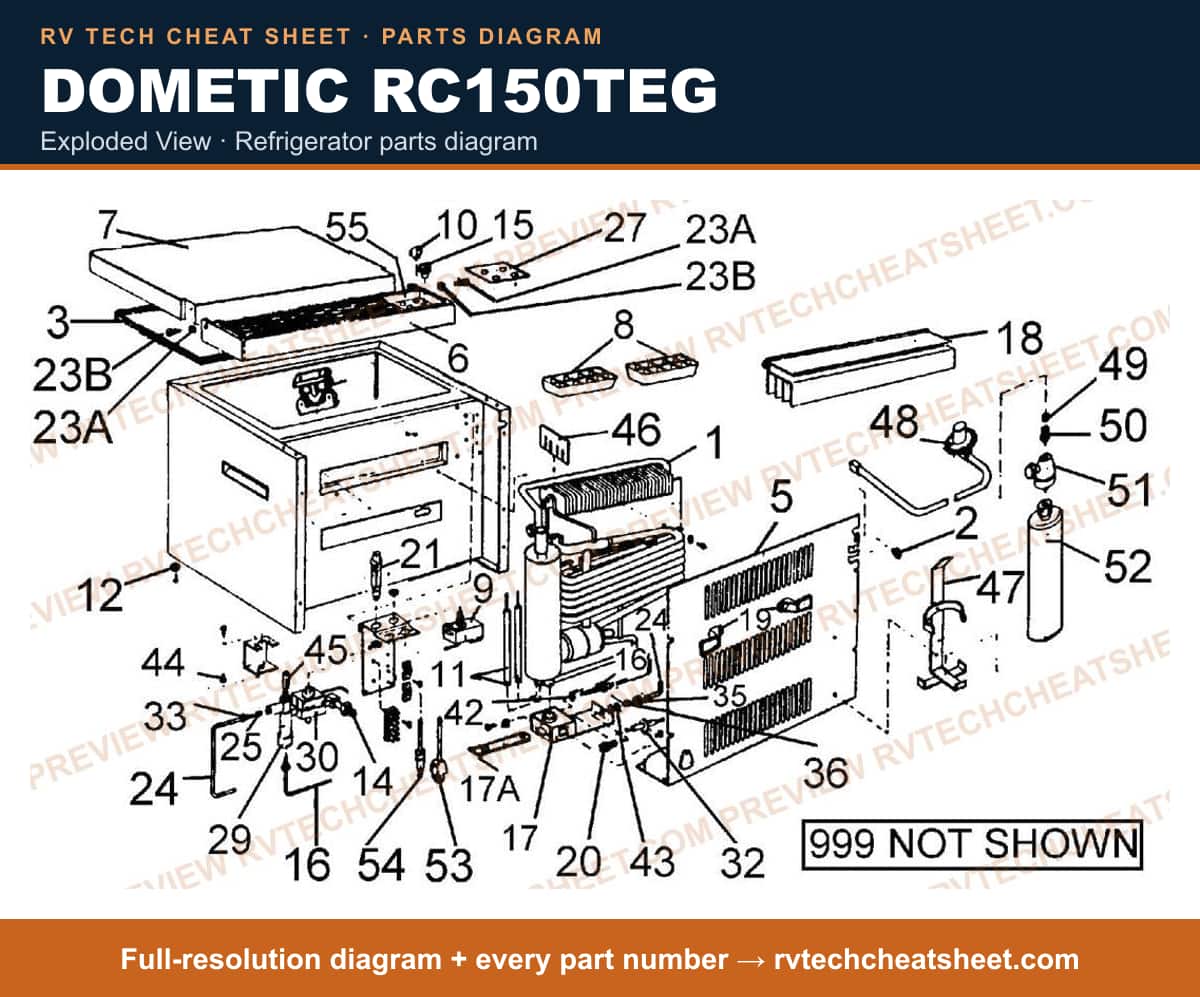

Exploded View

Components

78 items

1. #COOLING UNIT USE 2942312121N RC150TEG MFR # 2942312022N Superseded: see description
2. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2942312121N
3. #COOLING UNIT USE 2942312121N MFR # 2942312402N Superseded: see description
4. #BUSHING MFR # 149585010
5. #GASKET USE 531017709241 RC150TEG MFR # 2922613001 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Gasket MFR # 531017709241
7. #PLATE,BACK MFR # 2922605023
8. #APPLIANCE COMPONENTS RV; Cover Cooling Unit MFR # 531017833157
9. #COVER,C/U USE 531017833157 MFR # 2963202003 Superseded: see description
10. #COVER,GRILLE USE 2963202003 MFR # 2922667007 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Lid Comp. Beige 150Teg MFR # 2922601014
12. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
14. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
15. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
16. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
17. #ELEMENT,HEATING USE 2929491070 MFR # 2929491575 Superseded: see description
18. #Element Heating 12V Dc 85 MFR # 2929491484
19. #ELEMENT, HEATING 75W 120V MFR # 2929491567
20. #Element Heating MFR # 2929491070
21. #APPLIANCE COMPONENTS RV; Foot Rc150 160Teg MFR # 2922379001
22. #APPLIANCE COMPONENTS RV; Connection Piecerc150 Te MFR # 2922211208
23. #APPLIANCE COMPONENTS RV; Knob Gas T-Stat Rc150Teg MFR # 2922644014
24. #APPLIANCE COMPONENTS RV MFR # 2902551106
25. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
26. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
27. #THERMOCOUPLE USE 2902551106 MFR # 2928742044 Superseded: see description
28. #NO PART # GIVEN BY VENDOR MFR # NPG
29. #Refrigerator Burner Tube; Use With Dometic Refrigerator Models RC2000 MFR # 2922675075 Superseded: see description
30. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RC150/ RC160/ RC1600 Refrigerators MFR # 2928530027
31. #APPLIANCE COMPONENTS RV; Holder Cable W/O Screw MFR # 2922382011
32. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
33. #LIGHTER,PIEZO MFR # 2923024208
34. #LIGHTER, PIEZO USE 2922043050 MFR # 2923024000 Superseded: see description
35. #LIGHTER, PIEZO USE 2923024208 RC160EGP MFR # 2922043050 Superseded: see description
36. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
37. #IGNITER, PIEZO USE 2923024000 RC150TED,182 MFR # 2922043045 Superseded: see description
38. #PIEZO MFR # 2923024109
39. #NUT USE 531017710033 MFR # 2922362021 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Nut MFR # 531017710033
41. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RC150TEG/ RC160E/ RC1600EGP Model Refrigerator MFR # 2922362013
42. #APPLIANCE COMPONENTS RV MFR # 2922245002
43. #APPLIANCE COMPONENTS RV MFR # 2922364019
44. #APPLIANCE COMPONENTS RV; Plate For Lid Rc1507Eg MFR # 2922616152
45. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
46. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
47. #VALVE, SAFETY MFR # 293165
48. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
49. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
50. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
51. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
52. #T-STAT,GAS RC150TEG MFR # 2922005018
53. #Igniter Electrode MFR # 2928727037
54. #APPLIANCE COMPONENTS RV MFR # 2922396011
55. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
56. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
57. #RING, SEALING USE 2922559006 MFR # 2922559030 Superseded: see description
58. #NUT,JET MFR # 2928733019
59. #Nut MFR # 2928733001
60. #SCREW RC150TEG MFR # 7231285011
61. #KNOB,SAFETY VLV MFR # 2929487029
62. #Refrigerator Thermostat Control Knob MFR # 2929487037
63. #SPACER MFR # 2922690009
64. #HOLDER,BOTTLE MFR # 2942318003
65. #OPERATOR KIT, GAS RC150TEG MFR # 2922210555
66. #FILTER USE 2922212010 MFR # 2922212017 Superseded: see description
67. #REGULATOR,GAS USE 2922210555 MFR # 2922210888 Superseded: see description
68. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
69. #Appliance Components RV; Filter, Gas MFR # 2923191007
70. #FILTER USE 2922212017 MFR # 2922210666 Superseded: see description
71. #ADAPTER MFR # 2922210999
72. #VALVE KIT,GAS USE 2922210555 RC150TEG TX2173 MFR # 2922210777 Superseded: see description
73. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
74. #BOTTLE,PROPANE 14OZ DISP MFR # 2922210444
75. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
76. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
77. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
78. #CABLE 12V PLUG RC30 MFR # 2929524007
