Refrigerator · 1 diagram sheet · 12 parts · by Andrew Strick, mobile RV technician

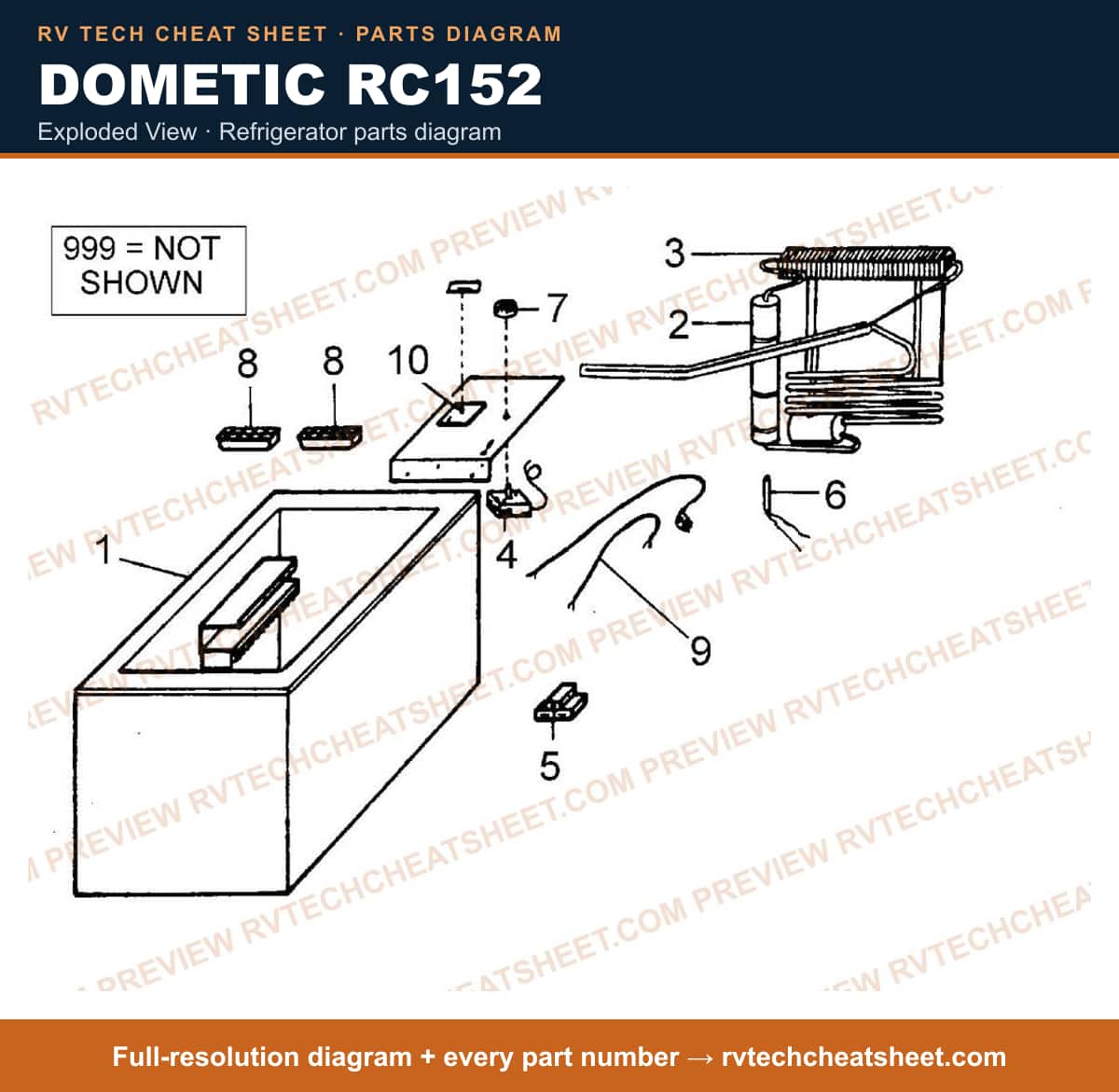

OEM exploded parts diagram for the Dometic RC152 RV refrigerator: 12 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
