Dometic RC1600EGP Product # 921030801 Canada Parts Diagram · Electrical Ignition Asm

Refrigerator · 3 assemblies · 3 diagram sheets · 70 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RC1600EGP Product # 921030801 Canada RV refrigerator: 3 assemblies (Electrical Ignition Asm, LP Gas Ignition System, Cabinet & Cooling Unit) and 70 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Electrical Ignition Asm

Components

20 items

1. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
2. #LIGHTER,PIEZO MFR # 2923024208
3. #PIEZO MFR # 2923024109
4. #LIGHTER, PIEZO USE 2923024208 RC160EGP MFR # 2922043050 Superseded: see description
5. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
6. #ELEMENT, HEATING 75W 120V MFR # 2929491567
7. #ELEMENT,HEATING MFR # 2929375042
8. #Element Heating MFR # 2929491070
9. #ELEMENT,HEATING USE 2929491070 MFR # 2929491575 Superseded: see description
10. #Element Heating 12V Dc 85 MFR # 2929491484
11. #Igniter Electrode MFR # 2928727037
12. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
13. #APPLIANCE COMPONENTS RV MFR # 2902551106
14. #CLIP MFR # 2922367103
15. #APPLIANCE COMPONENTS RV; Holder Cable W/O Screw MFR # 2922382011
16. #BLOCK, TERMINAL 5 -POLE MFR # 2922404518
17. #PLUG, 12V, AUTO MFR # 2929540033
18. #STRAIN RELIEF MFR # 2922609009
19. #HOLDER,FUSE W/CAP MFR # 292968
20. #FUSE RC160TEG MFR # 2929354054

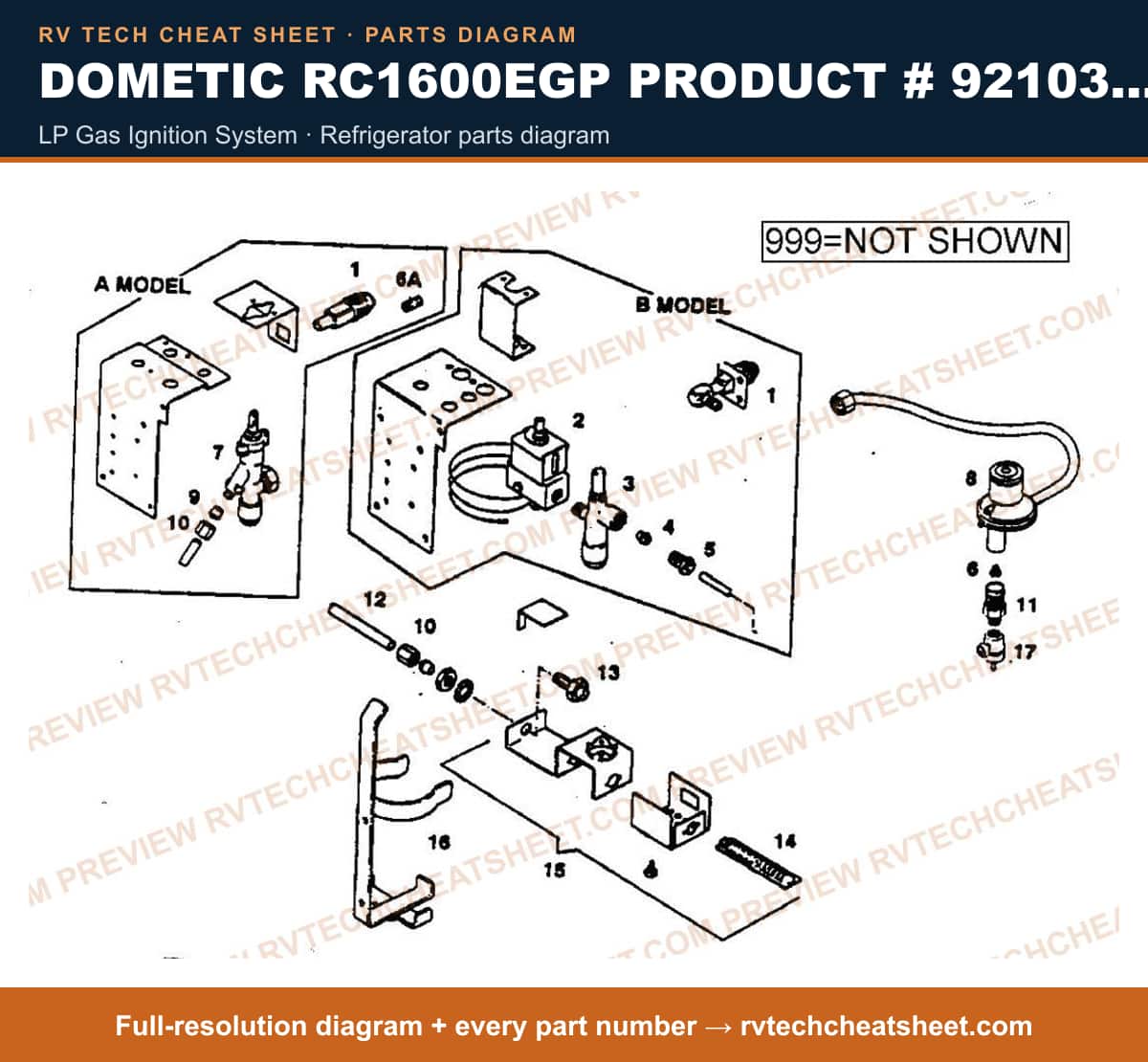

LP Gas Ignition System

Components

21 items

1. #CONNECTION,GAS MFR # 2922608001
2. #T-STAT,GAS RC150TEG MFR # 2922005018
3. #PILOT, SAFETY MFR # 2922006115
4. #APPLIANCE COMPONENTS RV MFR # 2922364019
5. #APPLIANCE COMPONENTS RV MFR # 2922396011
6. #Appliance Components RV; Filter, Gas MFR # 2923191007
7. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
8. #FILTER MFR # 2922212917
9. #IS USE # FOR 2923191007 MFR # 2922210055 Superseded: see description
10. #OPERATOR KIT, GAS RC150TEG MFR # 2922210555
11. #OPERATOR KIT, GAS RC150TEG MFR # 2922210333
12. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
13. #RING, SEALING USE 2922559006 MFR # 2922559030 Superseded: see description
14. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
15. #ADAPTER MFR # 2922210999
16. #APPLIANCE COMPONENTS RV MFR # 2922245002
17. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
18. #APPLIANCE COMPONENTS RV; Orifice MFR # 2922675091
19. #Refrigerator Burner Tube; Use With Dometic Refrigerator Models RC2000 MFR # 2922675075 Superseded: see description
20. #HOLDER,BOTTLE MFR # 2942318003
21. #VALVE KIT,GAS USE 2922210555 RC150TEG TX2173 MFR # 2922210777 Superseded: see description

Cabinet & Cooling Unit

Components

29 items

1. #COOLING UNIT RC160TEG RECON MFR # 2942312121R
2. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2942312121N
3. #COOLING UNIT USE 2942312121N MFR # 2942312402N Superseded: see description
4. #CAP, FLUE MFR # 2928633102
5. #BAFFLE, FLUE MFR # 2942434008
6. #INSULATION, BOILER MFR # 2922518051
7. #INSULATION, BLOCK MFR # 2922640004
8. #Refrigerator Bushing; Replacement For Dometic Refrigerator Rc150Teg; Black MFR # 2922379009
9. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RC150/ RC160/ RC1600 Refrigerators MFR # 2928530027
10. #TRAY,ICE USE 2926998002 ORDER DIVIDER SEPARATELY MFR # 2942518008 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002
12. #DIVIDER,TRAY USE 2926998002 MFR # 2942519006 Superseded: see description
13. #LID ASM RC16 00A MFR # 2942800000
14. #TRIM, GRAY BROWN, HANDLE MFR # 2963402025
15. #COVER,GRILLE USE 2963202003 MFR # 2922667007 Superseded: see description
16. #COVER,GRILLE USE 2922667007 RC160 MFR # 2963202011 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Cover Cooling Unit MFR # 531017833157
18. #COVER,C/U USE 531017833157 MFR # 2963202003 Superseded: see description
19. #PANEL REAR MFR # 2942902046
20. #APPLIANCE COMPONENTS RV; Panel Control Rc1600 MFR # 2922661000
21. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
22. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
23. #KNOB, GAS VALVE MFR # 2922645003
24. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RC150TEG/ RC160E/ RC1600EGP Model Refrigerator MFR # 2922362013
25. #NUT USE 531017710033 MFR # 2922362021 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Nut MFR # 531017710033
27. #Refrigerator Thermostat Control Knob MFR # 2929487037
28. #GASKET USE 531017709241 RC150TEG MFR # 2922613001 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Gasket MFR # 531017709241
