Dometic RC160E Parts Diagram

Refrigerator · 1 diagram sheet · 27 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic RC160E RV refrigerator: 27 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

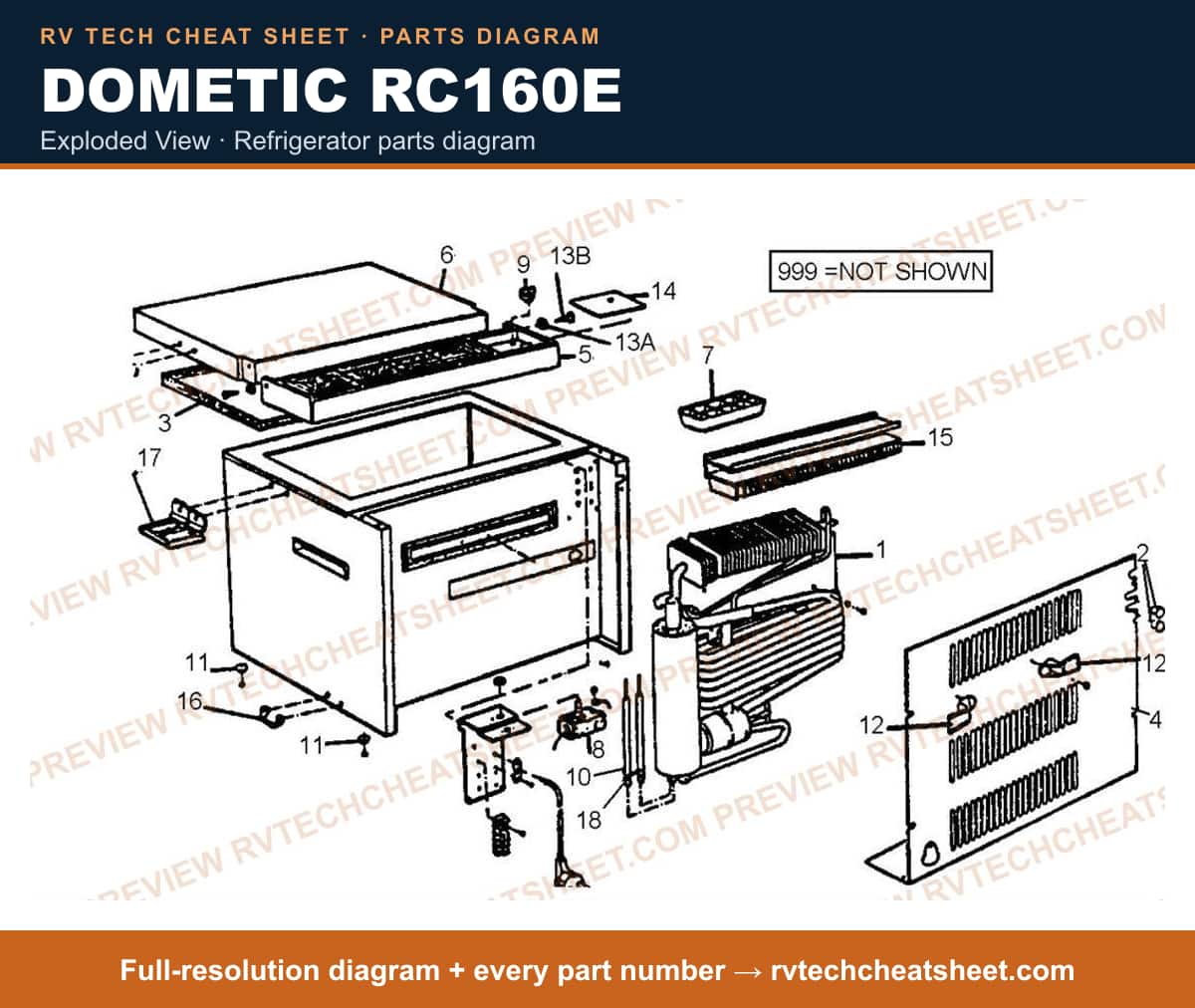

Exploded View

Components

27 items

1. #COOLING UNIT COMPLETE MFR # 2942312002
2. #CABLE SLEEVE MFR # 2922368002
3. #APPLIANCE COMPONENTS RV; Gasket MFR # 531017709241
4. #GASKET USE 531017709241 RC150TEG MFR # 2922613001 Superseded: see description
5. #BACK PANEL MFR # 2922639006
6. #COOLING UNIT COVER, BLACK, NEW MFR # 2922667106
7. #LID, COMPLETE, REINFORCED WITH BLACK (NEW)C.U.C. MFR # 2922642158
8. #LID, COMPLETE, BEIGE/BEIGE WITH REINFORCEMENT FOR MFR # 2922601139
9. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
10. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
11. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
12. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
13. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
14. #HEATING ELEMENT 120V-75W KL530MM MFR # 2929497567
15. #Refrigerator Bushing; Replacement For Dometic Refrigerator Rc150Teg; Black MFR # 2922379009
16. #APPLIANCE COMPONENTS RV; Holder Cable W/O Screw MFR # 2922382011
17. #NUT USE 531017710033 MFR # 2922362021 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Nut MFR # 531017710033
19. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RC150TEG/ RC160E/ RC1600EGP Model Refrigerator MFR # 2922362013
20. #CONTROL PANEL MFR # 2922616136
21. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RC150/ RC160/ RC1600 Refrigerators MFR # 2928530027
22. #FASTENING BOW MFR # 2922692005
23. #Refrigerator Door Hinge Plate; Use With Dometic Refrigerator RC160E; Fits Top Door MFR # 2929509004 Superseded: see description
24. #ELEMENT,HEATING MFR # 2929375042
25. #Element Heating 12V Dc 85 MFR # 2929491484
26. #ELEMENT,HEATING USE 2929491070 MFR # 2929491575 Superseded: see description
27. #Element Heating MFR # 2929491070
