Dometic RC160TEG Parts Diagram

Refrigerator · 1 diagram sheet · 58 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic RC160TEG RV refrigerator: 58 manufacturer part numbers. 24 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

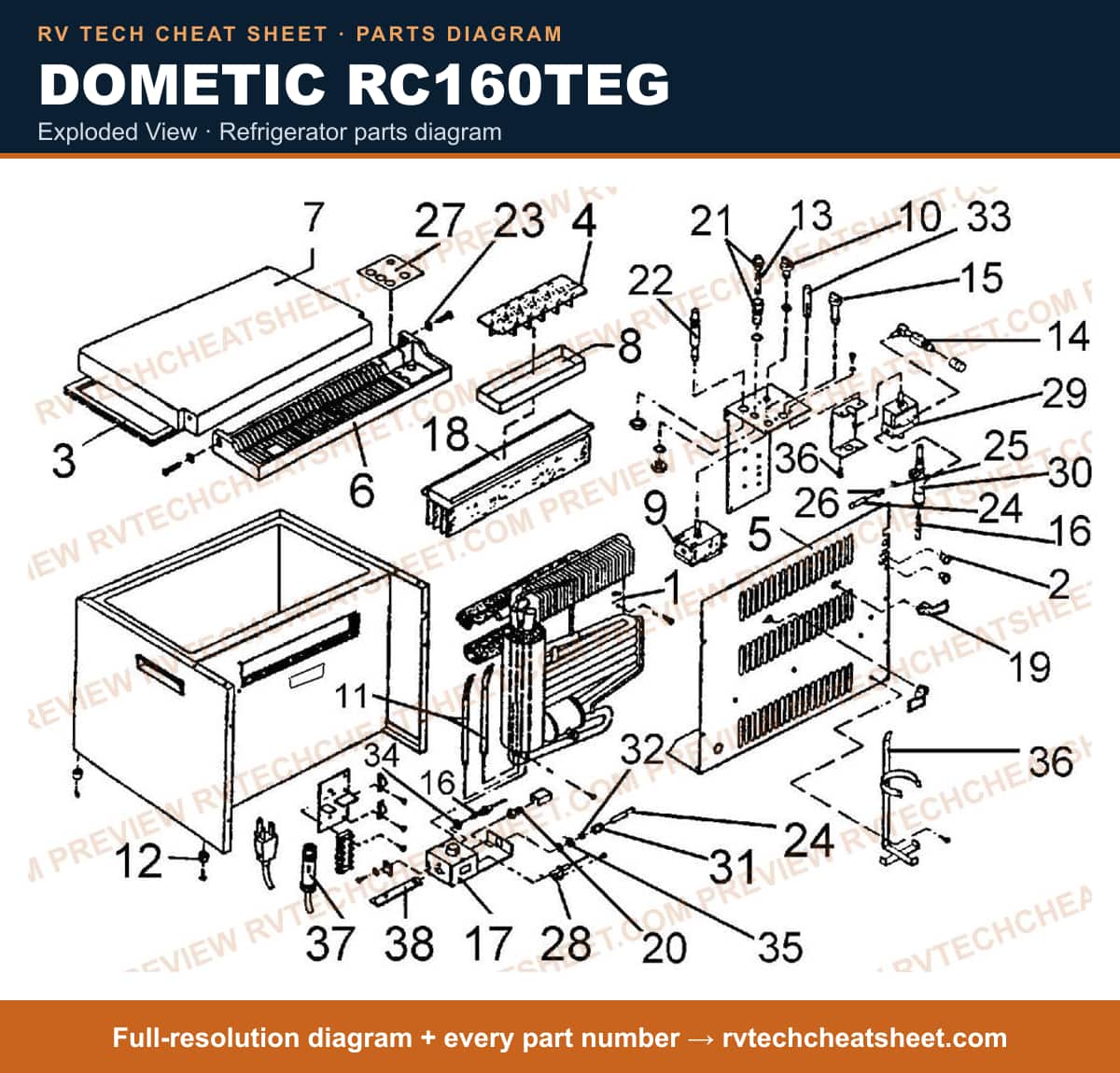

Exploded View

Components

58 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2942312121
2. #CABLE SLEEVE MFR # 2922368002
3. #GASKET USE 531017709241 RC150TEG MFR # 2922613001 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Gasket MFR # 531017709241
5. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002
6. #DIVIDER,TRAY USE 2926998002 MFR # 2942519006 Superseded: see description
7. #PLATE,BACK MFR # 2922605023
8. #GRILLE,COVER USE 2963202011 MFR # 2922679010 Superseded: see description
9. #COVER,GRILLE USE 2922667007 RC160 MFR # 2963202011 Superseded: see description
10. #COVER,GRILLE USE 2963202003 MFR # 2922667007 Superseded: see description
11. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 2922601113 Superseded: see description
12. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922651134 Superseded: see description
13. #TRAY,ICE USE 2926998002 ORDER DIVIDER SEPARATELY MFR # 2942518008 Superseded: see description
14. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
15. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
16. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
17. #ELEMENT,HEATING MFR # 2929375042
18. #ELEMENT, HEATING 75W 120V MFR # 2929491567
19. #ELEMENT,HEATING USE 2929491070 MFR # 2929491575 Superseded: see description
20. #Element Heating 12V Dc 85 MFR # 2929491484
21. #Refrigerator Bushing; Replacement For Dometic Refrigerator Rc150Teg; Black MFR # 2922379009
22. #FUSE RC160TEG MFR # 2929354054
23. #GAS CONNECTION MFR # 2922211202
24. #APPLIANCE COMPONENTS RV; Knob Gas T-Stat Rc150Teg MFR # 2922644014
25. #THERMOCOUPLE USE 2902551106 760MM MFR # 2902551098 Superseded: see description
26. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
27. #APPLIANCE COMPONENTS RV MFR # 2902551106
28. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
29. #Refrigerator Burner Tube; Use With Dometic Refrigerator Models RC2000 MFR # 2922675075 Superseded: see description
30. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RC150/ RC160/ RC1600 Refrigerators MFR # 2928530027
31. #APPLIANCE COMPONENTS RV; Holder Cable W/O Screw MFR # 2922382011
32. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
33. #Refrigerator Power Cord Fuse; Use With Dometic RC2000/ RM182AGA/ RC1600EGP Refrigerators MFR # 2929368039 Superseded: see description
34. #PIEZO LIGHTER MFR # 2922043043
35. #NUT MFR # 2922342021
36. #APPLIANCE COMPONENTS RV MFR # 2922245002
37. #APPLIANCE COMPONENTS RV MFR # 2922364019
38. #APPLIANCE COMPONENTS RV MFR # 2922396011
39. #PANEL,CONTROL RC160 MFR # 2922661117
40. #Igniter Electrode MFR # 2928727037
41. #T-STAT,GAS RC16 0TEG MFR # 2922995018
42. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
43. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
44. #VALVE, SAFETY MFR # 293165
45. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
46. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
47. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
48. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
49. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
50. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
51. #RING, SEALING USE 2922559006 MFR # 2922559030 Superseded: see description
52. #Refrigerator Thermostat Control Knob MFR # 2929487037
53. #NUT,JET MFR # 2928733019
54. #HOLDER,BOTTLE MFR # 2942318003
55. #PLUG,12V USE 2929540041 MFR # 292954000 Superseded: see description
56. #PLUG,LIGHTER 16 AMP MODE L # RC2000 MFR # 2929540041
57. #TUBE,BURNER USE 2928749023 MFR # 2928749007 Superseded: see description
58. #Stove Burner Tube MFR # 2928749023
